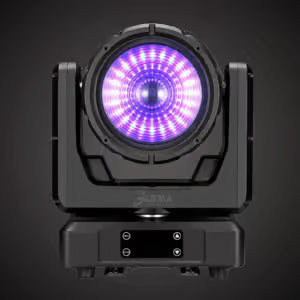

Tidal Helix Z IP

The Tidal Helix Z IP is a compact IP65-rated moving head featuring a 120W RGBL main LED and a pixel-mapped background layer of 48 RGB+WW LEDs. With a 3.8°–38° zoom, 140mm Fresnel lens, and 2,500-lumen output, it delivers everything from sharp beams to soft washes, making it ideal for indoor and outdoor productions.

From The Manufacturer:

The Tidal Helix Z IP is an advanced outdoor-rated moving head designed for professionals who demand both creativity and reliability. Featuring a 120W RGBL LED main layer and a fully pixel-mapped background layer of (48) RGB+WW LEDs, it delivers dynamic effects and rich color depth that elevate any production.

With a 3.8º–38º zoom, 140mm Fresnel lens, and 2,500 lumen output, the Tidal Helix Z IP transitions seamlessly from sharp, defined beams to smooth, soft washes. Its calibrated color modes, green-magenta shift, and wide 2,000–12,850K range ensure precision control in any lighting environment.

Built tough with an IP-65 housing, this compact 15.5-lb fixture stands up to the elements while supporting DMX, Art-Net, and sACN for full creative flexibility. The Tidal Helix Z IP is your go-to for stunning visuals and a great fit for indoor or outdoor use.

Features:

• Main Layer LED’s: 120 watt LED’s

• Color Mixing (Main Layer): RGBL color mixing

• Background Layer LED’s: (48) 1w RGB+WW LED’s

• Pixel Mapping (Background Layer): Individual control of each Background RGB+WW LED

• 2,000 – 12,850k

• 540 Degree Pan, 220 Degree Tilt

• Lumen Output:2,500lm

Specification:

• Power supply:

• Voltage: AC100-240V

• Optics:

• Zoom Range: 3.8º – 38º

• 140mm Fresnel Lens

• Defined Narrow Beam

• Soft Edge Wide beam

• Calibrated Color Modes

• Calibrated Green Magenta Shift (Tint)

• Dimming: 0-100% 16 bit

• Strobe: Variable speed strobe

• Physical Features:

• External Housing: IP-65 Outdoor Rated

• DMX in & out: IP-Rated 3-Pin DMX input & output

• Power in & out: IP-Rated PowerCon™  input

• Control:

• Control Protocol: DMX 512/ 3-pin interfaces

• Control System: DMX/ Art-Net/ sACN

• DMX Channels: 26CH & 47CH & 105CH & 125CH

• Working Environment:

• Cooling System: Variable Speed Temperature Controlled Fan Cooling

• IP Grade: IP-65

• Package:

• Net Weight: 15.5 lbs

• Dimensions: 11 x 9.8 x 14.3″ in
