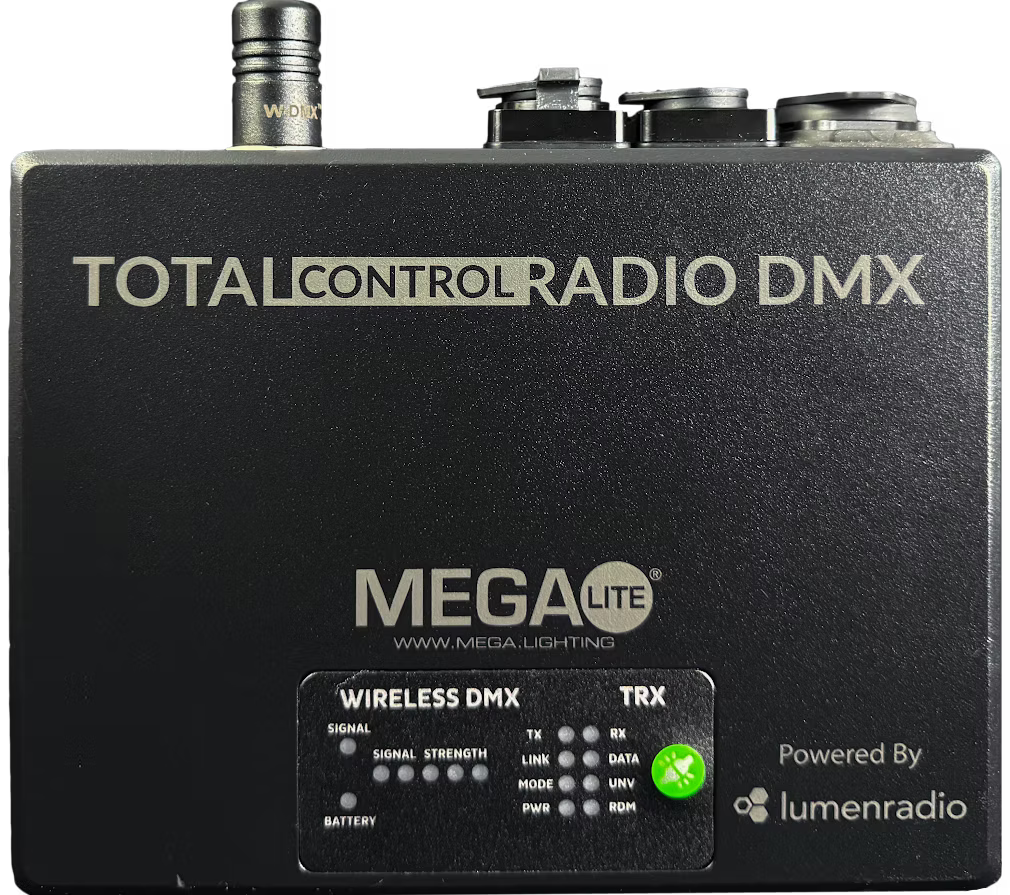

Total Control Radio DMX Transceiver

From the Manufacturer

The Total Control Radio DMX Transceiver is designed for effortless setup, eliminating the need for lengthy cables. It supports a single universe of DMX with an impressive range of up to 100 meters. Its user-friendly design ensures quick and easy control, with each unit capable of functioning as either a receiver or a transmitter.
You will need two units—one to serve as a transmitter (TX) and the other as a receiver (RX). Additionally, you can connect it with fixtures using the Lumen Radio receiver-ready integrated.
Keep your show running smoothly with a remarkable battery life of up to 88 hours (when new), providing uninterrupted power. The device is fully protected against dust and low-pressure water jets from any direction, making it reliable in various environments. The radio DMX transceiver can be used in installations with flexible mounting options or stacking capabilities. You can attach a clamp directly to the unit or use a quick-release clamp for production or truss mounting.

Features

• IP65 Rating: The device is fully protected against dust and low-pressure water jets from any direction, making it reliable in various environments.

• Intuitive Integration: The user-friendly design allows for quick and easy control. Each unit can function as either a receiver or a transmitter. You will need two units—one to act as a transmitter and one as a receiver (RX). Alternatively, you can connect with existing Lumen Radio devices.

• Multiple Mounting Options: Utilize the unit in installations with flexible mounting options or stacking capabilities. You can attach a clamp directly to the unit or use a quick-release clamp for production or truss mounting.

Specs

• Housing: Diecast aluminum
• Mounting System: Quick Release Clamp Mount with two 13mm holes, M10 Hole, Wall mount, Velcro Strap
• Power Connection: Seetronics SAC3MPX-67 (Seetronics black power connection SAC3MX-67 to Nema 5-15 cable included)
• Signal Connection: XLR 5 pin Input and Output.
• Fixture Size: 7.3" X 6.7" X 2.3"18.54 X 17.01 X
• Fixture Weight: 5.8cm
• Case Size: 2.64lbs 1.19kg
• Case Weight: 11" X 11" X 4"27.94 X 27.94 X 10.16cm 5.5 lbs 2.49kg
• Radio frequency used: 5.2 85.8 GHz wW-DMX G3 &G4 compatible 2.4 GHz Normal mode 100mW, 2.4 GHz Maximum Power 450mW 126 Channels using frequency hopping technology-AFHSS
• Frequency agile:Adaptive
• Universes:Up to 32 Universes simultaneously
• Broadcast power: 5dBi Max
• Communication distance:
  Up to 100 Meters (Outdoor prime operating environment)
• DMX Latency: <5ms
• Battery run time: Up to 88 Hours
• Battery charge time: 2.5 Hours
• Power consumption: 35A@ 110vACor.2A@ 240vAC
• Power supply: 100-250V AC 50-60Hz
• Signal protocol: DMX 512, RDM
• Display: Power Indicator & Connection Status
• Compliant: This device complies with part 15 of the FCC rules.
• IP Rating: 1P65
