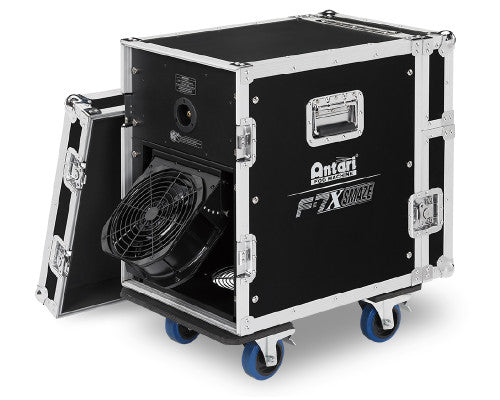

F-7X Smaze Touring Class Hybrid Fog & Haze Machine

The Antari F-7X Smaze is a professional touring-class hybrid fog and haze machine that combines powerful fog generation and continuous faze effects in a single unit. Featuring a TFT-LCD touchscreen, separate 5-litre fluid tanks, built-in voltage protection, fluid detection and DMX512 control, the F-7X provides flexible atmospheric effects for concerts, touring productions, theatre, festivals and large-scale professional events.

From The Manufacturer:

Elevate your atmospheric effects with the Antari F-7X Smaze, an ingenious combination of fogger and fazer in one ultimate machine.

With limitless possibilities, it seamlessly fuses two functions into a single powerhouse.

The Antari F-7X Smaze empowers you to create mesmerizing environments without boundaries.

Key Features:

• Touring-class hybrid fog and haze machine

• Combines fogger and fazer functions in one unit

• TFT-LCD touchscreen interface

• Fluid detection system

• Built-in voltage protection

• Multi-language interface support

• Dual Thermal Cut-Off Technology (TCO)

• Separate fog and haze fluid systems

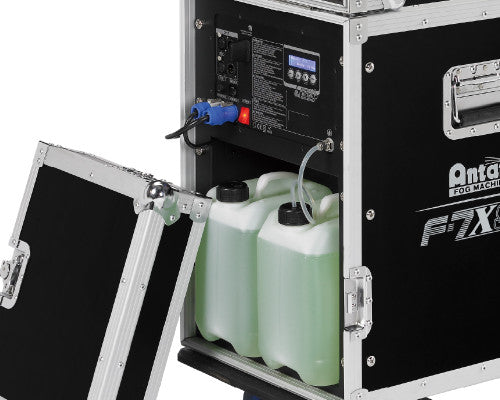

• 2 × 5 L fluid tanks

• Approximately 8-minute warm-up time

• Manual control

• Timer control

• DMX512 control

• Optional W-DMX control

• Optional wireless remote control

• 3 DMX channels

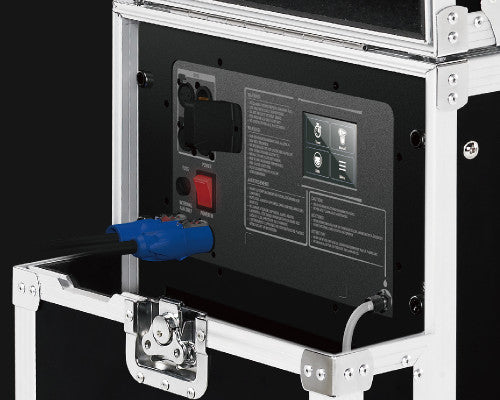

• Neutrik powerCON power connection

• 3-pin and 5-pin XLR DMX connections

• Professional touring-class construction

Specifications:

• Product Type: Hybrid Fog & Haze / Smaze Machine

• Manufacturer: Antari

• Model / SKU: F-7X Smaze

• Warm-Up Time: Approximately 8 Minutes

• Fog Fluid Consumption: 150 ml/min @ 100% Output

• Faze Fluid Consumption: 28 ml/min @ 100% Output

• Faze Operating Time: Approximately 2.8 Hours at Maximum Output

• Fluid Tank Capacity: 2 × 5 L / 1.32 gal

• Total Fluid Capacity: 10 L

• Control Methods: Manual / Timer / DMX512 / Optional W-DMX / Optional Wireless

• DMX Channels: 3

• DMX Connections: 3-Pin and 5-Pin XLR

• Power Connection: Neutrik powerCON

• Display: TFT-LCD Touchscreen

• Fluid Detection: Yes

• Voltage Protection: Built-In

• Thermal Protection: Dual Thermal Cut-Off Technology

• Ambient Operating Temperature: 0°C–40°C / 32°F–104°F

Compatible Fluids:

• Antari FLG-5E Fog Fluid

• Antari FLH-5E Haze / Faze Fluid

• Antari FLZ-5E Fog Fluid

Applications:

• Concerts

• Touring productions

• Festivals

• Theatre

• Stage productions

• Live events

• Film and television

• Large venues

• Theme parks

• Houses of worship

• Corporate productions

• Professional atmospheric effects

Included Accessories:

• No additional included accessories specified by Antari

Optional Accessories:

• Antari ES-W-DMX Wireless DMX Receiver

• Antari WTR-110 Wireless Remote

• DMX cables

• Additional power cabling as required

• Compatible Antari fog and haze fluids

Size:

• 728 × 428 × 719 mm

• 28.66 × 16.85 × 28.31 in

Weight:

• 53 kg

• 115.74 lb

Electrical / Thermal:

• US Input: AC 100–120 V, 50/60 Hz, 13.5 A

• EU Input: AC 220–240 V, 50/60 Hz, 8.0 A

• Rated Power @ 100 V: 1400 W

• Rated Power @ 120 V: 1600 W

• Rated Power @ 240 V: 1900 W

• Ambient Operating Temperature: 0°C–40°C / 32°F–104°F

• Built-In Voltage Protection

• Dual Thermal Cut-Off Technology (TCO)
