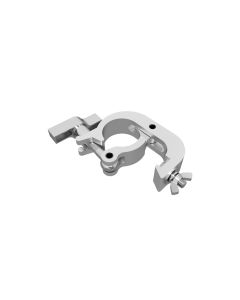

Trigger Clamp Heavy-Duty Aluminum Truss Clamp

The Global Truss TRIGGER CLAMP is a heavy-duty, hook-style aluminum clamp designed for securely mounting compatible lighting fixtures and equipment to professional trussing. Featuring a wrap-around design and a large T-handle for tightening, it accommodates truss tubing between 48 mm and 51 mm in diameter. With a maximum rated load capacity of 250 kg (550 lb), it is suitable for professional stage and event installations when used within the manufacturer's specifications.

From The Manufacturer:

The Global Truss TRIGGER CLAMP is a narrow, hook-style wrap-around clamp designed for 2-inch truss tubing. It features an M10 mounting bolt and is compatible with F31, F32, F33, F34 and DT44P truss systems. The clamp has a maximum rated load capacity of 250 kg (550 lb).

Key Features:

• Heavy-duty hook-style wrap-around design.

• Aluminum construction.

• Large T-handle for tightening.

• Compatible with Global Truss F31, F32, F33, F34 and DT44P trussing.

• Accommodates tubing diameters from 48 mm to 51 mm.

• M10 × 30 mm mounting bolt.

• Maximum rated load capacity of 250 kg (550 lb).

• Compact 30 mm profile width.

• Silver finish.

Specifications:

• Brand: Global Truss.

• Model: TRIGGER CLAMP.

• Manufacturer SKU: CLM0729.

• Product Type: Heavy-duty truss clamp.

• Construction Material: Aluminum.

• Finish: Silver.

• Compatible Truss Systems: F31, F32, F33, F34 and DT44P.

• Minimum Tube Diameter: 48 mm.

• Maximum Tube Diameter: 51 mm.

• Maximum Rated Load: 250 kg (550 lb).

• Mounting Bolt: M10 × 30 mm.

• Thread Pitch: 1.5 mm coarse.

• Profile Width: 30 mm.

• Case Quantity: 25 units.

Included Accessories:

• One Global Truss TRIGGER CLAMP.

• Integrated tightening handle.

• M10 mounting bolt.

Applications:

• Mounting compatible lighting fixtures to trussing.

• Concert and live-event production.

• Theatre and stage lighting installations.

• Exhibition and trade-show structures.

• Churches and performance venues.

• Professional event rigging.

Included Accessories:

• One TRIGGER CLAMP assembly with mounting hardware.

Accessories (Not Included):

• Compatible Global Truss trussing.

• Lighting fixtures or other mounted equipment.

• Additional rigging accessories not specified by the manufacturer.

Size:

• Compatible Tube Diameter: 48–51 mm.

• Profile Width: 30 mm.

• Overall Dimensions: Manufacturer specification not available.

Weight:

• Unit Weight: 1.02 lb (approximately 0.46 kg).
