Tunable White CV Tape 24V 10M

The ENTTEC Tunable White Constant Voltage LED Strip (NA2) is a high-output, non-addressable 24V tunable white LED strip with adjustable color temperature from 3000K to 5500K, for professional hospitality, residential, office, museum, and multi-purpose installations.

From the Manufacturer

ENTTEC designs and manufactures a complete range of high-quality LED strips to suit any desired mood or effect. The NA2 tunable white CV strip delivers the highest output in the NA series with 120 SMD2835 LEDs per meter and a maximum output of 1,803 lm/m, built on a robust 4oz copper substrate for superior durability and performance. Adjustable from 3000K to 5500K, the NA2 gives you precise control over color temperature — from warm, ambient tones for a comfortable lounge setting to bright daylight-white light for focus-oriented workspaces. With CRI > 90, R9 > 50, and SDCM < 3, it delivers specification-grade color quality suitable for the most demanding hospitality, retail, and gallery environments.

Unlike standard 1oz–2oz LED strips, the NA2's heavy-duty 4oz copper FPC provides higher current-carrying capacity, reduced voltage drop over long distances, better thermal regulation, improved LED longevity, and greater mechanical strength and bending reliability. The NA2 also offers the longest run lengths in the NA series — up to 15m with dual injection and 12m with single injection — simplifying installation layouts and reducing the number of drivers and injection points required. The strip can be cut every 100mm (12 LEDs) and features easy solder-tab connections and 3M adhesive backing for flexible installation.

Features

• Tunable white color temperature: adjustable 3000K–5500K for precise atmosphere control
• Highest output in the NA series: 1,803 lm/m
• 120 SMD2835 LEDs per meter — double the LED density of the NA3 and NA4
• Exceptional color accuracy: CRI > 90, R9 > 50, SDCM < 3
• 4oz copper FPC substrate — higher current capacity, reduced voltage drop, better thermal regulation, and greater mechanical durability vs. standard 1oz–2oz strips
• Longest run lengths in the NA series — up to 15m with dual injection; up to 12m with single injection
• Cuttable every 100mm (12 LEDs per cutting unit) for flexible installation layouts

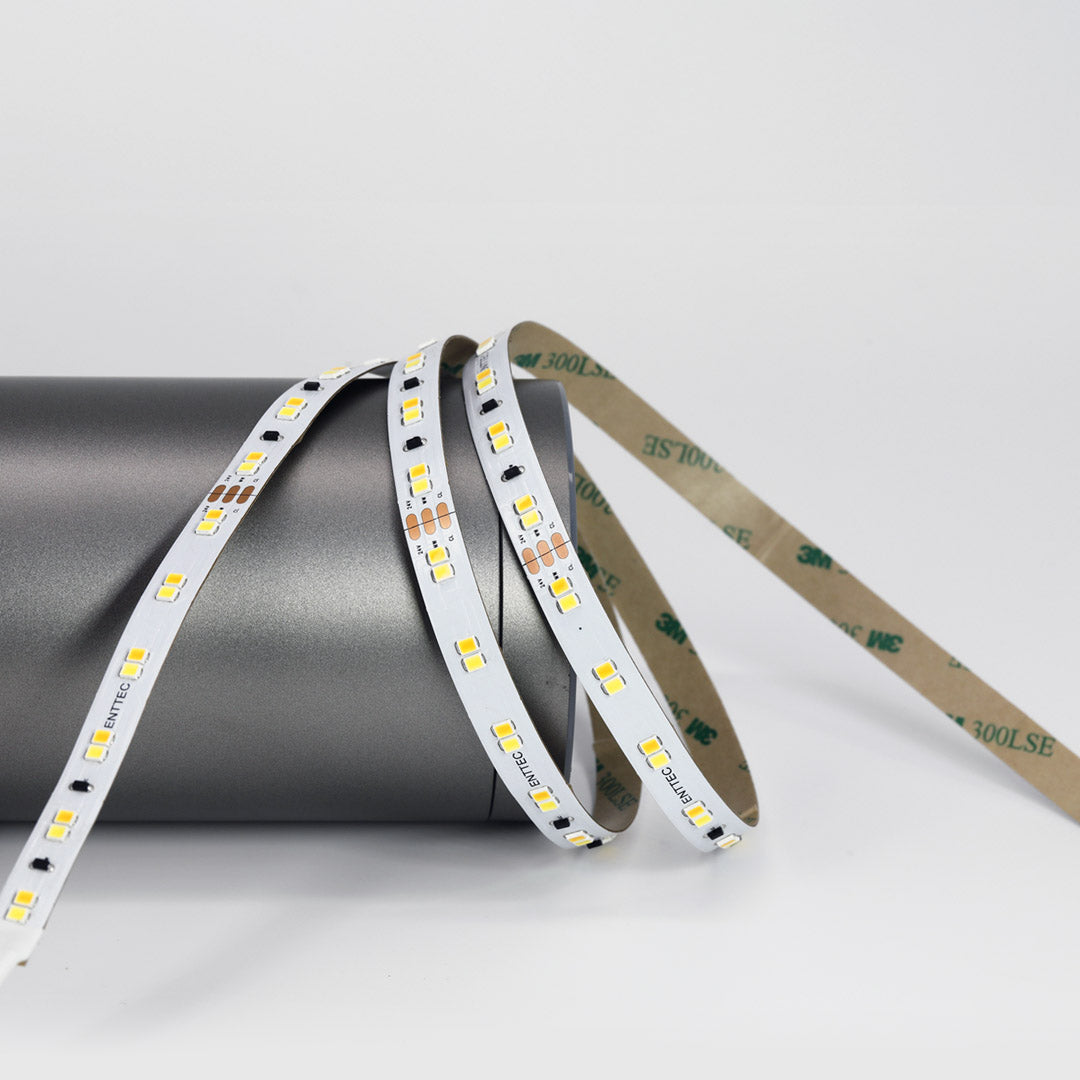

• Easy solder-tab connections with 3M adhesive backing
• White PCB finish
• Compatible with ENTTEC CVC4 constant-voltage dimmer for smooth, flicker-free dimming and precise brightness control
• LED lifetime L70: >36,000 hours
• UL Listed; also compliant with FCC, UKCA, CE/WEEE, and RCM standards
• Recommended use: Hospitality, residences, offices, museums, adaptable multi-purpose spaces

Specifications

Light Source

• LED Type: SMD2835
• LED Color (CCT): Tunable White (3000K–5500K)
• LED/Meter: 120 LEDs/m
• Beam Angle: 120°
• Lumens/Meter: 1,803 lm/m
• CRI: > 90
• R9: > 50
• SDCM: < 3
• LED Lifetime L70: >36,000 hours

Electrical

• Input Voltage: 24V
• Power/Meter: 11.8W/m
• Max Efficacy: 152.8 lm/W
• Dimming Method: LED dimmable by ENTTEC CVC4 (73926)
• Connectors: 3-pin solder tabs

Physical

• PCB Color: White
• PCB Width: 10mm / 0.39"
• Spacing Between Cuttable Sections: 100mm / 3.94"
• LEDs per Cutting Unit: 12 LEDs
• Min. Bend Radius: 30mm / 1.18"
• IP Rating: IP20
• Working Temperature: -30°C to 55°C
• Storage Temperature: 0°C to 60°C
• Operating Humidity: 5–95% (non-condensing)

Shipping

• Shipping Weight (10m roll): 0.3 kg / 0.66 lbs
• Shipping Dimensions (single roll): 250 x 255 x 30mm / 9.84 x 10.04 x 1.18"

Compliance & Warranty

• Compliance: UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 1-year return to base manufacturer warranty
