U-41

Handheld transmitter for spare or replacement.

From the Manufacturer

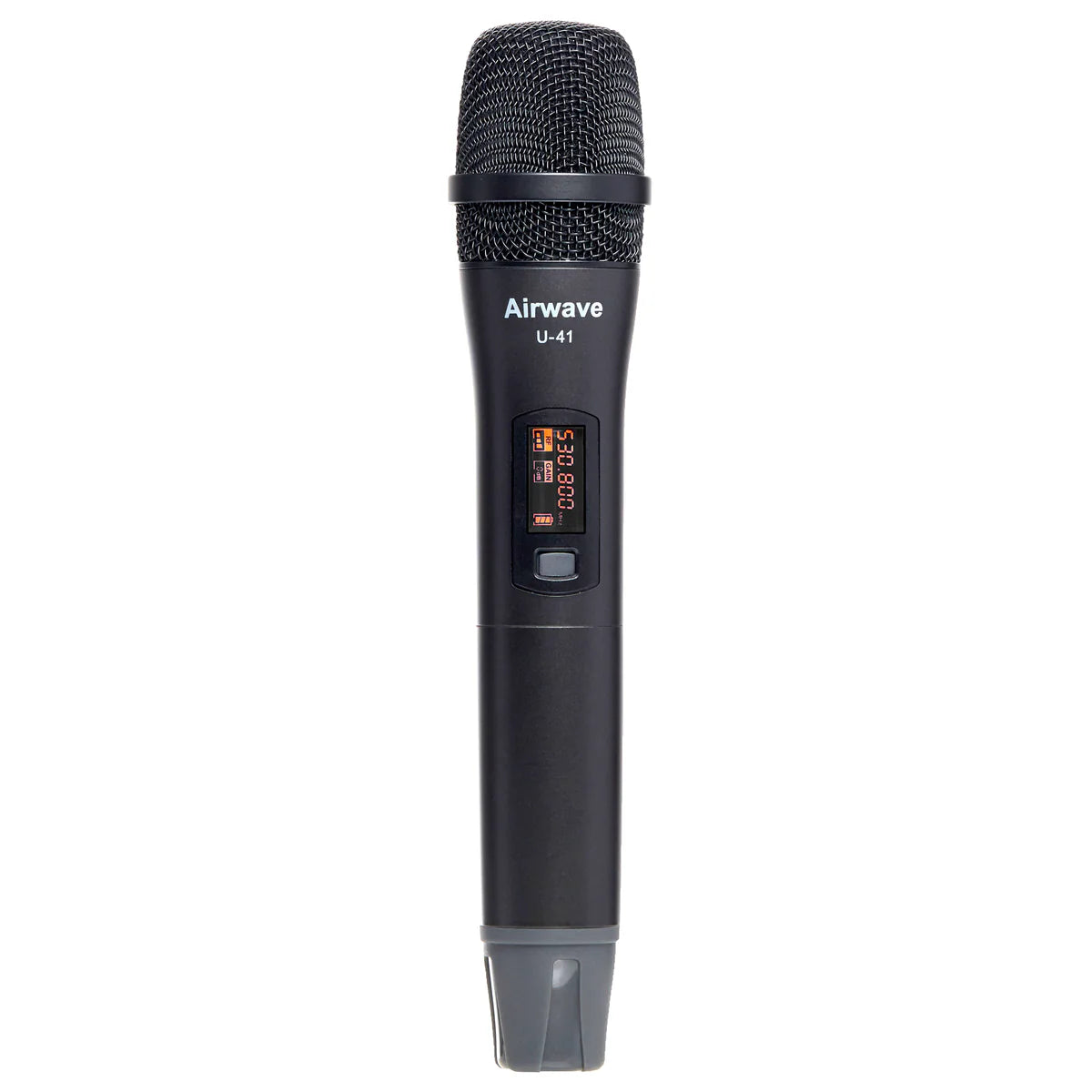

The Airwave Technologies AT-U41 Handheld Transmitter is the perfect drop-in replacement for transmitters used with the Airwave AT-4000 series wireless system. Use it to replace a missing, damaged, or broken AT-U41, or grab one as a backup for your rig.  Our new version of the AT-U41 Handheld microphone has a durable, high quality feel.  Syncs easily with our 4000 series units.

Features

• Choice of 514-542 MHz or 470-489 MHz Frequency Range

• Modularized Microphone Head Design for easy replacement.

• LCD screen with Orange Backlight.

• Frequency, Battery Life, RF, Gain, Mute and Lock status indicators.

• 3 optional audio gain adjustments.

• 3 optional transmit power adjustments.

• Infrared data synchronization.

• Rock-solid metal body design and strong rubber end structure.

AT-U41 HANDHELD MICROPHONE TRANSMITTER SPECIFICATIONS

• Capsule Sensitivity: -50dB ± 2dB V/PA@1KHz

• Capsule Frequency Response: 50Hz ~ 16KHz

• Gain Adjustment Range: 0/3/6dB

• Input Impedance: 5KΩ

• Output Power: 2mW / 10mW / 30mW

• Spurious: >dB

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements: 1.5V x 2(AA)

• Battery Life: >8H/1300mAH

• Dimensions: 9.84” x 1.97”

• Weight: 12.7oz
