U-42

Bodypack transmitter for spare or replacement.

From the Manufacturer

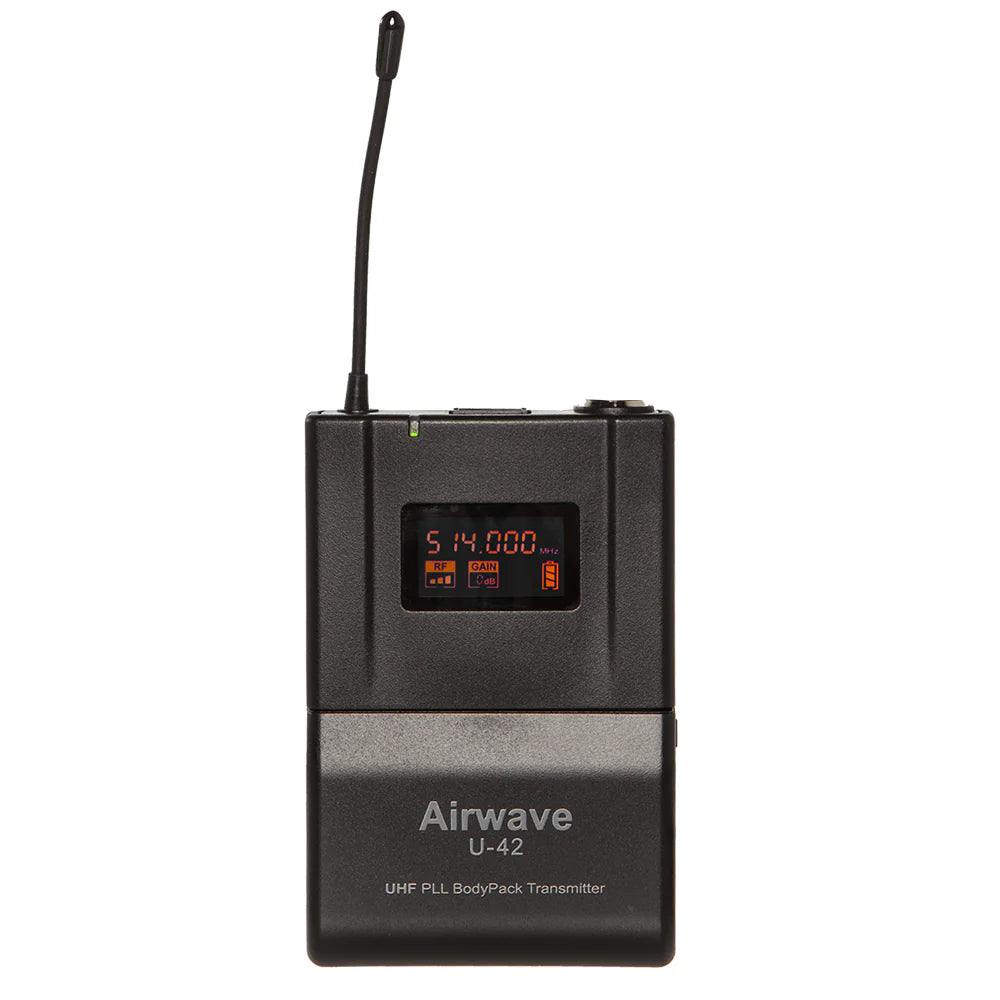

The Airwave AT-U42 Bodypack Transmitter is the perfect drop-in replacement for any Airwave AT-4000 series wireless system. Use it to replace a missing, damaged, or broken AT-U42, or grab one as a backup for your rig.

Features

• Choice of 514-542 MHz or 470-489 MHz Frequency Range

• LCD screen with Orange Backlight.

• Frequency, Battery Life, RF, Gain, Mute and Lock status indicators.

• 3 optional audio gain adjustments.

• 3 optional transmit power adjustments.

• Infrared data synchronization.

AT-U42 BODYPACK TRANSMITTER SPECIFICATIONS

• Gain Adjustment Range: 0/3/6dB

• Input Impedance: 5KΩ

• Output Power: 2mW / 10mW / 30mW

• Harmonic Rejection: > 50dB

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements: 1.5V x 2(AA)

• Battery Life: >8H/1300mAH

• Dimensions: 6.5” x 2.56” x .91”

• Weight: 4.59oz
