UBL12HB

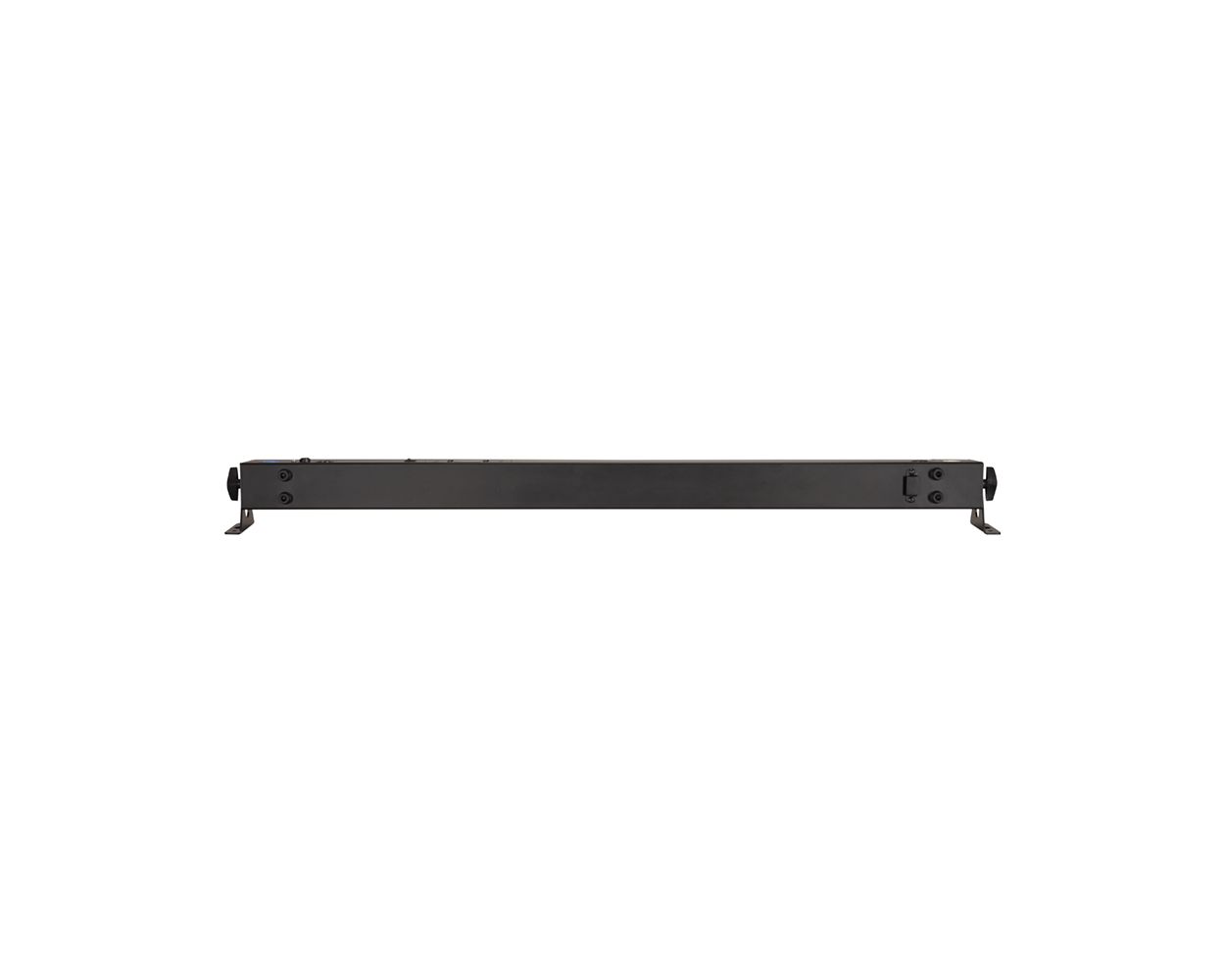

The UBL12HB is a battery powered strip wash bar. It can work well as a backlight effect type light or as a wash type fixture for small to medium sized events.

From The Manufacturer:

Expanding on the success of the UBL12H, the innovative UBL12HB is a battery-operated, 1-meter linear LED wash luminaire. It features a lime-enhanced HEX LED with twelve (12) 20-Watt LEDs in Red, Green, Blue, Amber, Lime, and UV. The addition of the lime chip delivers superior color rendering with a CRI exceeding 90 and offers adjustable white light ranging from 2,300K to 9,900K.

Features:

• Linear Color Temperature Control (2,300K to 9,900K)

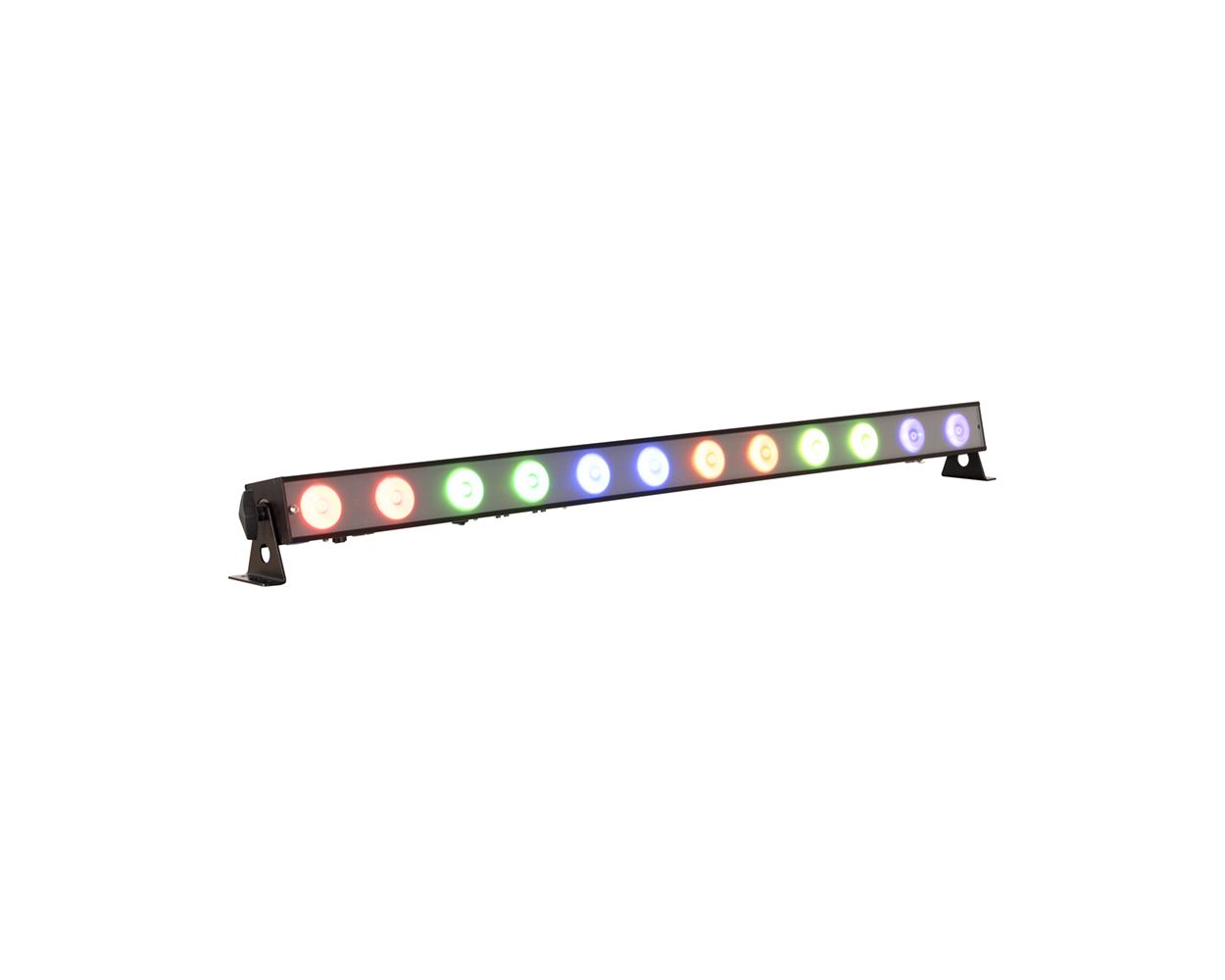

• Smooth RGBAL+UV color mixing

• Horizontal Magnetic Alignment feature (Built-In)

• Aria X2 Management System

• Includes UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)

• RDM and RDM Net Ready

Specifications:

• Light Source:

• 12 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs

• Long Life LEDs (Rated at approximately 50,000 hrs.)

• 17° beam angle

• CRI >90

• Pixel Pitch: 85.5mm

• Control:

• Linear Color Temperature Control (2,300K to 9,900K)

• OLED Display with 4-buttons

• 7 DMX Channel Modes: 6, 11, 13, 16, 36, 43, & 46 Channels

• 6 Groups x2 RGBAL+UV LED pixels controllable via DMX in 36, 43 & 46 channel modes

• 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode

• LED Refresh Rate: 1.9KHz

• 64 built-in Color Macros

• 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)

• Built-In Microphone for sound trigger

• LED pulse and strobe effect

• Electronic Dimming: 0-100

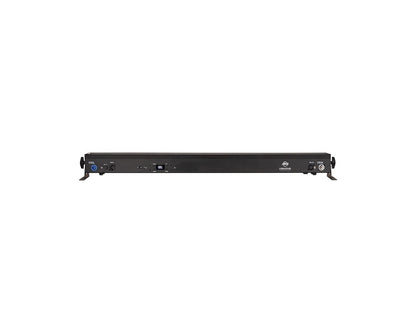

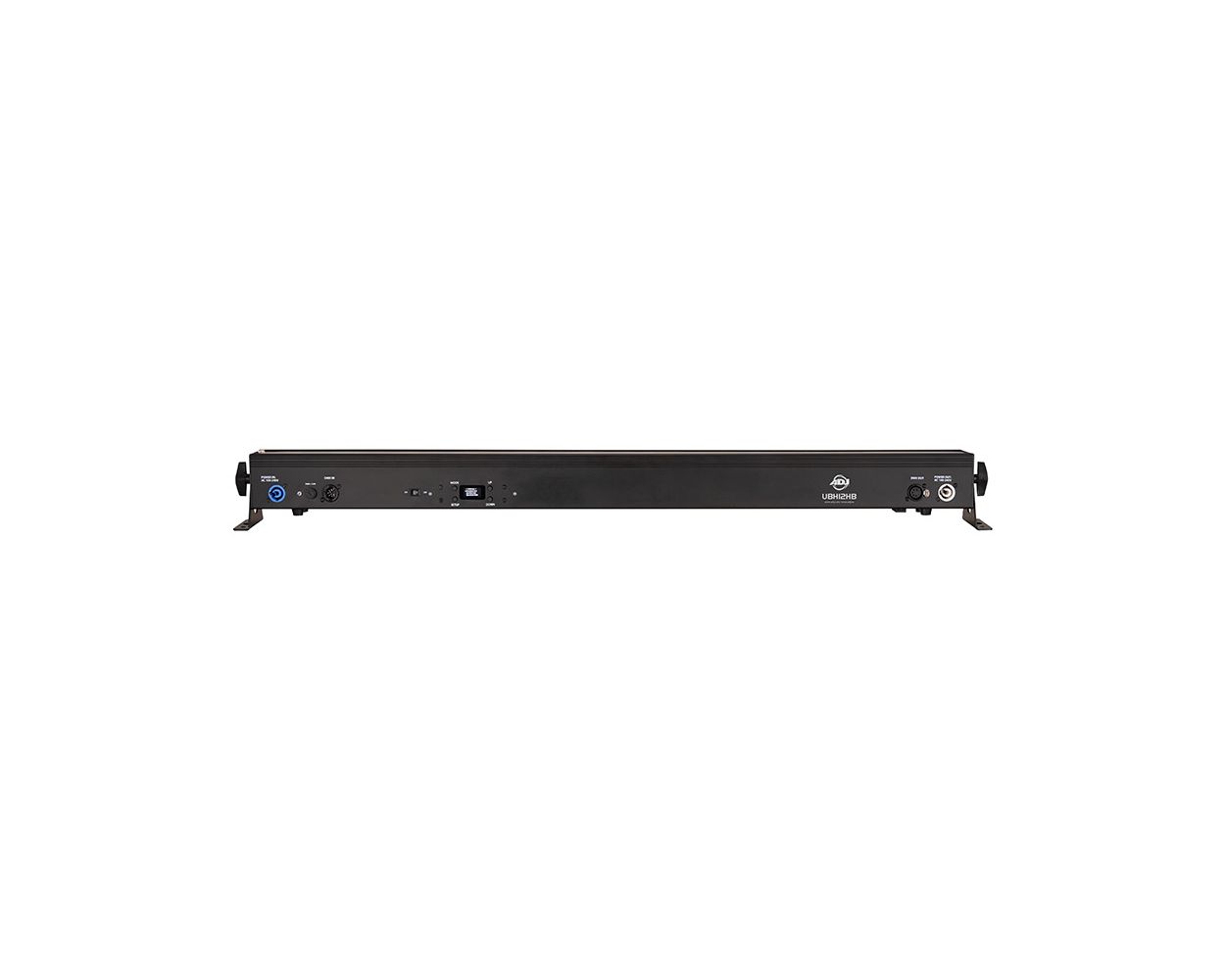

• Connections:

• Linkable: DMX via 5-pin XLR cable

• Indoor Locking power In/Out to daisy chain power

• Electrical:

• Multi-voltage operation: AC 100V-240V 50/60Hz

• Power Draw: 50W

• Daisy-chain power link (Up to 17 UBL12H's can be linked @120V and up to 32 UBL12H's can be linked @230V)

• Battery:

• Rechargeable Lithium-ion

• Battery Capacity: 12,000mAh

• Battery Voltage: 22.2V

• Charge Time, AC Power: 7 Hours (To Full)

• Charge Time, Flight Case: 5 Hours (To Full)

• Up to 20-hour Battery Operation

• Battery Cycles: 500

• Dimensions / Weight:

• Dimensions (LxWxH): 42.6" x 3.4" x 4.2" (1082x87x106mm)

• Weight: 10.58 lbs./ 4.8kg.

• Certifications / IP Rating:

• cETLus (Pending)

• CE

• FCC

• IP20

• Environment:

• Operational Temperature Range: -4°F ~ 104°F (-20°C ~ 40°C)

• Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)

• What's Included:

• (1) Indoor Locking Power Cord

• (1) UC-IR24

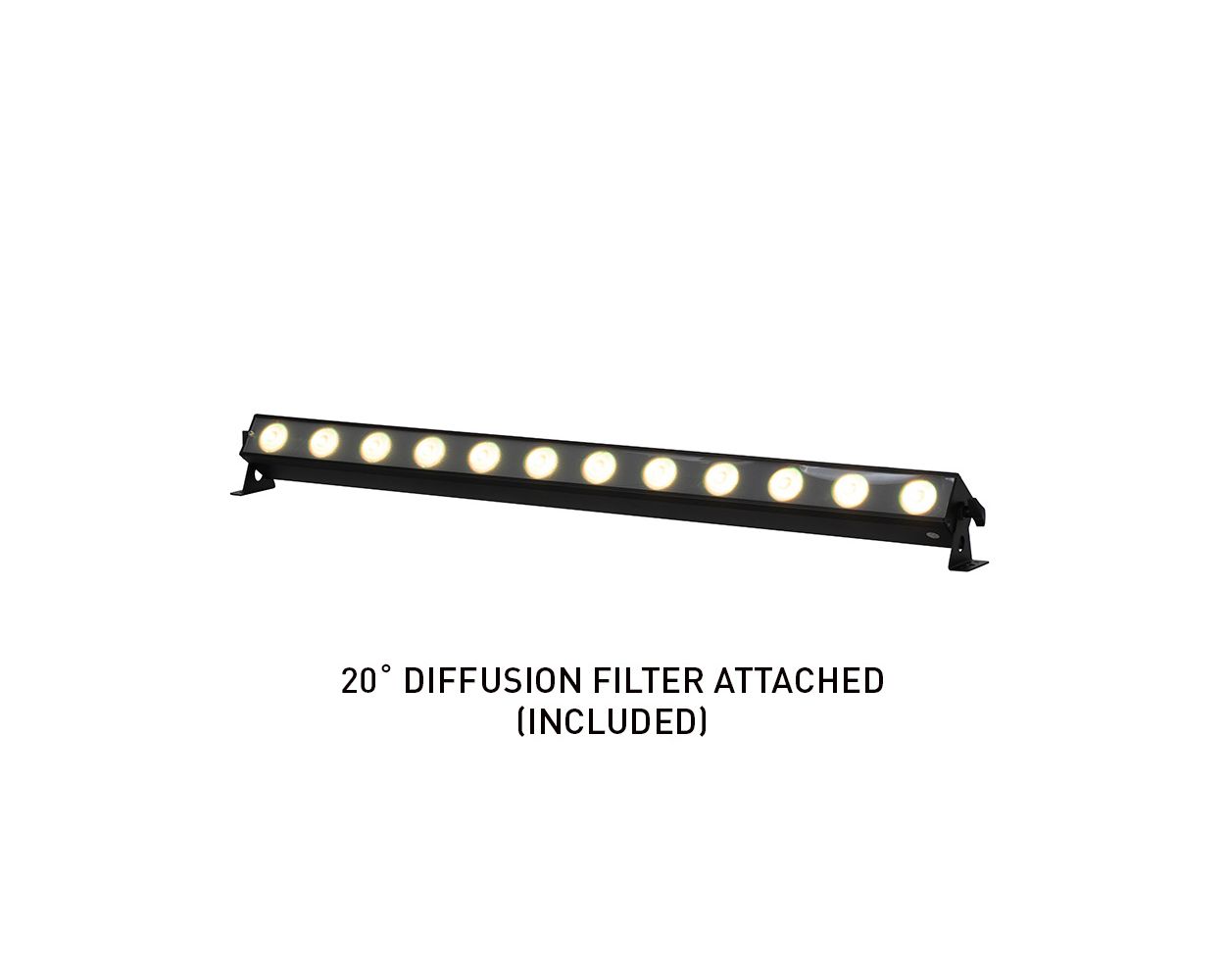

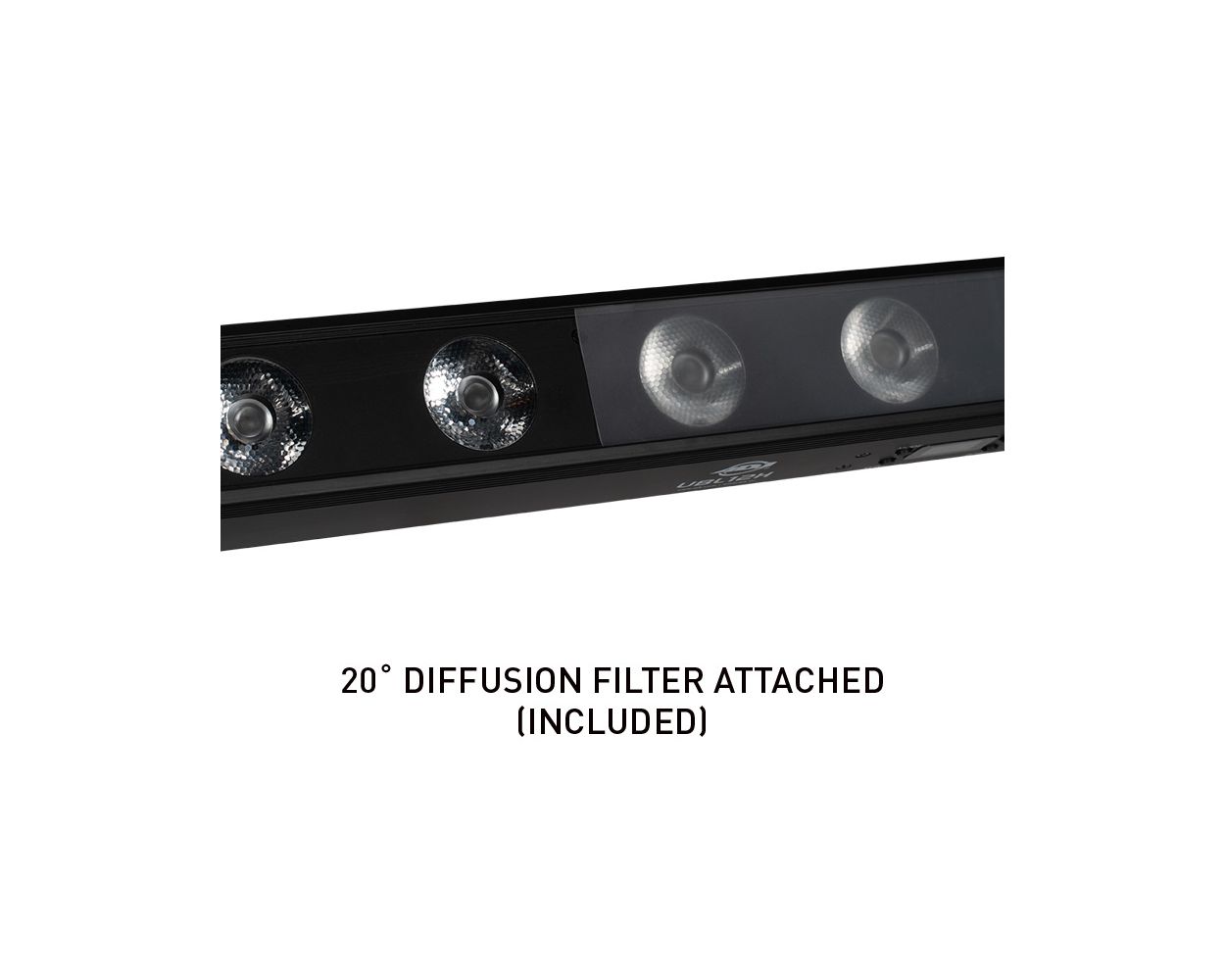

• (1) 20° Diffusion Filter

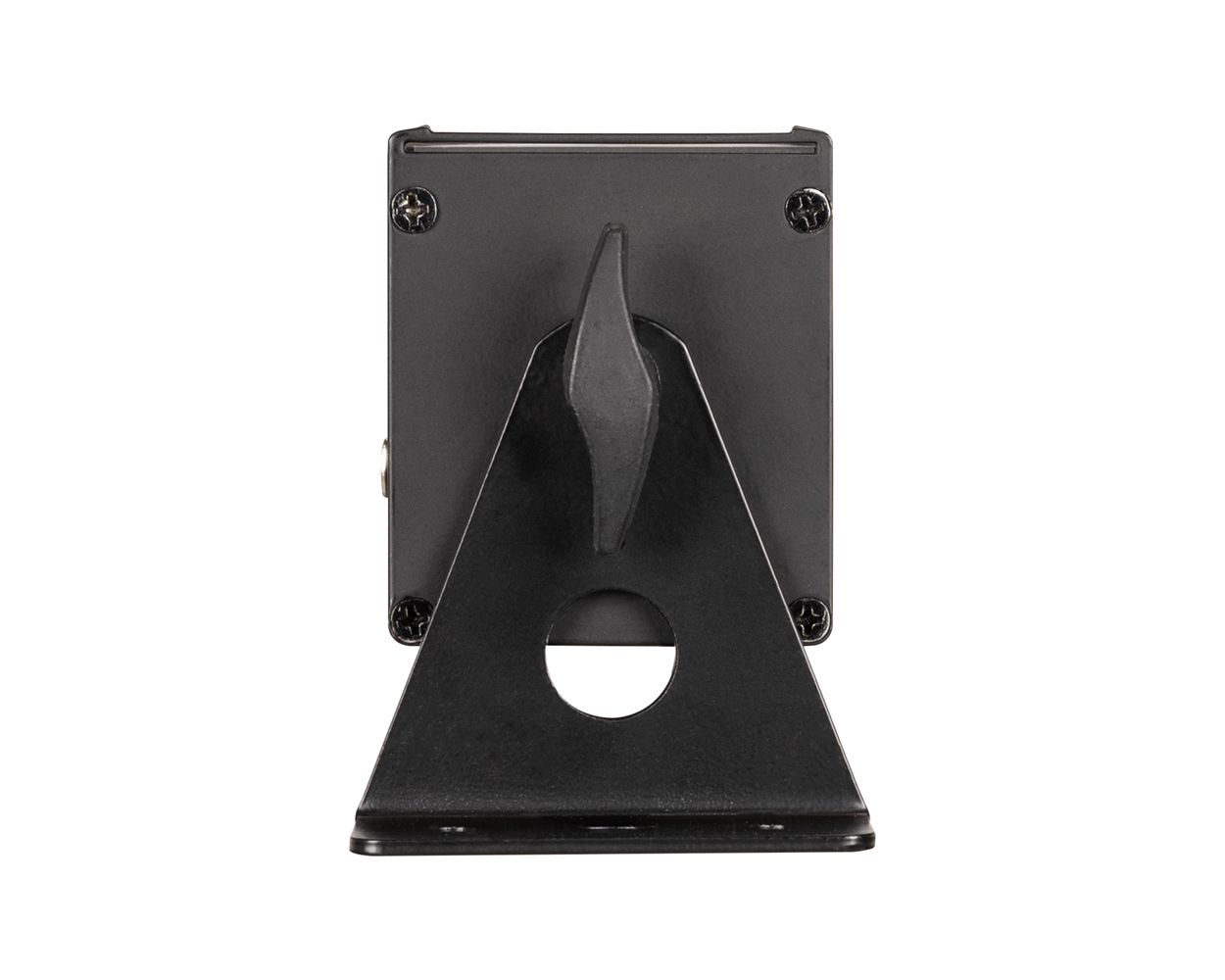

• Includes pair mounting brackets to set on the ground or to mount a clamp to for truss mount

• Optional Accessories:

• 1x40° Linear Diffusion Lens (SKU: UBL912)

• 40° Linear Diffusion Lens (SKU: UBL140)

• 60° Linear Diffusion Lens (SKU: UBL160)
