UBL6H

From the Manufacturer

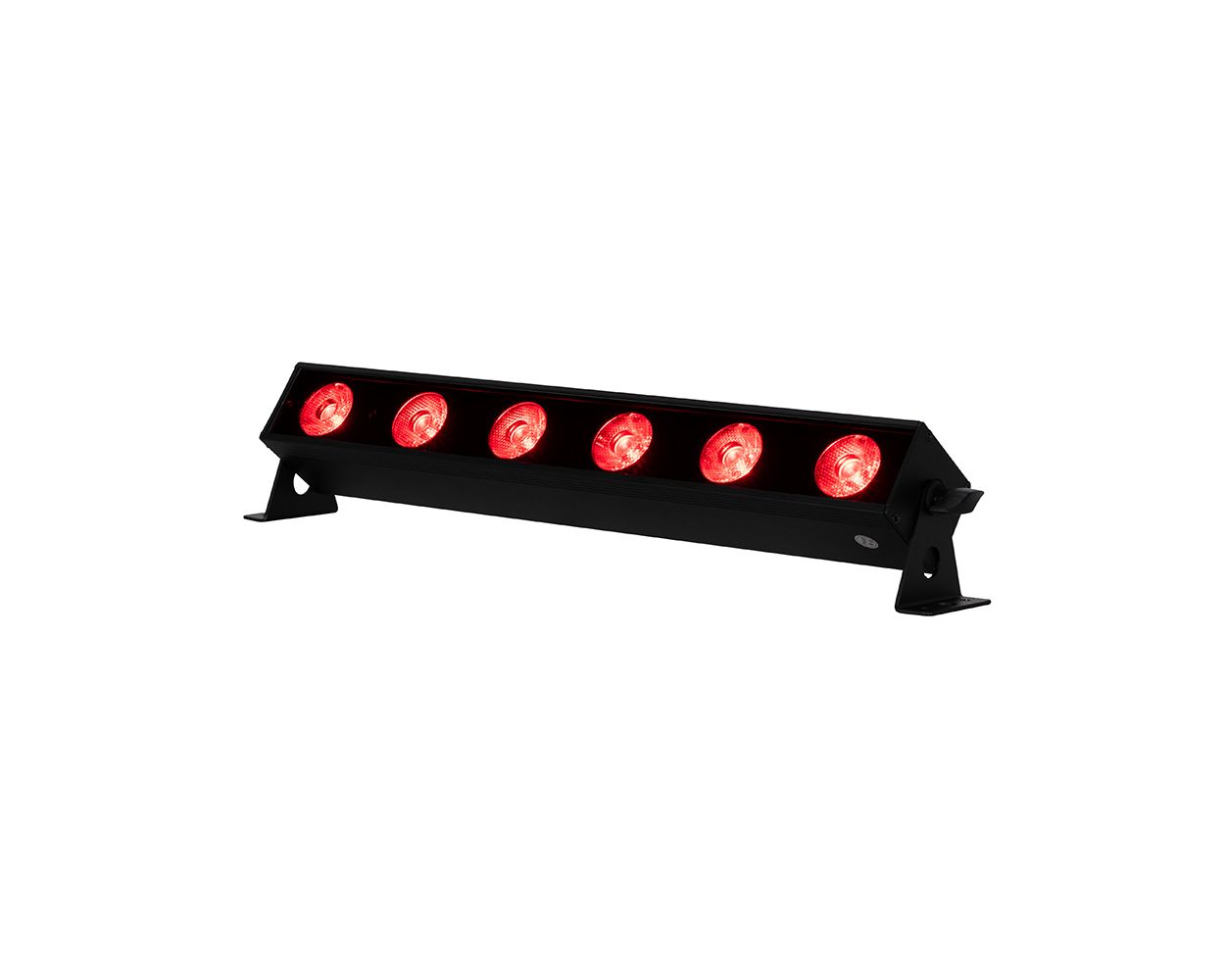

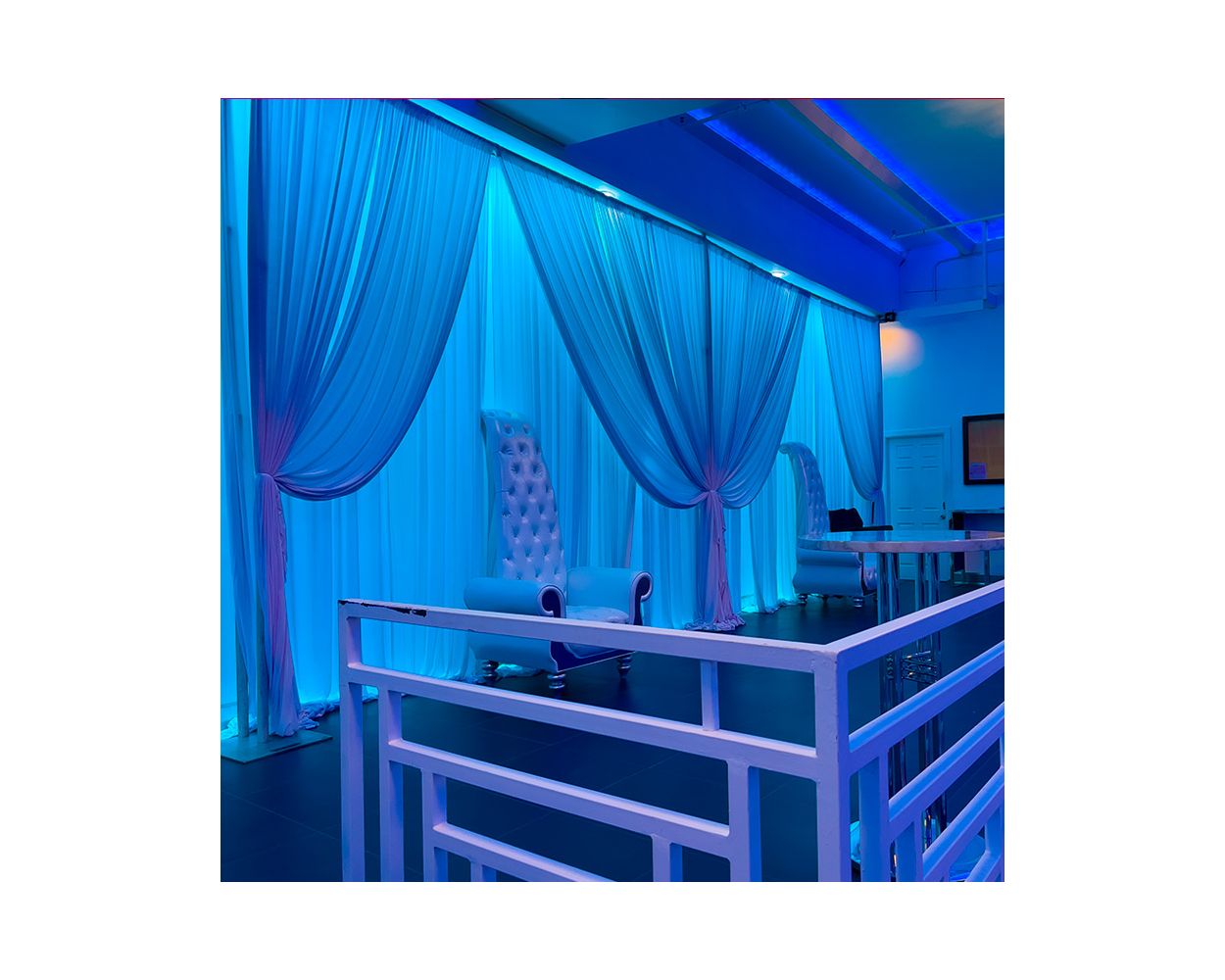

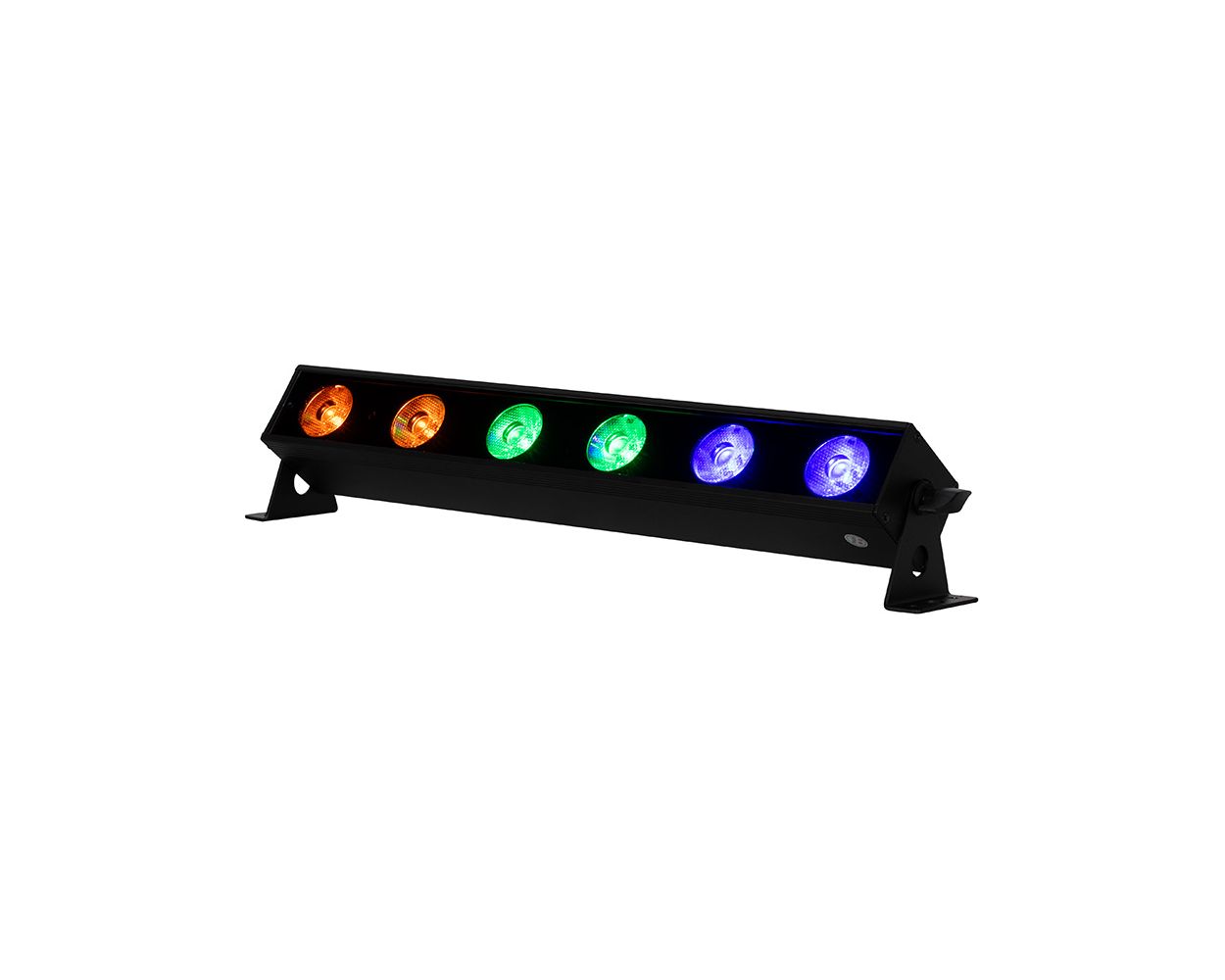

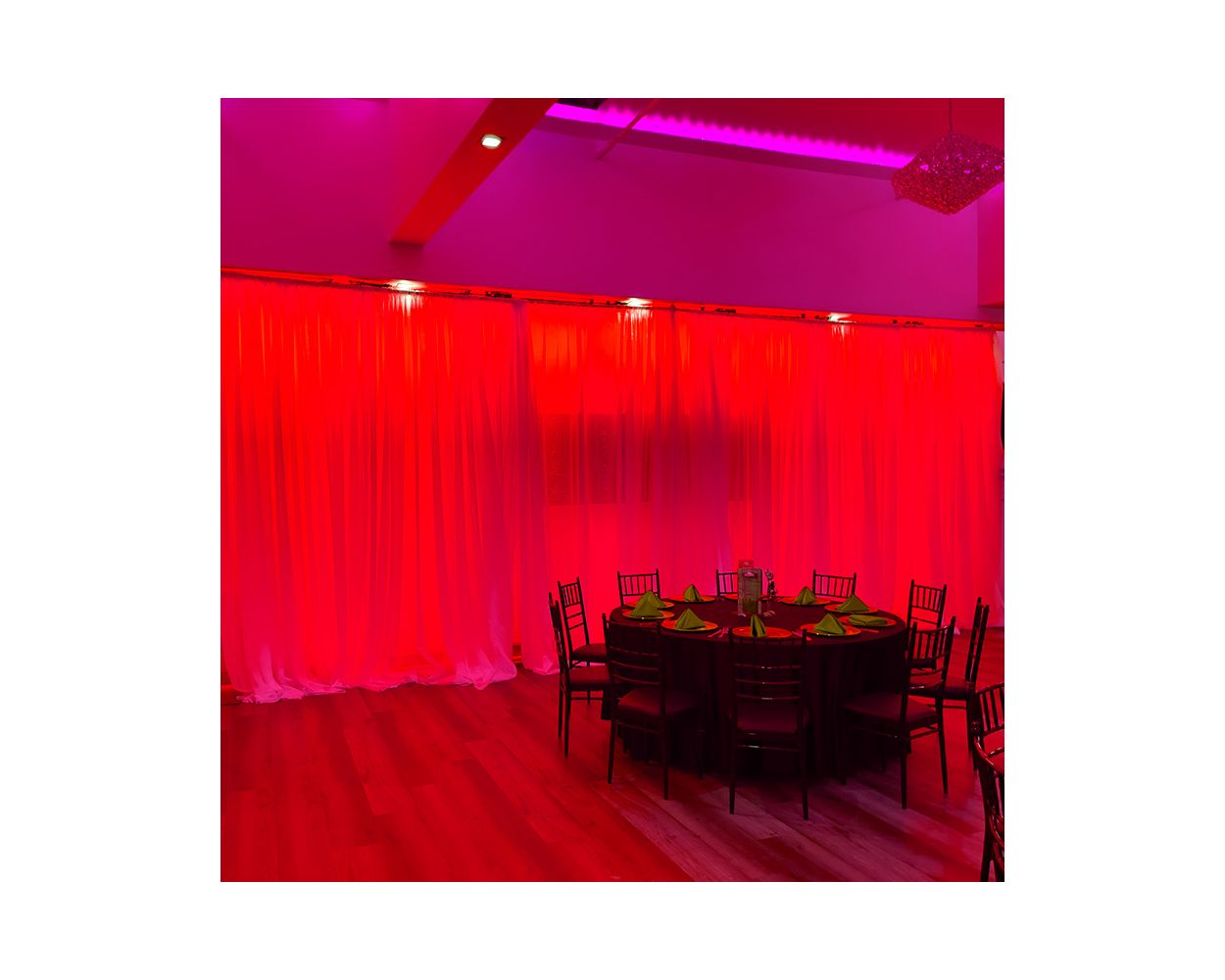

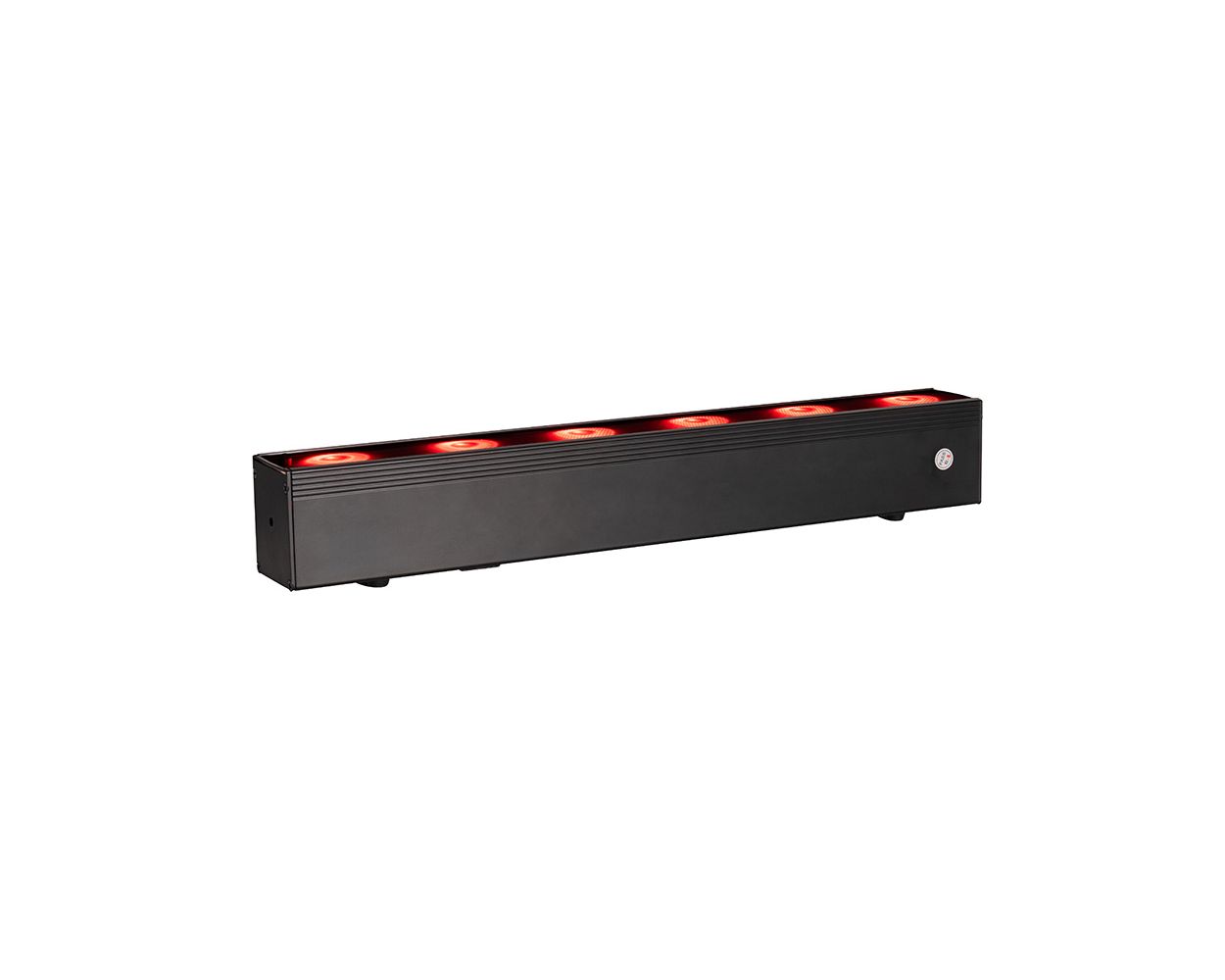

The ADJ Ultra Series has long provided lighting designers and event producers the creativity to create event linear wash lighting for walls, floors and ceilings. The UBL6H incorporates a lime-infused HEX LED with six (6) 20-Watt (Red, Green, Blue, Amber, Lime and UV) LEDs. The added lime chip offers a higher caliber of color indexing with a high CRI of over 90 along with tunable white light control from 2,300K to 9,900K.

Features

Light Source:

• 6 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• 17° beam angle
•  CRI >90
• Pixel Pitch: 85.5mm

Features:

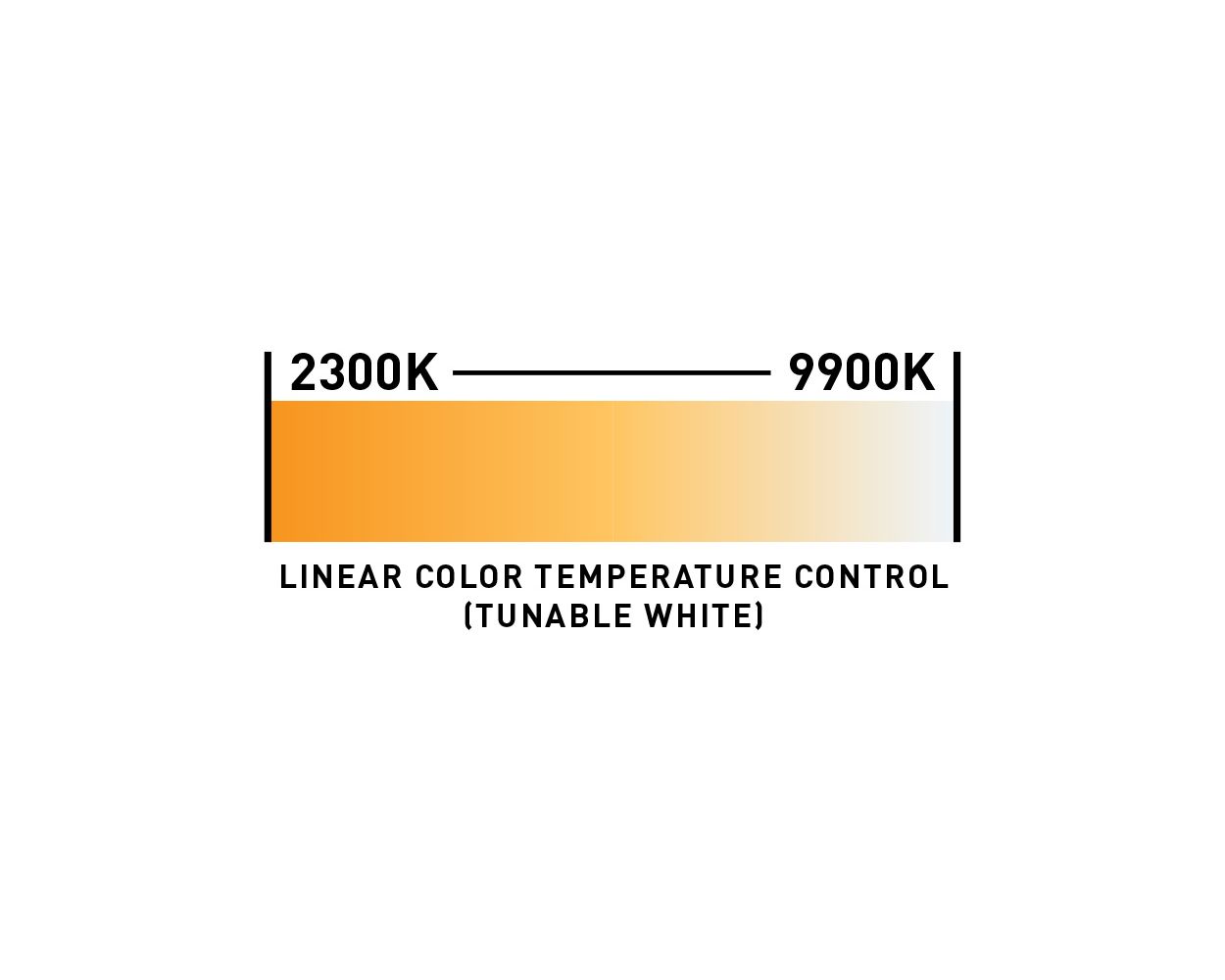

• Linear Color Temperature Control (2,300K to 9,900K)

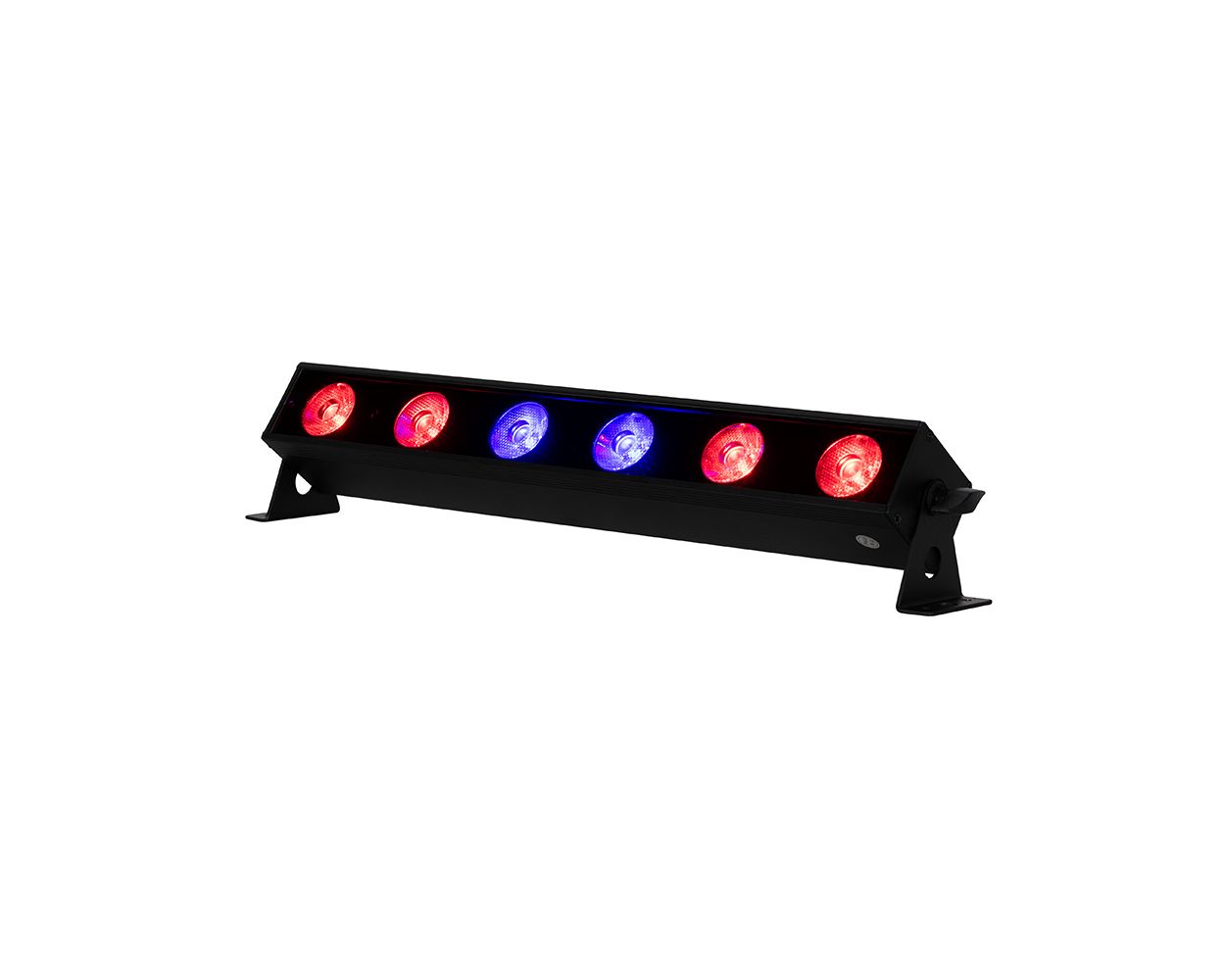

• Smooth RGBAL+UV color mixing

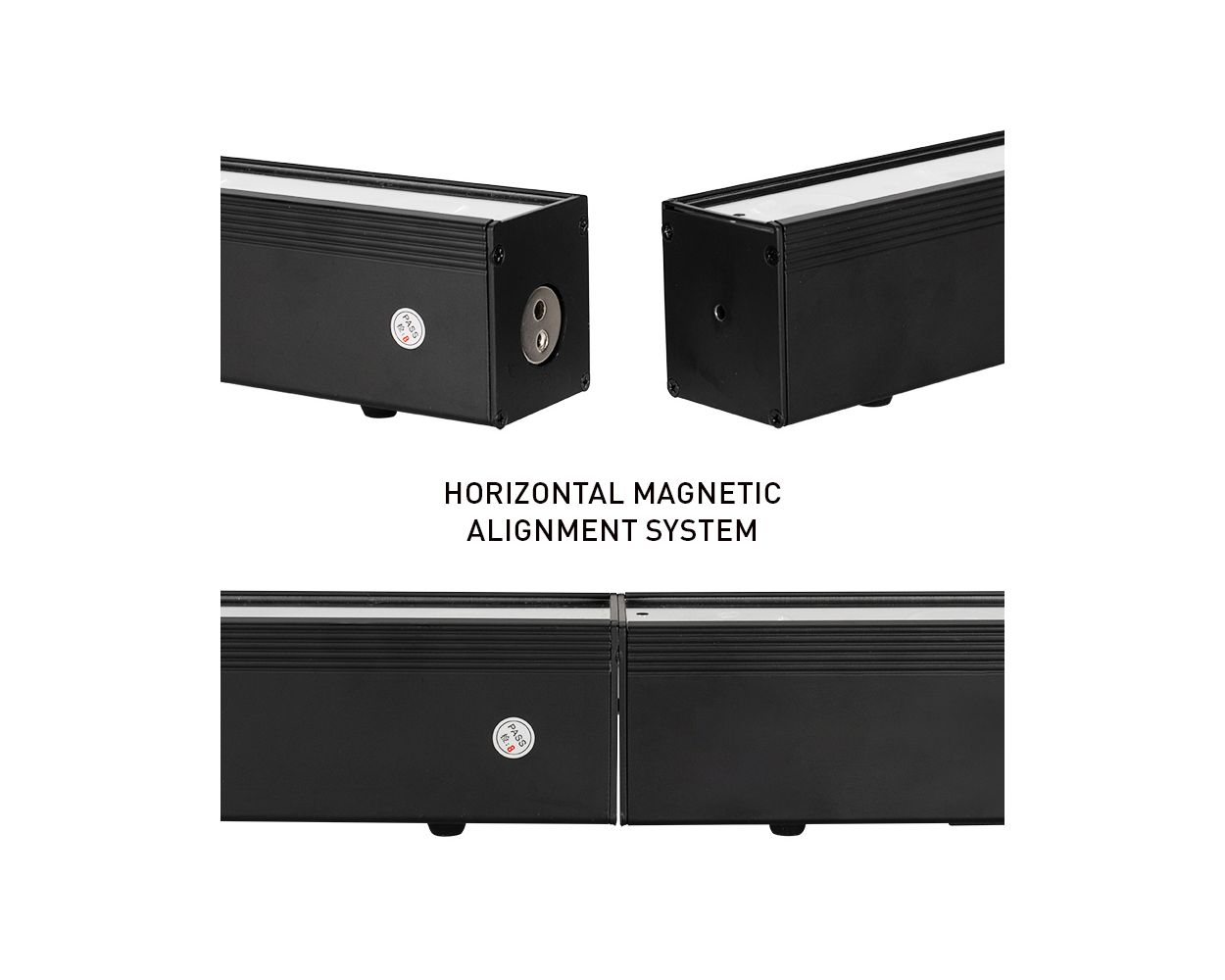

• Horizontal Magnetic Alignment feature (Built-In)
• Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
• RDM Compatible

Control:

• Linear Color Temperature Control (2,300K to 9,900K)

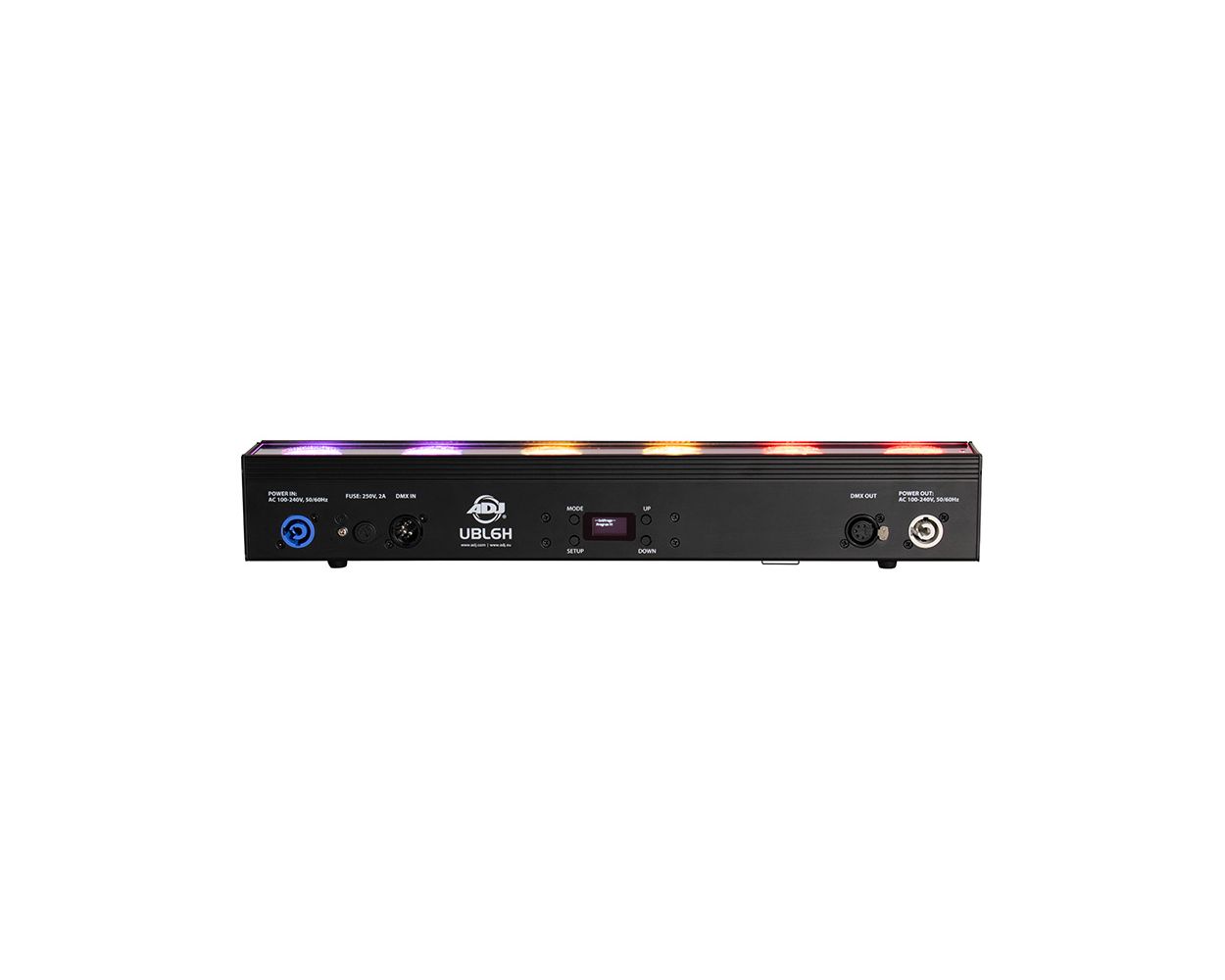

• OLED Display with 4-buttons
• 7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28 Channels
• 3 Groups x2 RGBAL+UV LED pixels controllable via DMX in 18, 25 & 28 channel modes
• 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
• LED Refresh Rate: 1.9KHz
• 64 built-in Color Macros
• 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
• Built-In Microphone for sound trigger
• LED pulse and strobe effect
• Electronic Dimming: 0-100%

Connections:

• Linkable: DMX via 5-pin XLR cable
• Locking power In/Out to daisy chain power

Electrical:

• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power Draw: 26W
• Daisy-chain power link (Up to 26 UBL6H's can be linked @120V and up to 50 UBL6H's can be linked @230V)

Dimensions / Weight:

• Dimensions (LxWxH): 2.96" x 22.40" x 4.2" (75x568.9x106.7mm)
• Weight: 4.41 lbs./ 2kg.

Certifications / IP Rating:

• cETLus (Control # 4002034)
• CE
• FCC
• IP20

Environment:

• Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)
• Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)

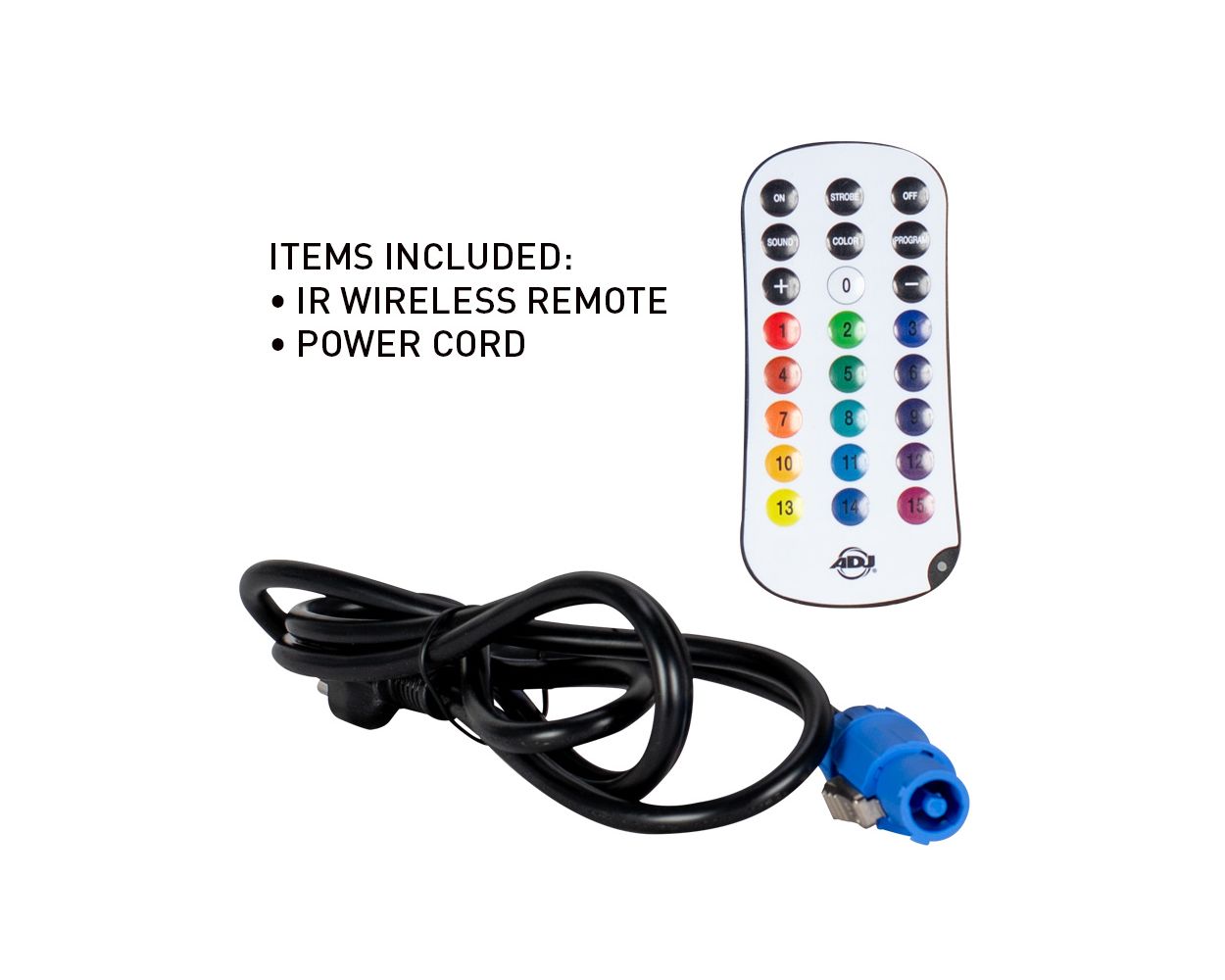

What's Included:

• (1) Indoor Locking Power Cord
• (1) UC-IR24
• (1) 20° Diffusion Filter
• Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting.
