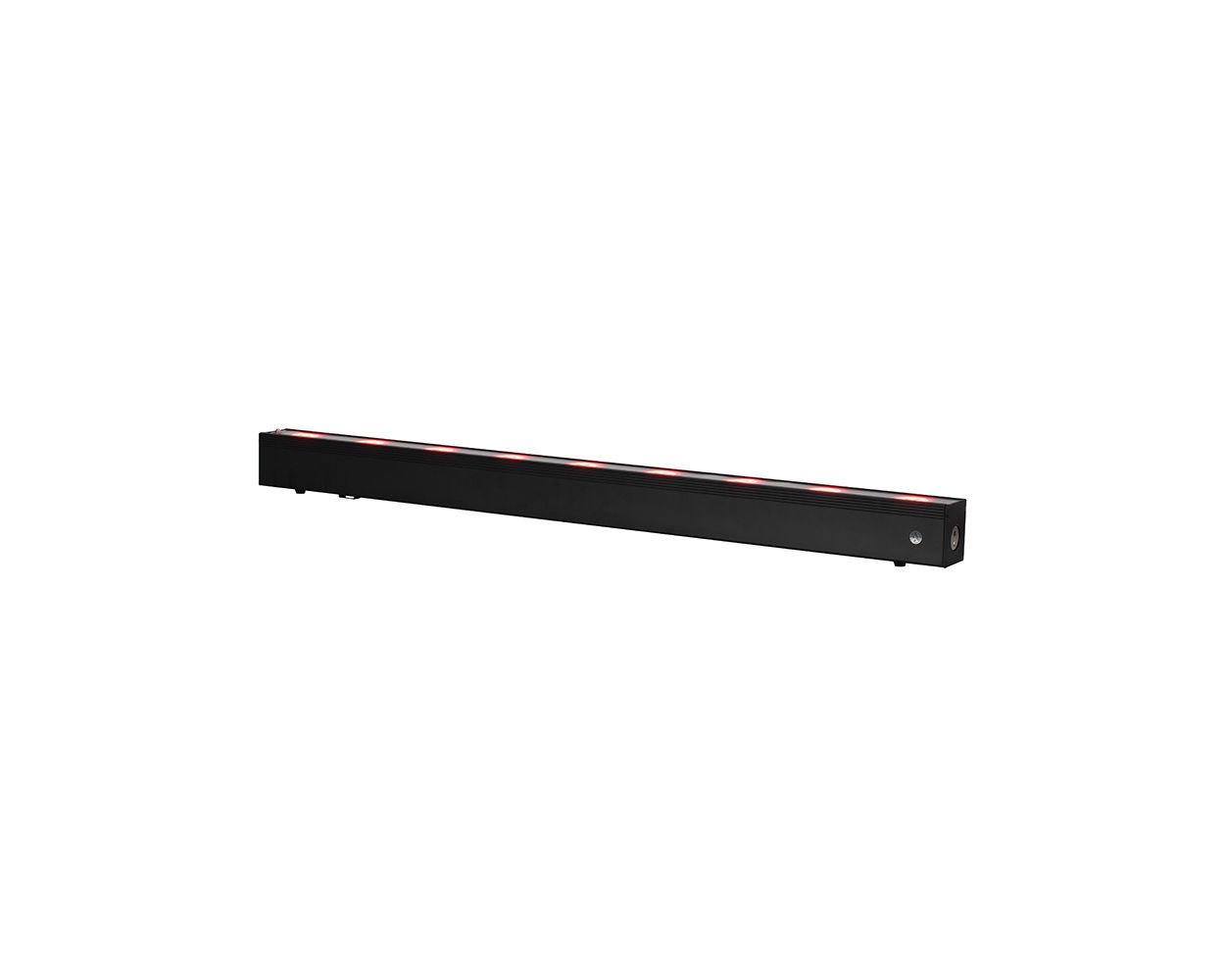

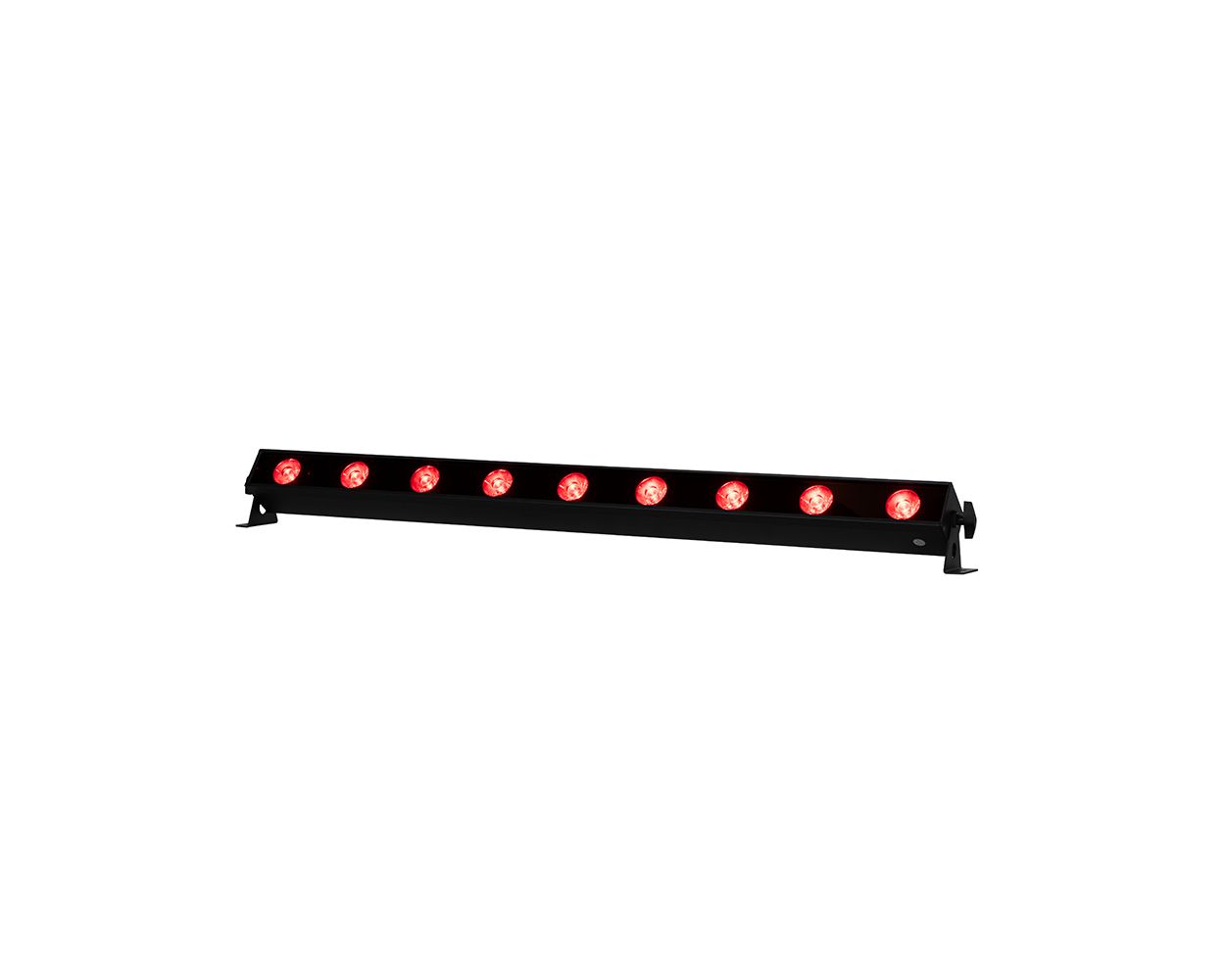

UBL9H

From the Manufacturer

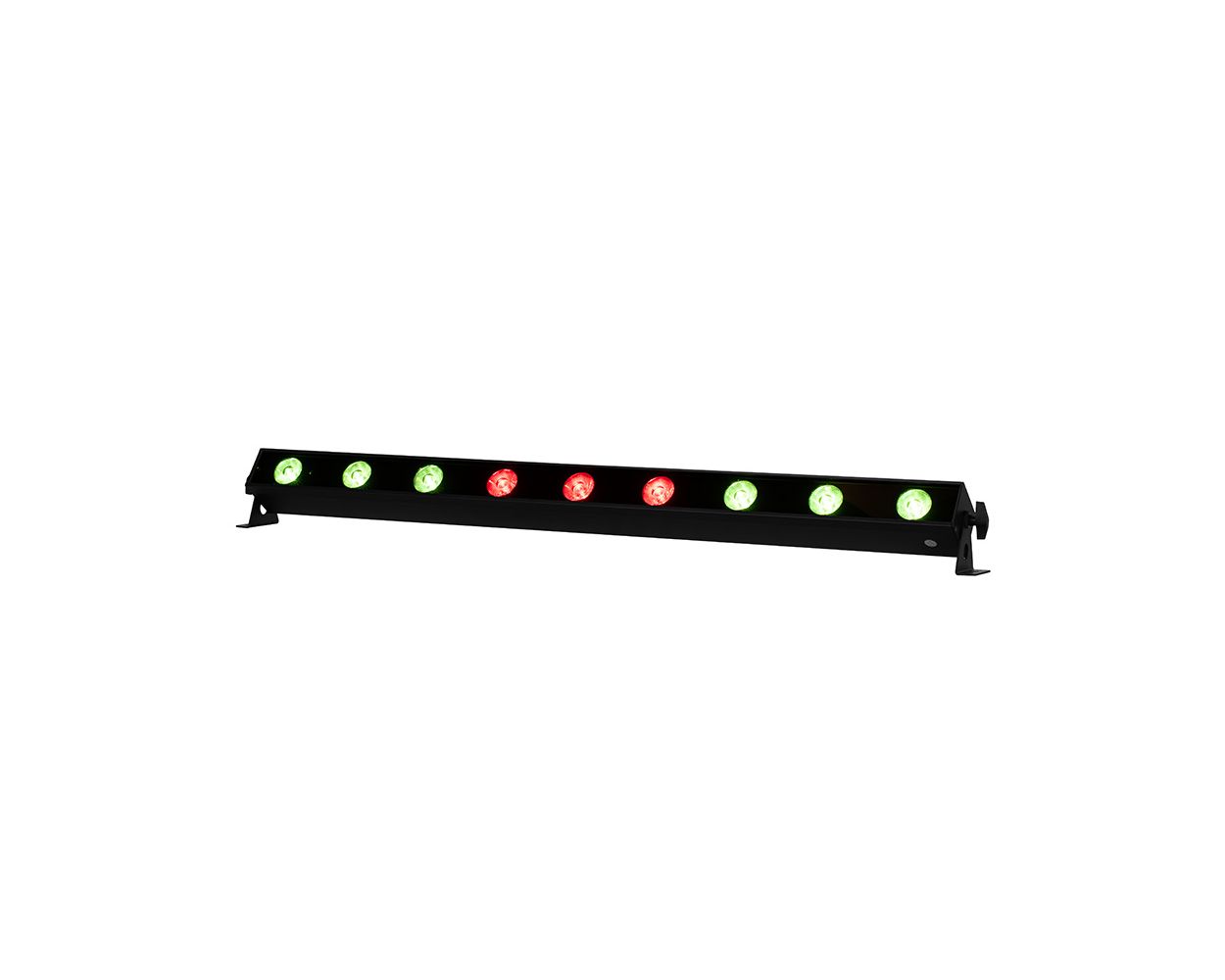

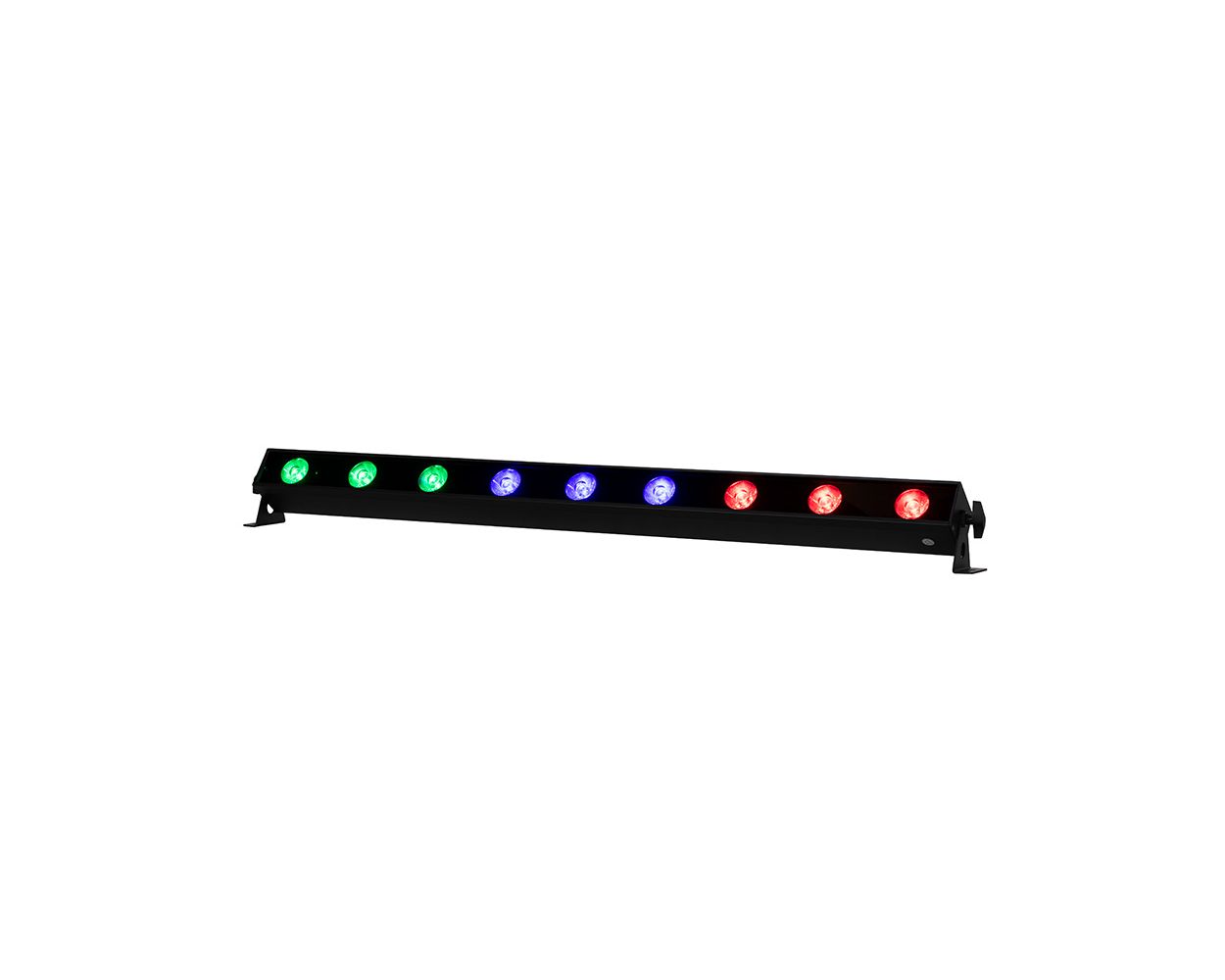

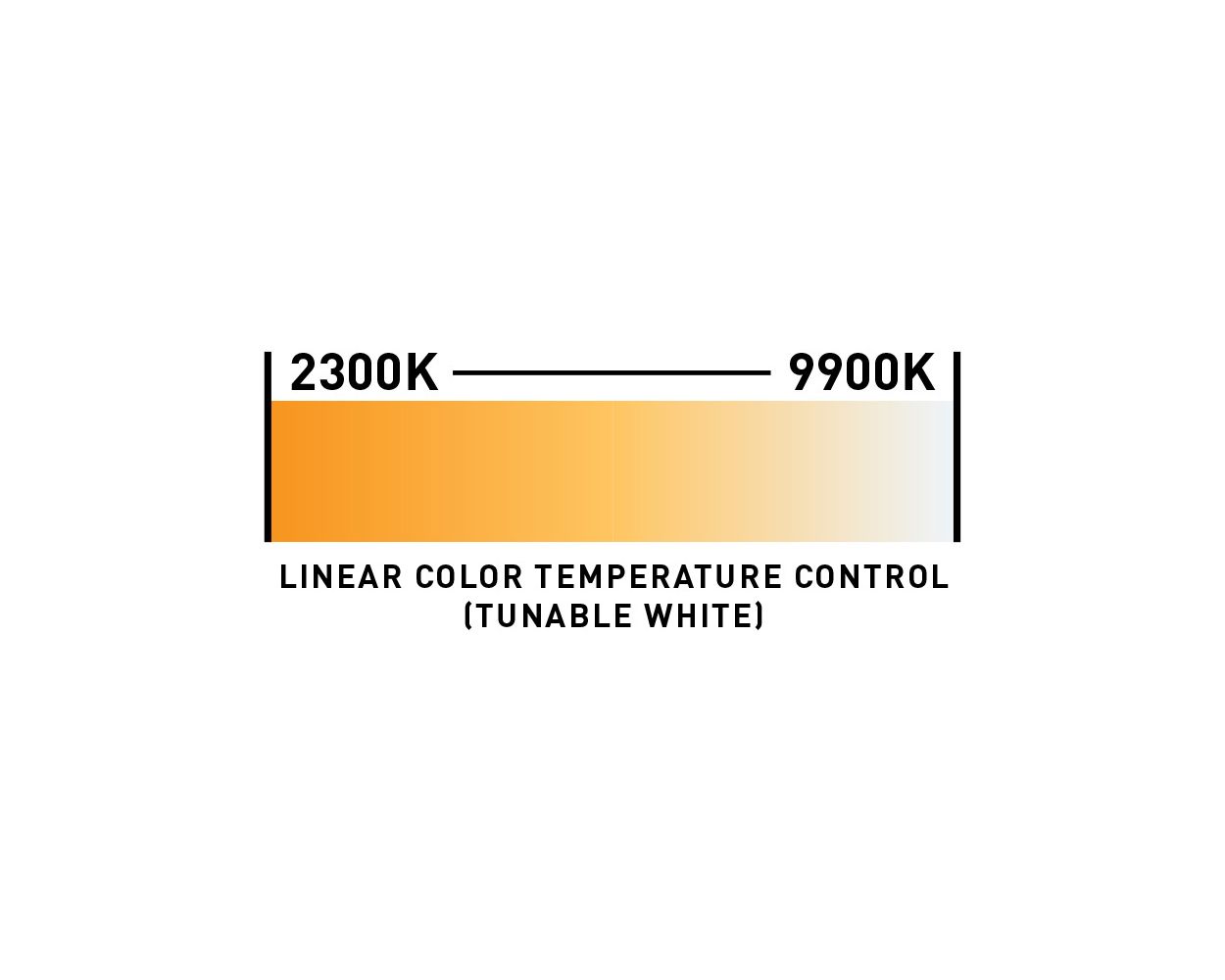

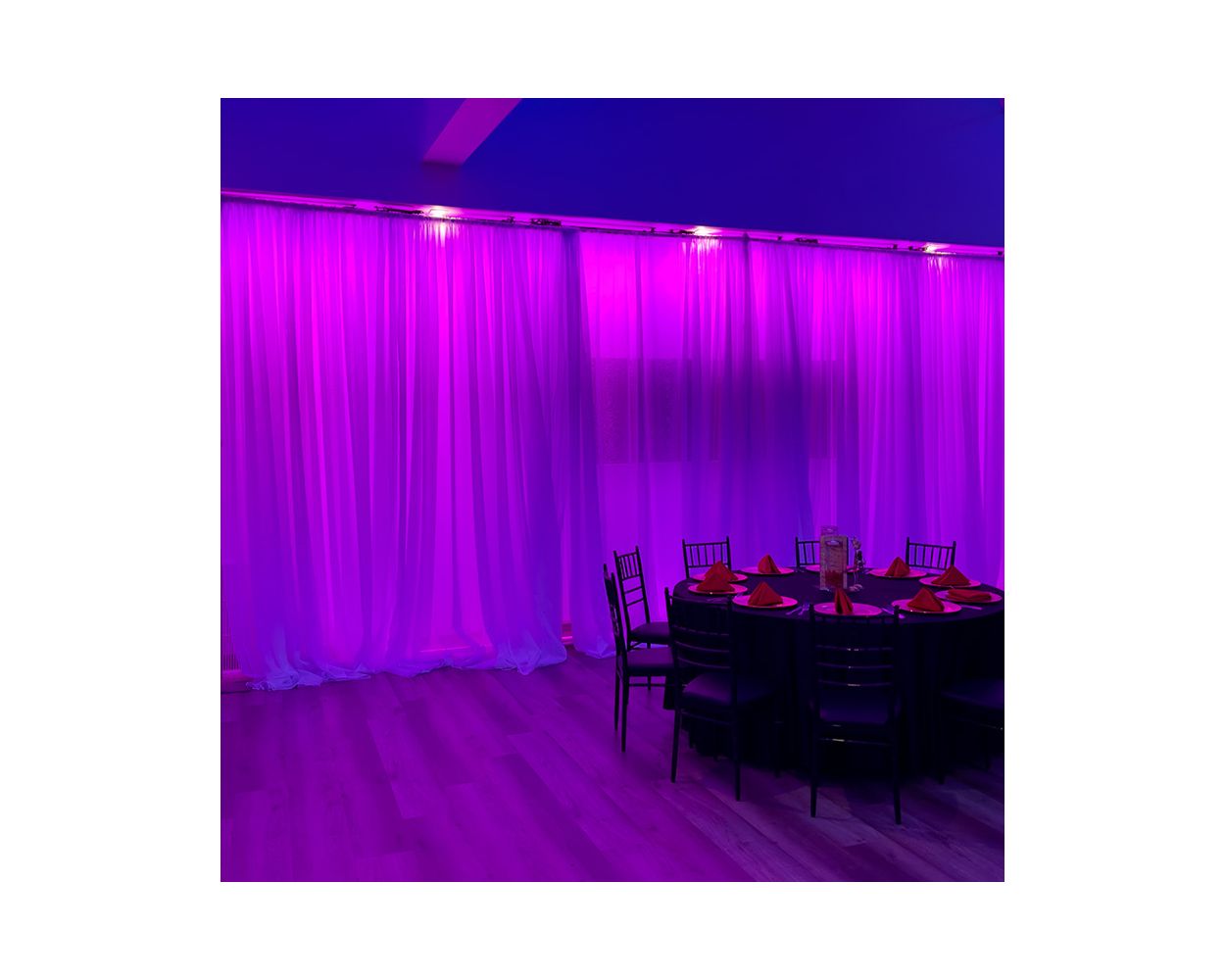

The ADJ Ultra Series has long provided lighting designers and event producers the creativity to create event linear wash lighting for walls, floors and ceilings. The UBL9H incorporates a lime-infused HEX LED with nine (9) 20-Watt (Red, Green, Blue, Amber, Lime and UV) LEDs. The added lime chip offers a higher caliber of color indexing with a high CRI of over 90 along with tunable white light control from 2,300K to 9,900K.

Features

• Advanced red, green, blue, amber, and UV (RGBA/UV) LED color mixing
• 40 second continuous bursts of fog, for intense effects and performance
• 40,000 CFM fog output for intense, large effects
• 2.5 l fluid tank for reliability in production
• Strong, sturdy construction for numerous production types
• DMX control for ease of use in production situations
• 3- and 5-pin DMX input/output connections

Specifications

Optical

• Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy
• Illuminance (Center): 199.5 lux @ 5 m
• Illuminance (Linear): 154 lux @ 5 m
• Illuminance (Both): 334 lux @ 5 m
• PWM Frequency: 126 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Output: 40,000 cfm
• Low Fluid Shutdown: No

Construction / Physical

• Dimensions: 19.49 x 13.18 x 9.39 in (495 x 335 x 239 mm)
• Weight: 28.4 lb (12.9 kg)
• Exterior Color: BLACK
• Housing Material: Steel
• Tank Capacity: 0.7 gal (2.5 l)
• Fluid Consumption: 80 ml/min
• Maximum Run time: 1 hour @ 40s bursts, 1m intervals (using Chauvet QDF fluid)
• Maximum Run time: 2 hours @ 40s bursts, 2m intervals (using Chauvet QDF fluid)
• Maximum Run time: 2.5 hours @ 40s bursts, 3m intervals (using Chauvet QDF fluid)

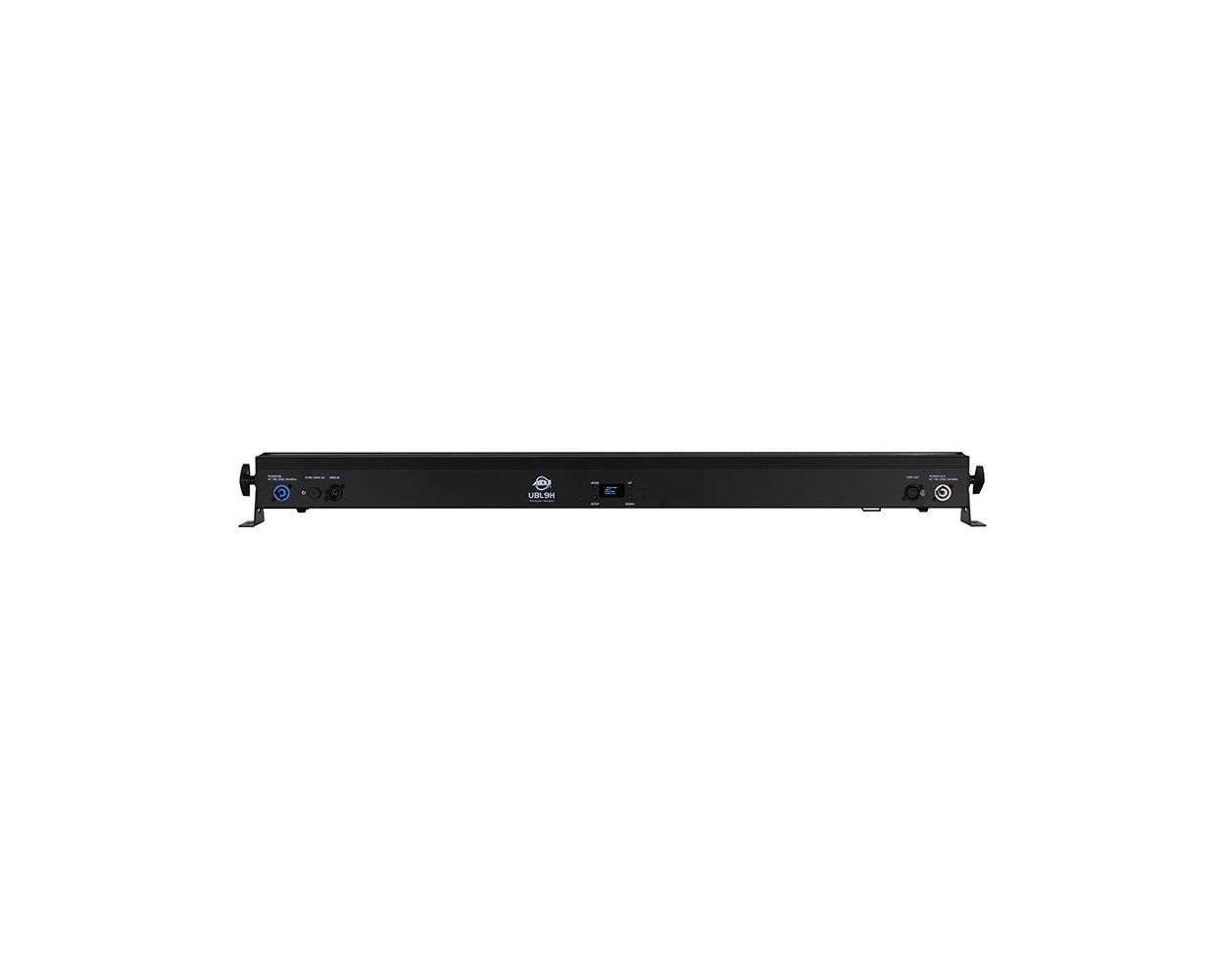

Connections

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX
• DMX Channels: 15
• Modes/Personalities: 1 personalities
• On-Board Control: Yes
• Included Remote: No

Electrical

• Input Voltage (120V): 120 VAC, 60 Hz
  Input Voltage (220V): 230 VAC, 50 Hz
• Power and Current (120V): 1,480 W, 12.55 A @ 120 V, 60 Hz
  Power and Current (220V): 2,880 W, 12.55 A @ 230V, 60 Hz
• Heat-up Time (120V): 10 min
  Heat-up Time (220V): 10 min
• Breaker Size (120V): 15A
  Breaker Size (220V): 15A

Certifications / Qualifications

• CE
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• Thermal Dissipation @ 120V: 5,050 BTU per hour (max)
• Thermal Dissipation @ 230V: 9,825 BTU per hour (max)

What's Included

• Vesuvio II
• Seetronic Powerkon IP65power cord
