Sku: ULT240

Ultra Hex Bar 12

Regular price
$499.99
Regular price
Sale price
$499.99
Shipping calculated at checkout.
Vendor: ADJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

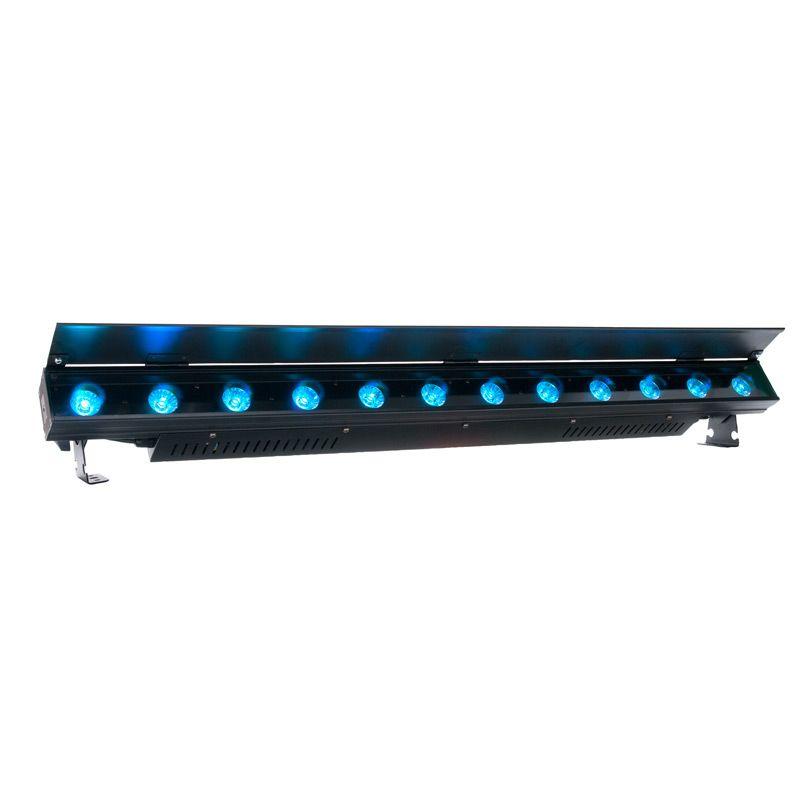

The Ultra Hex Bar 12 is a nice, inexpensive strip light with (3) surprising features.

From the Manufacturer:

The ADJ Ultra HEX Bar 12 is a versatile LED Linear fixture with 12 x 10-Watt , 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Bar great for lighting stages and dance floors, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue.

From the GEAR Pro's:

Three things set this light apart -

1) The "Quick Align" magnet system that allows you to create rows of these fixtures and keep them aligned.

Don't you hate when you set up a row of LED strips to light a backdrop or drape?  It's always a pain because they all get tilted slightly differently and it looks like a crashing train.  Enter the magnetic alignment system - this keeps your lights perfectly aligned with little effort.  And that's what sets this light apart from the competition.

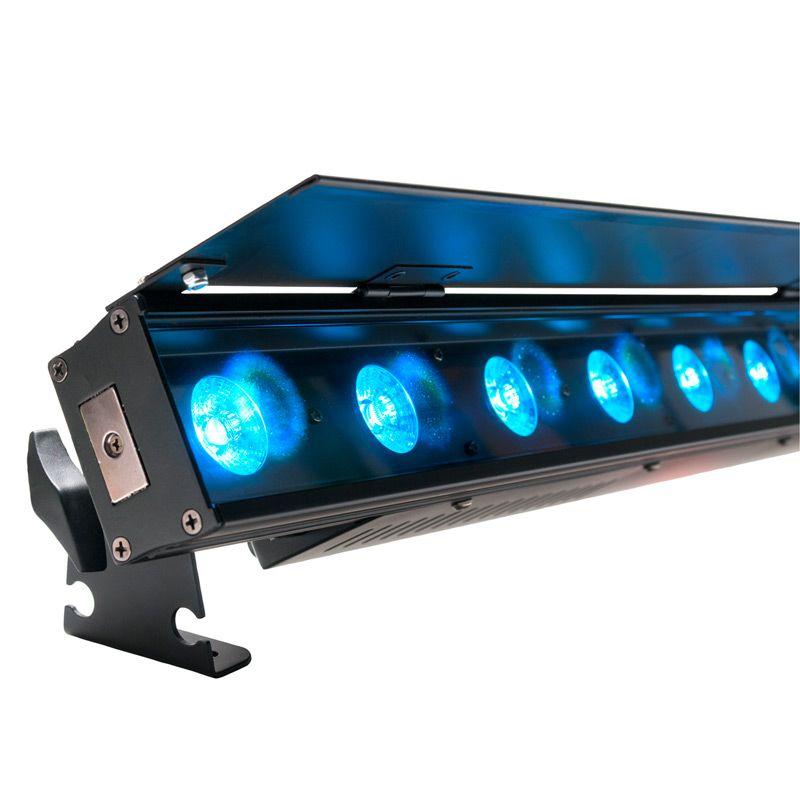

2) The "splash guard" is a single metal barndoor to keep stray light from getting on to your stage or other objects.  It's a nice added feature that folds away when not in use.  It's only available on one side, and you can't switch the side, so be careful when mounting the light.

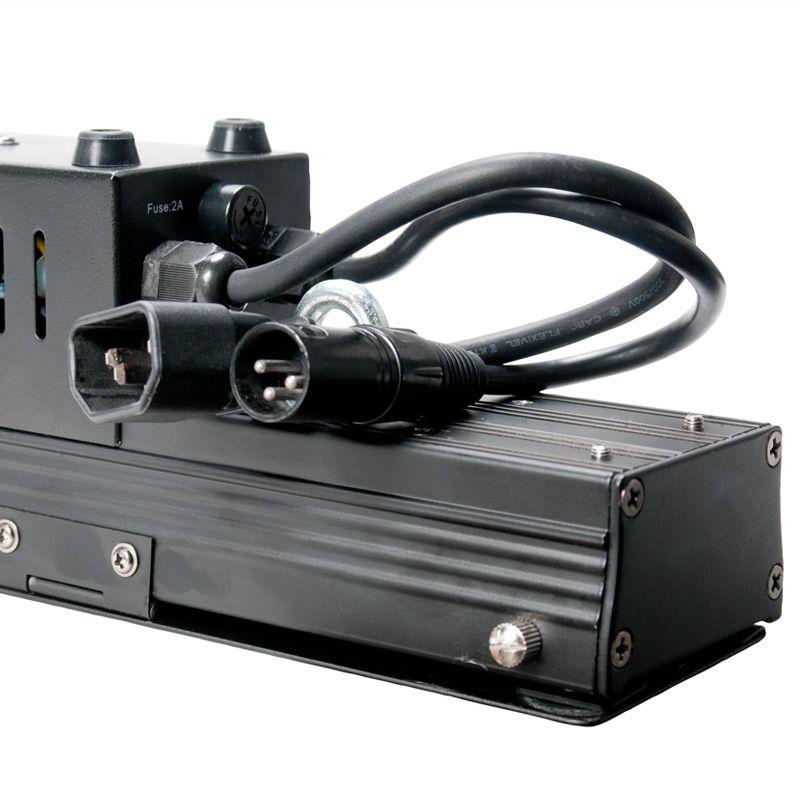

3) It has power and data "whips" instead of jacks - allowing you to chain together multiple fixtures without needing DMX cables or power cables.  The quality on these is good, as long as you don't abuse them, I anticipate they'll last a long time.

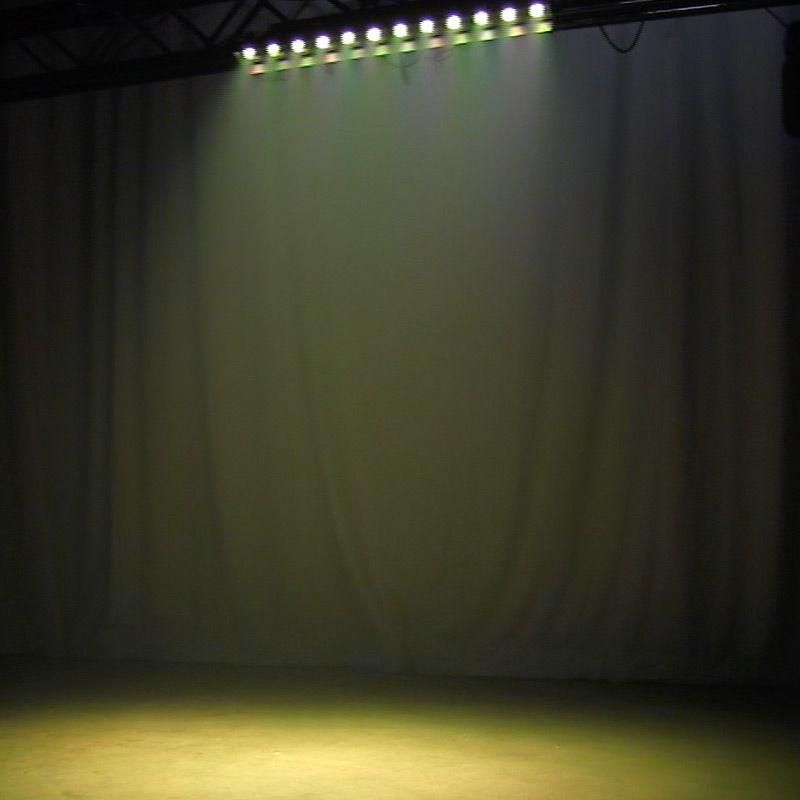

Other than that, it's a good, inexpensive option for lighting drapes, walls, or even for backlight.  Is it going to have the light quality of a $1000 fixture?  No, but it costs much less than that, and it performs well and has good, pixelated control (2 LED's per pixel for 6 zones of control).

In the Box:

  • (1) Ultra Hex Bar 12
  • (1) IEC Power Cable
  • (2) Mounting Brackets

Features:

  • Light Source: 12 x 10 Watt RGBAW+UV LEDs
  • Beam Angle: 40°
  • Dimming: Electronic 0-100% with 5 selectable curves
  • Refresh Rate: 2.88KHz
  • Strobe: Variable
  • Control Protocol: DMX, ADJ RFC remote with RF control (sold separately)
  • IP Grade: IP20
  • 63 Built In Color Macros

Tech Specs

Optics:

Light Source Type: RGBAW+UV LED

Light Source Wattage: 12 x 10w

Minimum Beam Angle: 40.0°

Maximum Beam Angle: 40.0°

Control

DMX Channel Modes: 6 / 7 / 8 / 12 / 36

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: No

Physical:

Length: 40.25 in

Width: 2.75 in

Height: 4.75 in

Weight: 11 lb

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 90w

Power Cable Connector - Fixture Side: IEC

Main Power Connector on Included Cable: Edison

Power Cable Length: 1.8 m
