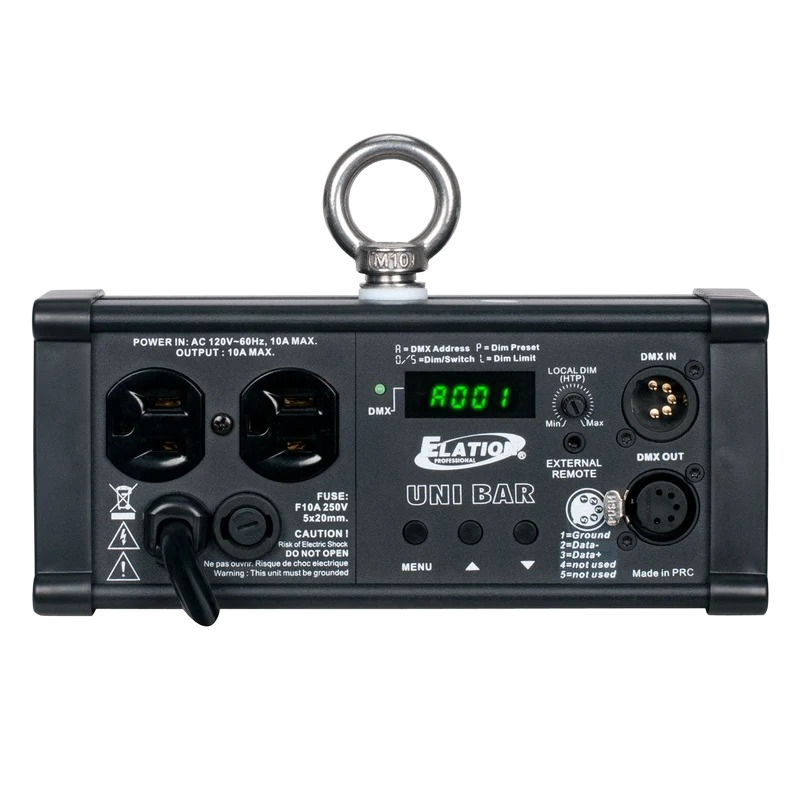

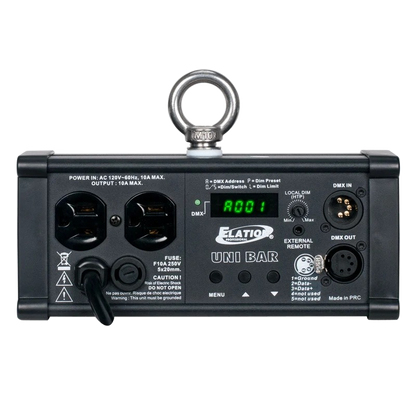

CONTROL / CONNECTIONS
- 1 DMX Channel
- 3-Button Control Panel
- LCD Menu Display
- On-board HTP Dimming Control Dial
- Input for Optional Analog HTP Dimmer
- 2 Edison 3-prong Outputs (10A Max Total Output)
- 5pin DMX In/Out*
Skip to product information
-
Media gallery
-
Media gallery
-
Media gallery
Sku:
UNI BAR
UNI BAR
- Regular price
- $112.00
- Regular price
-
- Sale price
- $112.00
- Unit price
- per
Shipping calculated at checkout.
Vendor: Elation Professional
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

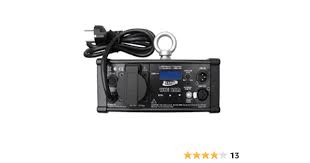

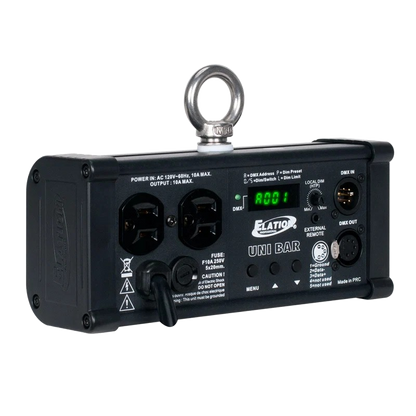

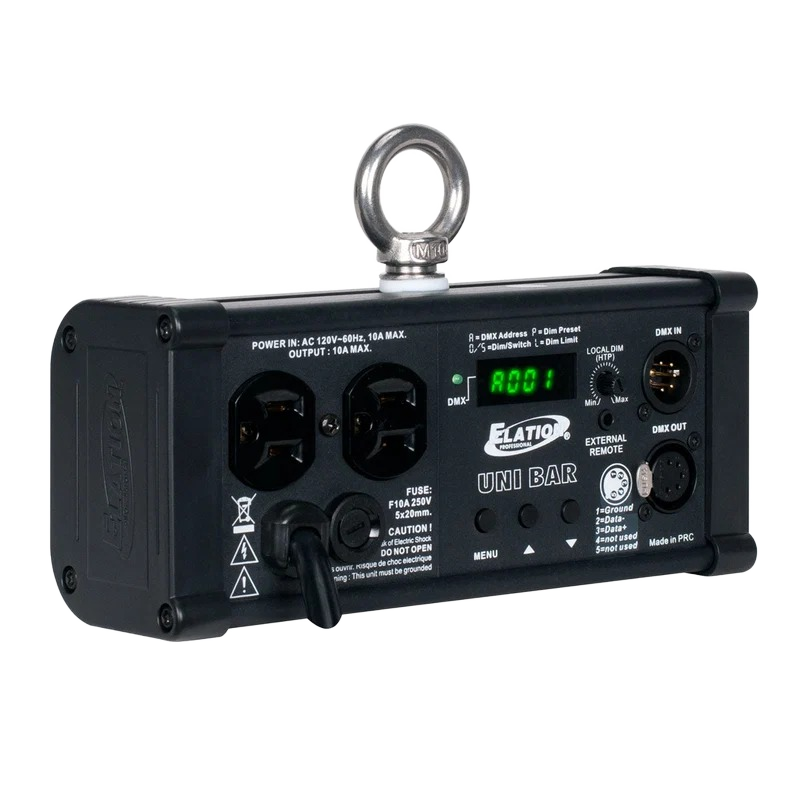

The UNI BAR is a compact single DMX channel dimmer featuring 10 amps of maximum channel output, dimmer or switch pack modes, dimmer preset and limit settings, local HTP dimmer control, input for an optional analog HTP dimmer controller, power failure memory, 3pin DMX in/out (5pin effective May 1, 2019), (2) Edison 3-prong outputs, 3-button control panel and LCD display, and can be easily mounted using standard truss clamps or couplers.
In the Box:
- (1) UNI BAR
Features:
- Single DMX Channel Switch or Dimmer Pack Mode
- 10 Amp Maximum Channel Output
- Dimmer Preset and Dimmer Limit Settings
- Local HTP Dimmer Control Dial
- Input for Optional Analog HTP Dimmer Controller
- Power Failure Memory
- Truss Mountable
Specifications
CONTROL / CONNECTIONS
CONTROL / CONNECTIONS
Tech Specs
Control
DMX Channel Modes: 1 / 2 / 4
DMX 3-Pin Connectors?: Yes
DMX 5-Pin Connectors?: No
Physical:
Length: 7.83 in
Width: 3.23 in
Height: 2.63 in
Weight: 2.4 lb
Electrical
Voltage Range: 100 - 240 VAC 50/60Hz
Maximum Wattage: 1800w
Power Cable Connector - Fixture Side: IEC
Main Power Connector on Included Cable: Edison
