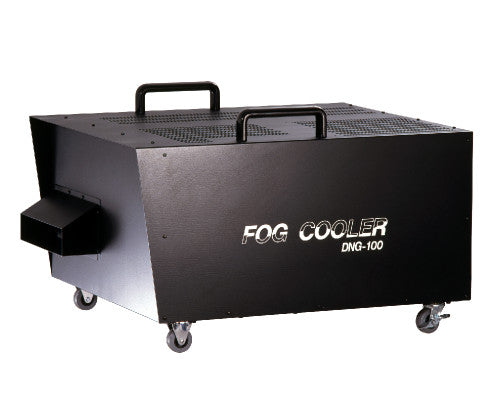

DNG-100 Universal Fog Cooler

The Antari DNG-100 is a professional universal fog cooler designed to transform standard fog-machine output into dense, floor-hugging fog similar to a traditional dry-ice effect. Its integrated refrigeration system cools incoming fog until it naturally remains close to the ground, providing a convenient solution for theatre, concerts, events, attractions and professional stage productions without requiring dry ice.

From The Manufacturer:

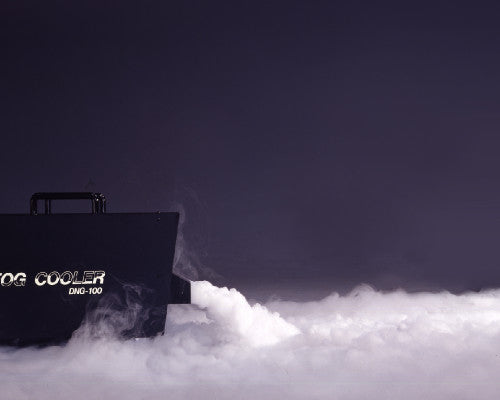

The DNG-100 converts normal fog from a fog machine into a floor-hugging cloud which is almost virtually similar to the dry ice effect.

This is achieved by cooling the temperature of the fog to the point where it falls to the ground.

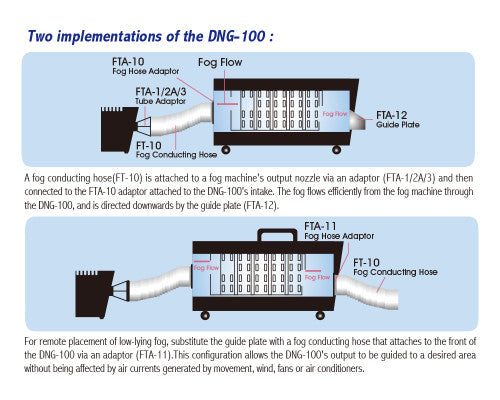

The DNG-100 is easy to operate as there are no external controls on the machine. Simply plug the unit in and place the fog conducting hose from the output of any fog machine to the input of the DNG-100.

The unit is fully operational upon being plugged in. The volume of fog produced is controlled by the fog machine that the DNG-100 is attached to.

Key Features:

• Professional universal fog cooling system

• Converts standard fog into low-lying ground fog

• Produces an effect similar to traditional dry ice

• Integrated refrigeration system

• Works with a separate compatible fog machine

• No dry ice required

• Simple plug-and-operate design

• Fog volume controlled by connected fog machine

• Suitable for professional stage and event applications

• Fog conducting hose included

• Designed for indoor use

Specifications:

• Product Type: Universal Fog Cooler

• Manufacturer: Antari

• Model / SKU: DNG-100

• Cooling Method: Refrigeration

• Refrigerant: R-404A

• Refrigerant Capacity: 0.63 kg / 1.39 lb

• Control: On/Off Switch

• Fog Source: External Fog Machine Required

• Recommended Operating Temperature: 10°C–30°C

• Ambient Operating Range: 5°C–40°C

• Installation: Upright Operation

• Maximum Inclination: 10°

• Environment: Indoor / Dry Locations

Applications:

• Low-lying fog effects

• Theatre productions

• Concerts

• Weddings

• Live events

• Film and television

• Theme parks

• Haunted attractions

• Stage productions

• Corporate events

• Professional special effects

Included Accessories:

• FT-10 Fog Conducting Hose

• FTA-11 Adapter

Optional Accessories:

• FTA-1

• FTA-2A

• FTA-3

• Additional compatible fog conducting accessories

Size:

• 784 × 608 × 479 mm

• 30.86 × 23.93 × 18.85 in

Weight:

• 72 kg

• 158.73 lb

Electrical / Thermal:

• US Input Voltage: AC 100–120 V, 50/60 Hz

• EU Input Voltage: AC 220–240 V, 50/60 Hz

• Rated Power @ 120 V: 750 W

• Rated Power @ 240 V: 600 W

• Starting Current @ 120 V: 61 A

• Starting Current @ 240 V: 21 A

• Rated Current @ 120 V: 6.7 A

• Rated Current @ 240 V: 3.2 A

• Refrigerant: R-404A

• Refrigerant Charge: 0.63 kg / 1.39 lb

• Ambient Operating Range: 5°C–40°C

• Indoor Use Only
