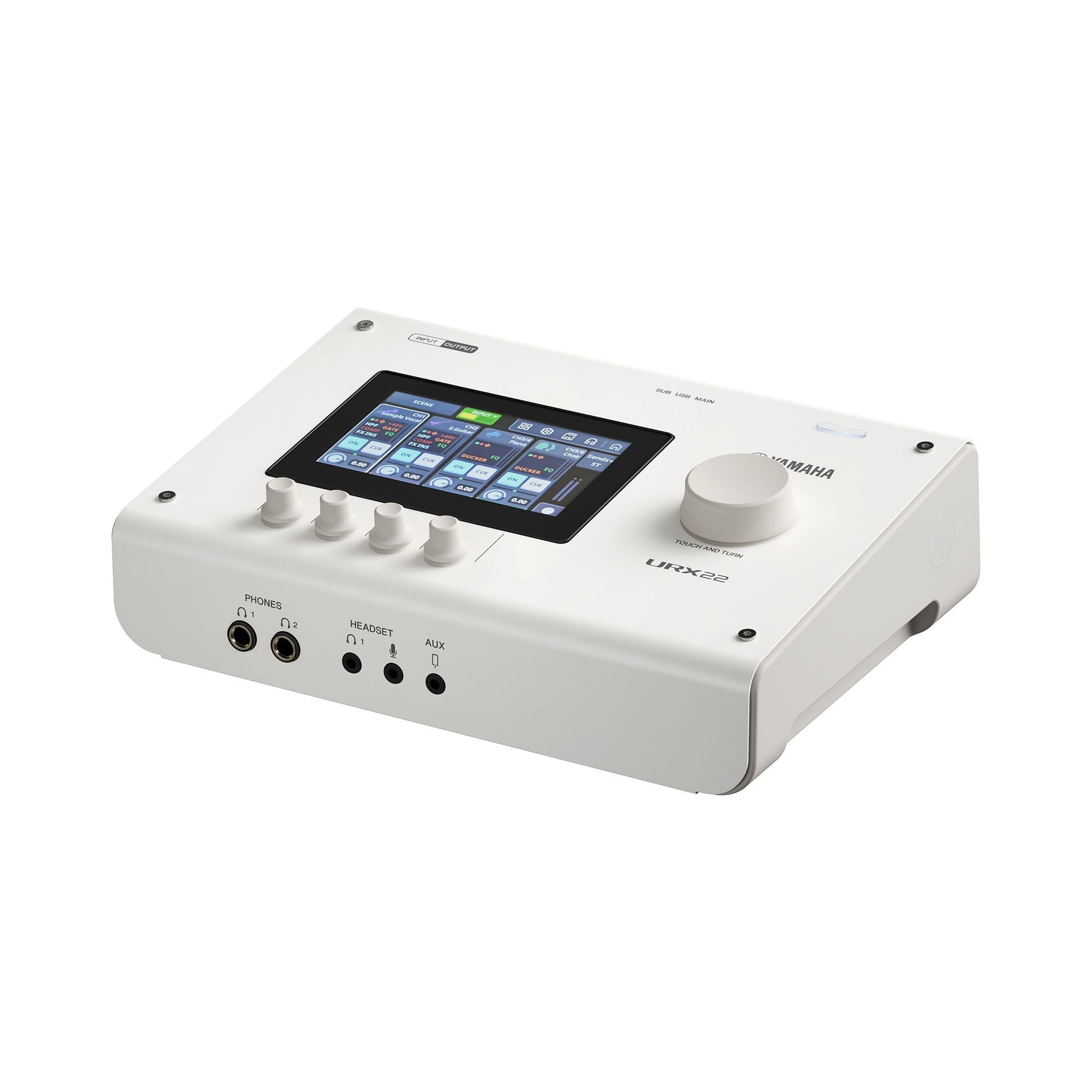

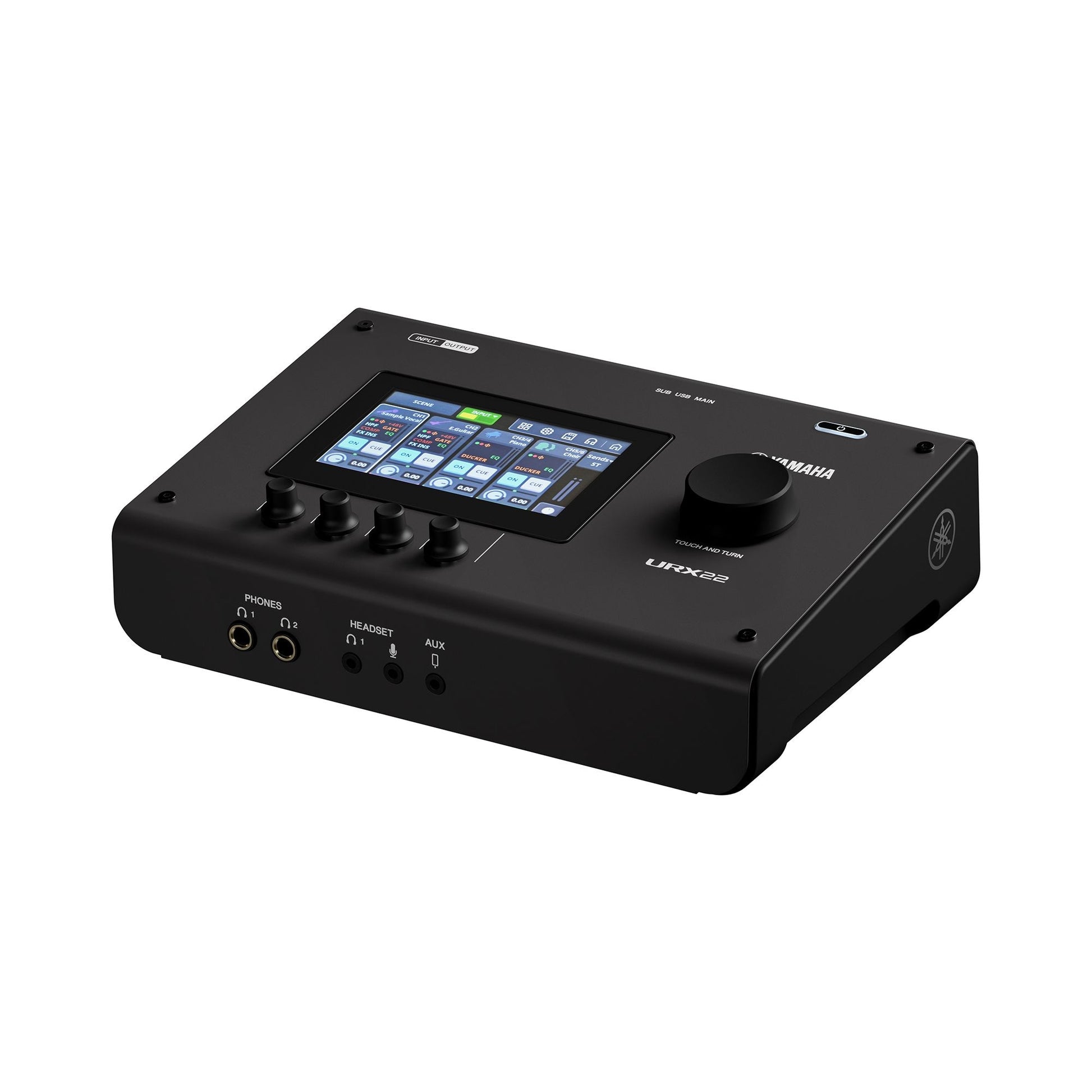

URX22

The Yamaha URX22 is a 4-in/2-out USB-C audio interface offering professional-level sound, onboard DSP effects, and an intuitive touch LCD in a compact, minimalist design for streaming, podcasting, and recording.

From the Manufacturer

Perfect for streamers, podcasters, gamers, and vocalist/musicians in particular, the URX22 is a compact, portable powerhouse punching well above its weight class in sound quality and system capability. When you demand professional-level audio but without the often frustrating and complicated setup and operation that usually comes with it, the URX22 is a minimalist’s dream, delivering professional-level results, yet with an effortless setup and workflow that won’t hinder your creativity.

Features

• Yamaha True Sound mic preamps with a 78 dB gain range, ultra-low distortion, and a 125 dB dynamic range at Main output for capturing every detail of your performance
• Pristine 192 kHz / 32-bit resolution combined with high-end AD/DA converters for faithful, uncompromised sound reproduction

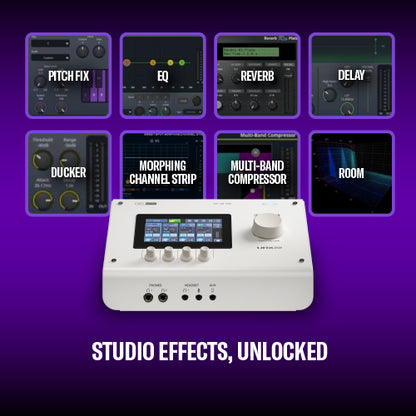

• Onboard creative tools including Gate, Compressor, EQ, Reverb, Amp Simulator, and Voice Changer (Pitch Fix) for shaping your signature sound
• Two combo inputs with 78 dB of gain range plus one stereo mini AUX input, and two headphone ports for collaborative monitoring
• Flexible Integration: dual MAIN/SUB USB ports with flexible routing — USB MAIN: 16-track recording/16-track playback; USB SUB: 2-track recording/2-track playback
• Intuitive control via a feature-packed touch LCD, four customizable knobs, and the TOUCH AND TURN knob
• Assistive tools for pro-level sound: Smart Gain, Clip Safe, Total FX (including Ducker and Multi-Band Compressor), and Delay for lip-sync adjustment
• Scene Recall function for switching instantly between setups or applications, pairable with Simple Mode for extra support
• Bundled with a complete suite of Steinberg music production software plus the free MixKey software mixer
• Seamless integration with Elgato Stream Deck and OBS Studio, plus expanded remote operation via Stream Deck, for a fully customizable workflow
• Recommended use: Livestreaming, podcasting, gaming commentary, and vocal/instrument recording

Firmware Update Highlights (V1.2)

Firmware V1.2 expands the capabilities of URX with powerful new tools for faster operation, greater workflow flexibility, and deeper creative integration—from intuitive Touch & Turn output control to Stream Deck compatibility, Steinberg software integration, and hardware-matched effects plugins.

• Touch and Turn Output Control: Adjust headphone and main output levels quickly and intuitively with the TOUCH AND TURN knob, without navigating additional menus.
• Seamless Control with CC1 or Stream Deck: Take command of your workflow with seamless control from the Yamaha CC1 controller or Elgato Stream Deck for quick access to key functions.
• Deeper Integration with Steinberg Software: Control mixer channels, adjust parameters, and configure built-in effects directly from your computer via Cubase, Nuendo, and MixKey.
• Basic FX Suite V4.0 Plugin Integration: Bring the signature processing of URX directly into your computer-based workflow. Available in VST, AU, and AAX formats for consistent sound shaping from recording to live production.

Note: Save/transfer/recall via microSD is not available on URX22, as this model does not include a microSD card slot.

Specifications

I/O Connectors

• Analog Input: 2 Combo (1 Mic/Line/3.5 mm headset mic, 1 Mic/Line/Hi-Z) + 1 AUX (3.5 mm Phone)
• Analog Output: 2 TRS
• USB TO HOST: 2 (USB Type-C, MAIN: 32-bit / SUB: 16-bit)
• Phones: 2 TRS, 1 mini headset phones (100 mW+100 mW @40 Ohm) — the first TRS Phones port and the 3.5 mm mini port cannot be used simultaneously
• DC: 2 (Type-C USB MAIN bus power or Type-C USB DC IN)
• microSD Card Slot: Not available on this model

User Interface

• 4.3-inch touch screen, 5 x rotary encoder (4 x screen knob, 1 x “TOUCH AND TURN”)

Recording & Playback

• USB: 16-track recording, 16-track playback
• USB (SUB): 2-track recording, 2-track playback

Sound

• Sampling Frequency Rate: 192 kHz – 44.1 kHz
• Frequency Response: +0.0/−0.2 dB (20 Hz – 20 kHz)
• Dynamic Range: [MIC/LINE/Hi-Z] 115 dB, [MAIN OUTPUT] 125 dB
• Total Harmonic Distortion: [MIC/LINE/Hi-Z] 0.0008%, 1 kHz, 20 kHz LPF; [MAIN OUTPUT] 0.00036%, 1 kHz, 20 kHz LPF
• Equivalent Input Noise: -128 dBu, A-Weighted
• Gain Range: 78 dB

Mixing Capacity

• Input Channels: 2 mono + 4 stereo + 2 FX
• Mix Buses: 2 (stereo)
• Stereo Buses: 1
• FX Buses: 2
• Cue Buses: 1

On-Board Processors

• DSP: Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ), Guitar Amp Classics (Amp Simulator), Pitch Fix (Voice Changer), Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb)

Power

• Power Requirements: DC5 V/3.0 A
• Power Consumption: 15 W (Off mode power: 0.1 W)
• Auto Power Off: 2, 5, 10, 15, or 20 minutes, or Never (factory default)

Dimensions & Weight

• Width: 245 mm (9.6″)
• Height: 78 mm (3.1″)
• Depth: 182 mm (7.2″)
• Net Weight: 1.9 kg (4.2 lb)

Operating Environment

• Operating Temperature: 0 to +40°C
• Storage Temperature: -20 to +60°C

What's in the Box

• URX22 Audio Interface
• Start Guide
• Safety Guide
• Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus)
• Basic FX Suite License Card
• USB-C to USB-C Cable (USB 2.0, 1.5 m)
