DarkFX UV Wash 2000

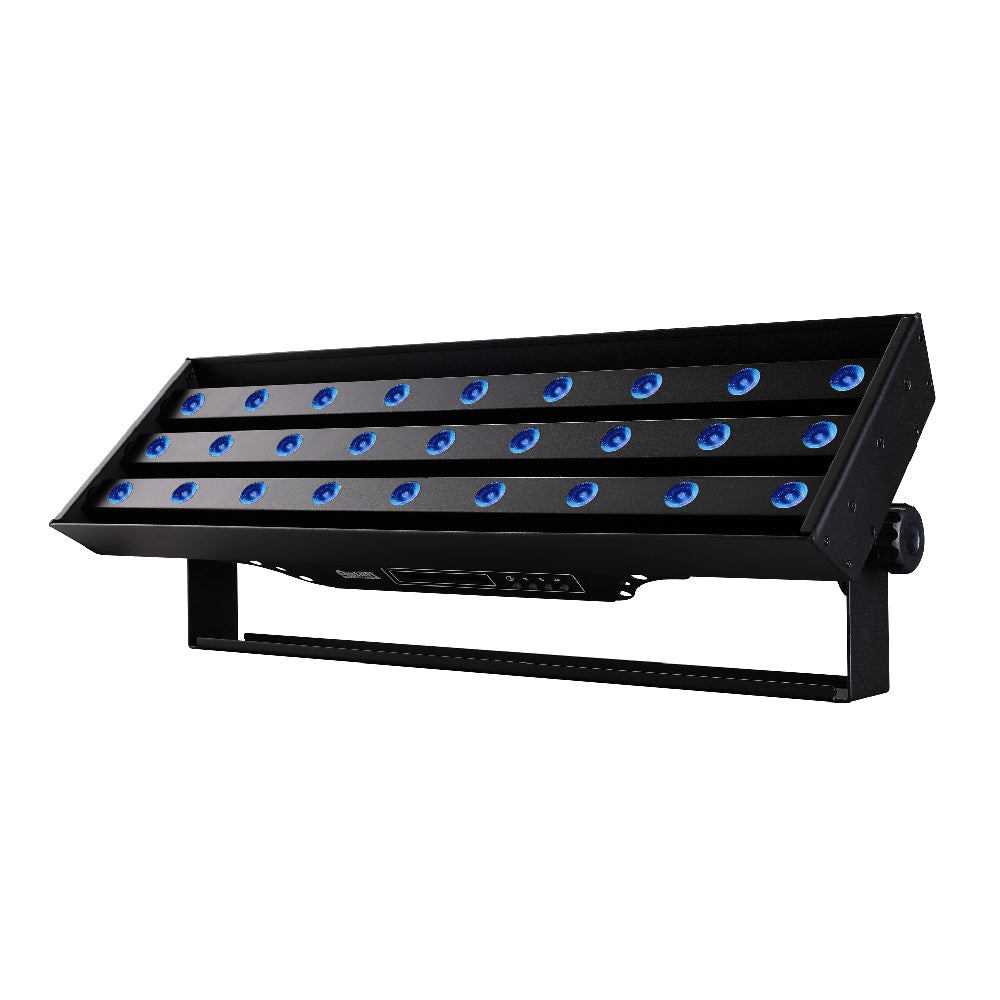

The Antari DarkFX UV Wash 2000 is a professional high-output UV LED wash fixture designed to deliver powerful 365 nm ultraviolet illumination with minimal visible light. Featuring 27 high-power UV LEDs arranged across three independently adjustable modular arrays, it provides flexible coverage for UV-reactive materials, stage productions, attractions, art installations, film, television, and entertainment environments.

From The Manufacturer:

The Antari DarkFX Wash 2000 is an efficient high output low power consumption UV LED wash panel that delivers a peak wavelength of 365nm and radiant flux output of 20,290mW at full intensity with minimum visible light.

This ensures all UV reactive materials, art, amusement park displays, and signage reflects perfectly with stunning bright and vivid colors.

It features (27) 1.9W high power UV LEDs, a 25-degree beam angle, special optics to prevent wear degradation from high UV exposure, flicker free operation for TV and FILM, a durable aluminum extruded housing, (3) modular adjustable LED arrays to maximize coverage, manual and DMX controllable, 5pin DMX and powerCON in/out connections, (2) adjustable mounting brackets, 4 button control panel, and a multi-voltage universal auto switching power supply (100-240V) 50-60Hz.

Key Features:

• Professional high-output UV LED wash panel

• 27 × 1.9 W high-power UV LEDs

• 365 nm peak wavelength

• Minimal visible light emission

• 20,290 mW radiant flux output

• 25° beam angle

• 3 adjustable modular LED arrays

• Adjustable arrays help maximize coverage

• Special UV-resistant optics

• Flicker-free operation for film and television

• Manual and DMX512 control

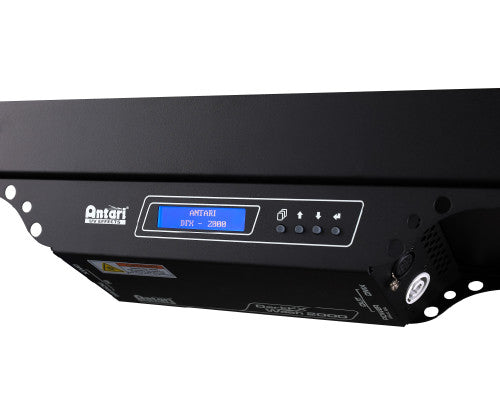

• 4-button control panel

• 5-pin DMX input and output

• Locking power input and output

• Durable aluminium housing

• 2 adjustable mounting brackets

• IP20 rated

Specifications:

• Product Type: UV LED Wash Fixture

• Manufacturer: Antari

• Series: DarkFX

• Model: UV Wash 2000 / DFX-W2000

• Elation SKU: AUV200

• Light Source: 27 × 1.9 W High-Power UV LEDs

• Average LED Life: 20,000 Hours

• Peak Wavelength: 365 nm

• Radiant Flux Output: 20,290 mW

• Beam Angle / Optics: 25°

• Control: Manual / DMX512

• DMX Connection: 5-Pin XLR In/Out

• Power Connection: Locking Power In/Out

• Control Interface: 4-Button Control Panel

• Housing: Aluminium

• Protection Rating: IP20

• Installation Environment: Indoor

• Product Status: Discontinued

Applications:

• Stage productions

• Concerts

• Theatre

• Film and television

• Theme parks

• Haunted attractions

• UV-reactive displays

• Art installations

• Signage

• Clubs and entertainment venues

• Professional event production

Included Accessories:

• Power cord

Accessories (Not Included):

• DMX cable

• Lighting clamps

• Safety cables

• Additional power cables

Size:

• 600 × 181.2 × 181.7 mm

• 23.6 × 7.1 × 7.2 in

Weight:

• 6.37 kg

• 14.0 lb

Electrical/Thermal:

• Input Voltage: AC 100–240 V, 50/60 Hz

• Maximum Power Consumption: 58 W @ 110 VAC

• Maximum Power Consumption: 55.8 W @ 220 VAC

• LED Life: Approximately 20,000 Hours

• Protection Rating: IP20

• Indoor Use
