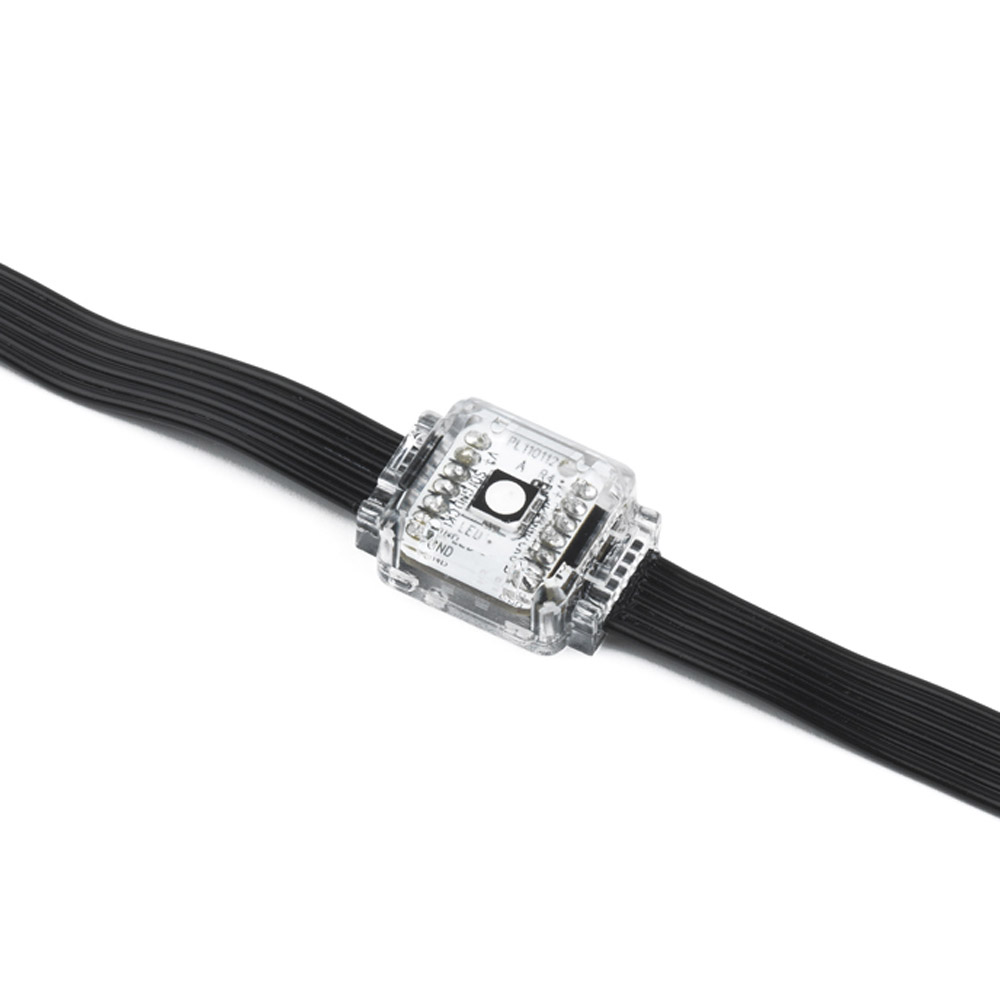

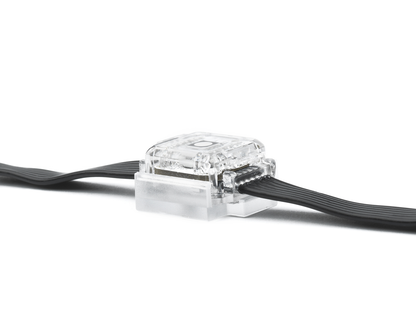

VC-Dot 1

C-Dot 1 is a versatile LED string controllable via the P3 System Controller or DMX512, ideal for customized LED video solutions indoors or outdoors. Its intuitive mapping process eliminates complexity, offering bright, fully calibrated LEDs for consistent performance.

From The Manufacturer:

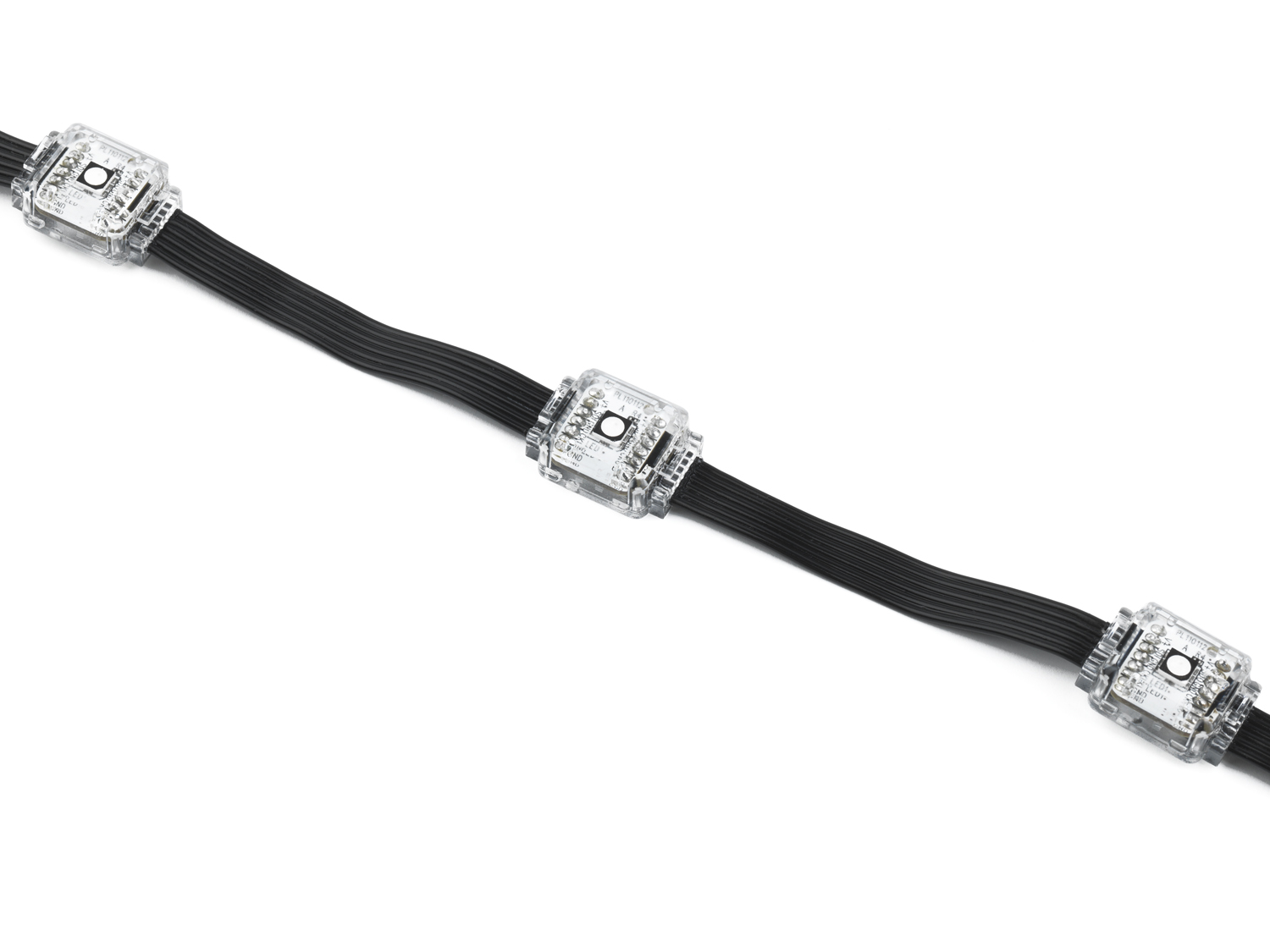

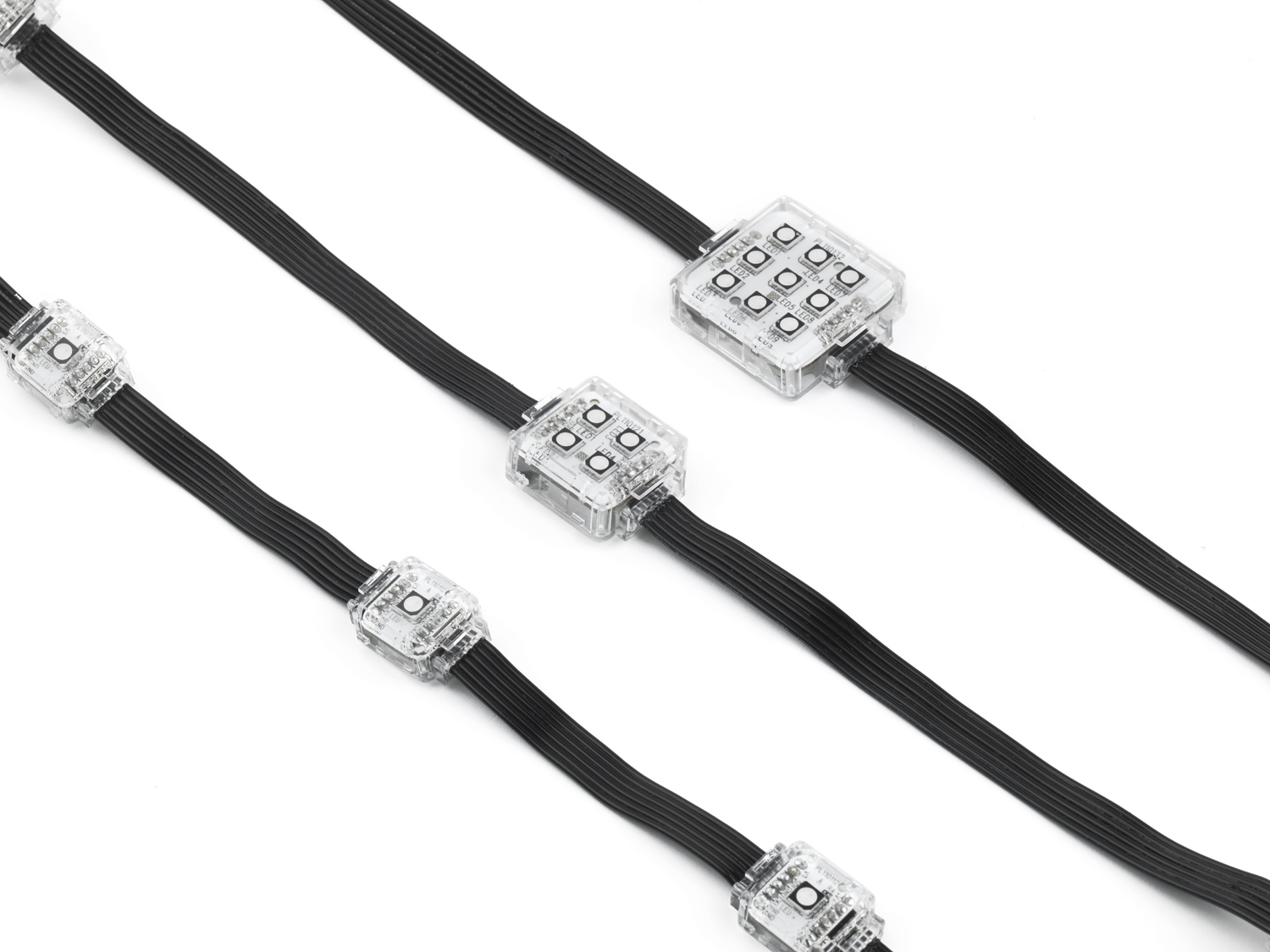

VC-Dot 1 is a lightweight string of individually controllable, bright Dots useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort. Fully customizable and controllable via the award-winning P3 System Controller™ family and/or DMX512, it is a perfect solution for integrating LED video technology into façades, stage designs, ceilings or any other structure, indoors or out.

Mapping video onto VC-Dots goes quickly and intuitively via the P3 System Controller. No need for complex setups and time-consuming addressing. VC-Dot 1 contains one LED and is available in an RGB color mixing version.

• Creative LED Video element for building and stage integration
• Customizable pixel-pitch
• Bright and fully calibrated for optimal consistency

Features:

• Flexible string-based direct-view LED lighting
• Perfect for façade or stage integration
• Individually controllable VC-dots
• Up to 100 VC-dots per string
• Customizable VC-dot pixel pitch and string length
• Calibrated brightness and colors for each VC-Dot
• P3 and RDM/DMX controllable
• Intuitive mapping and addressing via P3 System Controller family
• Efficient and long-lasting
• IP67 rated for permanent outdoor or indoor use
• Simple infrastructure via VC-Feeder and P3 PowerPort

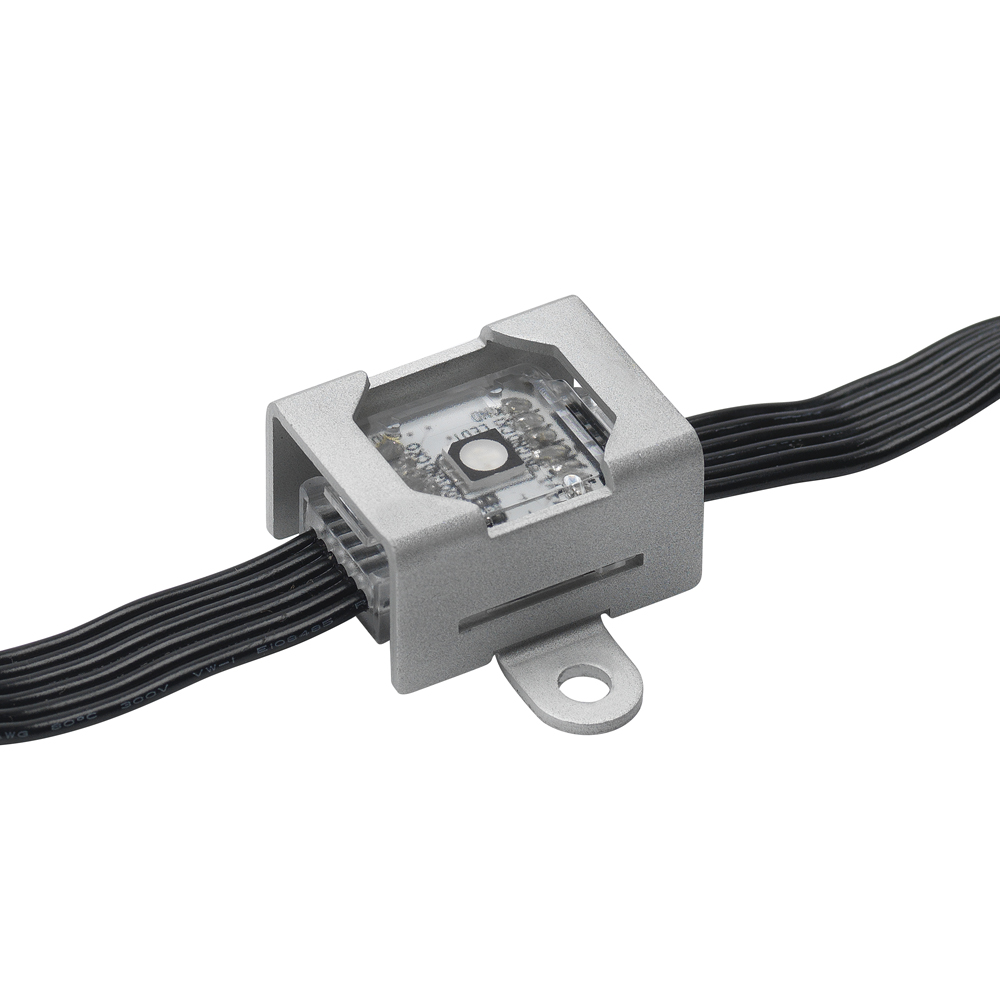

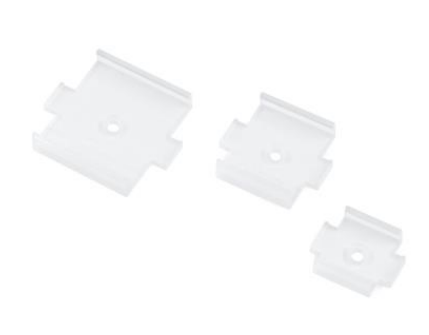

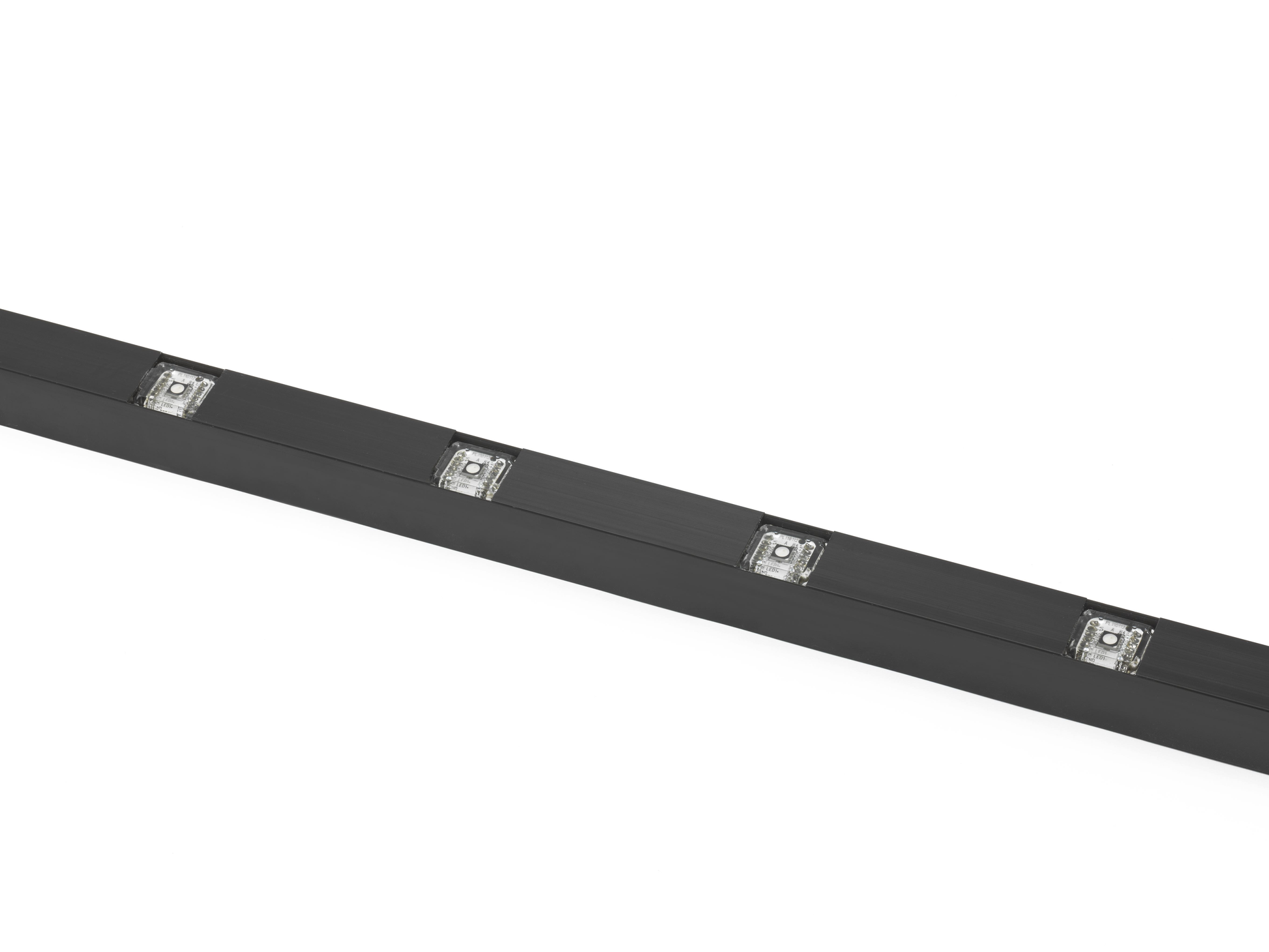

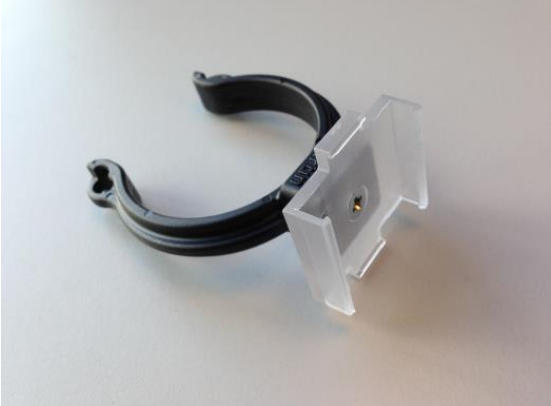

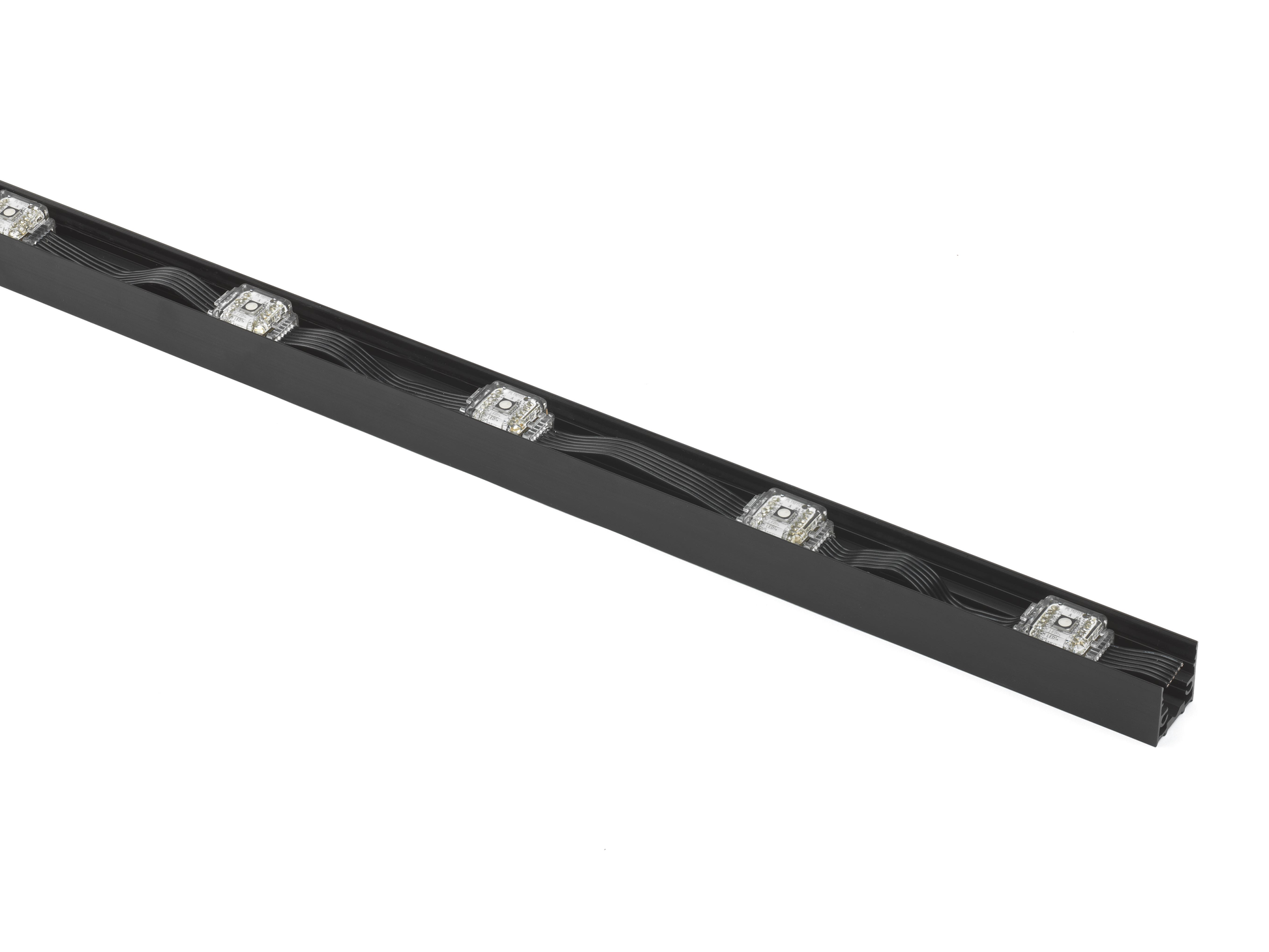

• Great number of mounting options using clips, brackets or profiles

Physical:

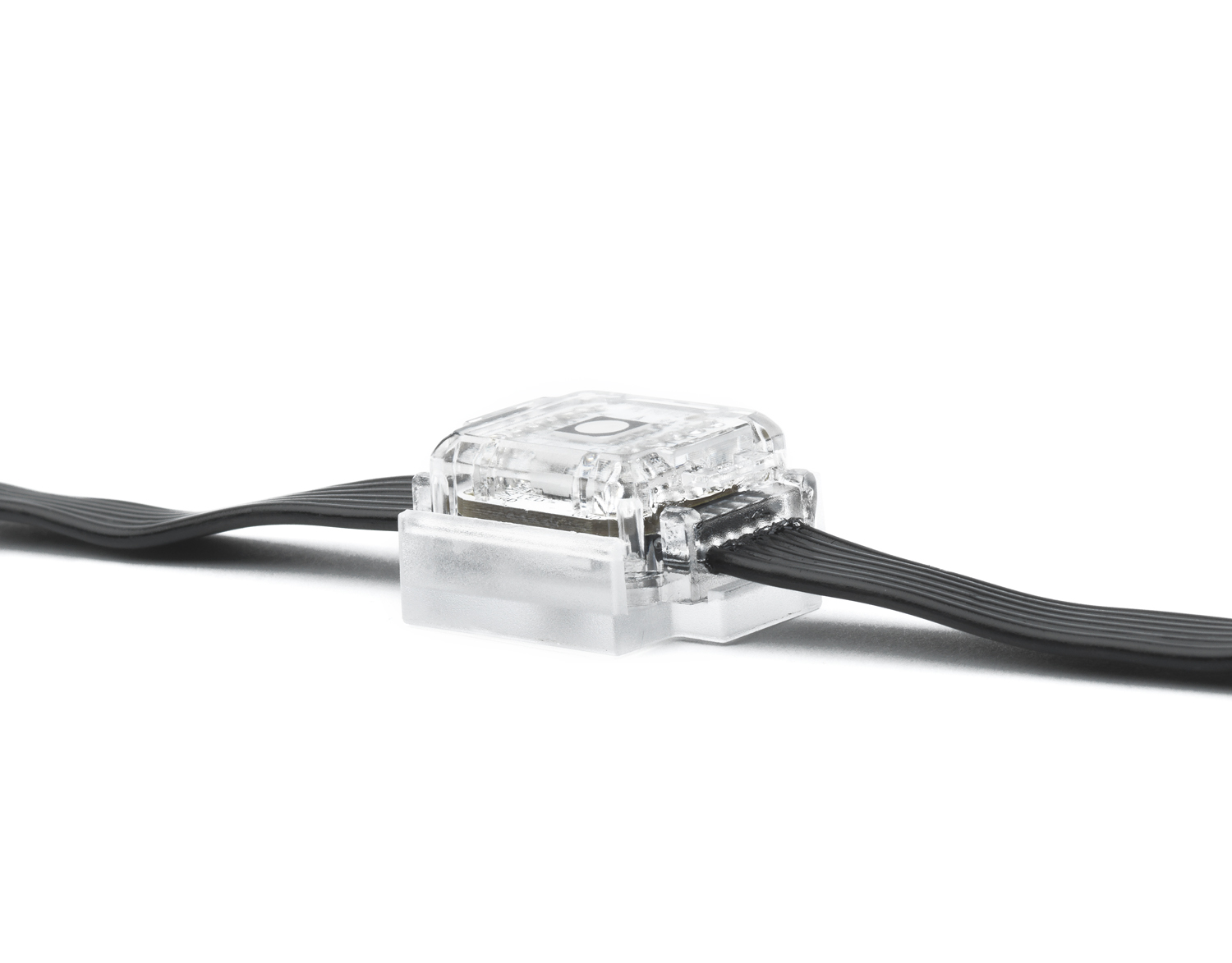

• Pixel dimensions: 28 x 23 x 11 mm (1.1 x 0.9 x 0.5 in.)

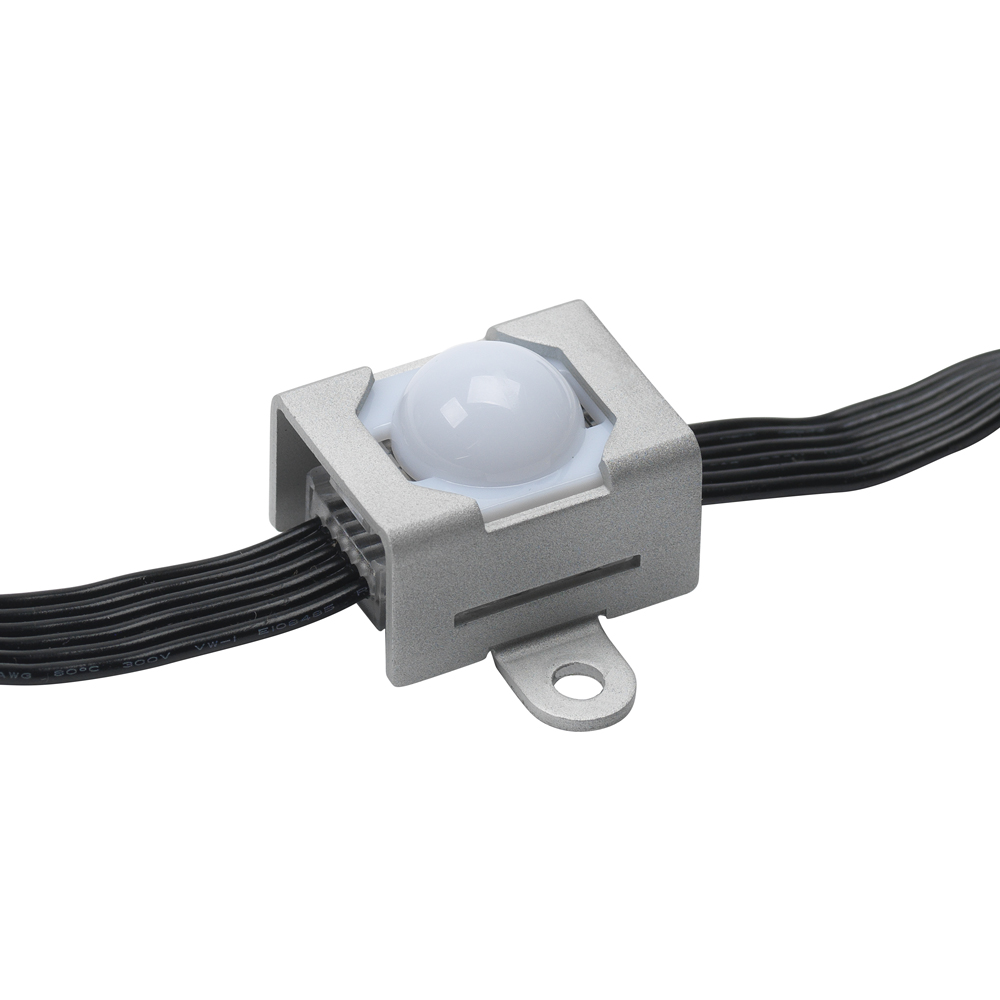

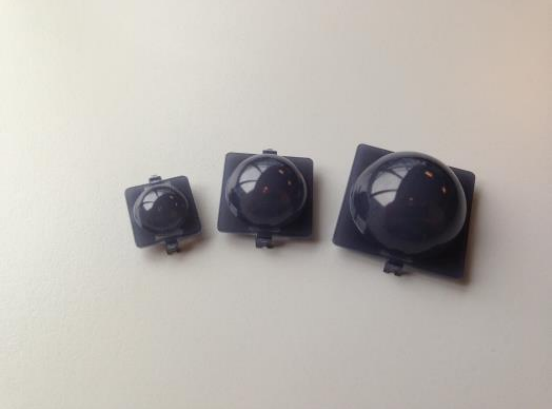

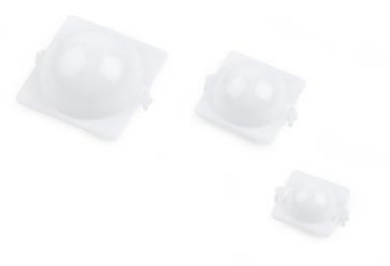

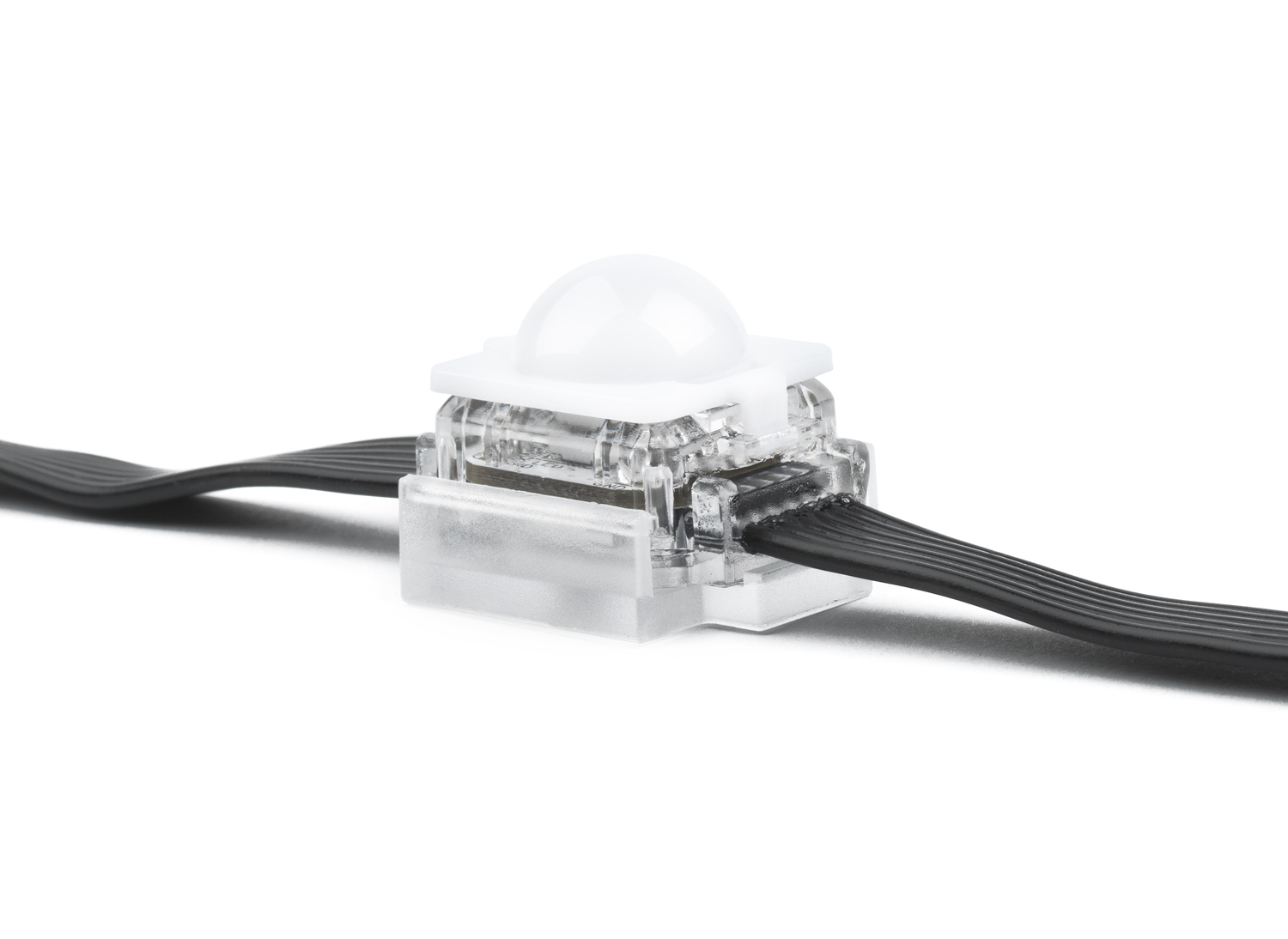

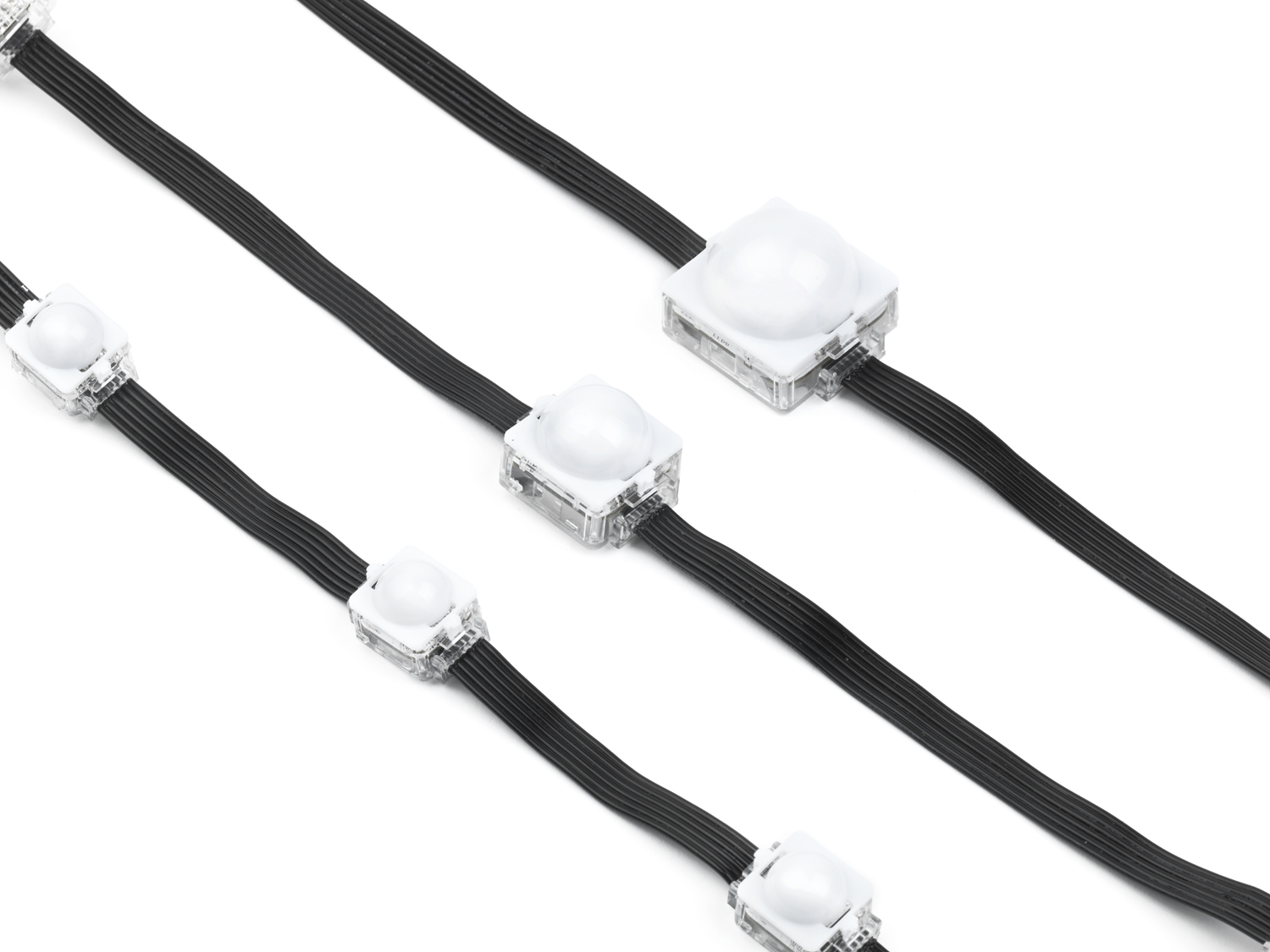

• Pixel dimensions with dome: 28 mm x 23 mm x 20 mm (1.1 x 0.9 x 0.8 in.)
• Weight: 1.3 kg (2.9 lbs.) for 100 Dots, 100 mm (4.0 in.) spacing, with 2 m (6.6 ft.) lead-in cable and connector
• Maximum number of pixels per string: 100
• Standard pixel spacing (pitch): 100 mm (4.0 in.)
• Minimum pixel spacing (pitch): 100 mm (4.0 in.)
• Maximum pixel spacing (pitch): 1000 mm (39.4 in.)

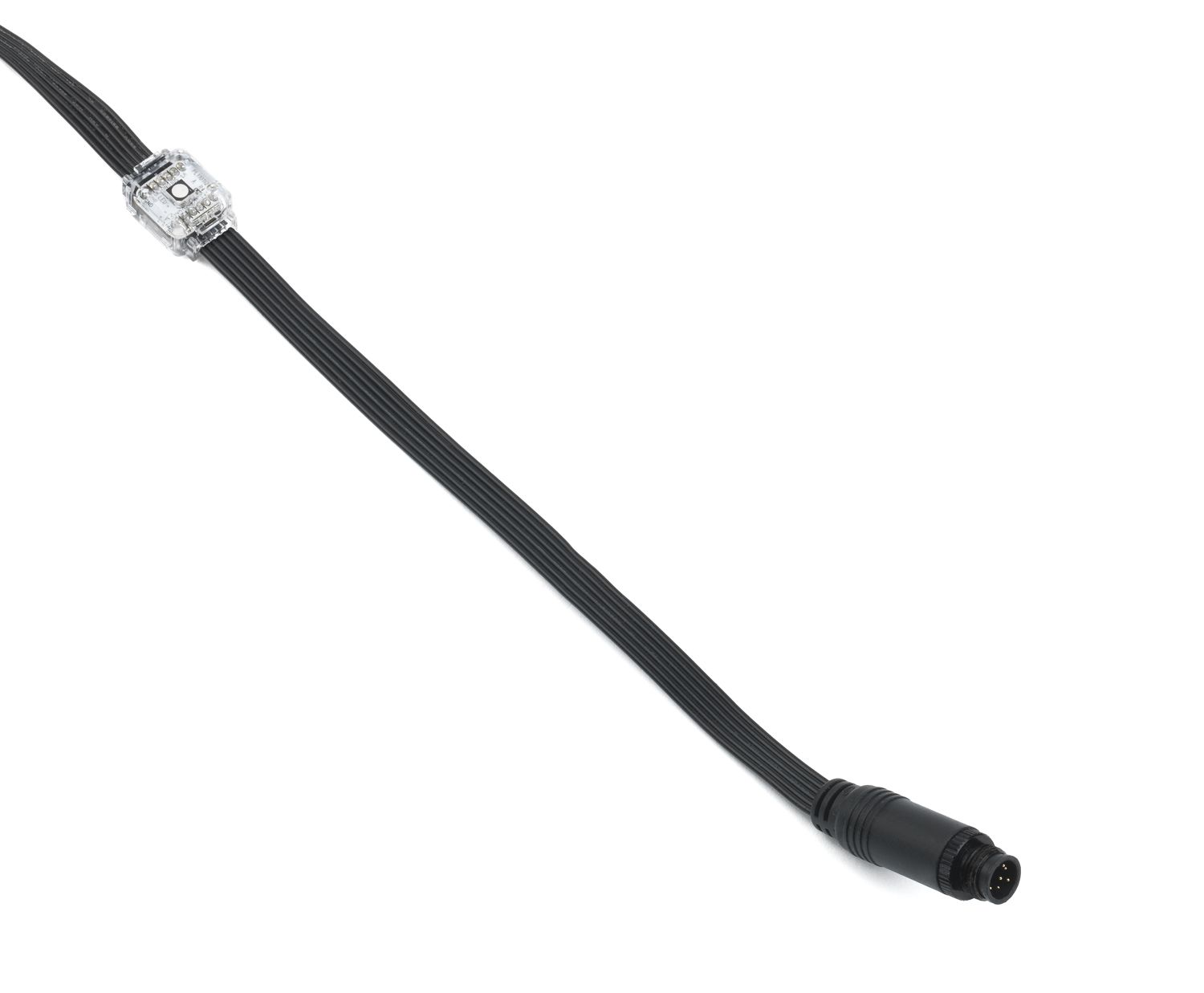

• Standard lead-in cable length: 2000 mm (78.8 in.)
• Maximum lead-in cable length: 5000 mm (196.9 in.)
• One pixel = one Dot

Electrical:

• Power and data converter: Martin VC-Feeder™
• Peak power consumption (at full intensity, full white): 0.95 W per Dot
• Typical power consumption (with typical video content): 0.32 W per Dot
• Figures for typical video content are indicative only and will vary.
• Operating voltage: 15 VDC
