VC-Dot 9

Introducing VC-Dot 9: the disco-ball's tech-savvy cousin, with nine individually controllable LEDs for all your pixel-perfect dance moves. Controlled by the P3 System Controller, it's like having a DJ for your lights, perfect for turning any space into a party zone, whether you're indoors or out!

From The Manufacturer:

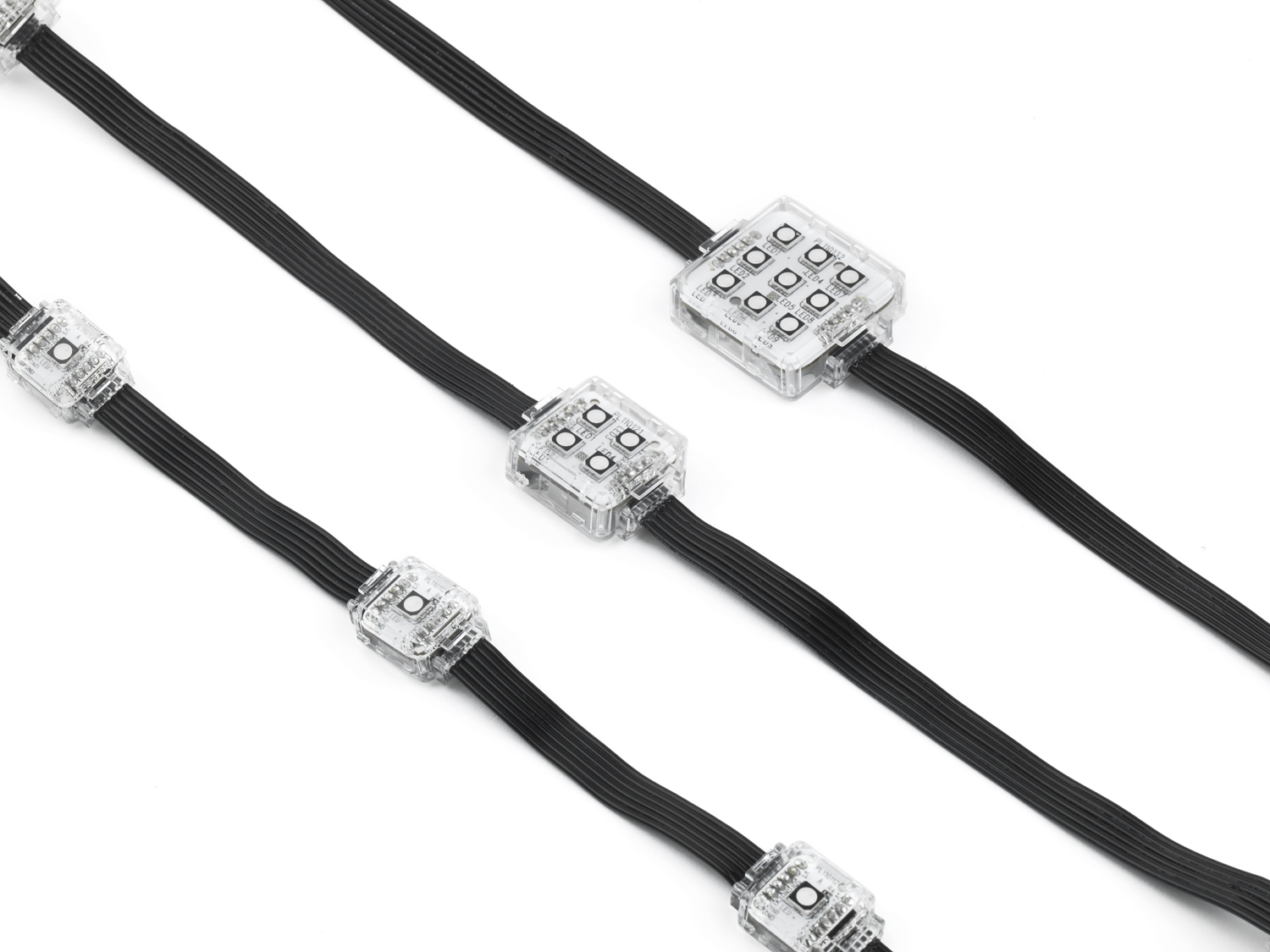

VC-Dot 9 is a lightweight string of individually controllable, bright Dots useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort. Fully customizable and controllable via the award-winning P3 System Controller™ family and/or DMX512, it is a perfect solution for integrating LED video technology into façades, stage designs, ceilings or any other structure, indoors or out.

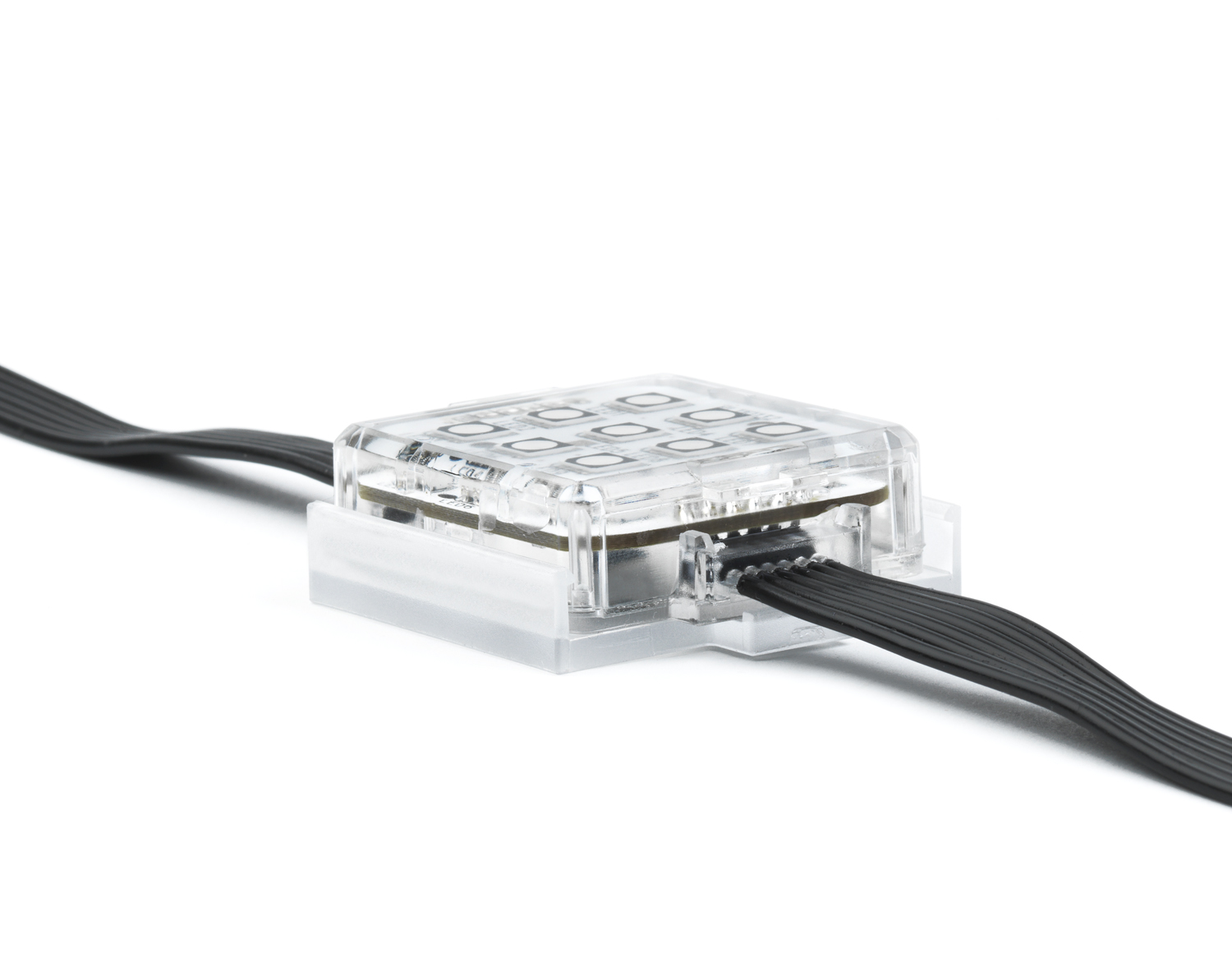

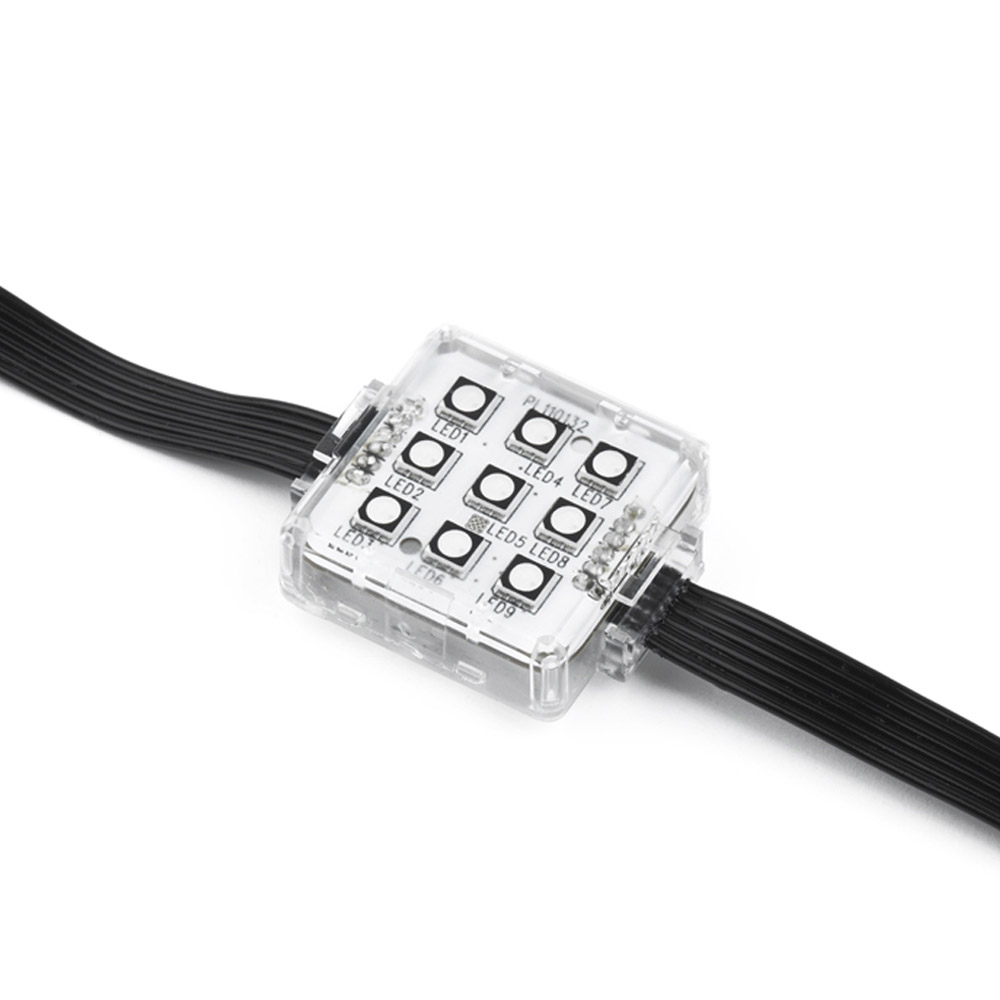

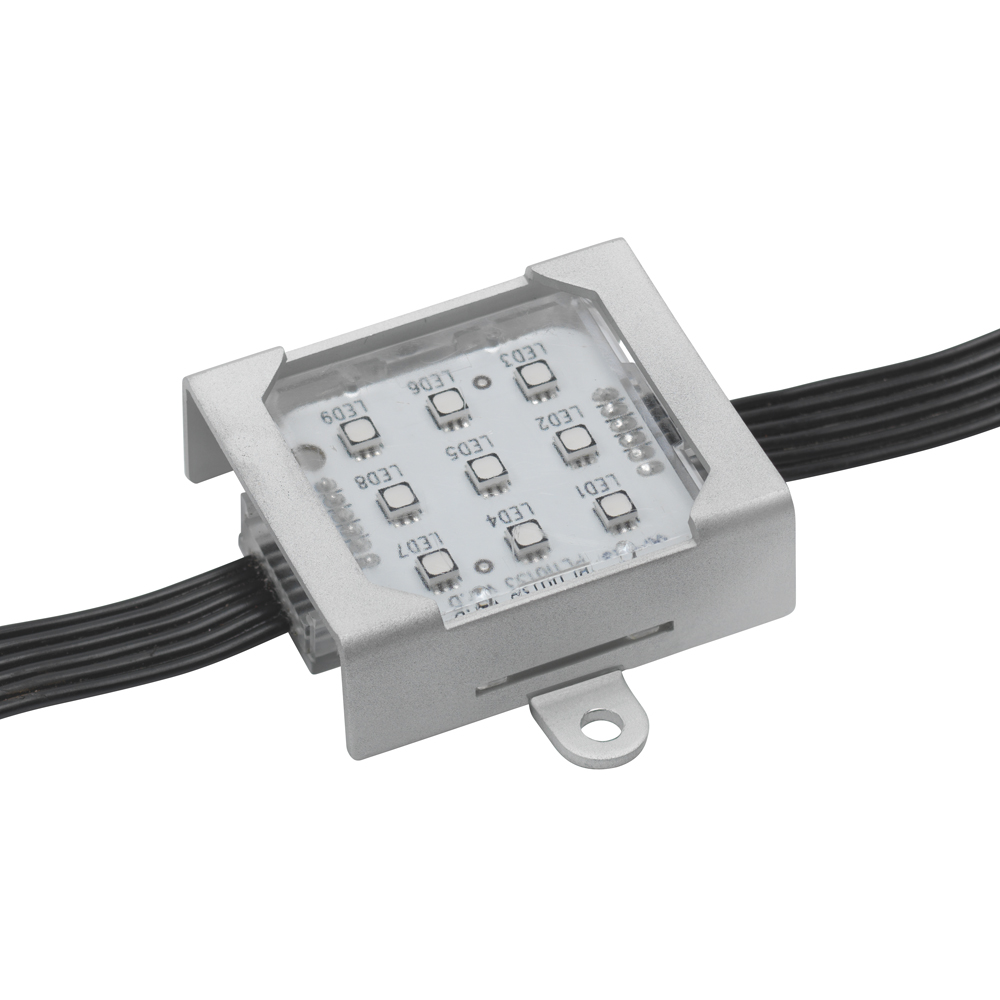

Mapping video onto VC-Dots goes quickly and intuitively via the P3 System Controller. No need for complex setups and time-consuming addressing. VC-Dot 9 contains nine LEDs and is available in an RGB color mixing version.

• Creative LED Video element for building and stage integration
• Customizable pixel-pitch
• Bright and fully calibrated for optimal consistency

Features:

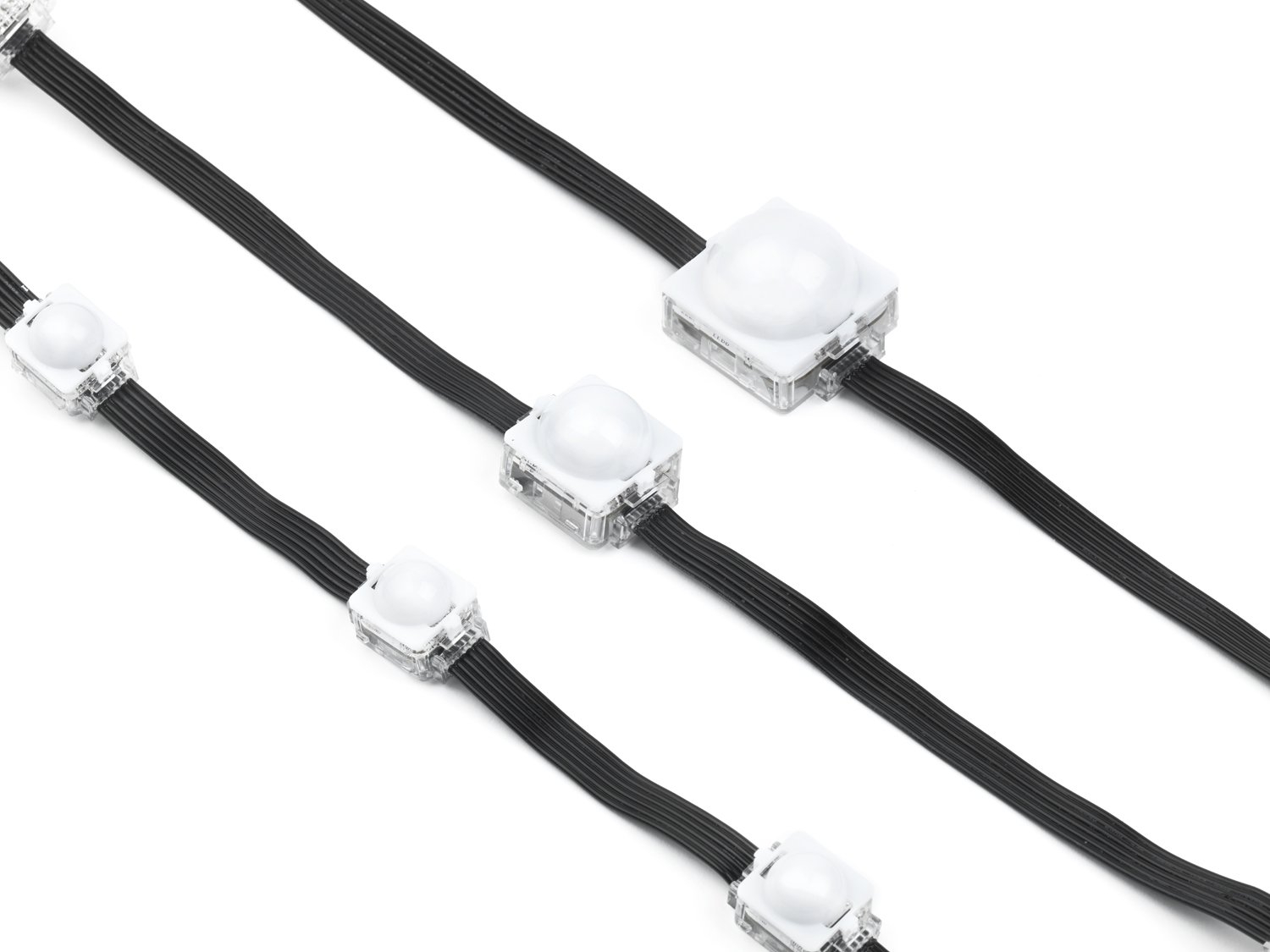

• Flexible string-based direct-view LED lighting
• Perfect for façade or stage integration
• Individually controllable VC-dots
• Up to 36 VC-dots per string
• Customizable VC-dot pixel pitch and string length
• Calibrated brightness and colors for each VC-Dot
• P3 and RDM/DMX controllable
• Intuitive mapping and addressing via P3 System Controller family
• Efficient and long-lasting
• IP67 rated for permanent outdoor or indoor use
• Simple infrastructure via VC-Feeder and P3 PowerPort

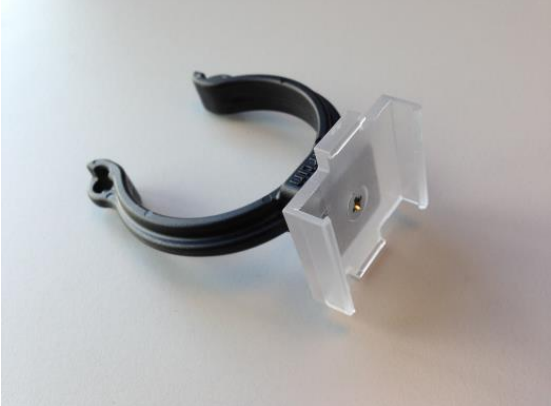

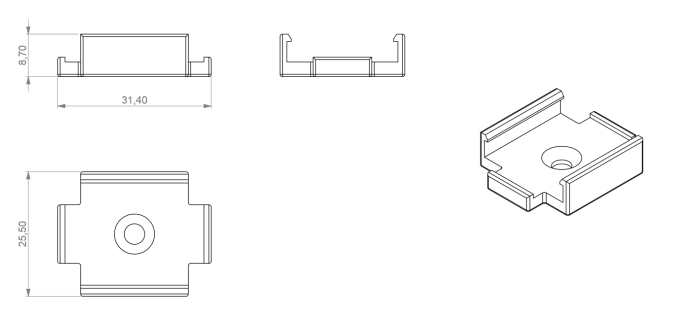

• Great number of mounting options using clips, brackets or profiles

Physical:

• Pixel dimensions: 48 x 40 x 13 mm (1.9 x 1.6 x 0.6 in.)

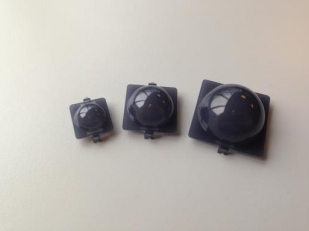

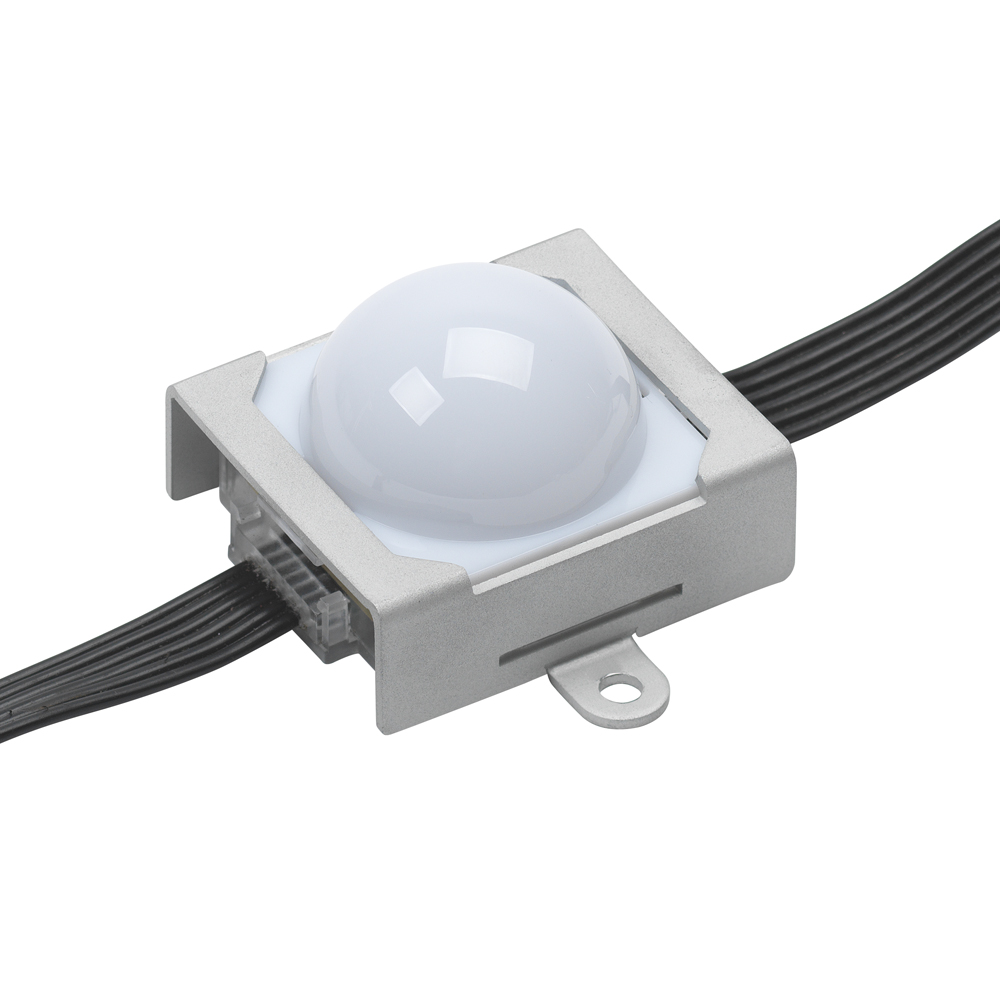

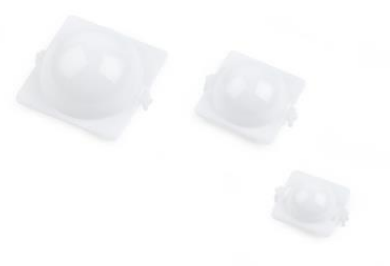

• Pixel dimensions with dome: 48 x 40 x 31 mm (1.9 x 1.6 x 1.3 in.)
• Weight: 1.8 kg (4.0 lbs.) for 36 Dots, 400 mm (15.8 in.) spacing, with 2 m (6.6 ft.) lead-in cable and connector
• Maximum number of pixels per string: 36
• Standard pixel spacing (pitch): 400 mm (15.8 in.)
• Minimum pixel spacing (pitch): 150 mm (5.9 in.)
• Maximum pixel spacing (pitch): 2000 mm (78.8 in.)

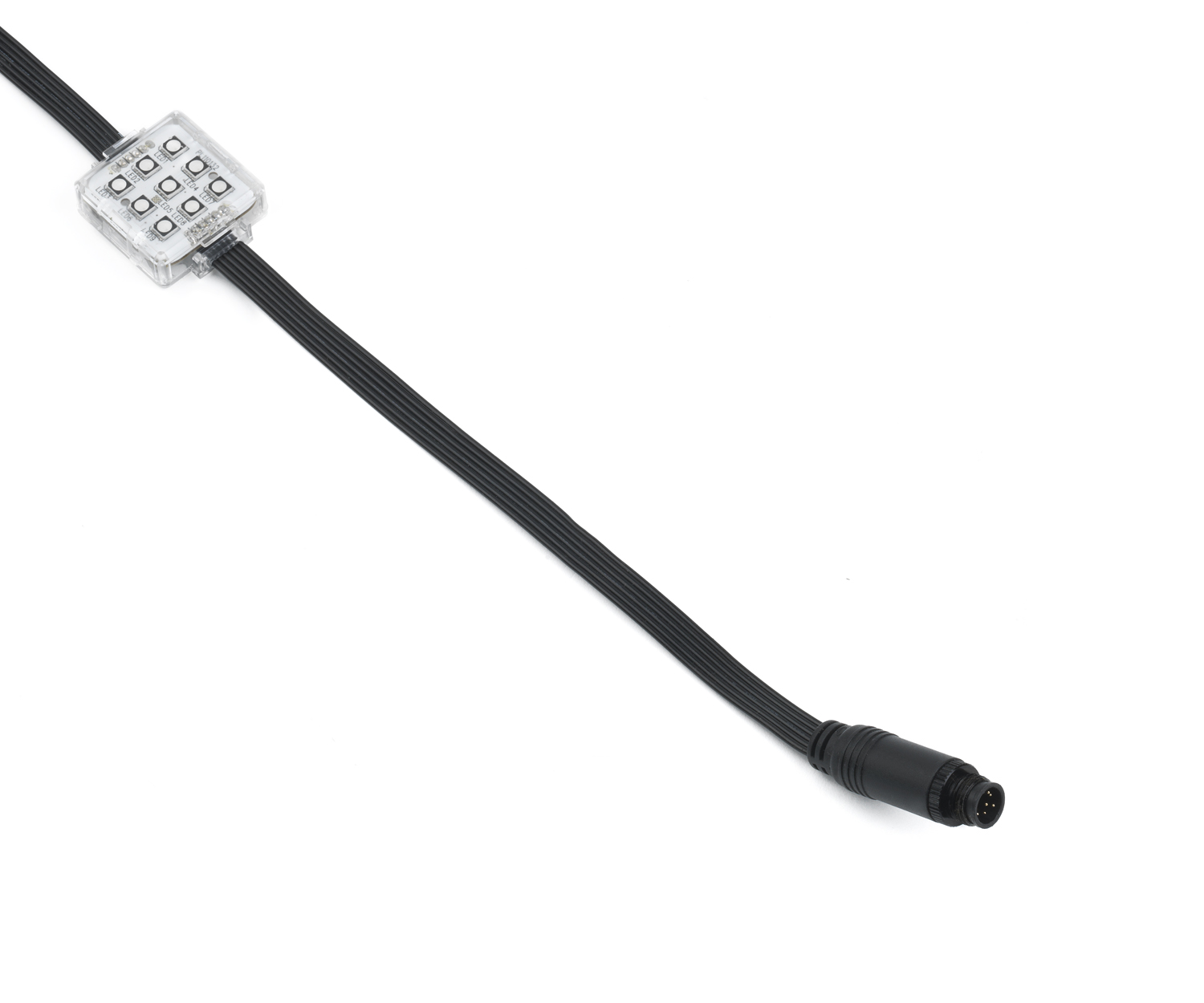

• Standard lead-in cable length: 2000 mm (78.8 in.)
• Maximum lead-in cable length: 5000 mm (196.9 in.)
• One pixel = one Dot

Electrical:

• Power and data converter: Martin VC-Feeder™
• Peak power consumption (at full intensity, full white): 2.75 W per Dot
• Typical power consumption (with typical video content): 0.92 W per Dot
• Figures for typical video content are indicative only and will vary
• Operating voltage: 15 VDC

Amount:

• 36 Units
