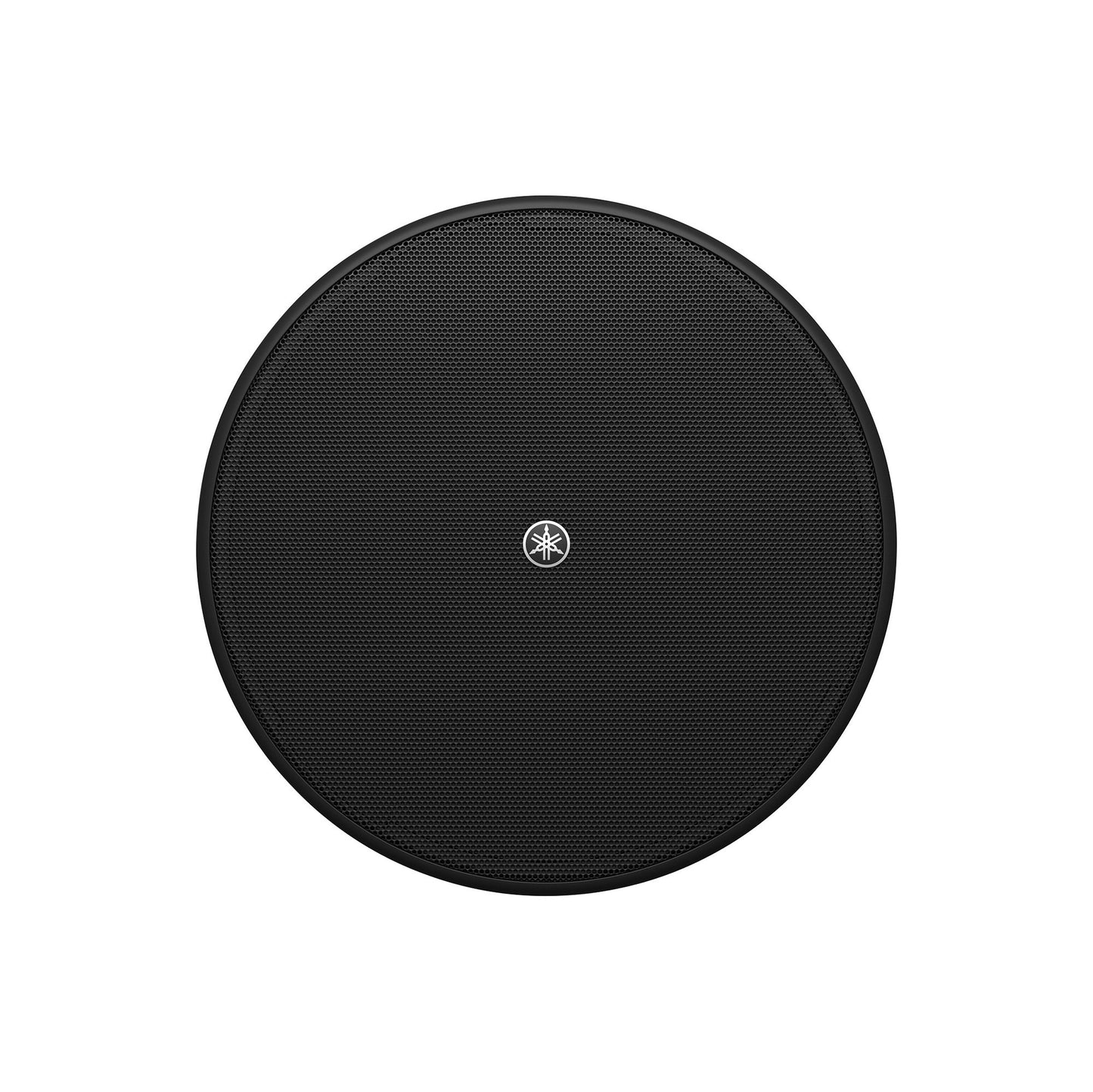

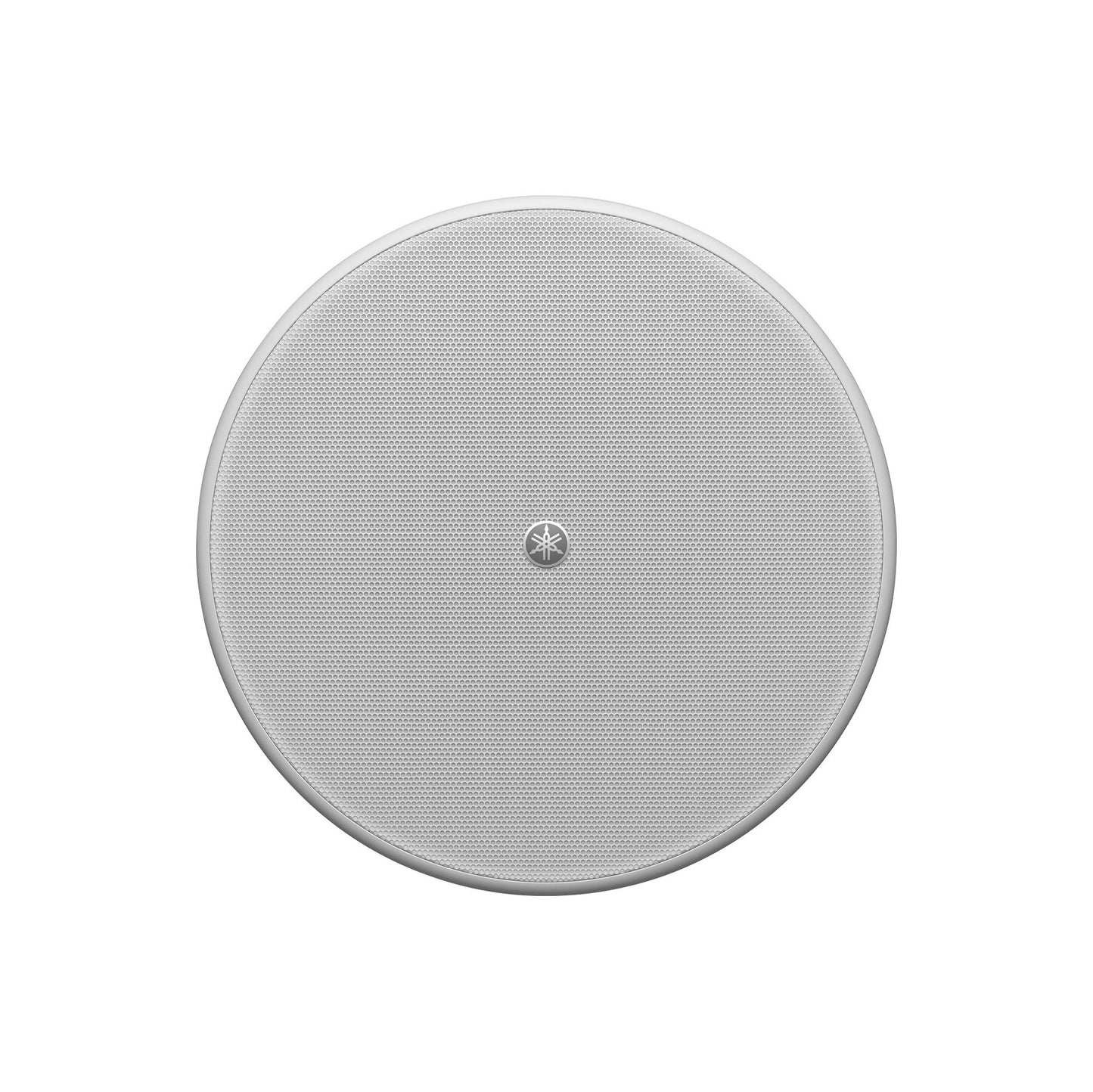

VC4N

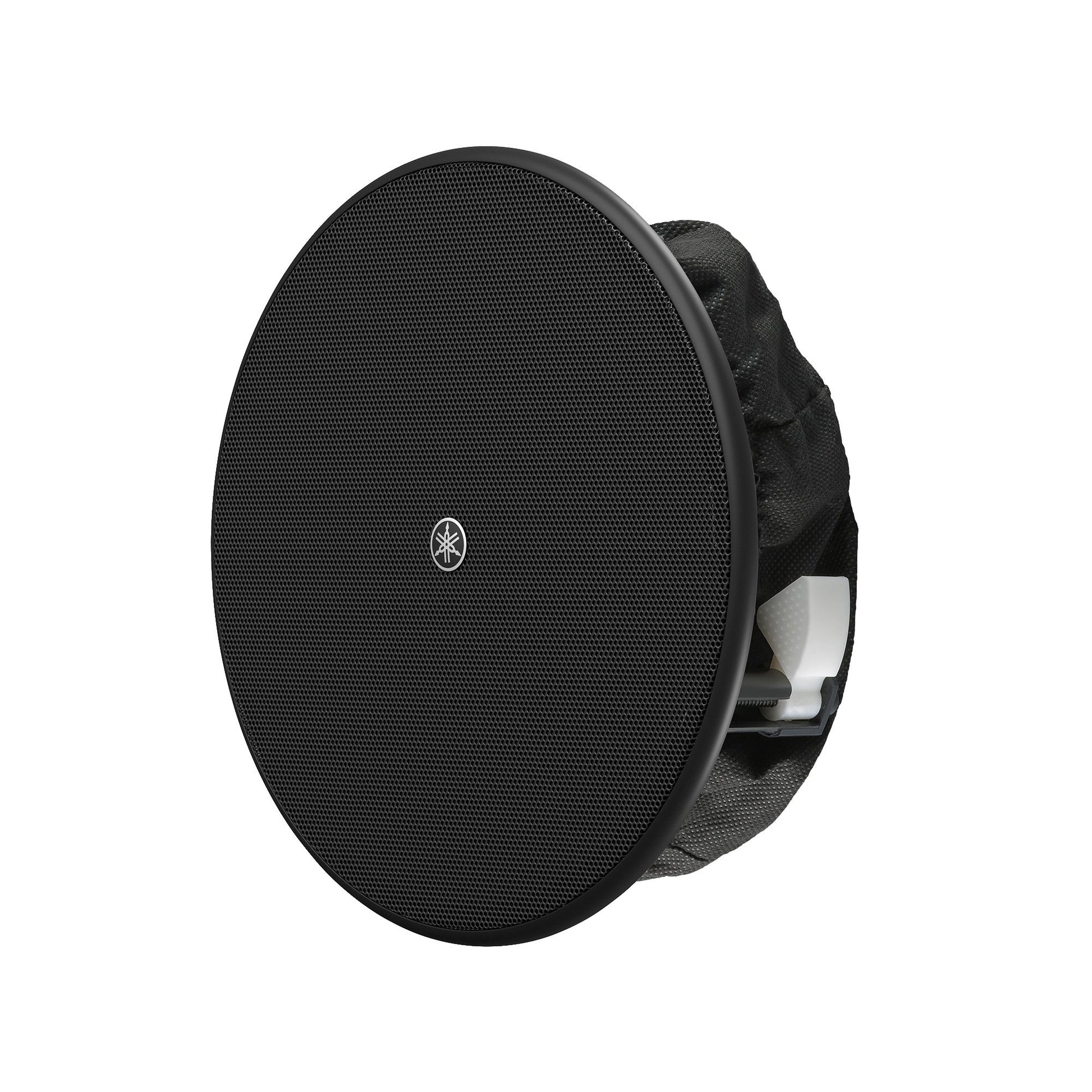

The Yamaha VC4N ceiling speaker models have no back can for a low-profile design and installation in limited ceiling space.

From the Manufacturer:

VC series ceiling speakers for commercial installations deliver excellent sound quality at a price point traditionally reserved for economy speakers. A total of six models, three with back cans and three without, feature elegant low-profile designs that can be installed easily even in limited ceiling or wall spaces. Large mounting clamps with non-slip treads ensure secure mounting.

Features:

Recommended Applications

Wide coverage area with many speakers installed, such as shopping mall, office buildings, restaurant, healthcare facilities, and transportation terminals.

Versatile lineup for a variety of requirements

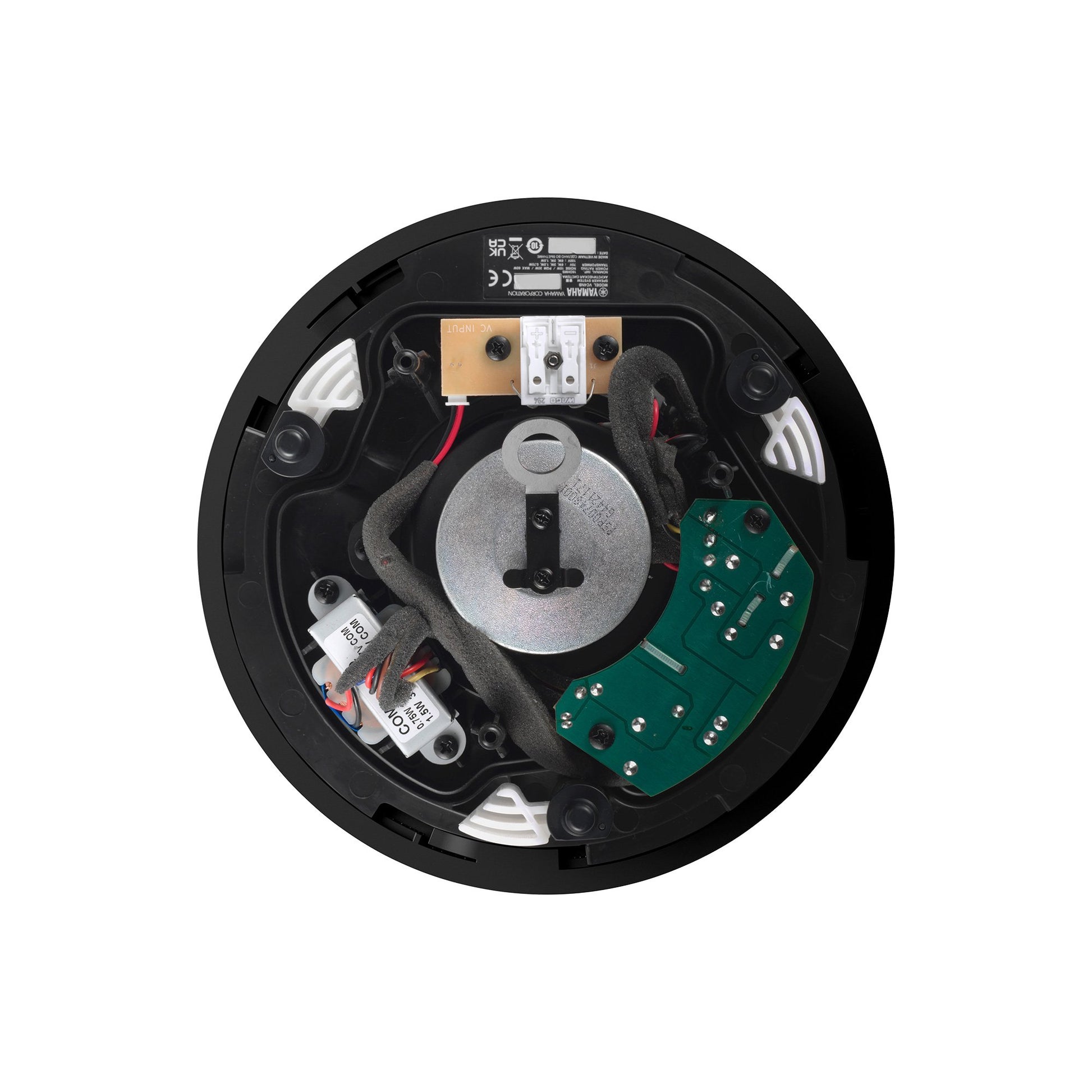

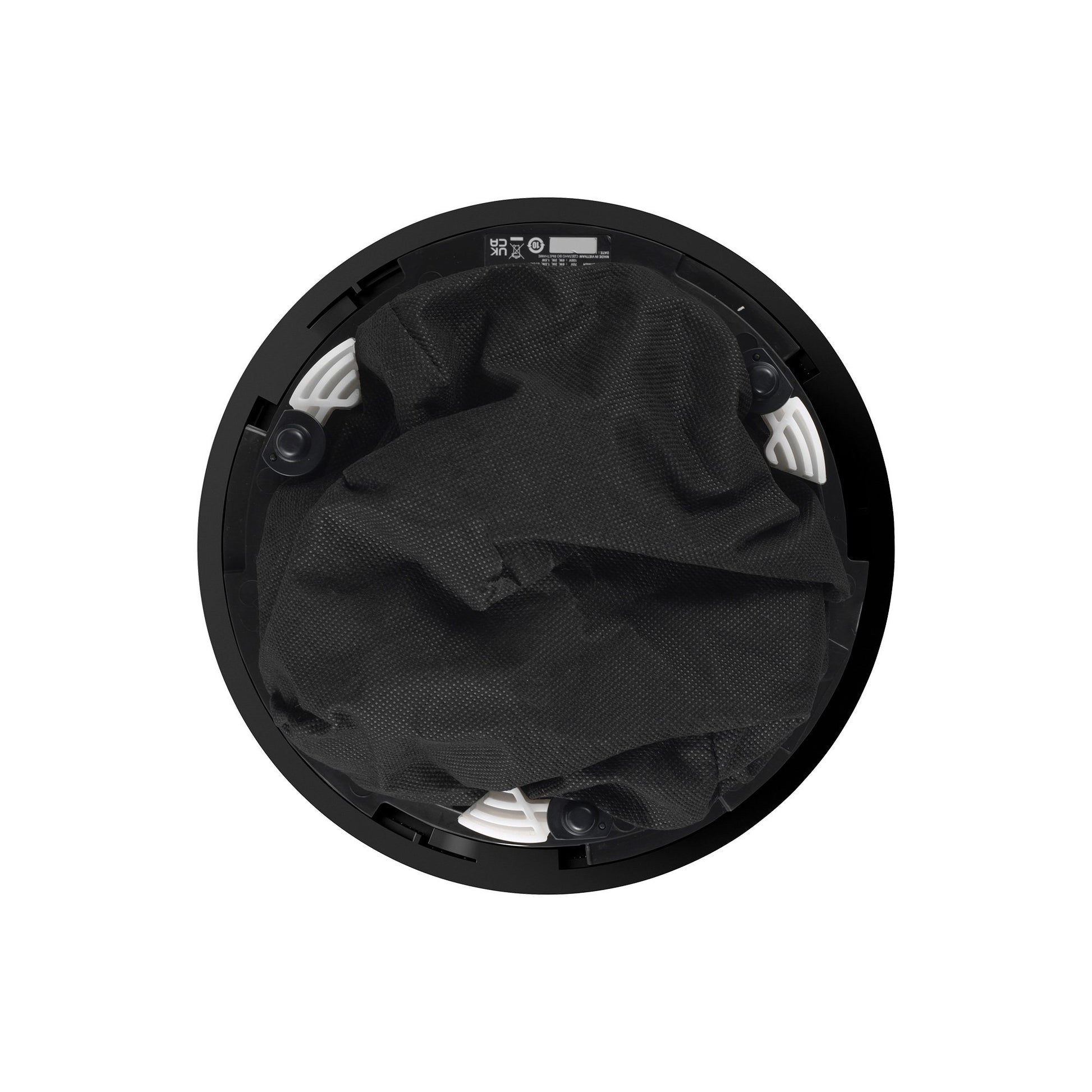

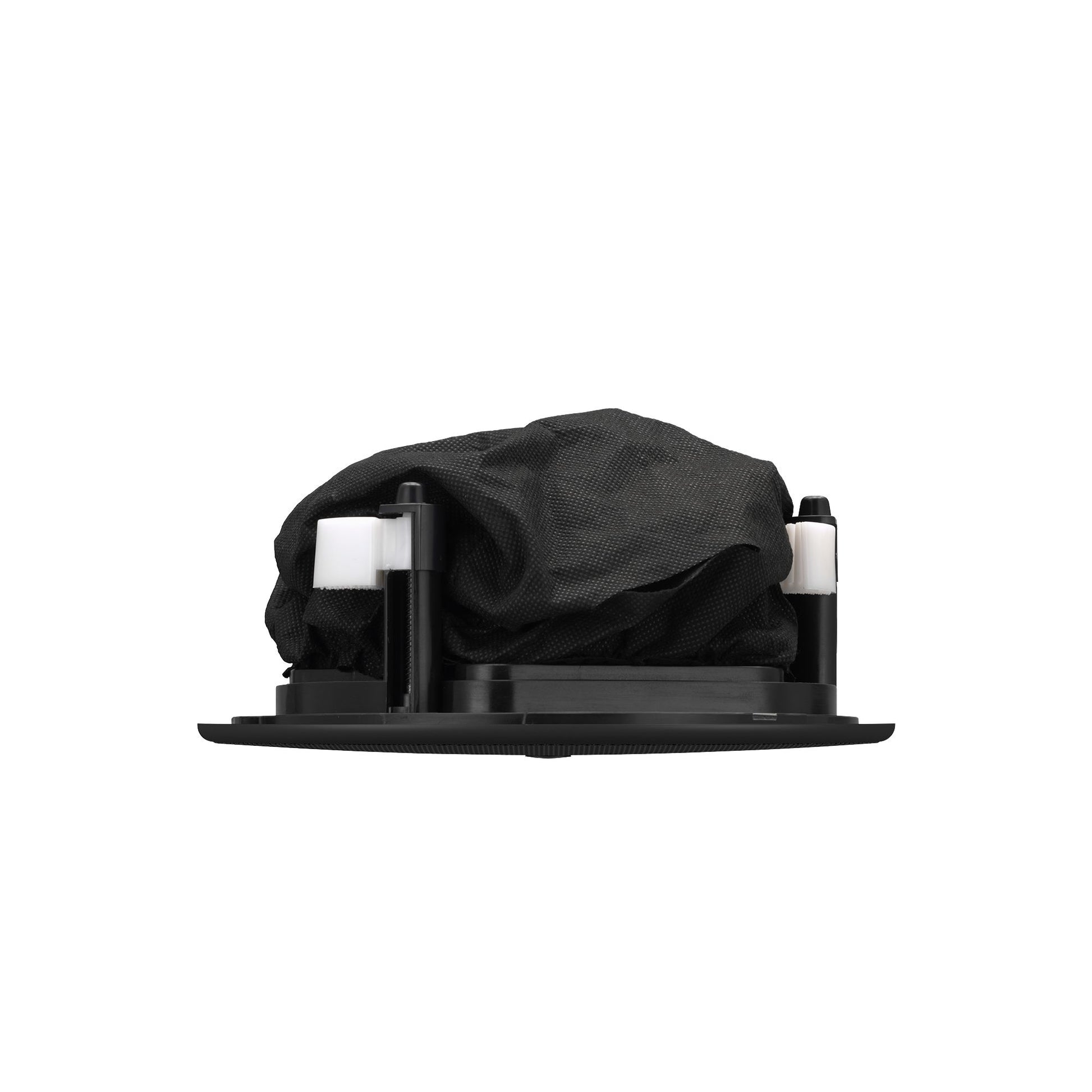

Six models, three with back cans and three without, offer compatibility with a wide range of installation needs. Models that do not have back cans are more lightweight and budget friendly, and include back covers that protect the speaker unit and circuitry from dust and moisture.

Extremely Low-profile

Reduced physical depth allows installation in ceilings and walls where space is limited.

Elegant design blends with any décor

Several aspects of VC Series design reflect a strong emphasis on functionality as well as aesthetics.

Shallow, lightweight, and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio performance wherever they’re placed without spoiling interior design.

High-impedance and low-impedance supported

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.

Safer, Faster Installation

The VC Series ceiling speakers feature low profile back cans, light weight, and mechanical features that contribute to significantly safer, faster installation. In addition, large mounting clamps with non-slip treads ensure secure mounting.

So not only can a large number of speakers be installed with a high-impedance connection, but also a large number of speakers can be installed with a low-impedance connection due to its 16-ohm capacity. And the need for additional units is minimized and systems can be designed to ideally meet the requirements of any application.

Specifications:

• 2-way system with 4-inch woofer and 0.8-inch tweeter, no back can
• 4" (LF) with .8" (HF)

• 85Hz-20kHz
• 160 degree conical coverage
• 30W PGM
• 6W, 3W, 1.5W, 0.8W 70/100V Taps

• Engineered for optimum BGM and voice reproduction
• No back can low-profile design allows installation in limited ceiling spaces
• Direct support for low-impedance or high-impedance connections
• 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
• Double-threaded speaker clamp screws for speedy tightening

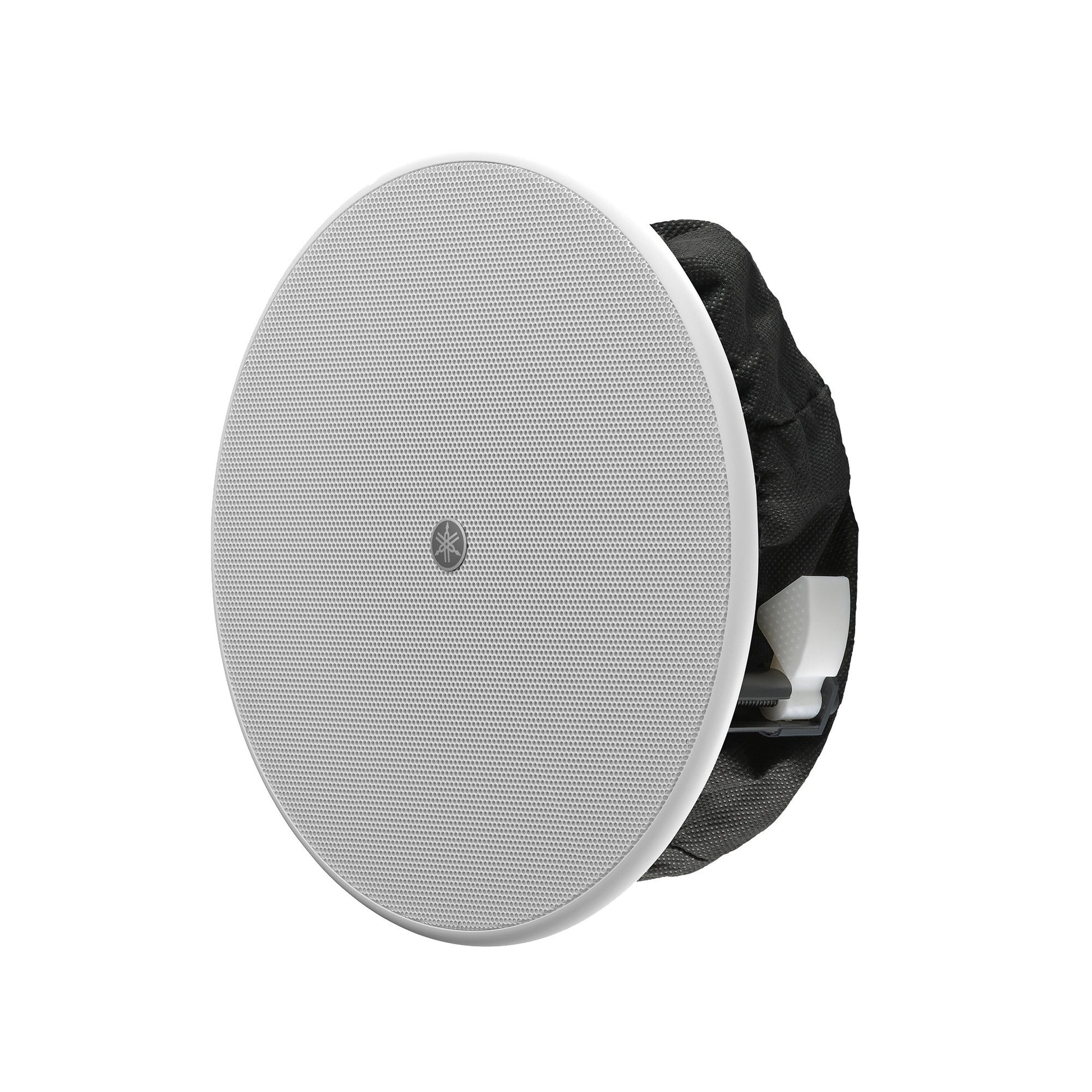

• Paintable grilles with magnetic catches

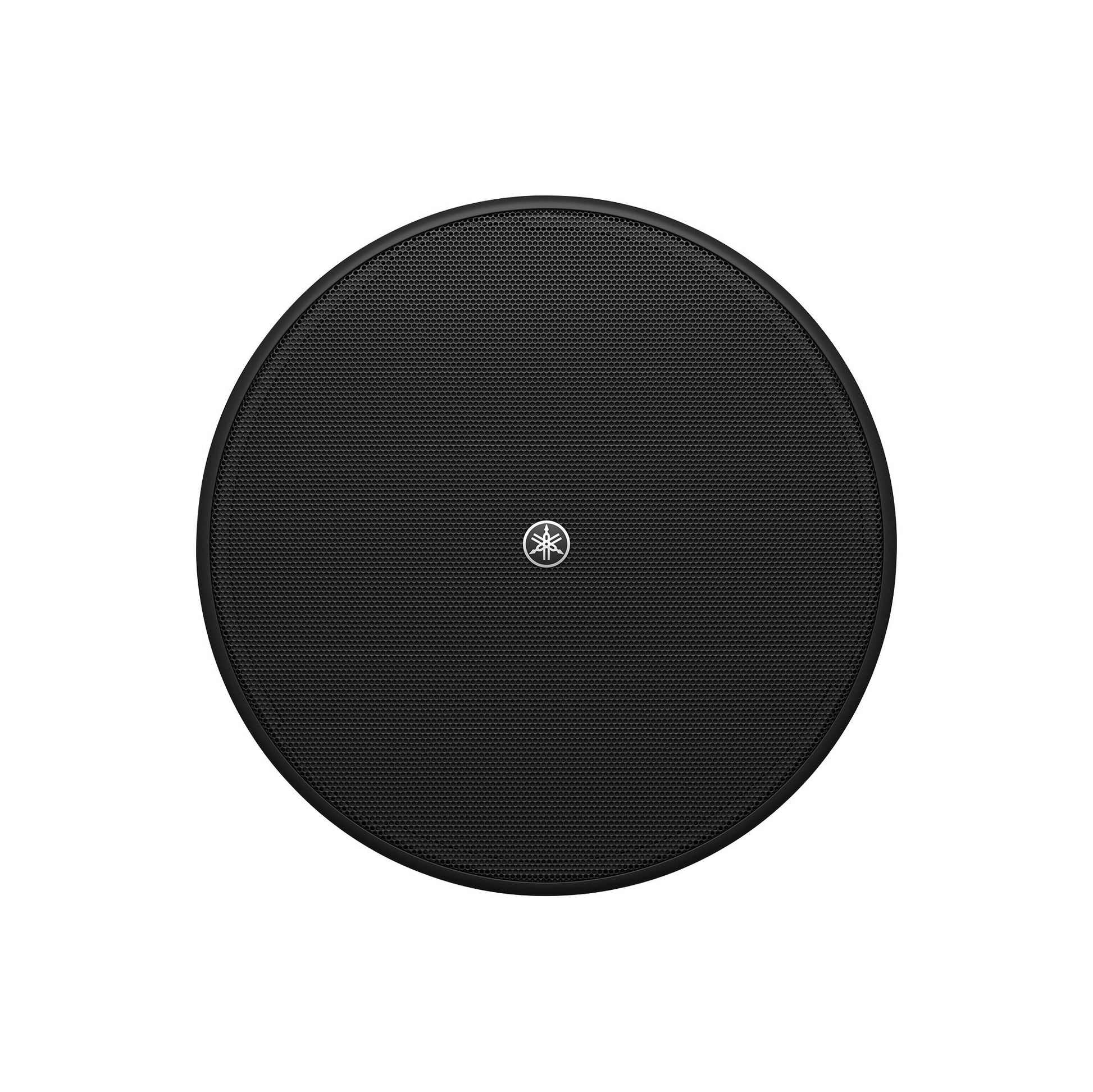

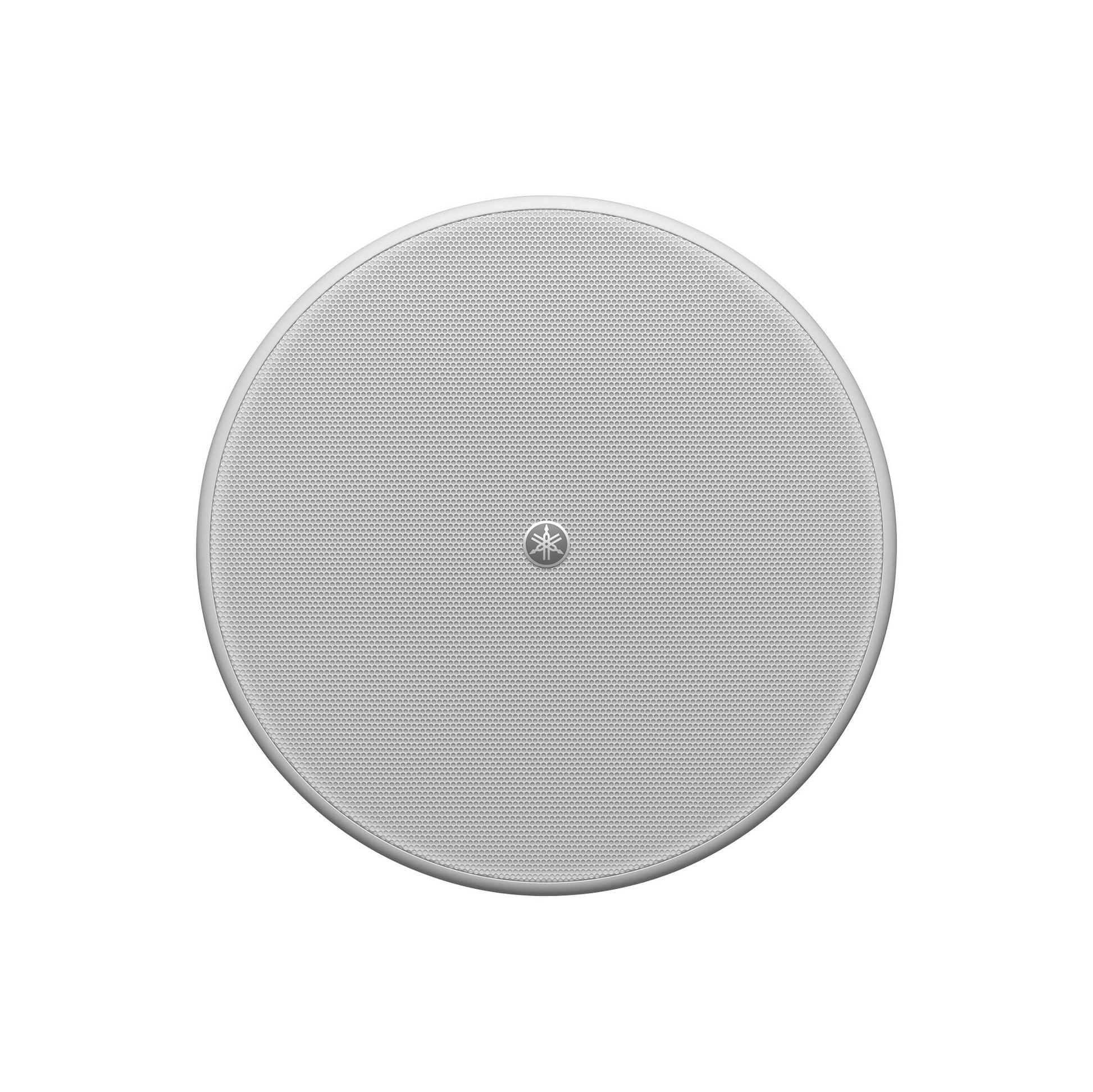

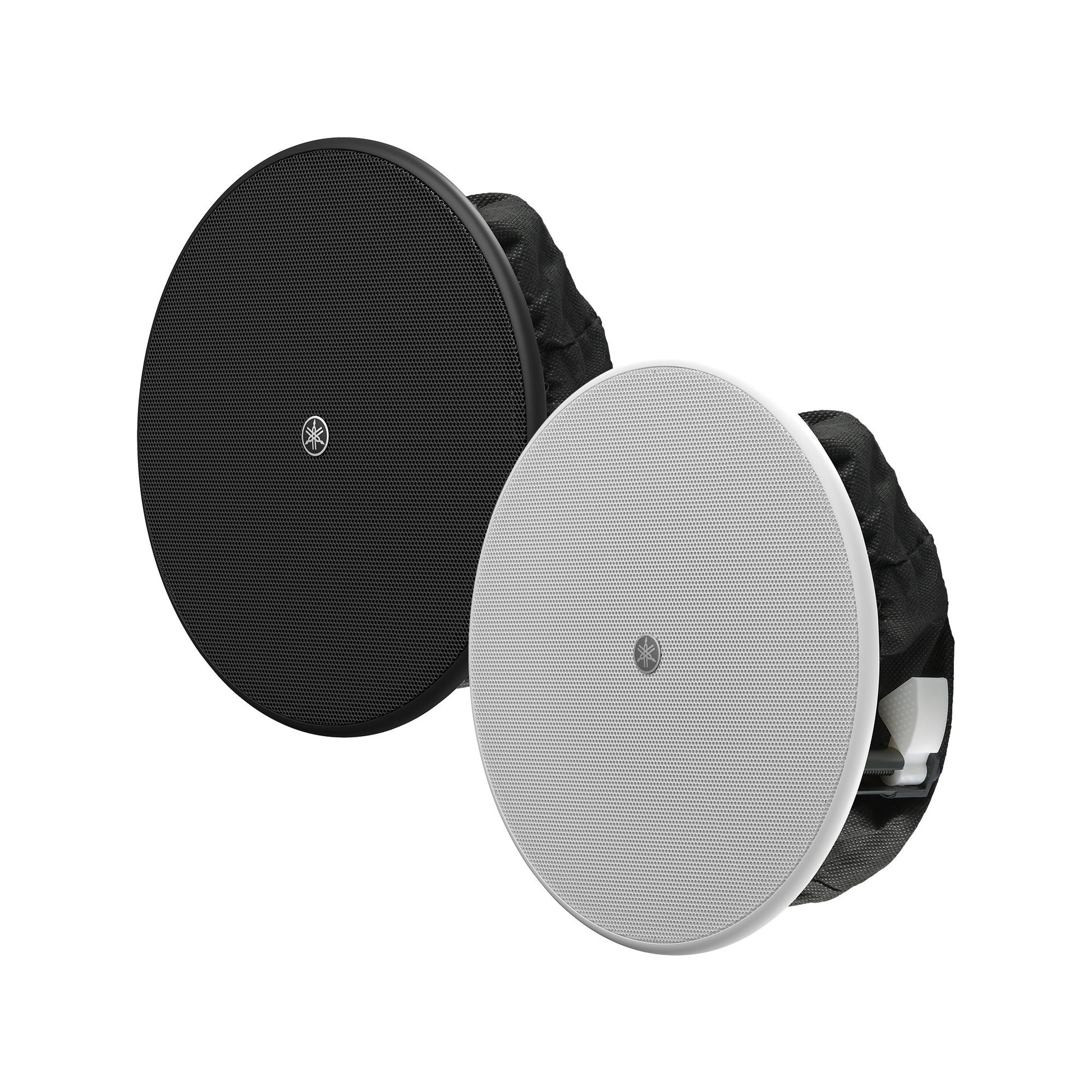

• Black and white versions available
• 1.4 kg (3.1 lbs), Ø225 x D103 mm (Ø8-7/8” x D4-1/16”)
• Single unit package
