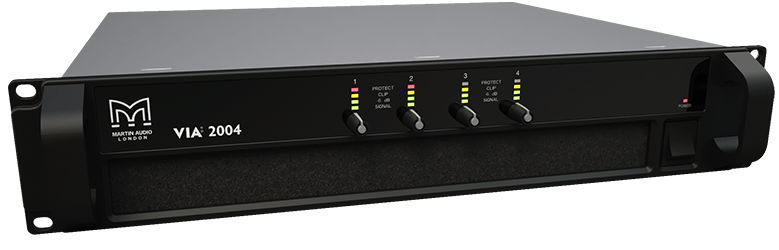

VIA2004 4-Channel Power Amplifiers

The VIA2004 is a 4-channel  speaker amplifier. It is a great option for high quality audio applications on medium sized install or portable applications.

From the Manufacturer:

The VIA2004 is an advanced 4-channel power amplifier which delivers superb audio performance in a lightweight, cost-effective package. Delivering 4×500 watts into 4 ohms, it is ideal for powering O-Line, ADORN and CDD Series installations in bars, auditoriums and HoW, as well as small-medium scale portable sound reinforcement and club use.

Features:

• Four channels of efficient Class D amplification

• 2000 Watts total power output

• 2U rack height

• Exceptionally lightweight

• Switch mode power supply

• Variable speed cooling fan with front-to-back airflow

• Global mains operation, 115V to 230V auto-sensing

• Comprehensive protection systems

• Signal and clip limiter LEDs

Applications:

• Small to medium-scale installations

• Portable sound and stage monitoring

• Hotels, restaurants and bars

• Houses of Worship and auditoriums

• Educational facilities

• Live music and dance clubs

• Mobile DJ’s

Specifications:

• Type

• Four-channel Class D amplifier

• Power Output

• 4 x 500W into 4 ohms

• 4 x 250W into 8 ohms

• Cooling

• Vari-speed fans, front-to-back airflow

• Maximum Ambient Temperature

• 40°C (105°F)

• Analogue In/Link  (4 Channels)

• 04 x female, 4 x male Neutrik™ XLR

• Analogue Input Impedance

• 5 kΩ typical, balanced

• Maximum Analogue Input Level

• +20dBu

• Amplifier Outputs

• 4 x Neutrik Speakon™ NL4

• Frequency Response

• 20Hz - 20kHz +/- 0.45dB, 4 ohm load

• Total Harmonic Distortion

• 0.003% typical, 1kHz @ 1W

• Type

• 2 x high current, high frequency switch-mode

• AC Operating Range

• 100-240V +/-10% 45 - 65Hz

• Mains Connector

• 1 x Neutrik Powercon™

• Total System Efficiency

• 89% (4 x 250W into 8 ohms)

• Dimensions

• (W) 482 x (H) 2U/88mm x (D) 441mm

• (W) 19in x (H) 2U/3.5in x (D) 17.4in

(incl handles and optional rear support)

• Weight

• 8kg

• 17.6lbs
