Sku: VIA2502

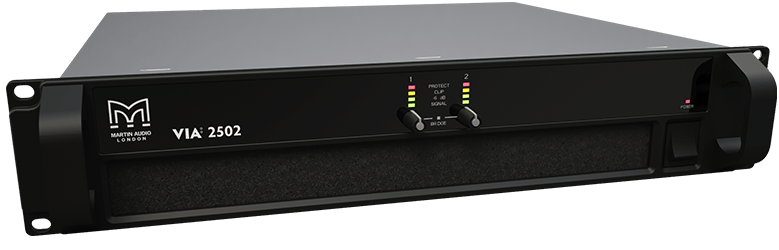

VIA2502 2-Channel Power Amplifier, 2x 800w at 4 Ohms or 2500W at 4 Ohms Bridged

Regular price
$1,800.00
Regular price
Sale price
$1,800.00
Shipping calculated at checkout.
Vendor: Martin Audio

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The VIA2502 is a 2 channel amplifier with a high power density.  It is a great option for larger install or portable applications.

From The Manufacturer:

The VIA2502 is an advanced 2-channel power amplifier which combines high power density with superb audio performance in a lightweight, cost-effective package. Delivering 2×1250 watts into 2 ohms, or 1×2500 watts into 4 ohms bridged, it is ideal for powering BlacklineX, CDD and V.Series systems in small to medium-scale installations and portable sound applications.

Features:

  • Two channels of efficient Class D amplification

  • 2500 Watts total power output

  • 2U rack height

  • Exceptionally lightweight

  • Switch mode power supply

  • Variable speed cooling fan with front-to-back airflow

  • Global mains operation, 115V to 230V auto-sensing

  • Comprehensive protection systems

  • Signal and clip limiter LEDs

Applications:

  • Small to medium-scale installations

  • Portable sound and stage monitoring

  • Hotels, restaurants and bars

  • Houses of Worship and auditoriums

  • Educational facilities

  • Live music and dance clubs

  • Mobile DJ’s

Specifications:

  • Type

    • Two-channel Class D amplifier

  • Power Output

    • 2 x 1250W into 2 ohms

    • 2 x 800W into 4 ohms

    • 2 x 450W into 8 ohms

    • 1 x 2500W bridged into 4 ohms

  • Cooling

    • Vari-speed fans, front-to-back airflow

  • Maximum Ambient Temperature

    • 40°C (105°F)

  • Analogue IN/LINK (4 Channels)

    • 2 x female, 2 x male Neutrik™ XLR

  • Analogue Input Impedance

    • 10kΩ Balanced

  • Maximum Analogue Input Level

    • +20dBu

  • Amplifier Outputs

    • 2 x Neutrik Speakon™ NL4

  • Output Noise

    • -113dBA, referenced to max output

    • (22kHz bandwidth)

  • Frequency Response

    • <10Hz ->20kHz +/- 0.25dB

  • Total Harmonic Distortion

    • 0.003% typical, 1kHz @ 1W

  • Slew Rate

    • > 80V per microsecond

  • Damping Factor

    • 120 ref 8 ohms

  • Type

    • High current, high frequency switch-mode

  • AC Operating Range

    • 100-240V +/-10%

    • 45 - 65Hz

  • Total System Efficiency

    • > 90% typical

  • Mains Connector

    • 1 x Neutrik Powercon™

  • Dimensions (incl handles and optional rear support)

    • (W) 482 x (H) 2U/88mm x (D) 441mm

    • (W) 19in x (H) 2U/3.5in x (D) 17.4in

  • Weight

    • 8kg

    • 17.6lbs
