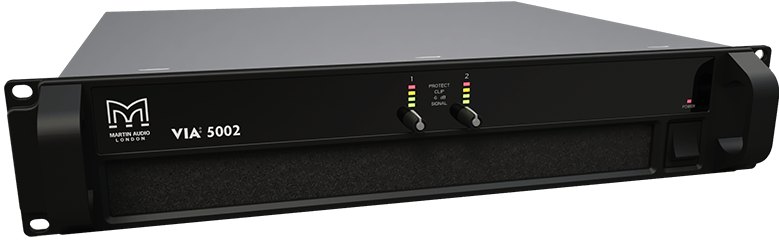

VIA5002 2-Channel Power Amplifier, 2x2500w at 4 Ohms or 2x1600w at 8 Ohms
- Regular price
- $3,000.00
- Regular price
-
- Sale price
- $3,000.00
- Unit price
- / per
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
The VIA5002 is a 2 channel speaker amplifier for medium to large sized applications. It is a great option for powering subwoofers on installs or on portable sound systems.
From The Manufacturer:
The VIA5002 is an advanced 2-channel power amplifier which combines high power density with superb audio performance in a lightweight, cost-effective package. Delivering 2 x 2500 watts into 4 ohms or 2 x 1600 watts into 8 ohms, it ideal for powering subwoofers in installations and portable sound systems.
Features:
-
Two channels of efficient Class D amplification
-
5000 Watts total power output
-
2U rack height
-
Exceptionally lightweight
-
Switch mode power supply
-
Variable speed cooling fan with front-to-back airflow
-
Global mains operation, 115V to 230V auto-sensing
-
Comprehensive protection systems
-
Signal and clip limiter LEDs
Applications:
-
Subwoofer amplification
-
Installations, portable sound and stage monitoring
-
Hotels, restaurants and bars
-
Houses of Worship and auditoriums
-
Educational facilities
-
Live music and dance clubs
-
Mobile DJ’s
Specifications:
-
Type
-
Two-channel Class D amplifier
-
Power Output
-
2 x 2500W into 4 ohms
-
2 x 1600W into 8 ohms
-
CV Line Output
-
2500W, 70V Line
-
2500W, 100V Line
-
Cooling
-
Vari-speed fans, front-to-back airflow
-
Maximum Ambient Temperature
-
40°C (105°F)
-
Analogue IN/LINK (4 Channels)
-
2 x female, 2 x male Neutrik™ XLR
-
Analogue Input Impedance
-
10KΩ balanced
-
Maximum Analogue Input Level
-
+20dBu
-
Amplifier Outputs
-
2 x Neutrik Speakon™ NL4
-
Output Noise
-
-113dBA, referenced to max output
-
(22kHz bandwidth)
-
Frequency Response
-
<10Hz ->20kHz +/- 0.25dB
-
Total Harmonic Distortion
-
<0.05% typical @ 1kHz, -3dB output (22kHz bandwidth)
-
Slew Rate
-
> 80V per microsecond
-
Damping Factor
-
120 ref 8 ohms
-
Type
-
2 x high current, high frequency switch-mode
-
AC Operating Range
-
100-240V +/-10%
-
45 - 65Hz
-
Total System Efficiency
-
> 90% typical
-
Mains Connector
-
1 x Neutrik Powercon™
-
Dimensions (incl handles and optional rear support)
-
(W) 482 x (H) 2U/88mm x (D) 441mm
-
(W) 19in x (H) 2U/3.5in x (D) 17.4in
-
Weight
-
10kg (22lbs)
