Sku: VPDMXMerger

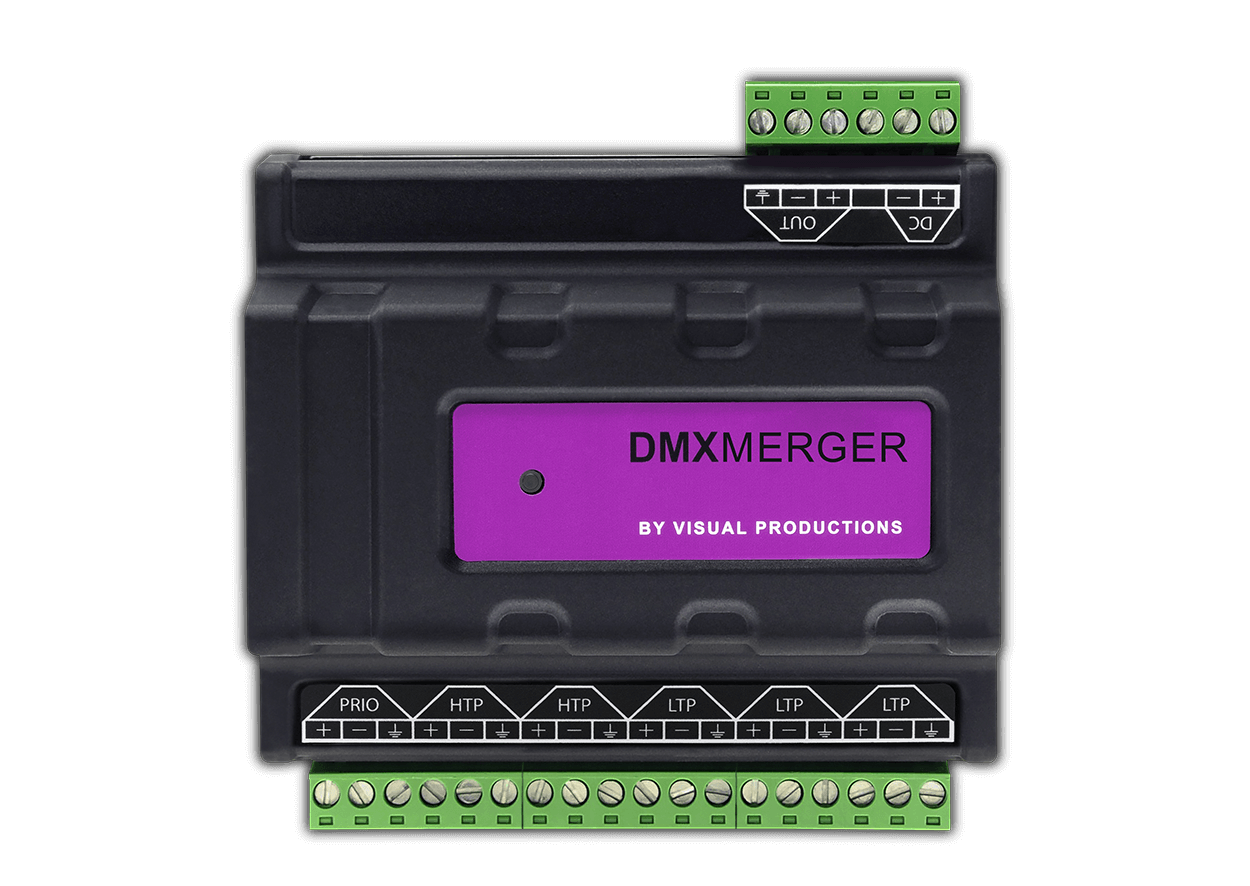

Visual Productions DIN rail mounted DMX merger

$457.50
$457.50
Sold out
Shipping calculated at checkout.
Vendor: Visual Productions

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

Din Rail mountable DMX merger.

From The Manufacturer:

The Latest Takes Precedence strategy selects one of the LTP inputs based on which port had the most recent change. This can be a change in channel levels or a DMX signal becoming active.

The Highest Takes Precedence strategy is used for combining the HTP inputs and the result of the LTP merging. In this strategy each DMX channel is compared across the inputs and the highest value is forwarded to the output.

If a DMX signal is present on the Priority input then this input is forwarded directly to the output. In this case all other inputs are ignored.

Specifications:

  • 6 Inputs

  • Optical Isolation (individual per port)

  • USITT DMX512-A (ANSI E1.11)

  • Screws connectors

  • DIN Rail mounting

  • Power consumption 9-24V DC 500mA power input (optional external PSU)

  • Dimensions 105 x 86 x 60 mm (4.1 x 3.4 x 2.4 inches)

  • Weights 120 gram (0.26 lbs)

Tech Specs
