ViuPanel-1.5X

The ViuPanel-1.5X is a 1.5mm pixel pitch direct wall mount LED Video Panel in the full-size 500x1000mm format, delivering impactful visuals with excellent performance and efficiency.

If you do not have experience with LED walls, professional installation is strongly recommended.

A minimum order of 12 panels is required. If you need to order less than 8, contact us. If you haven't purchased an LED wall before, please request a quote or purchase a pre-built package to ensure you build a complete system.

From The Manufacturer:

ViuPanel™ by DVS is a modern LED video display panel designed for indoor permanent installations offering unrivaled flexibility, image performance, and installation features to suit various applications. ViuPanel's lightweight, slim profile design allows for direct surface mounting for ease of installation and reduced costs. Its rigid design is less than 2 inches thick optimizing seamlessness achieves low energy consumption and low heat output with silent operation. The modular design with full-front serviceability, direct component connections and redundancy options ensures high reliability and easy maintenance for low cost of ownership. Available in multiple panel sizes and creative solutions including seamless corners, curving, and double-sided options for precision in your space. Delivering stunning visuals with excellent performance and the highest level of efficiency.

Key Features:

• Direct Surface Mounting

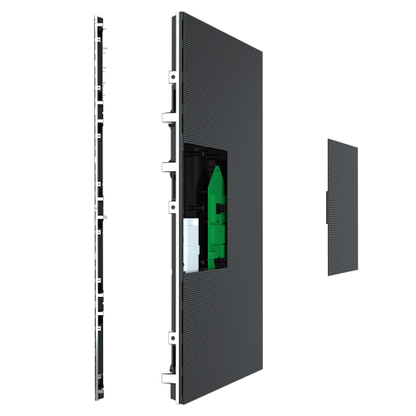

• Full Front Serviceability
• 3,840+ Hz Refresh Rate
• Ultra-Low Profile (less than 2" depth)
• 9,000:1 Contrast Ratio
• High-Contrast Blackface LED w/ 14-Bit+ Color Processing

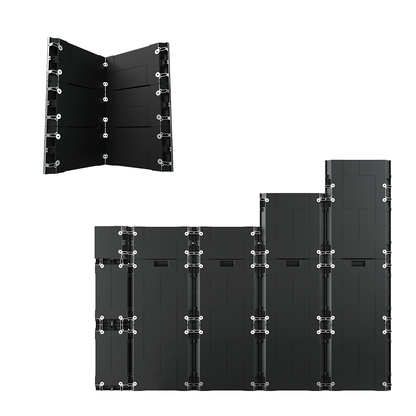

• Creative Options: Curving, Seamless Corners, Double-Sided
• Optional GOB Protection for High-Traffic Areas

Specifications:

Optical:

• Pixel Pitch: 1.56mm
• LED Type: SMD1212 Blackface
• Pixel Density: 320 x 640 (per panel)
• Brightness: 700 NITS
• Contrast Ratio: 9,000:1
• Viewing Angle: 160° H | 160° V
• Refresh Rate: 3,840+ Hz
• Scan Rate: 1/40
• Grayscale: 14-Bit+

Physical:

• Material: Die-Cast Aluminum
• Dimensions: 19.7 x 39.3 x 1.65" (500 x 1000 x 42mm)
• Weight: 22 lbs (10 kg)
• Serviceability: Front (Rear Service Optional)
• Ingress Protection: IP31
• BTU Output: 290 btu/hr (average)

Control:

• Control System: NovaStar
• Receiving Card: NovaStar A5S Plus | A10S Pro (Studio) | Brompton R2 (Optional)
• Supported Inputs: HDMI, DVI, VGA, SDI, WiFi
• Frame Rate: 60Hz

Electrical:

• Power Connection: PowerCON IN/THRU
• Signal Connection: RJ45 IN/THRU
• Voltage: 120-240V
• Average Power: 60W / panel
• Max Power: 225W / panel

Certifications: cETLus, FCC, CE, RoHS, EMC
