ViuPlex-0.7

This LED Video wall has the highest pixel density in the ViuPlex Range. These panels can easily achieve 4K,8K or even beyond with large format LED screens. This is a product of the highest quality featuring the advanced Chip-on-Board Technology that delivers robust pixel durability. This should be your choice of LED if you want the absolute best.

Viuplex walls are packaged based on the size you need, contact us and we can build a quote for you!

From The Manufacturer:

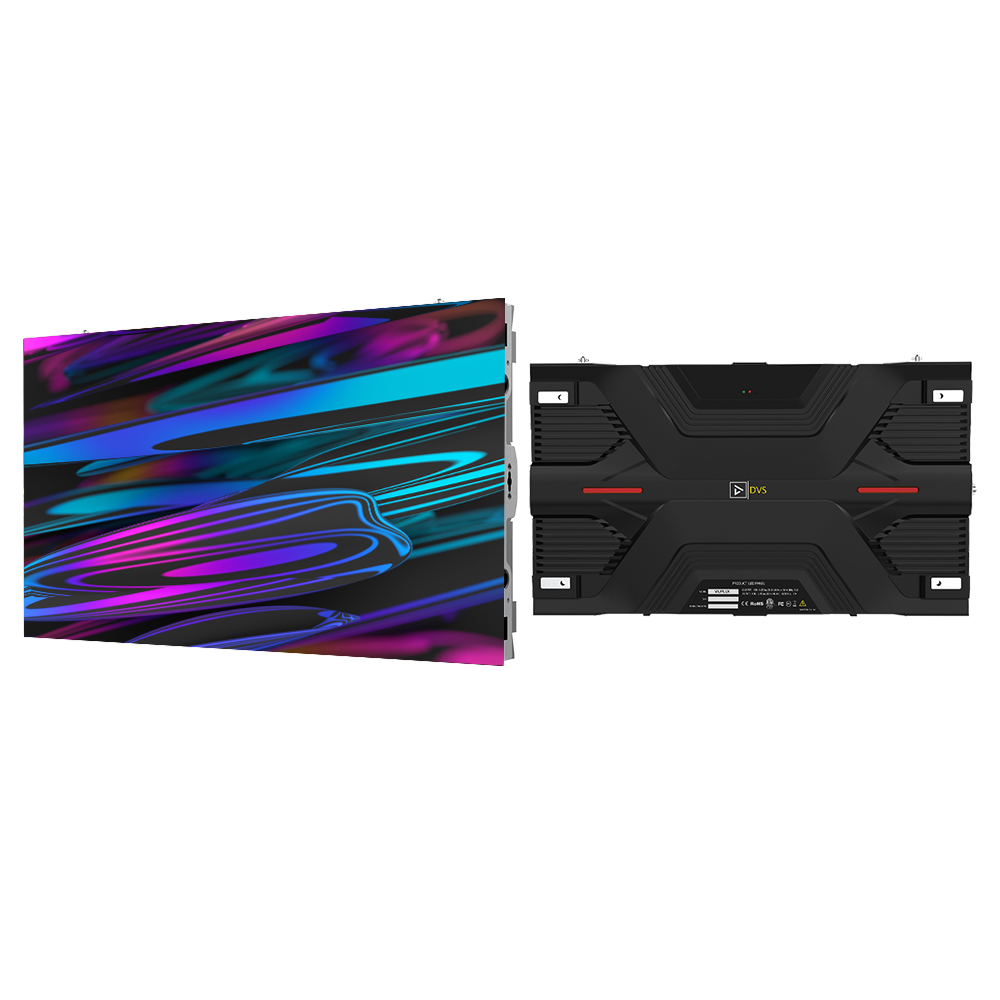

ViuPlex-0.7 is a 0.7mm pixel pitch, direct view seamless LED Video wall panel. Its ultra-fine pixel pitch delivering an extremely high pixel density of 768×432 resolution per panel that renders remarkable image detail with virtually no visible pixels. ViuPlex-0.7 allows large-format LED screens to quickly achieve 4K, 8K and beyond resolutions in a modular format that results in a completely seamless screen with remarkable vibrancy.

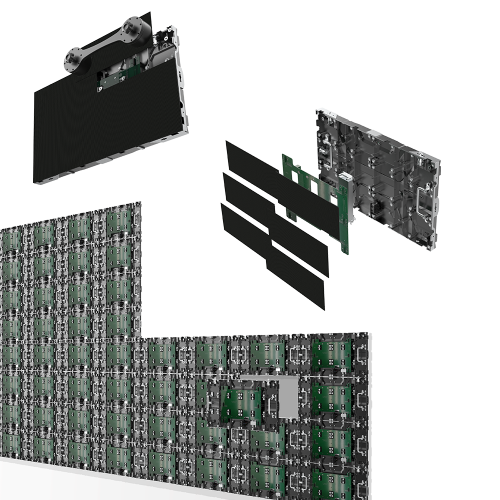

ViuPlex-0.7 features advanced Chip-on-Board (COB) LED technology that delivers robust pixel durability for a low-maintenance solution along with ultra-high contrast levels up to 20,000:1 – It standardizes advanced image processing to with cinema-grade HDR10/HLG support to deliver a truly immersive visual experience with broadcast-grade performance for an expanded range of markets.

A minimum order of 8 panels is required.  If you need to order less than 8, contact us. If you haven't purchased an LED wall before, please request a quote or purchase a pre-built package to ensure you build a complete system.

LED Panel Key Features:

Optical:

• Pixel Pitch: 0.78mm
• Pixel Density: 640 x 360
• LED Type: COB

• Brightness: 800≥ NITS

• Viewing Angle: 160° H | 160° V
• Grayscale: 18 Bit +/-
• Refresh Rate: 2,880≥ Hz

Power:

• Voltage: Auto-Switching 110/230v
• Max Power: 180w / panel
• Avg. Power: 82w

 Control:

• Control System: NovaStar / Brompton
• Receiving Card: NovaStar A10S Pro, NovaStar CA50E
• Supported Inputs: HDMI, DVI, VGA, SDI
• Frame Rate: 60hz

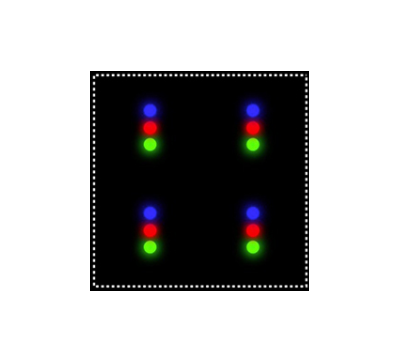

4-In-1 Mini LED Advantages

• Robust Pixel Durability
• Lower Power Consumption
• Ultra-High Contrast Levels
• Wider Viewing Angles
• Moiré Optimization
• Easy Surface Cleaning
