Vizi FX7

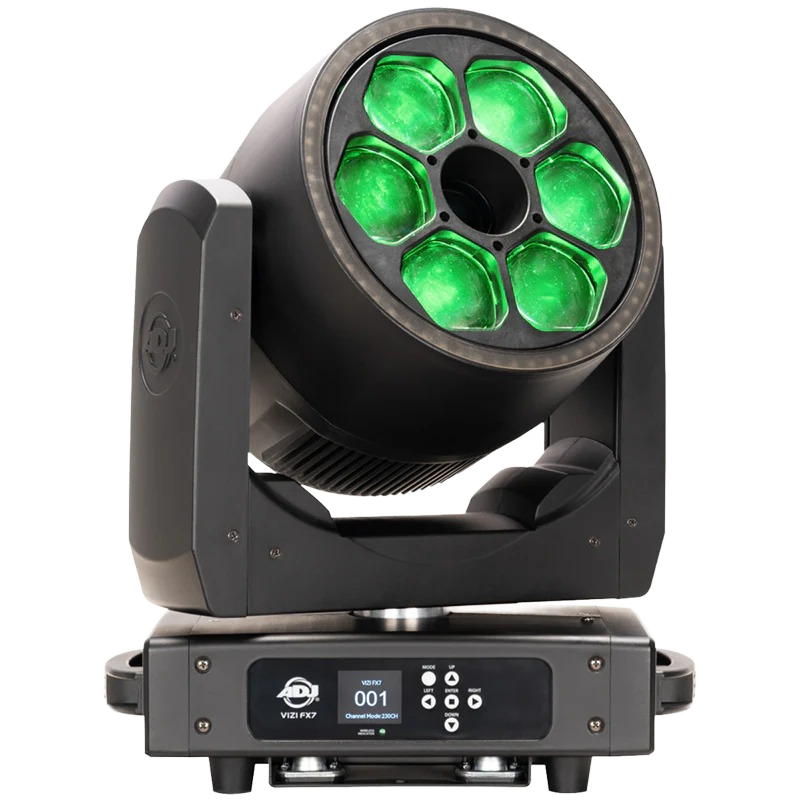

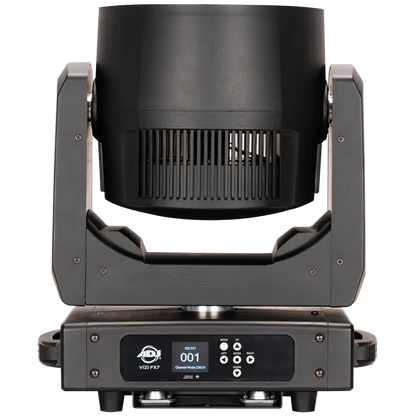

The ADJ Vizi FX7 is a 4-in-1, 420W RGBL Moving Head Beam Wash kaleidoscope ring fixture, offering three powerhouse effects for stage, event, or venue spaces.

From the Manufacturer:

Three dazzling effects. One powerhouse fixture. The ADJ Vizi FX7 redefines creative potential for lighting designers, rental houses, and fixed installations. Combining high output, flexibility, and precision engineering, this professional moving head fixture brings together a trio of dynamic visual elements to generate an endless variety of looks that can transform any stage, event, or venue space.

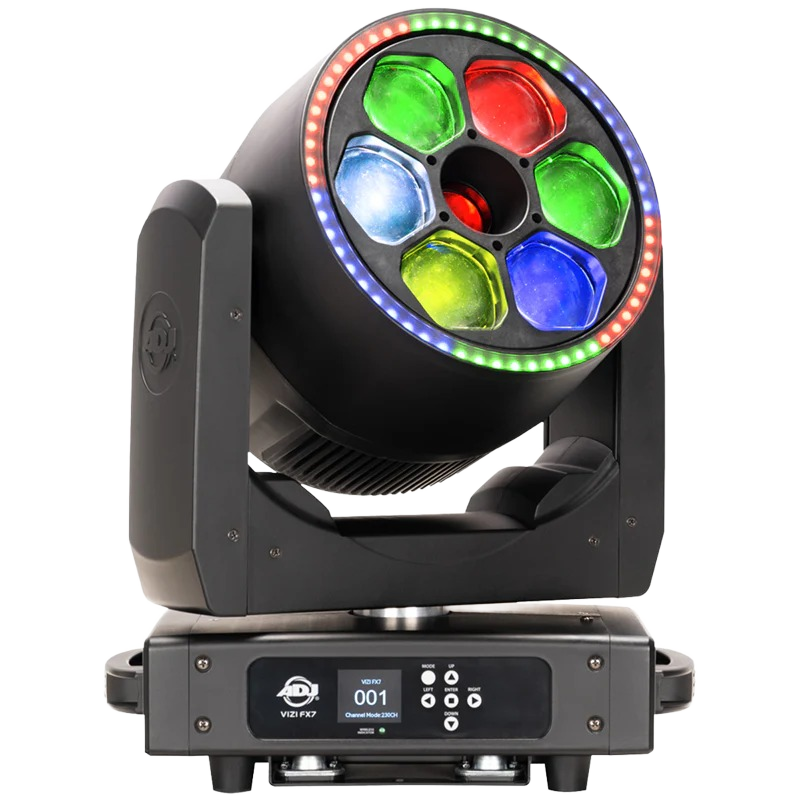

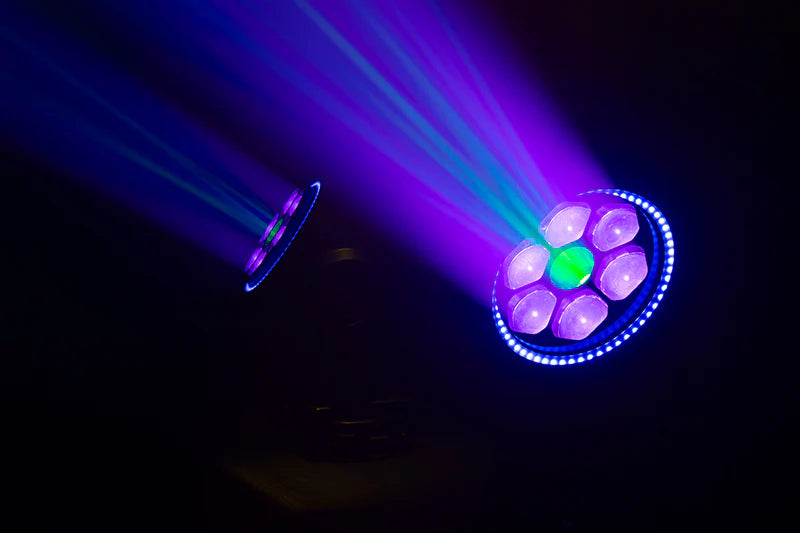

At its core, the Vizi FX7 features six primary 60-watt RGBL LEDs capable of producing intense, saturated color washes and sharp mid-air beams. These LEDs are projected through a motorized zoom system offering a variable beam angle from 8° to 38°, providing seamless transition between tight beams and wide washes. The lens assembly is also motorized for bidirectional rotation, unlocking multi-beam effects that add depth and movement to any lighting design. Meanwhile, three-phase motors deliver lightning-fast movement and precise pan and tilt control.

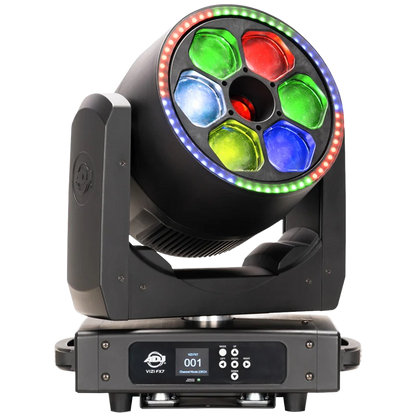

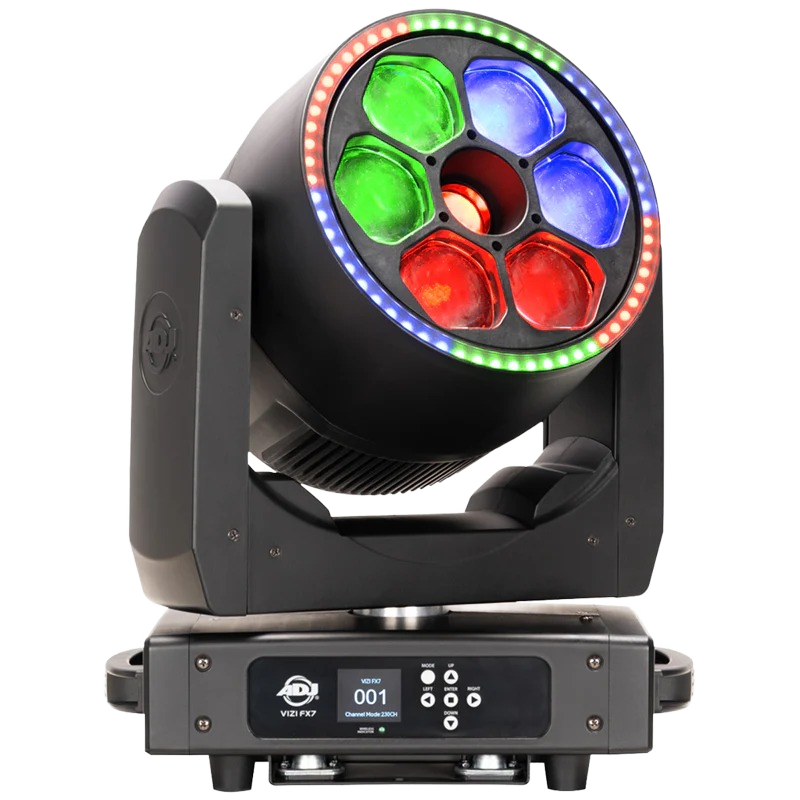

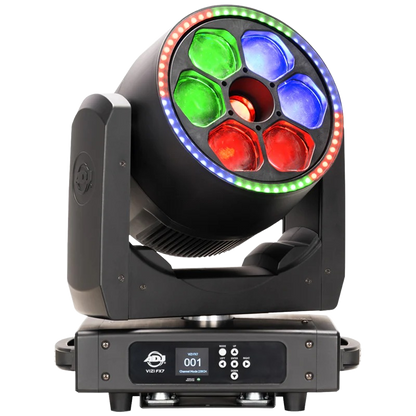

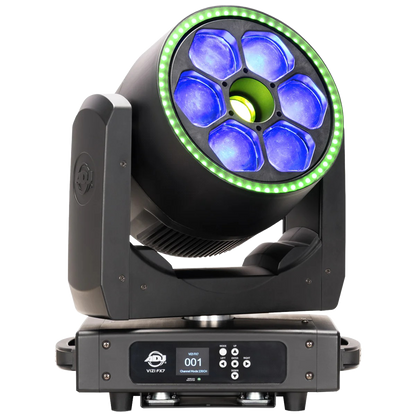

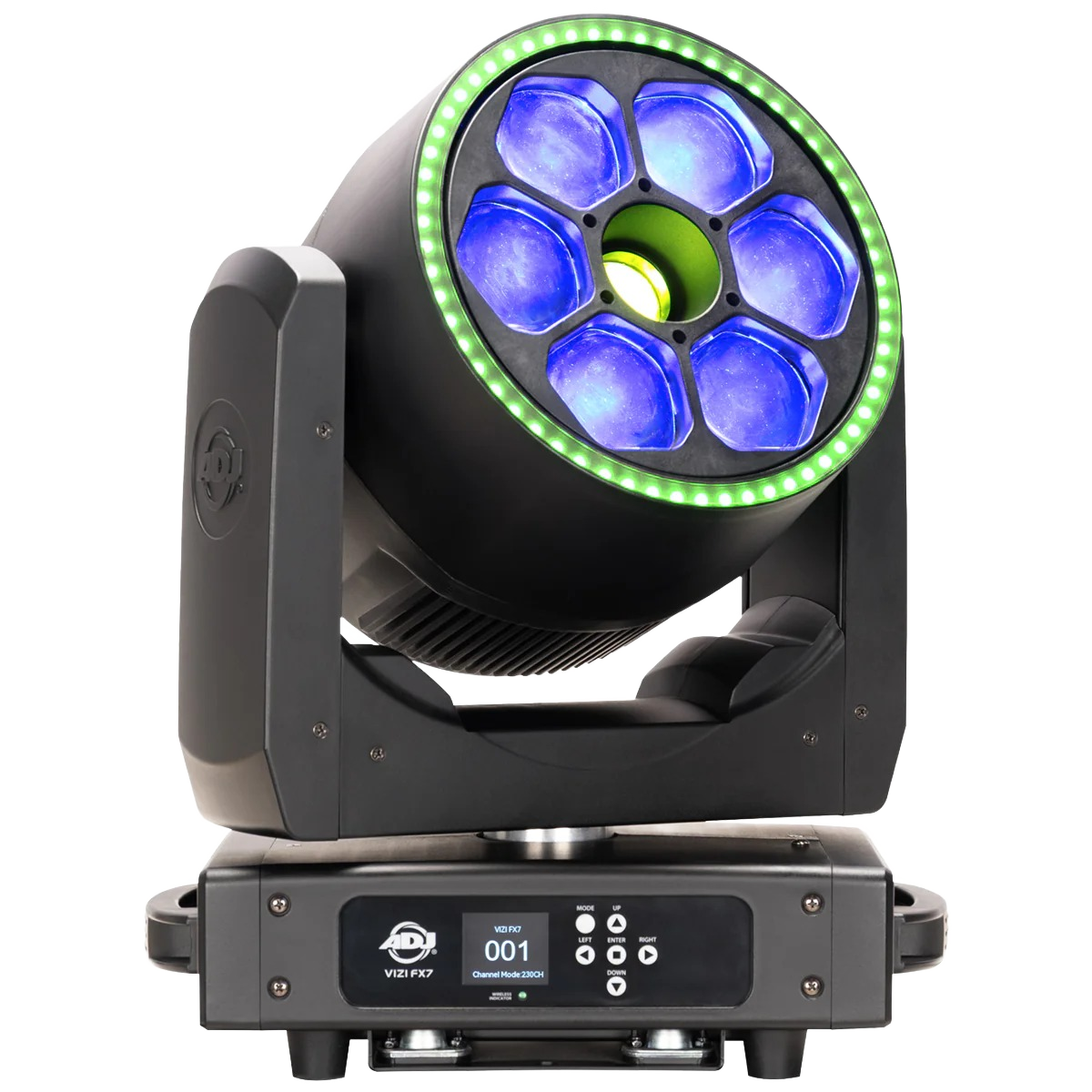

Enhancing its creative scope even further, the fixture’s center houses an additional 60-watt RGBL LED that produces a mesmerizing multi-colored kaleidoscope effect, bringing a dynamic, rotating burst of color to the center of the beam pattern. Then, on the outside edge of the fixture’s face is a ring of sixty 0.5-watt RGB LEDs designed to deliver vibrant ‘eye candy’ effects, ideal for creating captivating visuals on stage or in camera-friendly environments. Each of the primary LEDs offers independent pixel control, while the fixture’s built-in FX macros and speed adjustments enable quick and easy programming of complex layered effects.

The Vizi FX7 is built with modern control flexibility in mind. Aria X2 wireless technology is built in, offering remote fixture management and cable-free control, alongside standard 5-pin DMX with RDM support for conventional connectivity. Advanced dimming modes, selectable LED refresh rates up to 25kHz, and a range of user-definable options ensure smooth, flicker-free performance in both live and broadcast environments.

Compact yet powerful, the Vizi FX7 is engineered for professional reliability and versatility. Its robust build makes it ideal for touring productions, clubs, concert stages, houses of worship, and event spaces seeking a next-generation multi-effect moving head that delivers maximum visual impact from a single fixture.

Key Features:

• Effects
  • Bi-Directional Primary LED Beam Rotation
  • Individual Primary LED Pixel Control
  • Bi-Directional Multi-Color Rotating Kaleidoscope

• Source
  • 420W RGBL Moving Head Beam Effect / Wash

Specifications:

• Source:
  • Main + Kaleidoscope Center
  • 7 x 60-Watt RGBL LED's
  • Color Temperature: 2800K ~ 8,500K
  • 50,000 Hour Average LED Life*
  • Ring
  • 60 x 0.5-Watt RGB LED's
  • 50,000 Hour Average LED Life*
    *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
• Photometric Data:
  • TBA (Zoomed Out, Full On)
  • CRI: TBA
• Color:
  • Red, Green, Blue and Lime x6 Primary LED's
  • Multi-Color Kaleidoscope Center
  • Red, Green and Blue Ring LED's
  • Built-In Color Macros
  • 2,700K ~ 10,000K Linear White Color Temperature Control
  • Color Temperature Presets: 2,800, 3,200, 3,600, 4,500, 5,000, 5,600, 6,200, 6,800, 7,500 and 8,500K
• Effects:
  • Bi-Directional Primary LED Beam Rotation
  • Individual Primary LED Pixel Control
  • Bi-Directional Multi-Color Rotating Kaleidoscope
  • Built-In FX Programs with Speed Control
  • Motorized Zoom: 8° to 38°
  • 1Hz ~ 20Hz Strobe Rate (Electronic)
• Control / Connections:
  • (4) DMX Channel Modes (23CH / 46CH / 48CH and 51CH) Plus 1 User Definable DMX Mode
  • DMX and RDM
  • Aria X2 Wireless Management System
  • Selectable LED Refresh Rates (900 Hz~25K Hz)
  • Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
  • 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
  • 0–100% Dimming
  • Fan Cooled

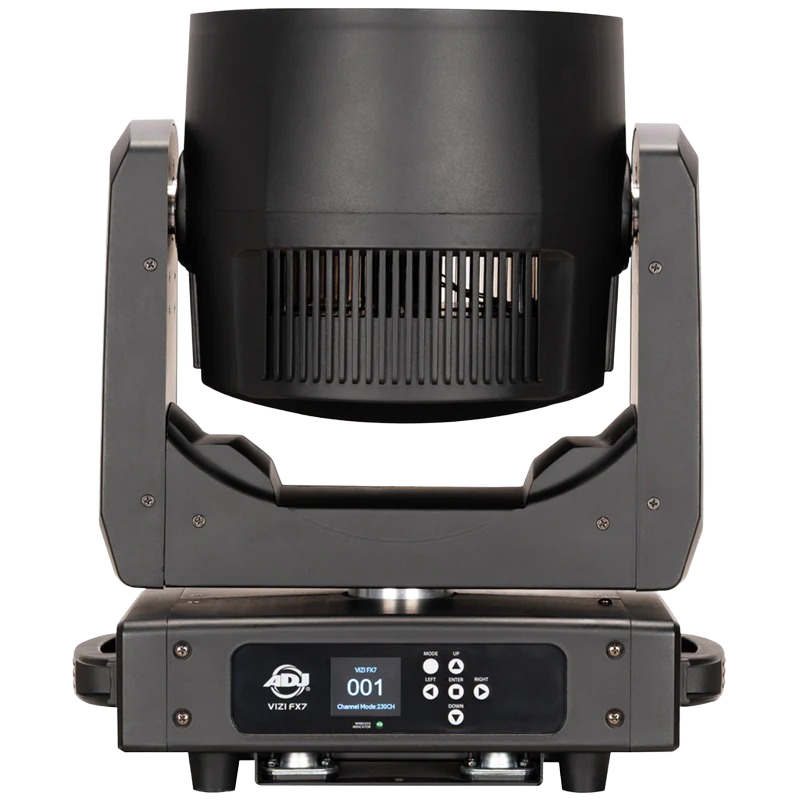

  • 6 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • 8 / 16 Bit Resolution Adjustable Movement

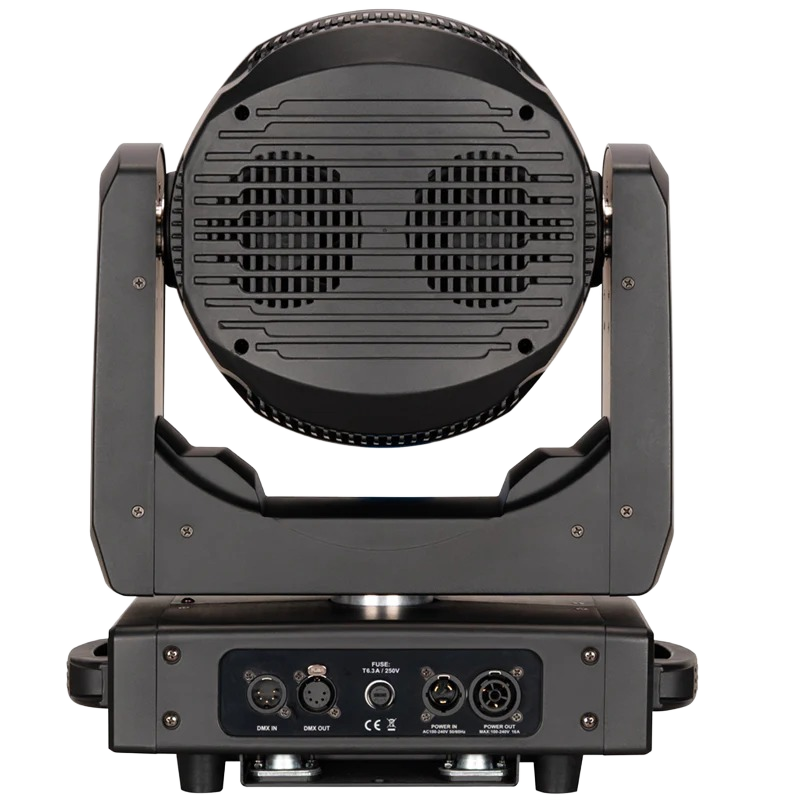

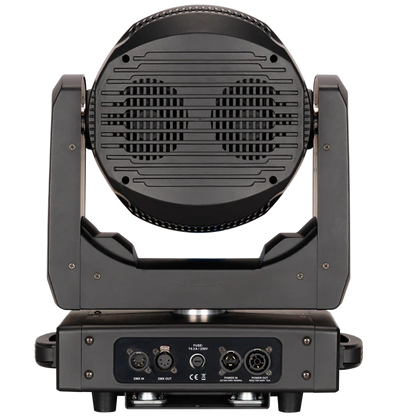

  • 5-pin XLR DMX In/Out
  • IP65 Locking Power In/Out
• Pan / Tilt:
  • Pan: 540°
  • Tilt: 190°
  • 3 Phase Motors

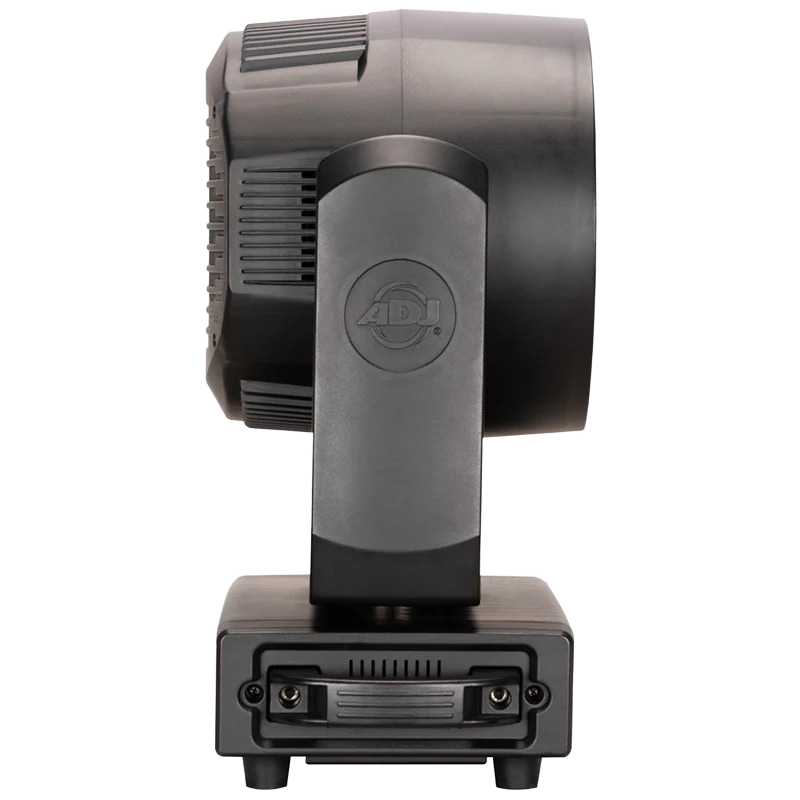

• Size / Weight:
  • Length: 365mm
  • Width: 220mm
  • Vertical Height: 434.4mm
  • Weight: 13.5 kg
• Electrical / Thermal:
  • AC 100-240V – 50/60Hz
  • Max Power Consumption: 400W (3.7 Amps @ 120V)
  • Power Link: 6 units @230V
  • Max ambient temperature: -25°C to 45°C
  • Max housing temperature: ?°C
• Technical Data:
  • DB Rating @ 1m.: ?dB
• Approvals and Ratings:
  • IP20
• Included Accessories:
  • 1 x Outdoor Locking Power Cable (2m)
  • 2 x Omega Brackets (107mm)
