Vizi HEX Wash 7
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

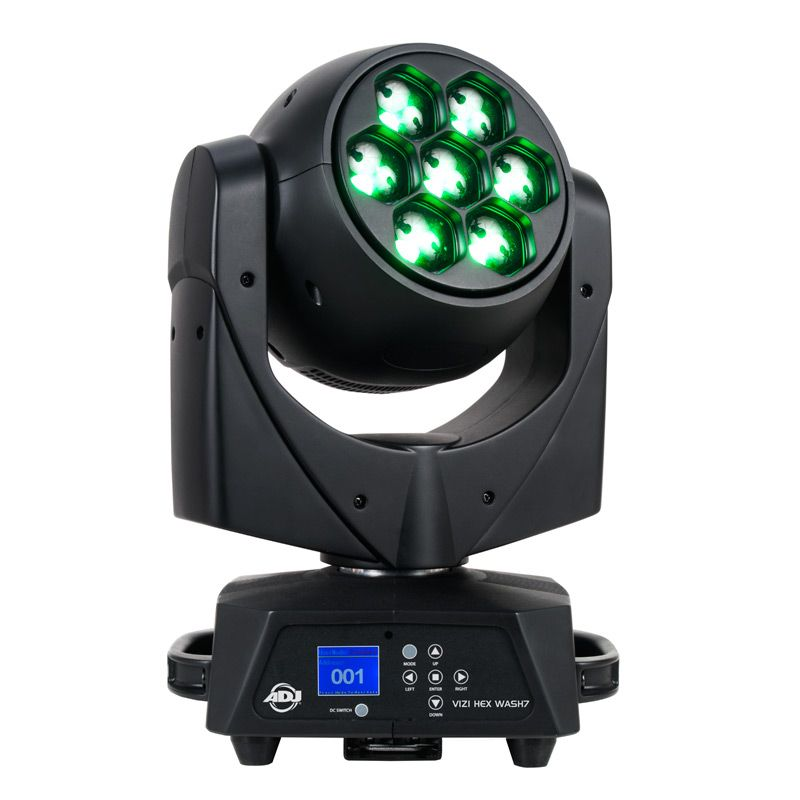

The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. It features 64 built-in Colour Macros, super fast pan/tilt movement, electronic dimming with 5 dimming curves and a pan/tilt inversion mode or contrasting movement when fixtures are linked together.
The Vizi Hex Wash7 has 3 DMX channel modes, 3-pin or 5-pin DMX connections and locking power In/Out connections for power linking. Plus, this fixture is equipped with ADJ's WiFLY wireless DMX. This fixture is ideal for stages, theaters, churches, nightclubs, concert venues and event productions.
- Omega bracket
- Locking power to Edison cable
- User Manual
Specifications:
- Pan & Tilt Range: 630-degree (540 Optional) /Tilt 270-degree
- Colours: 64 built-in colour macros
- Dimming: Electronic
- Zoom: Motorized 5°-55°
- Strobe: Electronic
- Dimmer Curves: 5 dimmer curves
- Operational Modes: 2 modes Program/ DMX
- Flicker Free

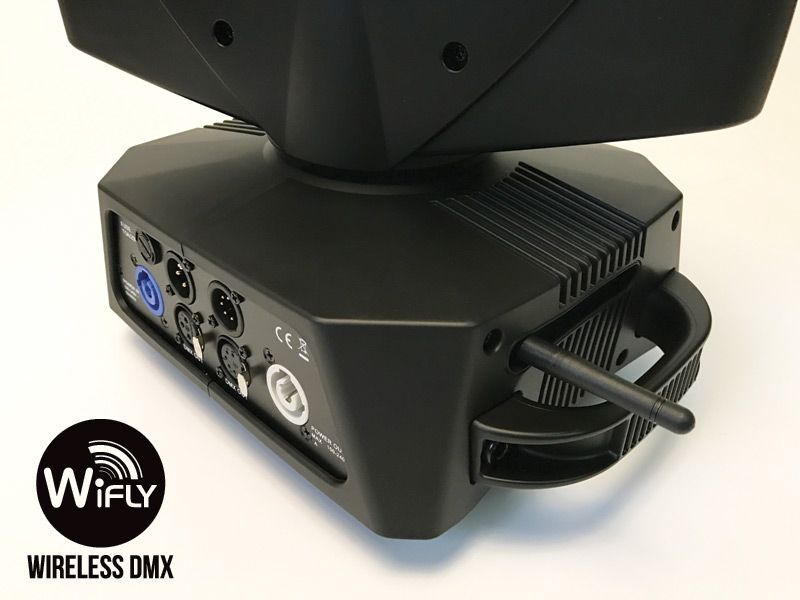

- Wifly EXR DMX Range: 2,500 feet (line of site)
- Wifly On/Off
- Dimensions (LxWxH): 11.75” x 8 x15.75”/300x200 x 400mm
- Weight: 19 lbs./8.5 kgs
Optical:
- Light Source: 7 (15) Watt HEX RGBWA+UV LED
- Life Expectancy: 50,000 hrs
- Beam Angle: 5~55-degree
- Refresh Rate: 1.2KHz

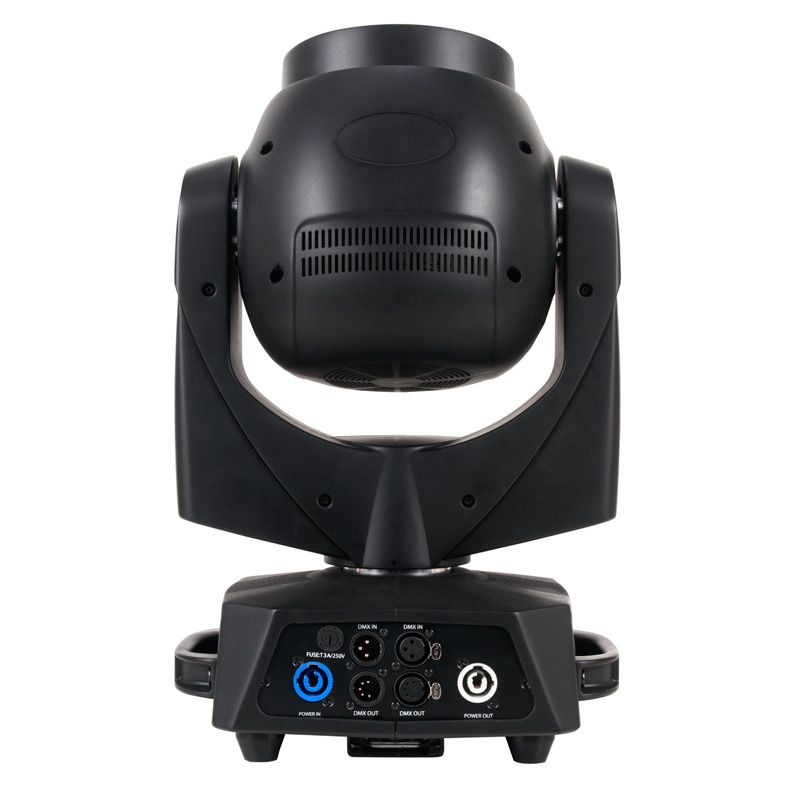

Connections
- Power Input: Locking power IN connection
- Power Pass through: Locking power OUT connection
- Data: 3 & 5-pin In/Out DMX
- With Wired Digital Communication Network
Control:
- DMX Modes: 2, RDM (Remote Device Management)
- On Board: LCD menu 180 degree inverse
- 16 Selectable WiFLY Address Channels
Tech Specs
Optics:
Light Source Type: 7 (15) Watt HEX RGBWA+UV LED
Light Source Wattage: 19 x 40w
Minimum Beam Angle: 5.0°
Maximum Beam Angle: 55.0°
Control
DMX Channel Modes: DMX Modes: 2, RDM (Remote Device Management)
DMX 3-Pin Connectors?: Yes
DMX 5-Pin Connectors?: Yes
Physical:
Length: 11.75 in
Width: 8 in
Height: 15.75 in
Weight: 19 lb
Electrical
Voltage Range: 100~230 V, 50 Hz/60Hz
Maximum Wattage: 137Ww
Power Cable Connector - Fixture Side: PowerCON
Main Power Connector on Included Cable: Edison
View full details
Have a question?
Notified by email when this product becomes available
$1,279.99
