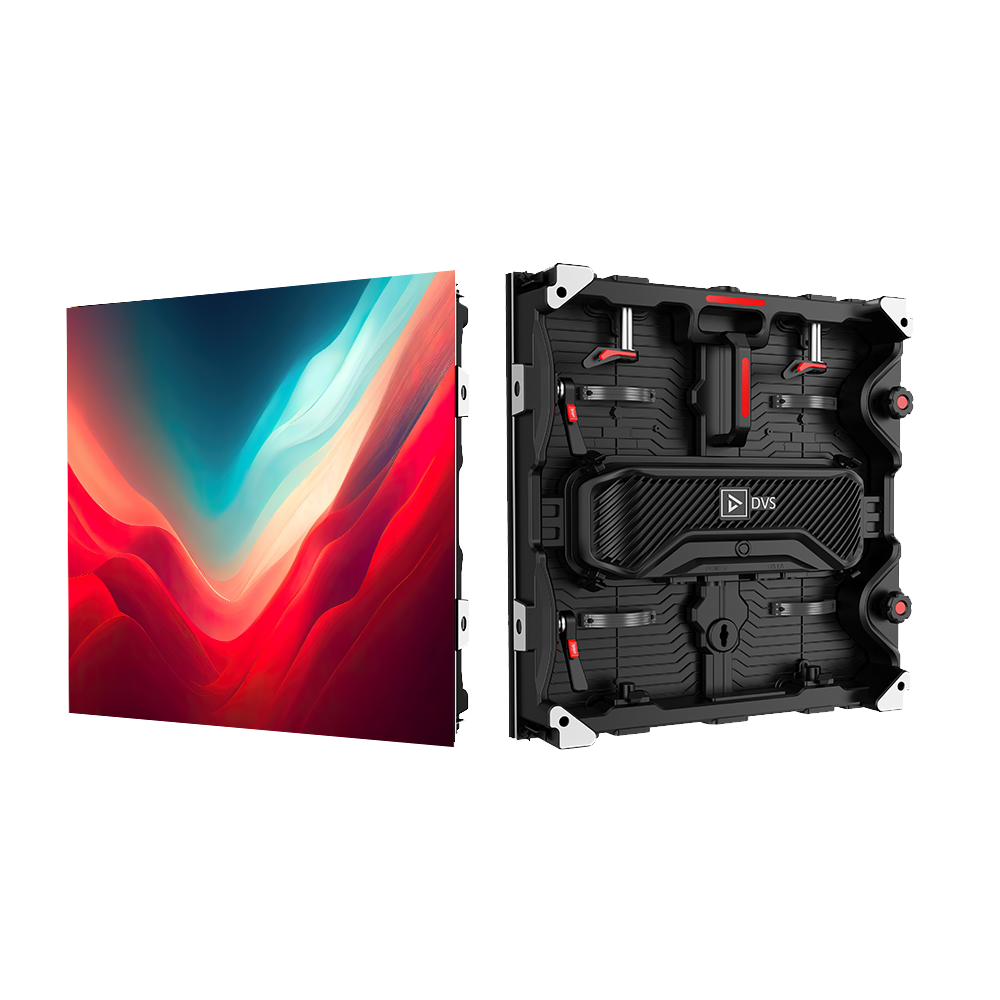

Vizra-2IP 2.9mm IP65 Outdoor LED Video Panel

The DVS Vizra-2IP 2.9mm IP65 Outdoor LED Video Panel is ideal for temporary outdoor rental and staging applications.

From the Manufacturer:

Vizra-2IP is a 2.9mm (500x500mm) outdoor LED Video Wall Panel integrating advanced features for industry-leading ease of use, reliability, and enhanced image performance at a competitive value. Designed for temporary outdoor rental and staging applications, Vizra-2IP incorporates high-output, high-contrast LEDs that deliver daylight visibility along with advanced image processing and an ultra-high 7,680≥ Hz refresh rate for exceptional optical performance to the eye and on cameras. It offers a lightweight, IP65-rated weatherproof design with user-friendly hardware features including magnetic alignment assist, integrated climbing handles, front/rear serviceable magnetic modules, and a detachable hot-swappable power/control unit for easy setup and operation at all levels. Its extensive feature set incorporates the latest advancements in image quality and reliability, resulting in the best possible ROI.

Vizra-2IP Plus+ | Excelling Performance

For further accelerated performance, the optional Vizra-2IP Plus+ features high-efficiency, high-output LEDs along with 22Bit+ Image Processing, HDR10 4:4:4 / HLG Support for enhanced color performance. It incorporates broadcast-grade MacroBlock® brand MBI IC drivers with S-PWM to maintain HDR color quality across various brightness levels and delivers guaranteed exceptional on-camera performance with reduced moire. Vizra Plus+ is equipped with the flagship NovaStar A10S Pro receiving card for the full suite of image processing functionalities, including Ultra Low-Latency support down to ≤1 frame. Vizra Plus+ is optionally available with Brompton Tessera processing.

Features:

• 2.9mm Outdoor LED Video Panel (19x19”)
• High Brightness + High Contrast LEDs
• 7,680 Hz Refresh Rate
• Magnetic Alignment Assist
• Front & Rear Serviceable Magnetic Modules
• Smart Module Calibration
• Detachable Easy-Swap Power Supply
• Integrated Heavy-Duty Climbing Handles
• Integrated Edge & Corner Protection

Specifications:

• Application Type: Mobile/Staging
• Mounting/Rigging: Truss | Ground Support
• Dimensions: 19.6 in L x 19.68 in W x 2.9 in D
• Weight: 15.4 lbs (7 kg)
• Pixel Pitch: 2.9mm
• LED Type: SMD1518
• Refresh rate: 7,680 Hz
• Brightness: 4,500 NITS
• Grayscale: 16-Bit (Standard), 22-Bit+ (Plus+)
• Serviceability: Front & Rear
• Voltage: Auto-switching 120/230v
• Power Connection: PowerCON TRUE1 in/Thru
• Data Connection: EtherCON In/Thru
• Environment: Temporary Outdoor
• Processing: NovaStar, Brompton (Optional)
• Warranty: 5 Years (Standard), 7-Years (Plus+)
