Sku: VZR39116

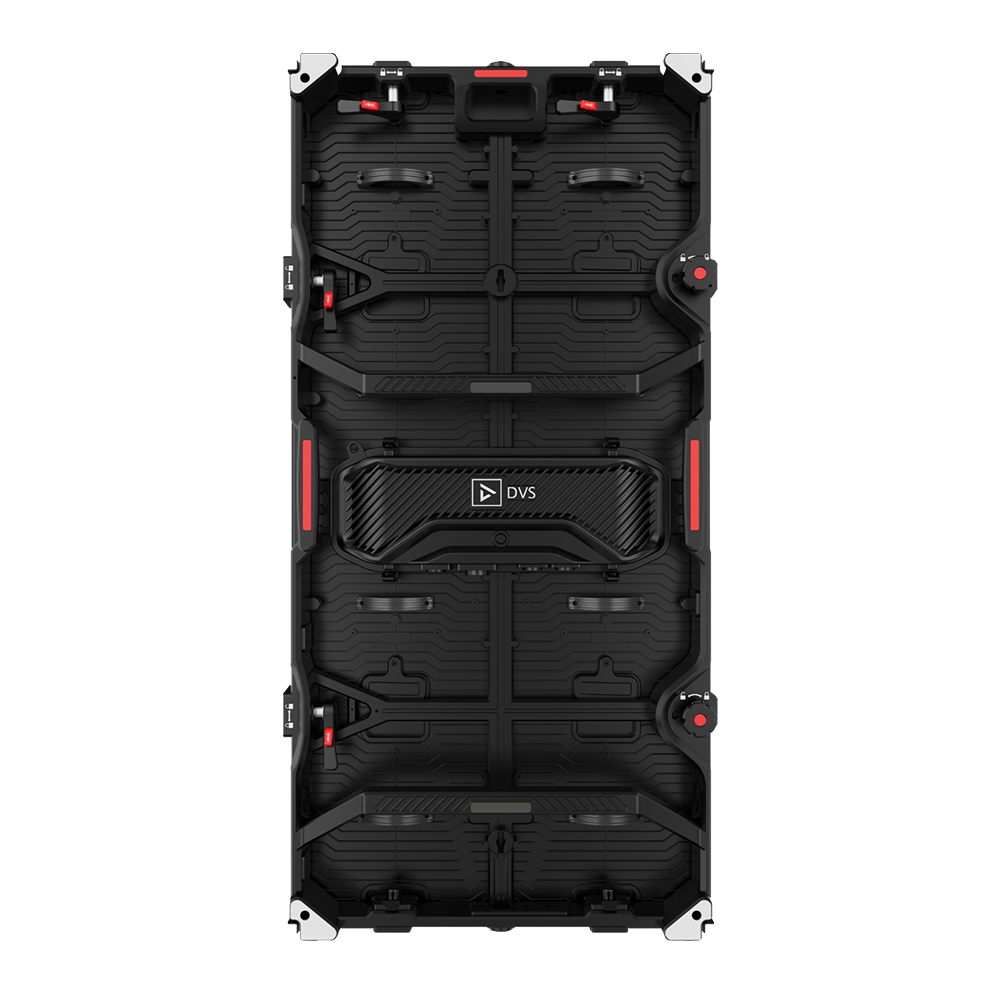

Vizra 3XIP LED Video Panel

Regular price
$1,098.00
Regular price
Sale price
$1,098.00
Shipping calculated at checkout.
Vendor: DVS LED

LED wall packages are often in stock and can ship fairly quickly, but may not. If you have a specific need-by date, contact us first to ensure we can guarantee that date! We LOVE to help!

Description

Caret Down

With Vizra, DVS builds on the success of their Optic panels and adds even more features including magnetic-assisted assembly, higher refresh rate, and rotary curve locks.

This LED video wall panel is also outdoor rated for temporary outdoor use.

Simply put, these LED wall panels are the best entry/mid-level panels that are higher quality than anything else at this price point!

From the Manufacturer:

Vizra-3XIP is a 3.9mm (500x1000mm) outdoor LED Video Wall Panel integrating advanced features for industry-leading ease of use, reliability, and enhanced image performance at a competitive value. Designed for temporary outdoor rental and staging applications, Vizra-3XIP incorporates high-output, high-contrast LEDs that deliver daylight visibility along with advanced image processing and an ultra-high refresh rate for exceptional optical performance to the eye and on cameras.

It offers a lightweight, IP65-rated weatherproof design with user-friendly hardware features including magnetic alignment assist, front/rear serviceable magnetic modules, and a detachable hot-swappable power/control unit for easy setup and operation at all levels. Its extensive feature set incorporates the latest advancements for image quality and reliability resulting in the best possible ROI.

A Higher Baseline of Optical Performance

Vizra-3XIP’s 3.9mm pixel pitch features a high-pixel density for viewing distances as close as 24 feet. It incorporates standard high-contrast LEDs to achieve a remarkable 8,000:1 contrast ratio delivering vibrant imagery with 16-bit processing for increased color accuracy plus a 160º viewing angle.

Standard models feature a minimum 7680≥ Hz Hz refresh rate ensuring fluid, high-speed image movements, and an on-camera appearance that’s free of artifacts. A standard equipped NovaStar A5S Plus receiving card with advanced processing support ensures optimal image quality from any input source and easy software operation.

Optimal Functionality

Vizra was designed with flexibility and ease of use for any type of event or stage. It offers a lightweight design with fan-less operation and an efficient heat dissipation design for modules and power supply housing to reduce component strain. It incorporates heavy-duty magnets at the top of each panel where users can align and temporarily hold a panel in place until the locks are securely engaged.

Grip handles are strategically placed to allow one hand to position and one hand to engage the locks, for a true single-person setup while reducing strain on arms and shoulders.

Vizra Series embraces a modular component design for quick and simple maintenance. It is front and rear-serviceable with magnetically attached LED modules for easy, user-level field serviceability. Connections between modules and internal components are direct, pin-less connections, free of flat ribbon cables to ensure high stability and low maintenance.

All internal components are integrated into a single detachable, easy-swap housing making user-level serviceability quick and efficient guaranteeing minimal downtime. An innovative recessed module design with integrated edge and flip-out corner protectors protects LED pixels from damage for durability.

From the GEAR Pro's:

Here's why we like the Vizra series from DVS.  These video wall panels offer high-quality build without the high quality price. They use high quality LED's which in this panel are 3.9mm apart.

This makes for a good mask ratio so there is less black space between pixels.  This helps them to look great on camera and avoid unwanted issues like the moire effect or other artifacts.

The magnetic assisted assembly means that 1 person can lift a panel into place and have it held temporarily by magnets while you align and connect the latches.

Vizra panels also offer a higher refresh rate than any other mid-level panel on the market - 7680≥ Hz instead of the current standard of 3840hz, making for superior on-camera performance.

We also love the corner protectors and swappable power/control units.  This is a gig-saving feature as you don't have to remove a whole panel if you have a power supply or receiving card go bad and need to replace it.

A minimum order of 8 panels is required.  If you need to order less than 8, contact us.If you haven't purchased an LED wall before, please request a quote or purchase a pre-built package to ensure you build a complete system.

In the Box:

  • (1) DVS Vizra 3XIP LED Wall Tile
  • (1) True1 Jumper
  • (1) Ethernet Jumper

Full wall purchases will also include mains power and data cables as well the following spare parts:

  • 3% Spare Modules or 2 minimum
  • 1% Control/Power Module or 1 minimum

Video Review:


Specifications:
  • LED Type: SMD1921
  • Pixel Pitch: 3.9mm
  • Panel Size: 500mm x 1000mm
  • Max Hanging Height (Flown): 12 Panels
  • Main Stacking Height (Ground Stack): 8 Panels
  • IP65 Rated

Optical:

  • Brightness: 5000 nits
  • View Angle: 160°
  • Grayscale; 16 Bit +
  • Contrast Ratio: 5000:1

Power:

  • Voltage: 120-240v
  • Max Power: 340w/panel
  • Avg. Power: 120w/panel
  • Certifications: ETL, FCC, CE, ROHS, EMC

Control:

  • Control: Novastar A5S Plus
  • Refresh Rate: 7680≥ Hz

Tech Specs

Physical:

Length: 500 mm

Width: 73 mm

Height: 1000 mm

Weight: 26.8 lb

Electrical

Voltage Range: 120-240v

Maximum Wattage: 340w

Power Cable Connector - Fixture Side: True1

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 5 Years
