This upgraded Vizra Plus+ offers compelling performance enhancements to suit critical applications or discerning specification requirements. Featuring broadcast-grade MacroBlock® brand MBI IC drivers delivering an accelerated 7,680Hz refresh rate for guaranteed exceptional on-camera performance and increased support for high frame rates. Vizra Plus+ is equipped with the flagship NovaStar A10S Pro receiving card with 18Bit+ Image Processing, HDR10 4:4:4 / HLG Support for increased color accuracy as well as Ultra Low-Latency support down to ≤1 frame. Vizra Plus+ is optionally available with Brompton Tessera processing.
Skip to product information
-
Media gallery
-
Media gallery
-
Media gallery
-
Media gallery
-
Media gallery
-
Media gallery
Sku:
VZR39113

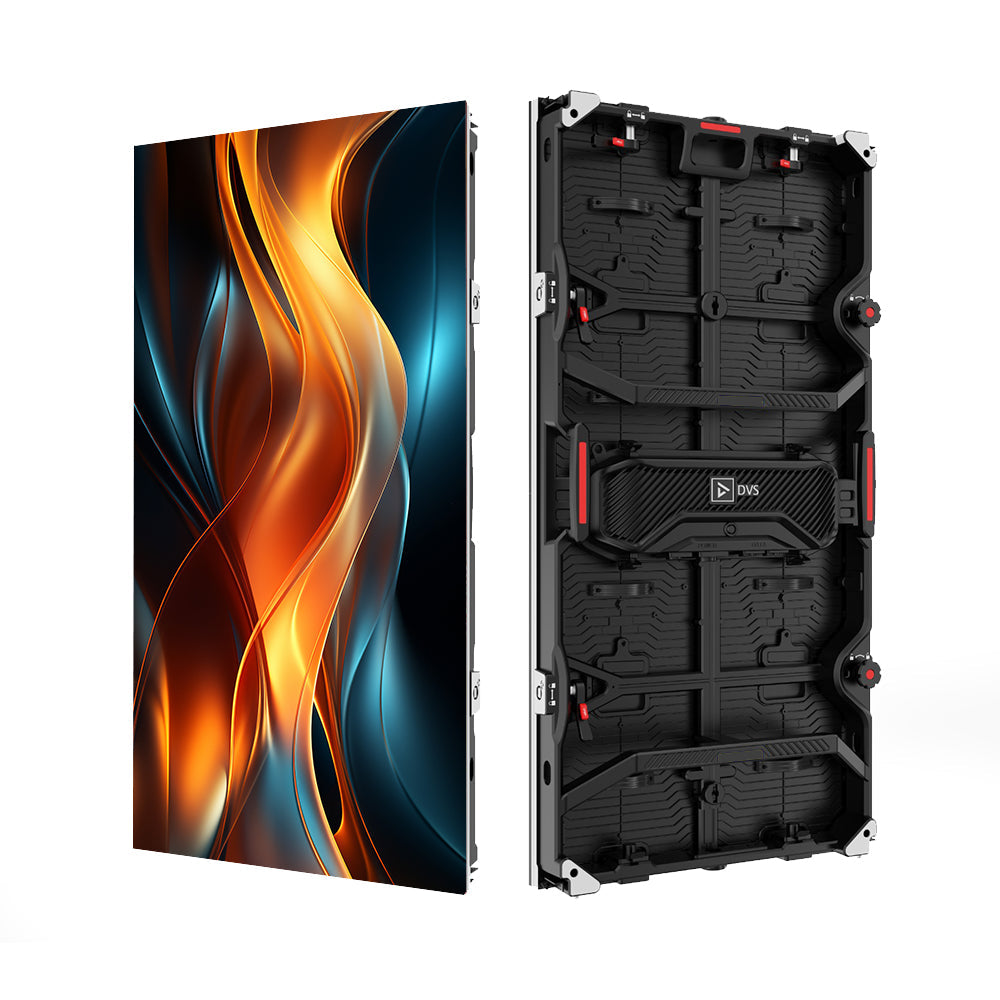

Vizra 3X Plus+ LED Video Panel
- Regular price
- $1,199.00
- Regular price
-
- Sale price
- $1,199.00
- Unit price
- per
Shipping calculated at checkout.
Vendor: DVS LED
LED wall packages are often in stock and can ship fairly quickly, but may not. If you have a specific need-by date, contact us first to ensure we can guarantee that date! We LOVE to help!
Description
Description
With Vizra, DVS builds on the success of their Optic panels and adds even more features including magnetic-assisted assembly, higher refresh rate, and rotary curve locks.
Simply put, these LED wall panels are the best entry/mid-level panels that are higher quality than anything else at this price point, and the Plus+ models also include features for XR and broadcast performance, including MacroBlock IC drivers, 7680hz refresh rate and the NovaStar A10s Receiving cards for HDR10/HLG support!
From the Manufacturer:
Vizra Plus+ | Accelerating Performance
Designed for indoor rental and stage install applications, Vizra Plus+ incorporates high-contrast blackface LEDs with an 8,000:1 contrast ratio for vivid, vibrant imagery driven by advanced image processing and an increased 7,680 Hz refresh rate for exceptional optical performance to the eye and on camera.
It offers a lightweight, robust design with user-friendly hardware features including magnetic alignment assist, front/rear serviceable magnetic modules, and a detachable hot-swappable power/control unit for easy setup and operation at all levels. Its extensive feature set incorporates the latest advancements for image quality and reliability resulting in the best possible ROI.
A Higher Baseline of Optical Performance
Vizra-3X Plus+'s 3.9mm pixel pitch features a high-pixel density for viewing distances as close as 16 feet. It incorporates standard high-contrast, blackface LEDs to achieve a remarkable 8,000:1 contrast ratio delivering vibrant imagery with 18-bit+ processing for increased color accuracy plus a 160º viewing angle.
Optimal Functionality

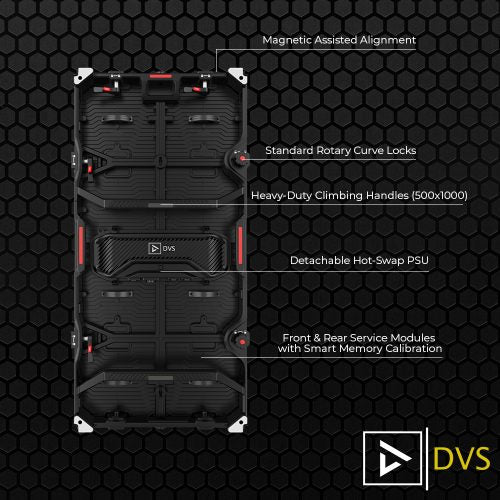

Vizra Plus+ was designed with flexibility and ease of use for any type of event or stage. It offers a lightweight design with fan-less operation and an efficient heat dissipation design for modules and power supply housing to reduce component strain. It incorporates heavy-duty magnets at the top of each panel where users can align and temporarily hold a panel in place until the locks are securely engaged.
Grip handles are strategically placed to allow one hand to position and one hand to engage the locks, for a true single-person setup while reducing strain on arms and shoulders.

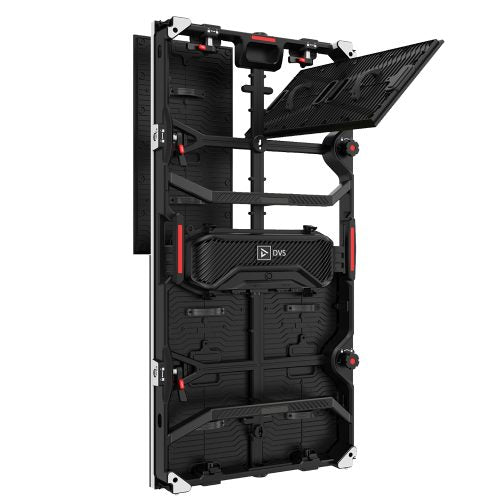

Vizra Series embraces a modular component design for quick and simple maintenance. It is front and rear-serviceable with magnetically attached LED modules for easy, user-level field serviceability. Connections between modules and internal components are direct, pin-less connections, free of flat ribbon cables to ensure high stability and low maintenance.
All internal components are integrated into a single detachable, easy-swap housing making user-level serviceability quick and efficient guaranteeing minimal downtime. An innovative recessed module design with integrated edge and flip-out corner protectors protects LED pixels from damage for durability.
From the GEAR Pro's:
The Vizra Plus+ Series of LED walls is really special. For a really reasonable cost, DVS takes everything that we LOVE about their Vizra panels and kicks it up a notch.
The higher 7680 Hz refresh rate, Macroblock® MDI IC drivers, and NovaStar A10s Pro receiving card makes these panels broadcast ready, but at a price of other brands "DJ" grade level panels.
It's pretty extraordinary what they've put into this panel for the price, it punches WAY above it's price level!
A minimum order of 8 panels is required. If you need to order less than 8, contact us.If you haven't purchased an LED wall before, please request a quote or purchase a pre-built package to ensure you build a complete system.
In the Box:
- (1) DVS Vizra 3X Plus+ LED Wall Tile
- (1) True1 Jumper
- (1) Ethernet Jumper
Full wall purchases will also include mains power and data cables as well the following spare parts:
- 3% Spare Modules or 2 minimum
- 1% Control/Power Module or 1 minimum
Video Review:
Specifications:
- LED Type: SMD2020 Blackface
- Pixel Pitch: 3.9mm
- Pixel Size: 2mm x 2mm
- Panel Size: 500mm x 1000mm
- Max Hanging Height (Flown): 12 Panels
- Main Stacking Height (Ground Stack): 8 Panels
Optical:
- Brightness: 1000 nits
- View Angle: 160°
- Grayscale; 18 Bit +
- Contrast Ratio: 8000:1
Power:
- Voltage: 120-240v
- Max Power: 240w/panel
- Avg. Power: 120w/panel
- Certifications: ETL, FCC, CE, ROHS, EMC
Control:
- Control: Novastar 10s Pro
- Refresh Rate: 7680Hz
Tech Specs
Physical:
Length: 500 mm
Width: 73 mm
Height: 1000 mm
Weight: 26.8 lb
Electrical
Voltage Range: 120-240v
Maximum Wattage: 240w
Power Cable Connector - Fixture Side: True1
Main Power Connector on Included Cable: Edison
Warranty
Warranty: 5 Years
