VS1 FLEX45

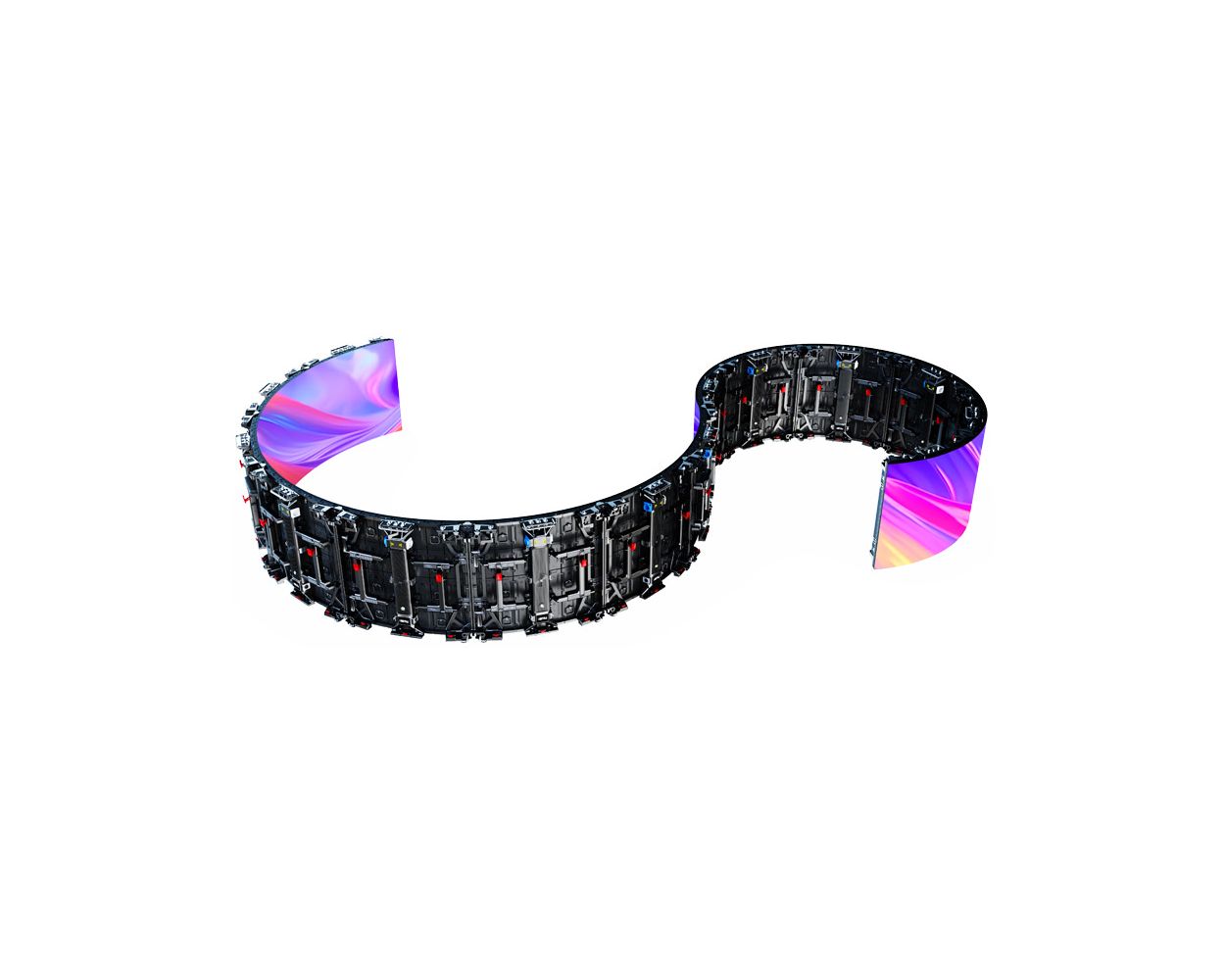

The ADJ VS1 FLEX45 video panel features four individual mini-modules per panel, and the flexibility form up to a 45° concave or convex shape. These high-res panels are ideal for custom curved setups.

From the Manufacturer:

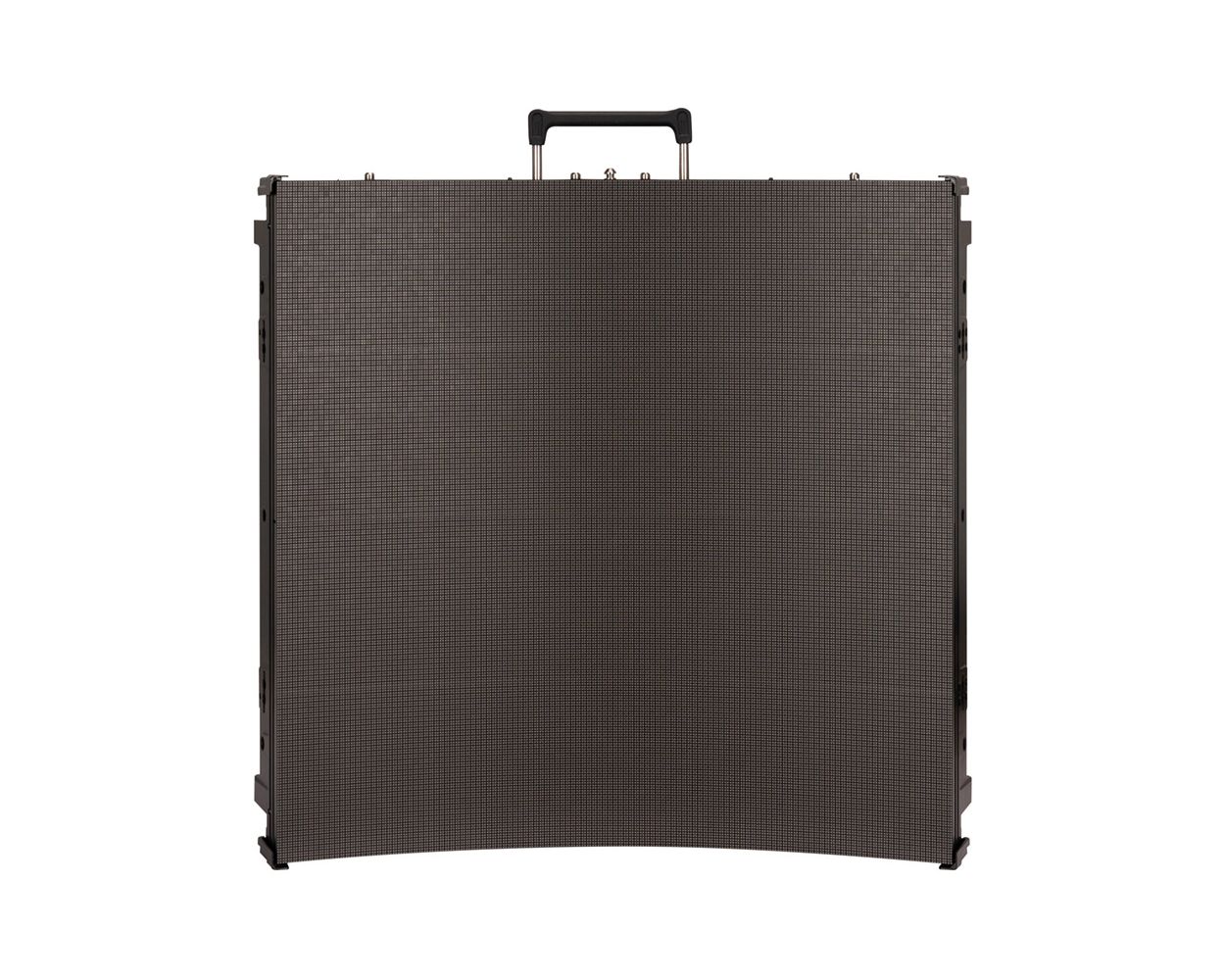

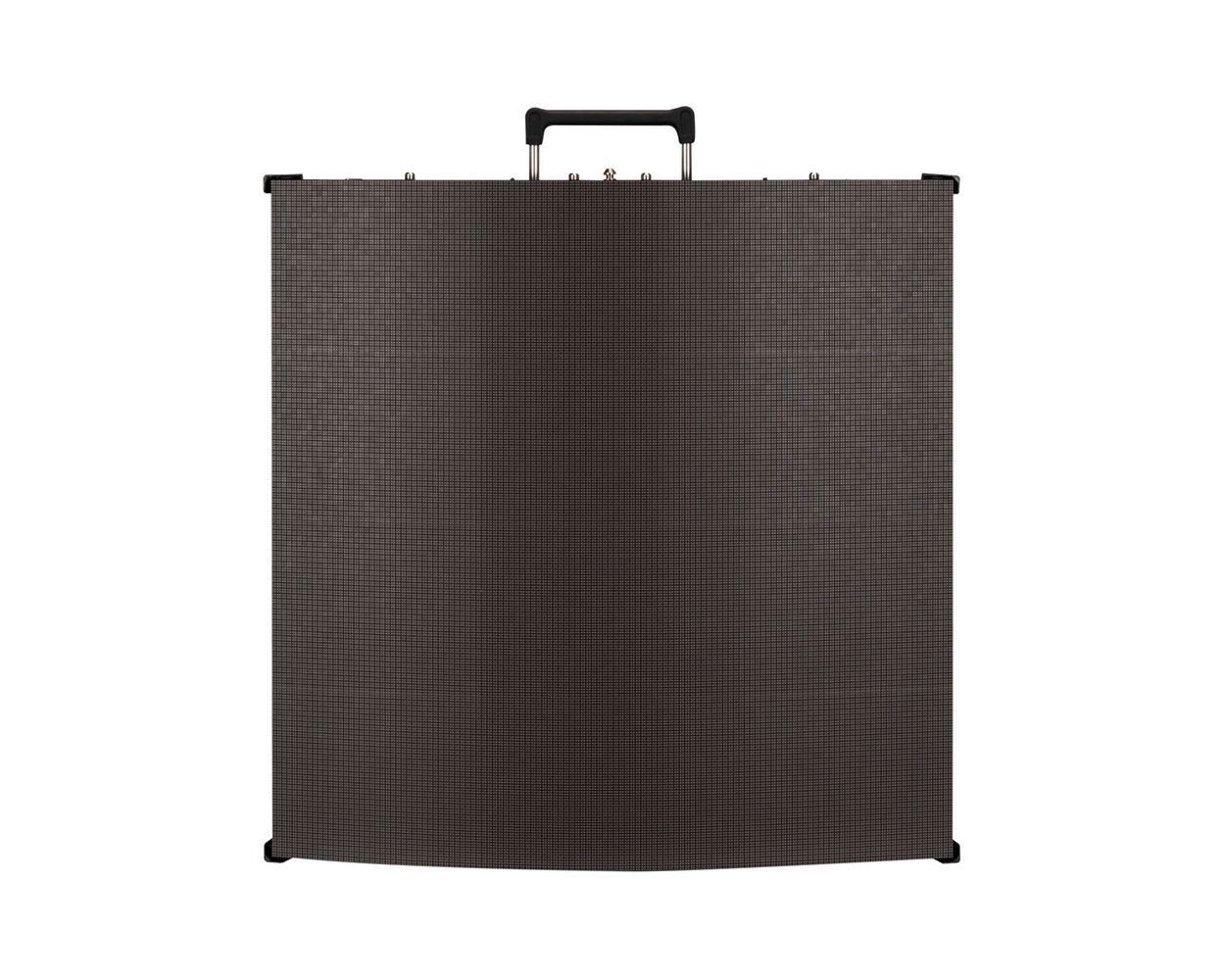

The VS1 FLEX45, part of ADJ’s reliable Vision Series Video Panels, offers a 1.95mm pixel pitch with a 4-in-1 MiniLED configuration and the flexibility to form up to a 45° concave or convex shape. Each panel is equipped with four individual mini-modules and is designed for rear servicing. The EVSF45FC flight case can store up to eight VS1 FLEX45 panels, while the FLEX45RB rigging bar enables vertical hanging of up to 20 panels.

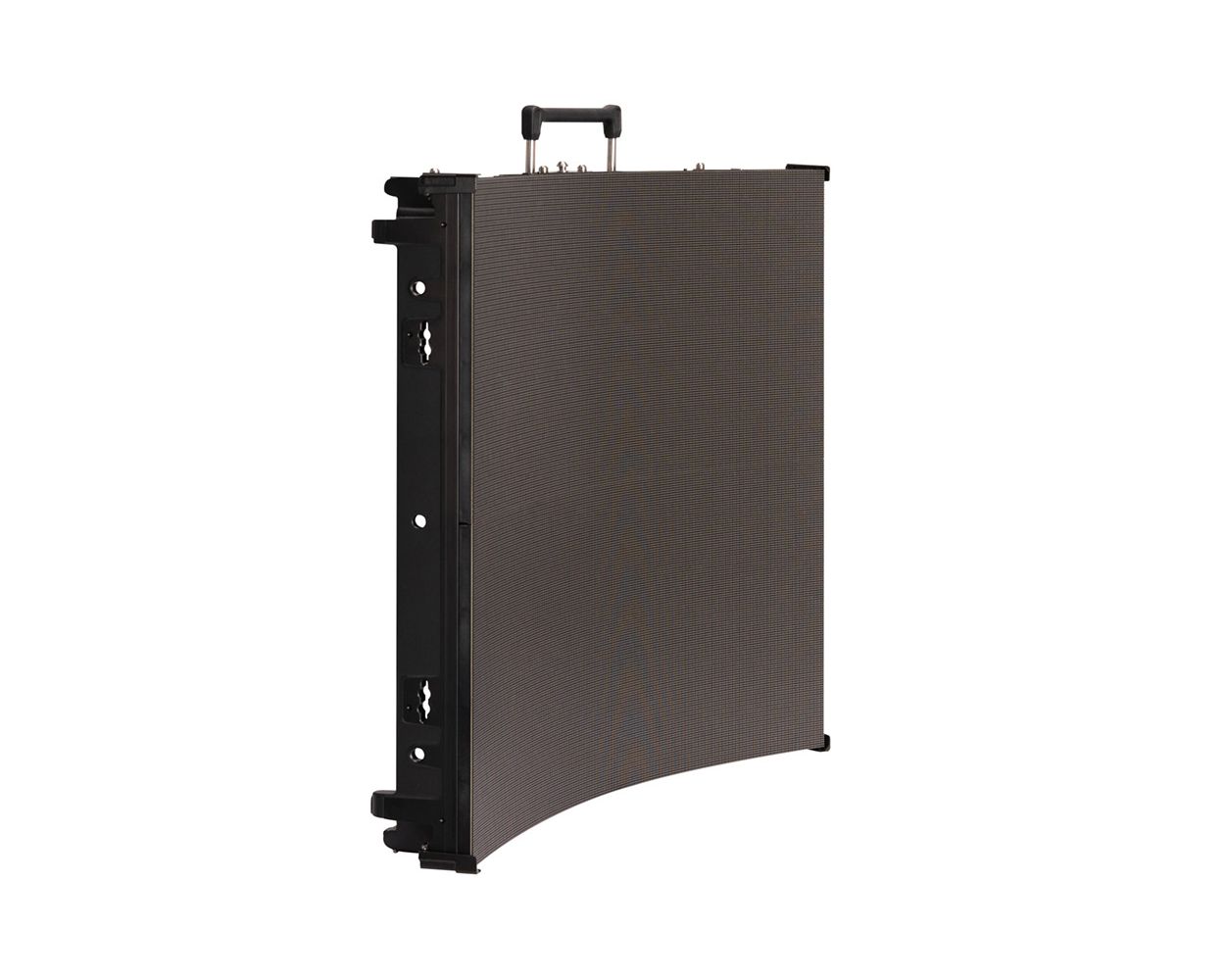

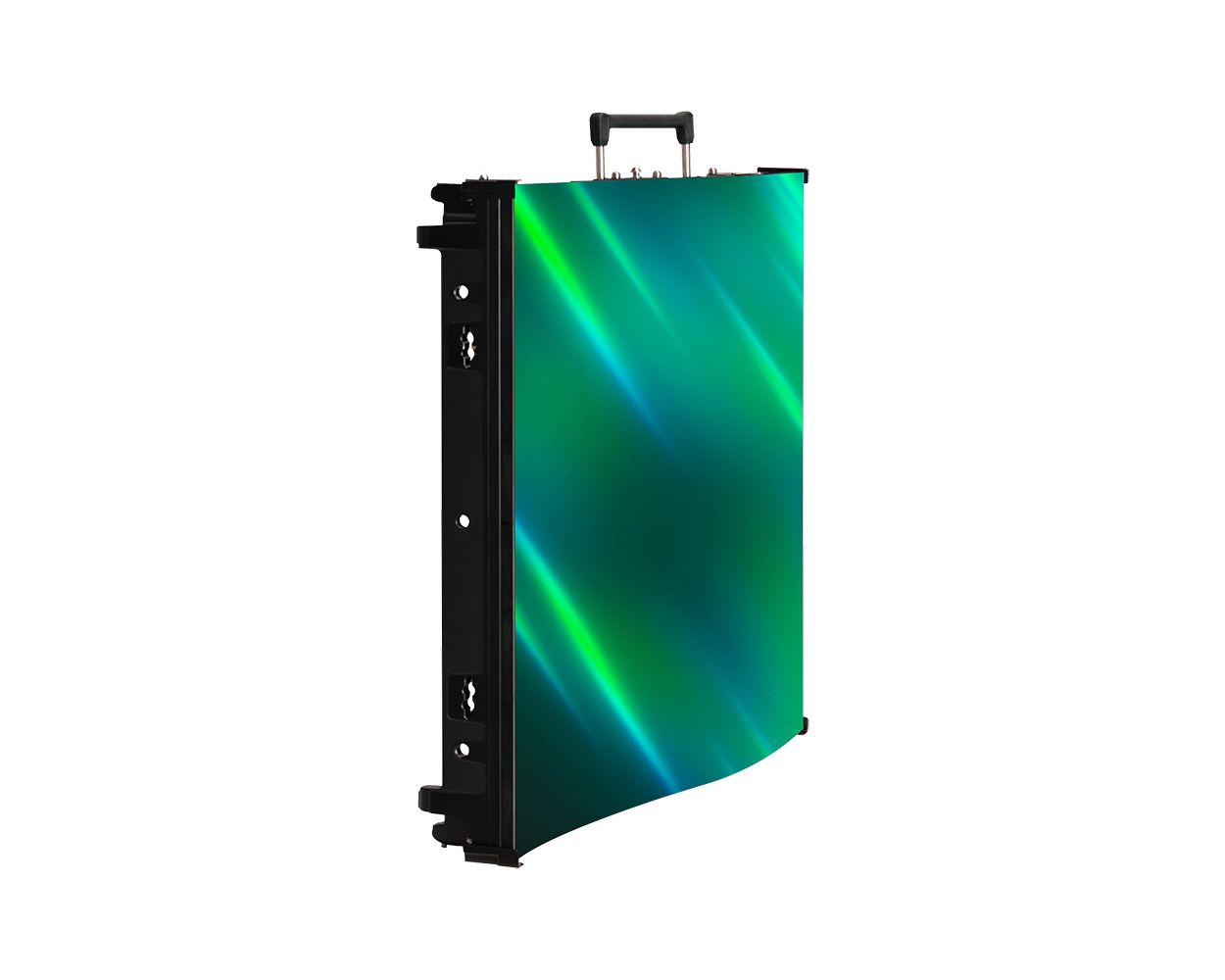

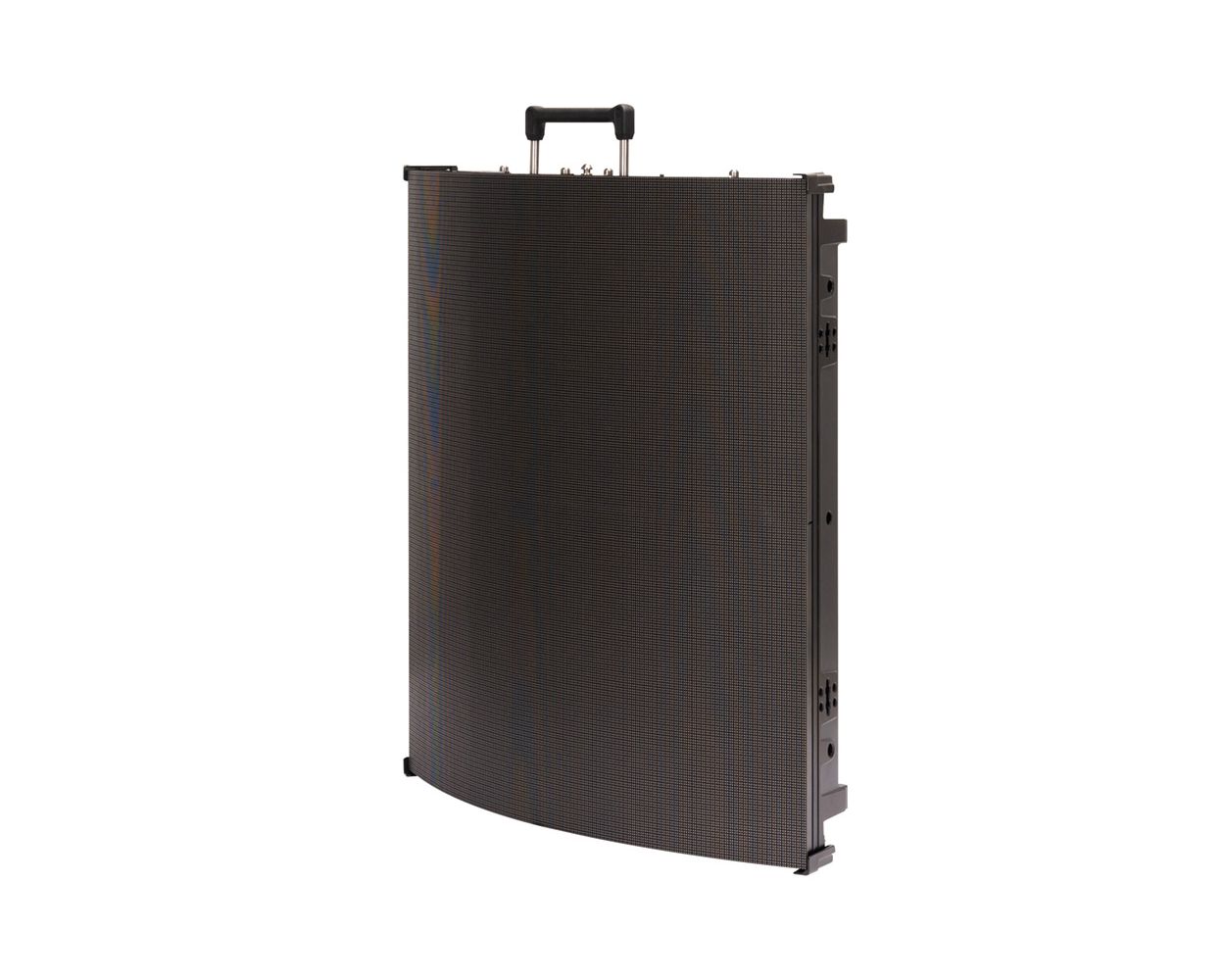

The VS1 FLEX45, part of ADJ’s trusted Vision Series video panels, delivers premium LED binning, outstanding brightness, and sharp, clear visuals. This high-resolution video panel features a 1.95mm pixel pitch with a 4-in-1 MiniLED configuration and the flexibility to create up to a 45° concave or convex curve, ideal for custom curved setups. With 1500 NITS brightness and an ultra-high refresh rate of 7680Hz, it ensures exceptional image quality. Designed for convenience, the panel includes four LED modules, enabling quick and simple rear servicing.

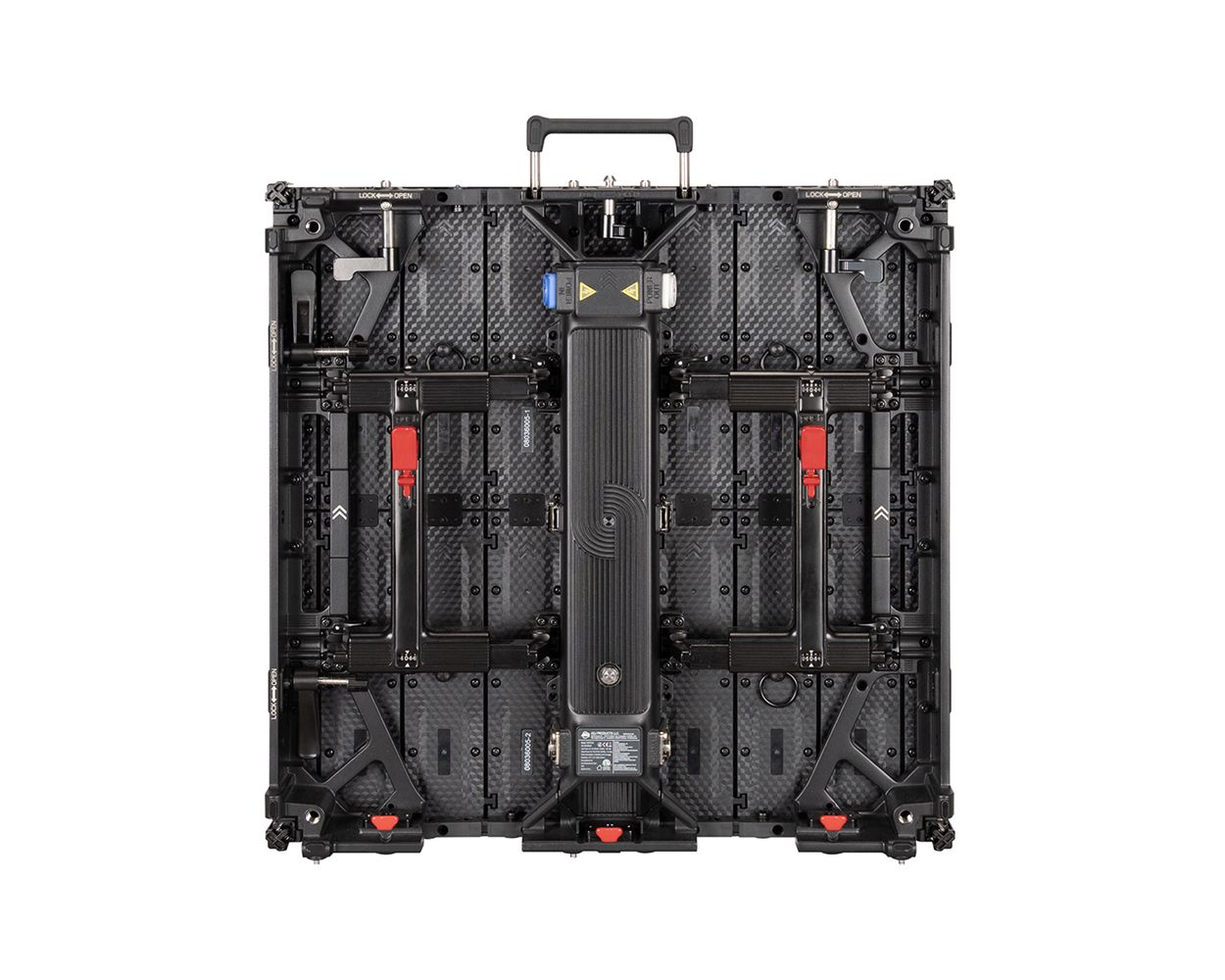

Equipped with PowerLock In/Out and DataLock In/Out connections, the VS1 FLEX45 also features a built-in Novastar A5s receiving card for seamless operation. Up to eight panels fit into the EVSF45FC flight case, while the FLEX45RB rigging bar supports vertical hanging of up to 20 panels.

For enhanced functionality, the VS1 FLEX45 incorporates Memory on Module (MOM) technology, enabling the storage and recall of critical configuration data such as calibration settings, brightness levels, and color profiles, ensuring optimal performance and reliability.

ADJ offers complete packages, including video processors, software, cabling, rigging bars, and flight cases, providing everything you need for a smooth and efficient setup.

Features:

• Memory on Module (MOM): Enhanced functionality for seamless operation
• Corner Protectors: Safeguards corners during transport, setup, and teardown
• Rear Serviceable: Easily replaceable video modules ensure continuous performance

Specifications:

• LED: MiniLED 4-in-1
• Pixel Pitch: 1.9mm (0.07”)
• Drive IC: ICN2153S
• Pixel Density: 262144 per square meter
• Size: 20.3” x 19.7” x 3.1” / 515 x 500 x 80mm
• Module Quantity: 4
• Module size: 500*125mm
• Module Resolution: 256 x 64 pixels
• Panel Resolution: 256 x 256 pixels
• Weight: 18.3 lbs. / 8.3kg
• Mechanical Ratings:
  • Surface Flatness: Gaps<0.5mm for a smooth visual experience
• Optical Ratings:
  • Brightness: 1500 NITS for vivid, clear visuals
  • View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m) for wide coverage
  • Gray Scale: ≥14-bit for precise color representation.
  • Display Color: 256 for vibrant images
  • Brightness Adjustment: 0~100% with 100 Levels for customizable viewing
  • Contrast Ratio: 10000:1 for enhanced contrast
  • Processing: 16-bit ensures seamless performance
  • Operating Life / MTBF: 50,000 Hours / 5,000 Hour for long-lasting usage
• Power Supply:
  • Operation Power: 100~240V 50-60Hz for global compatibility.
  • Max. Power Consumption: 150W/per panel, conserving energy.
  • Ave. Power Consumption: 60W/per panel for efficient operation.
  • Connections Power/Data: Power-Power Lock In/Out; Data Lock In/Out for easy setup.
• Control System:
  • Control Mode: Nova Star Synchronous System with Control via DVI for intuitive control.
  • Frame Update Frequency: 50-75Hz for smooth playback.
  • Scan Mode: 1/16 for seamless scanning.
  • Refresh Rate: 7680Hz ensures flicker-free visuals.
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI for versatile connectivity.
  • Control Distance: Ethernet Cable <120m or Fiber Optic>120m for flexible setups.
  • Support VGA Mode: Various resolutions supported for compatibility.
  • Brightness Correction: Pixel, Module, Cabinet for precise adjustment.
• Environmental:
  • Operating Temperature: -4° to 104°F (-20° to +40°C) for reliable performance in diverse conditions.
  • Operating Humidity: 10 - 90% (No Condensation) ensures stable operation.
  • Storage Temperature: -40° to 176°F (-40° to +80°C) for safe storage.
  • Storage Humidity: 10-90% (No Condensation) for long-term preservation.
• Cables:
  • Cabinet to Cabinet Data Link Cables, Indoor Power Locking Link Cables, Indoor Power Locking Main Power Cables for efficient connectivity.
• Certifications:
  • cETLus (PENDING) ensures compliance with safety standards.
