VS1C

The ADJ VS1C video panel section connects two VS1 panels for a seamless 90-degree corner, adding new creative options for LED displays at events, concerts, and permanent displays.

From the Manufacturer:

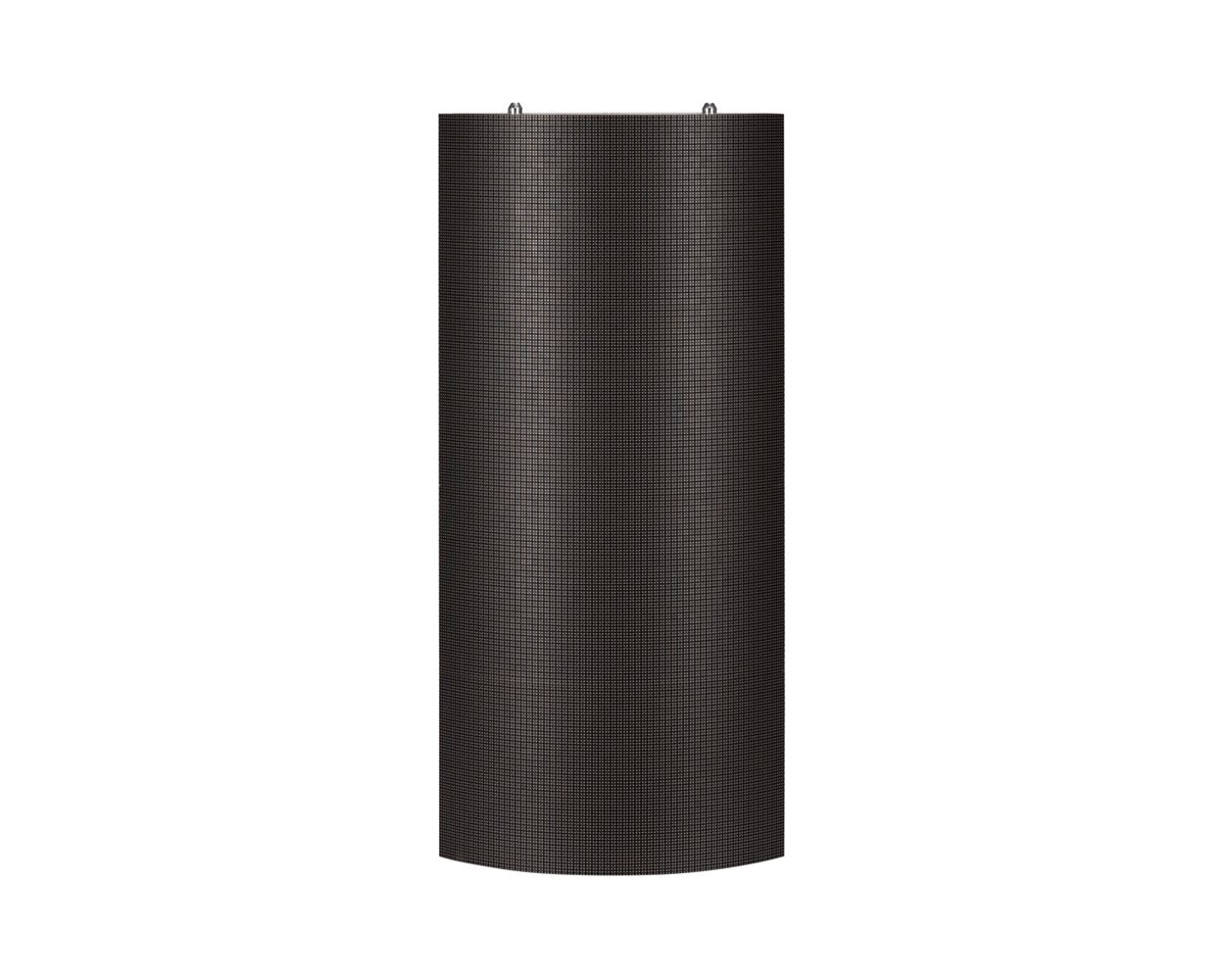

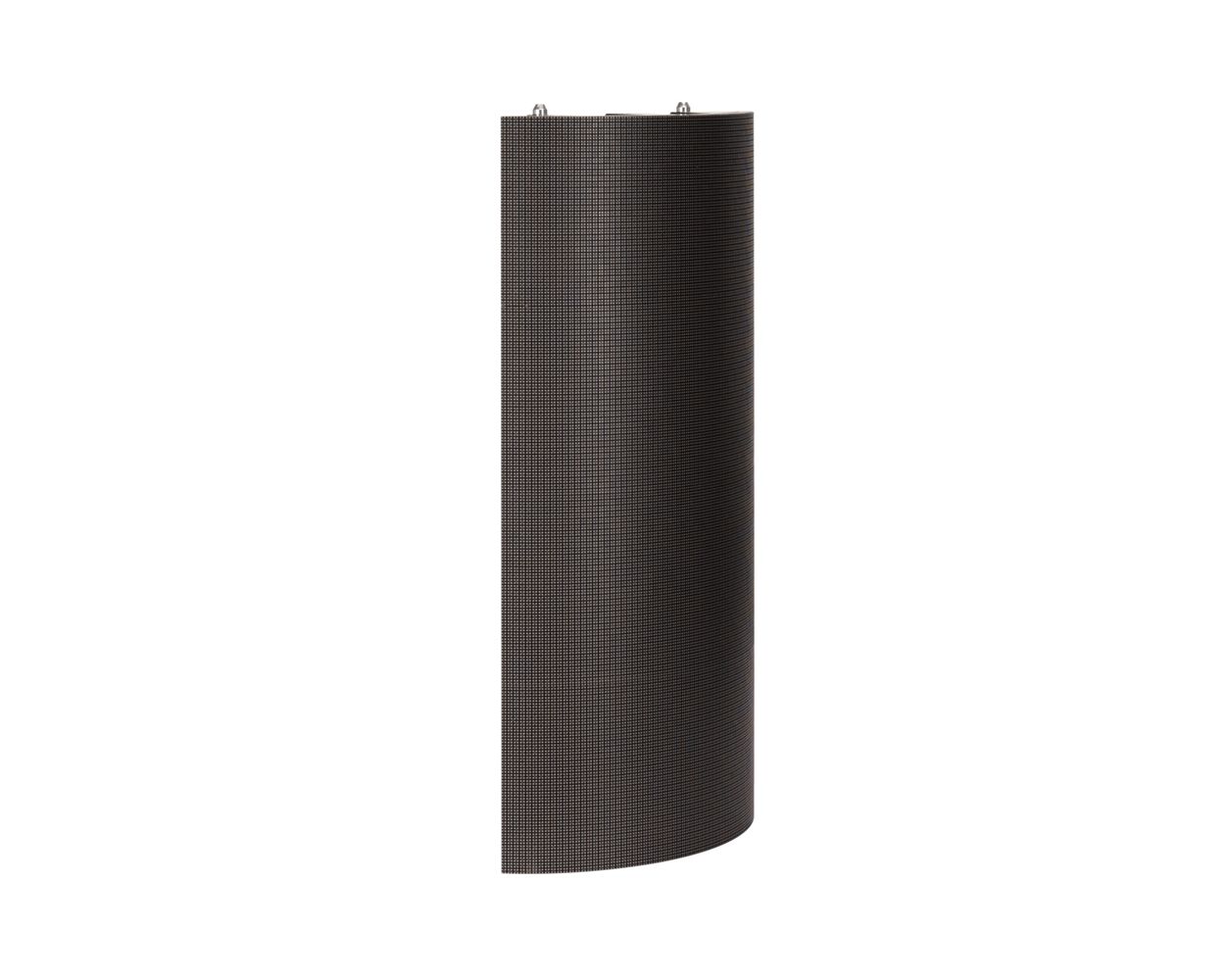

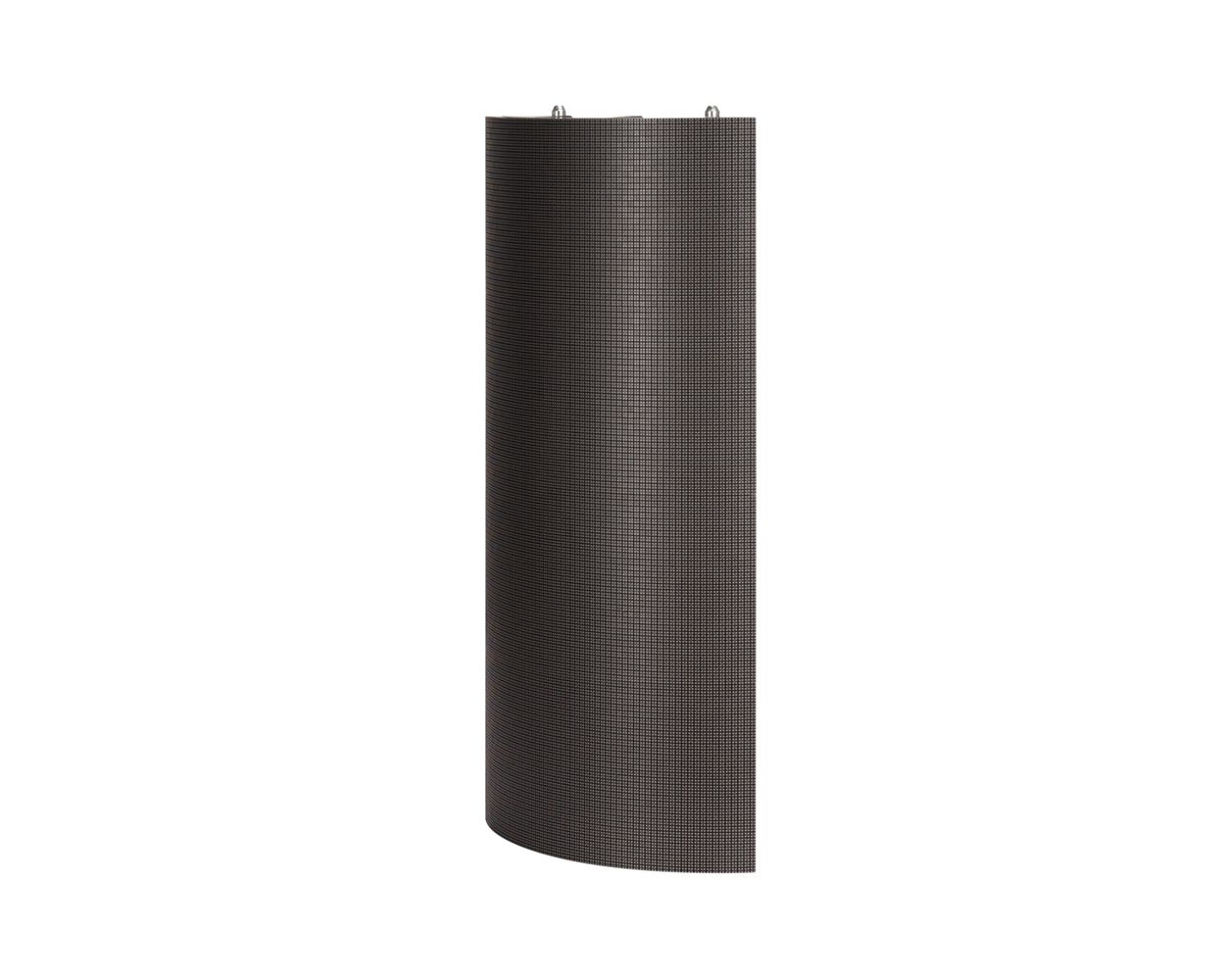

An accessory to the VS1, Vision Series LED panel, the VS1C is a 1.95mm curved LED panel section designed to sit between two VS1 panels to create a seamless 90-degree corner.

The ADJ VS1C is a 1.95mm curved LED panel section designed as a seamless accessory for the VS1 panel. Perfect for creating 90-degree corners, it adds a new dimension of creative flexibility to LED displays for stages, events, concerts, and permanent architectural designs.

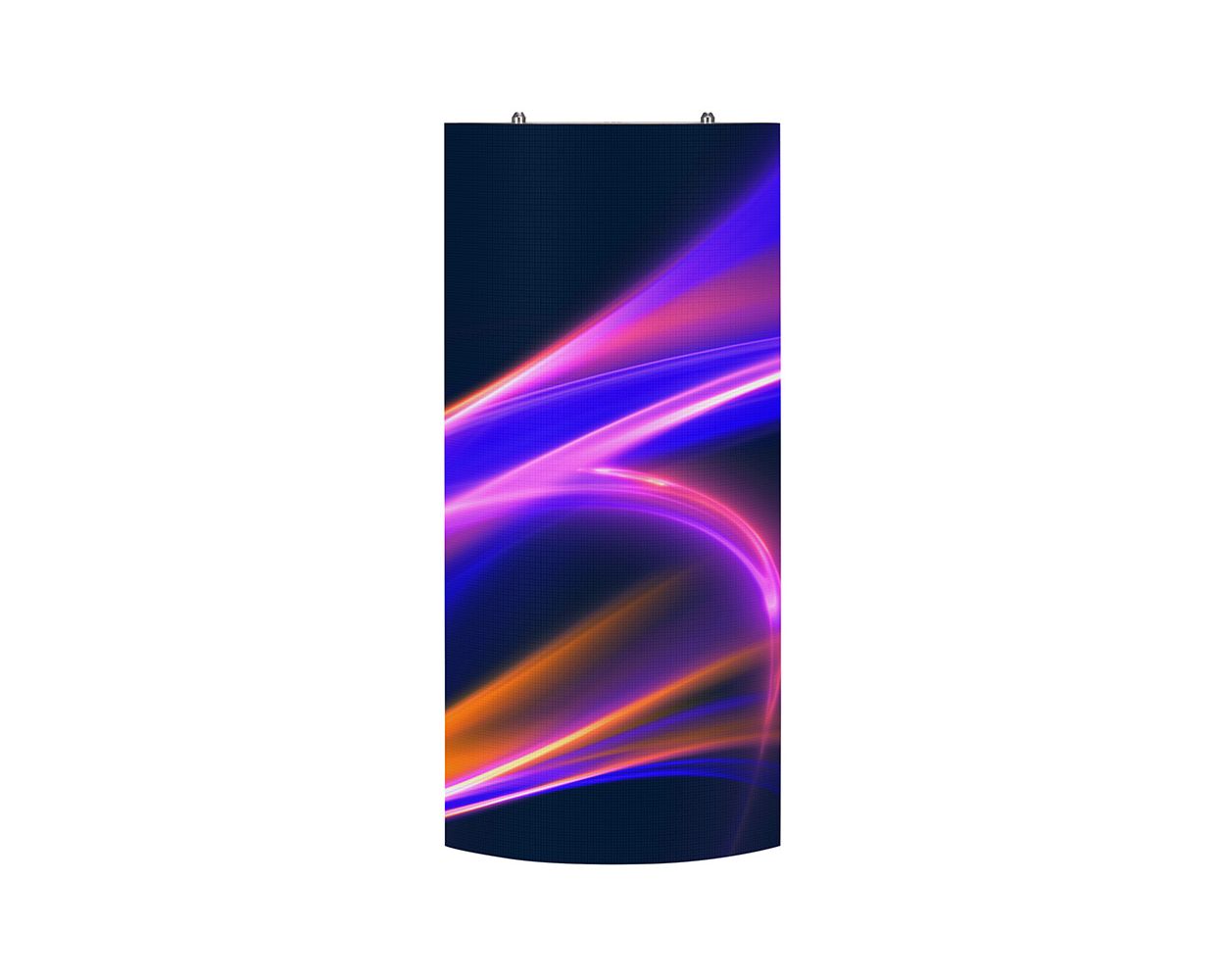

Featuring a 4-in-1 MiniLED configuration and a pixel density of 256x256, the VS1C delivers stunning visuals with 1500 NITS brightness, a high contrast ratio of 5000:1, and a wide 110° viewing angle. The panel is rear serviceable, with four easily replaceable modules and an independent power box for simplified maintenance.

Its quick-lock system allows effortless assembly with VS1 panels, enabling unique corner configurations. With a refresh rate of 3840Hz and compatibility with Nova Star’s control systems, the VS1C ensures smooth performance and vibrant image quality. Compact, lightweight, and easy to handle, the VS1C is an ideal solution for creative LED video panel setups.

Features:

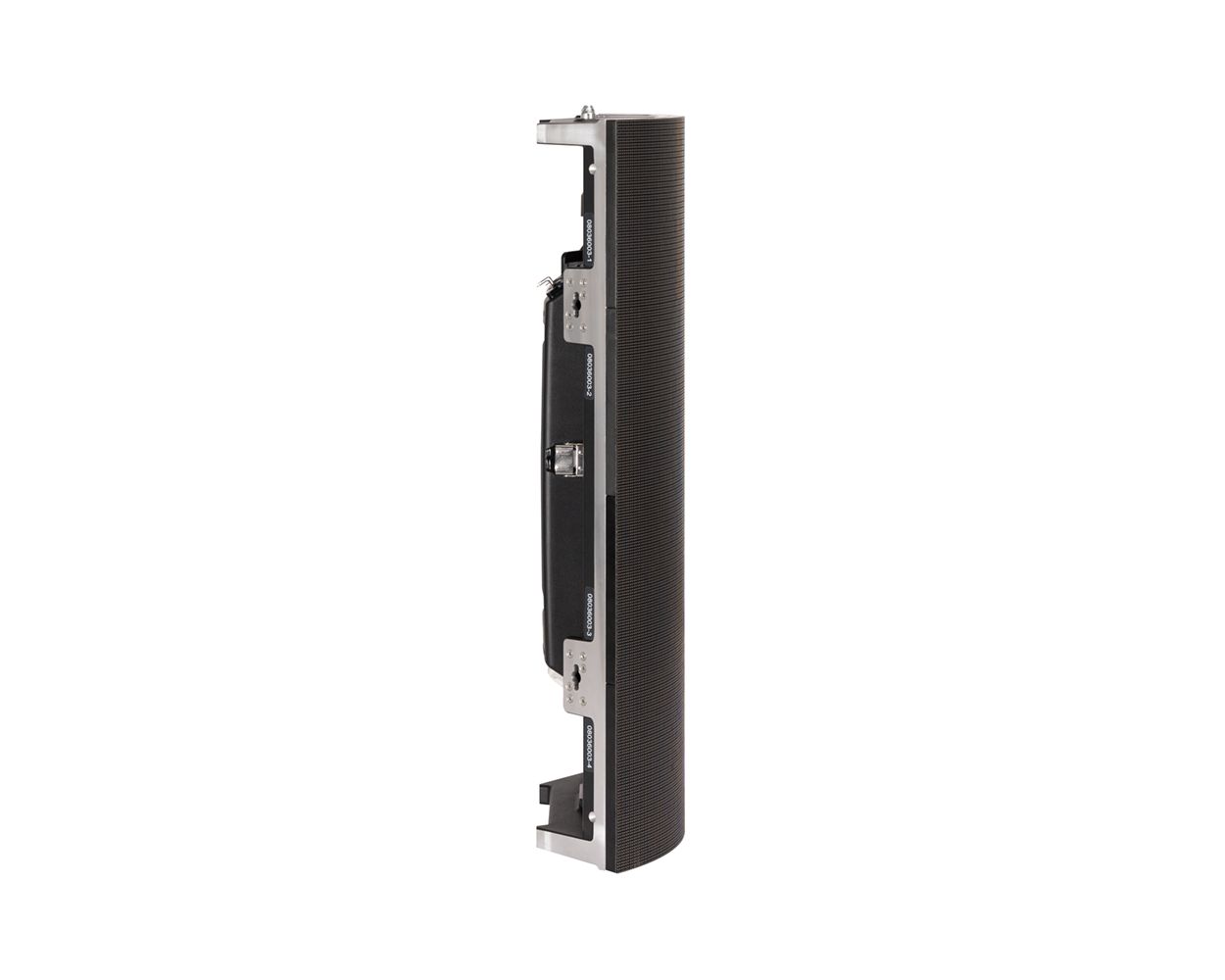

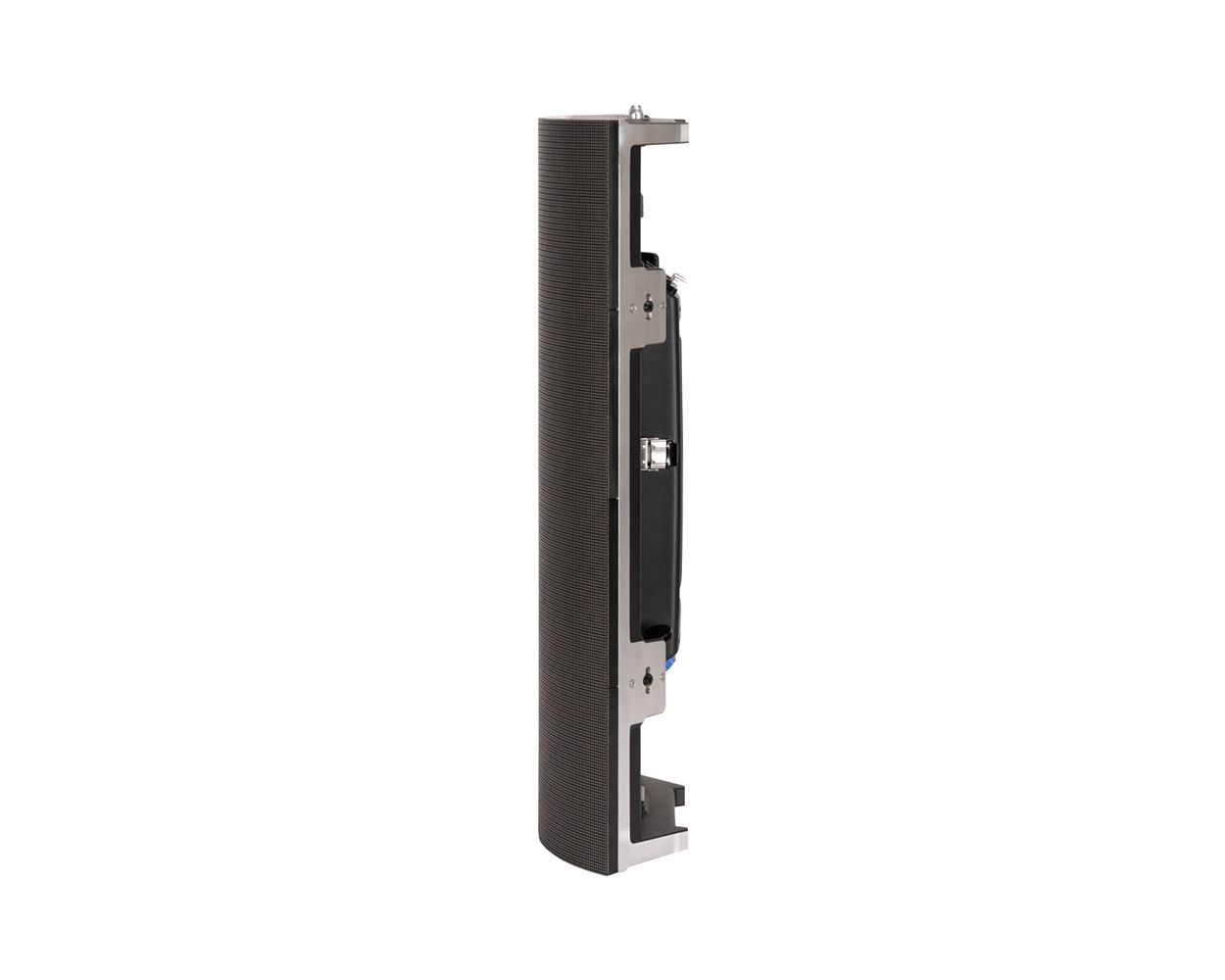

• The box is equipped with quick locks on the top, bottom, left, and right sides, enabling quick assembly with the VS2 panel.
• Each panel contains four easily replaceable modules after full box maintenance.

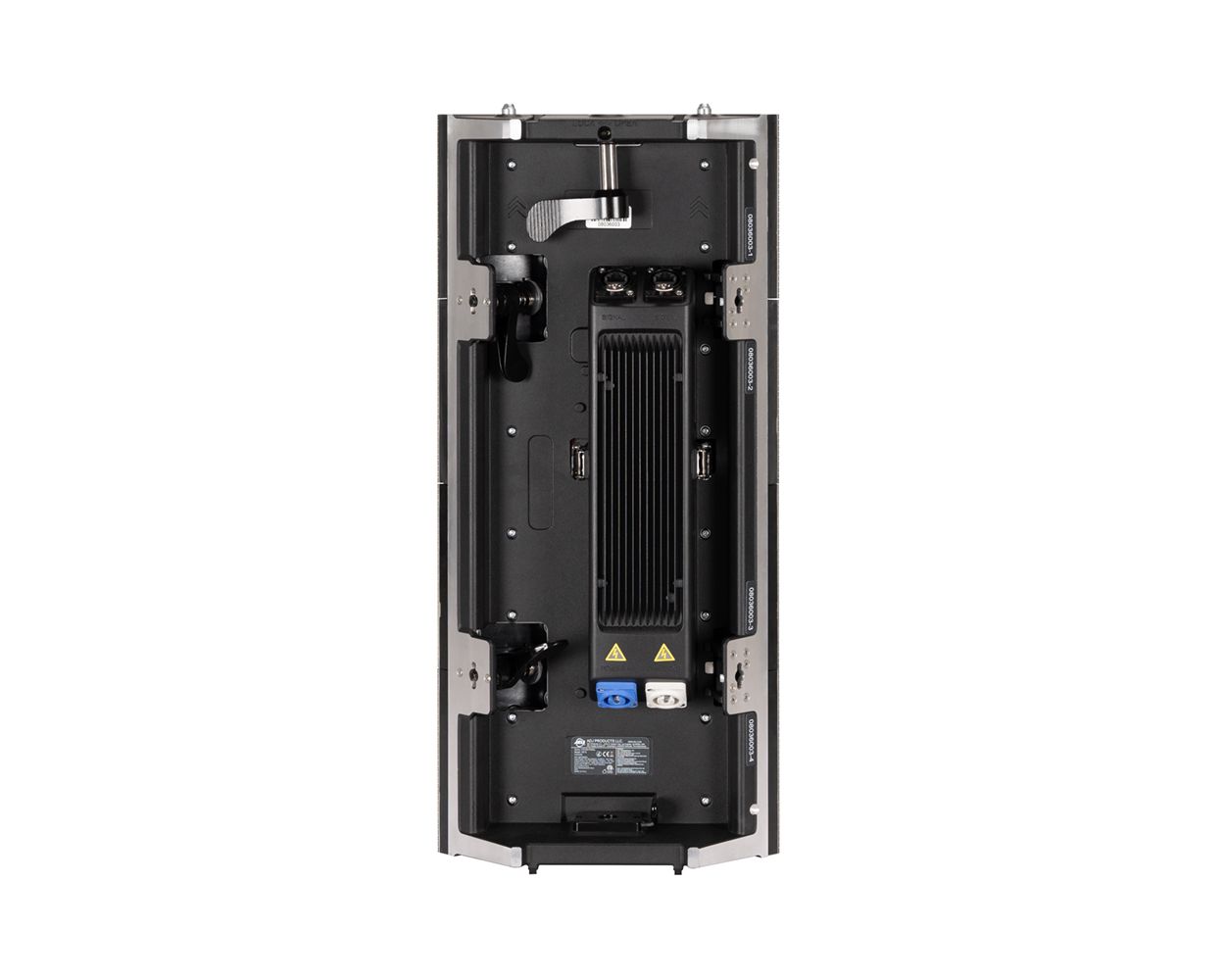

• The power box can be disassembled and assembled independently, ensuring simple and convenient installation and maintenance.
• Rear Serviceable: Easily replaceable video modules ensure continuous performance

Specifications:

• LED Configuration: MiniLED 4-in-1
• Pixel Pitch: 1.9mm (0.07”)
• Pixel Density: 262144 per square meter
• Size : 9.8” x 19.68” x 3.86” / 250 x 500 x 98
• Module Quantity: 4
• Weight: 9.5 lbs. / 4.3 kg.
• Mechanical Ratings:
  • Surface Flatness: Gaps<0.2mm
• Optical Ratings:
  • Brightness: 1500 NITS for vivid, clear visuals
  • View Angle: Based on the center of the lamp bead, Horizontal 110°/Vertical 110°
  • Gray Scale: ≥14-bit for precise color representation.
  • Display Color: 256 for vibrant images
  • Brightness Adjustment: 0~100% with 100 Levels for customizable viewing
  • Contrast Ratio: 5000:1
  • Processing: 14-bit
  • Operating Life / MTBF: 50,000 Hours / 5,000 Hour for long-lasting usage
• Power Supply:
  • Operation Power: 100~240V 50-60Hz for global compatibility.
  • Max. Power Consumption: 75W/per panel.
  • Ave. Power Consumption: 30W/per panel
  • Connections Power/Data: Power-Power Lock In/Out; Data Lock In/Out for easy setup.
• Control System:
  • Control Mode: Nova Star Synchronous System with Control via DVI for intuitive control.
  • Frame Update Frequency: 50-75Hz for smooth playback.
  • Scan Mode: 1/21 for seamless scanning.
  • Refresh Rate: 3840Hz  ensures flicker-free visuals.
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI for versatile connectivity.
  • Control Distance: Ethernet Cable <120m or Fiber Optic>120m for flexible setups.
  • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280.
  • Brightness Correction: Pixel, Module, Cabinet for precise adjustment.
• Environmental:
  • Operating Temperature: -4° to 104°F (-20° to +40°C)
  • Operating Life / MTBF: 50,000 Hours / 5,000 Hours
  • Protection Level: IP20 (Front and Back)
  • Out of Control Rate: <0.02%
  • Listings: cETLus (Pending).
• Cables:
  • Cabinet to Cabinet Data Link Cables (Ethernet locking connectors)
  • Power Locking Link Cables
  • Power Locking Main Power Cables
• Certifications:
  • cETLus (PENDING)
