Sku: VS3384

VS3IP Video Panel

$1,599.99
$1,599.99
Shipping calculated at checkout.
Vendor: ADJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Description

Caret Down

From the Manufacturer:

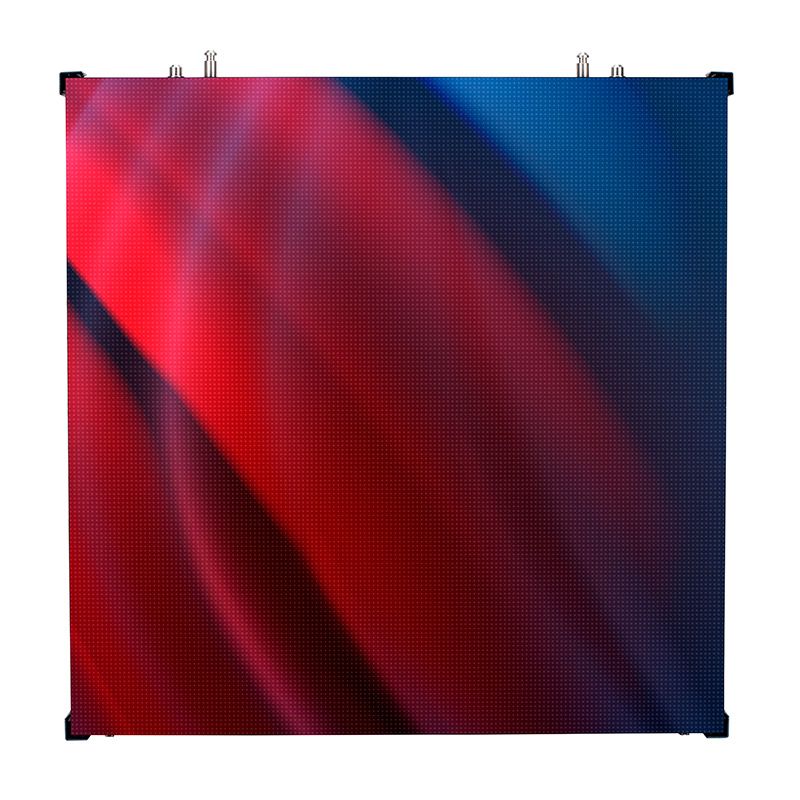

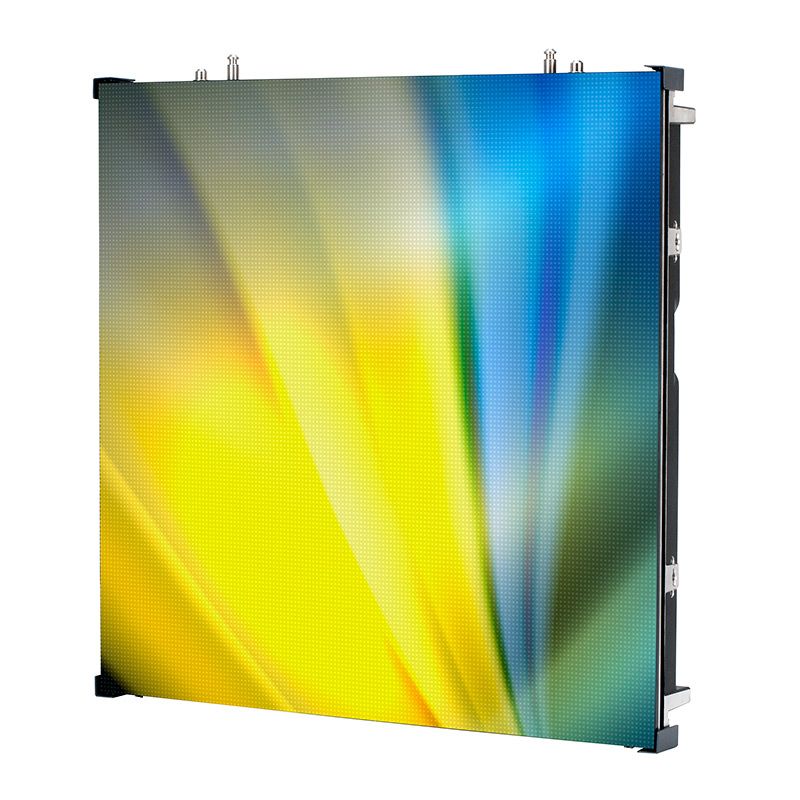

The VS3IP is a high resolution, IP65 front / IP54 rear, video panel from ADJ. Indoor or temporary outdoor use for stages, installation or events.

From the GEAR Pro's:

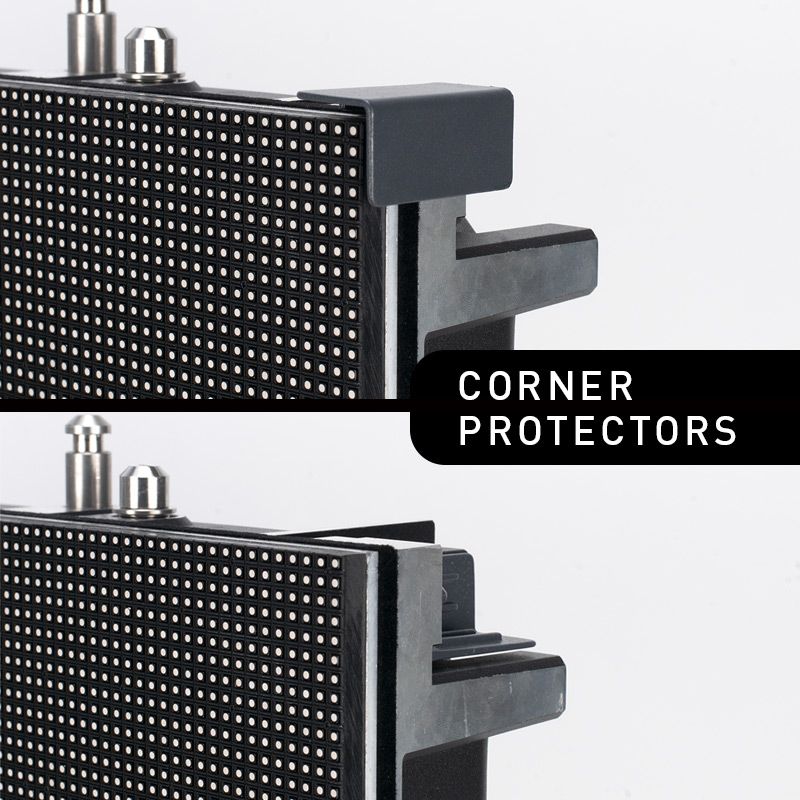

These are a pretty standard video panel offering a solid 3.91 pixel pitch, IP-65 water protection, corner protectors, a solid build and refresh rate.

If you haven't purchased an LED wall before, please request a quote or purchase a pre-built package to ensure you build a complete system.

In the Box:

  • (1) VS3IP Video Panel

Specifications:

  • LED Type: 3-in-1 SMD1921 LED
  • Pixel Pitch: 3.84mm (0.15”)
  • Pixel Density: 150x150 per panel; 67816 per square meter
  • Panel Size (mm): 22.7” x 22.7” x 3.00” / 576mm x 576mm x 75mm
  • Module Qty: 4

Optical:

  • Brightness: 4500 NITS
  • View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
  • Grayscale; ≥14-bit
  • Color: 256
  • Contrast: 5000:1

Power:

  • Voltage: 100~240V 50-60Hz
  • Max Power: 210W/per panel
  • Avg. Power: 84W/per panel

Control:

  • Control: Nova Star Synchronous System with Control via DVI
  • Scan Mode: 1/15
  • Refresh Rate:  3840Hz
  • Supported Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Environmental:

  • Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90%
  • Operating Life / MTBF: 50,000 Hours / 5,000 Hours

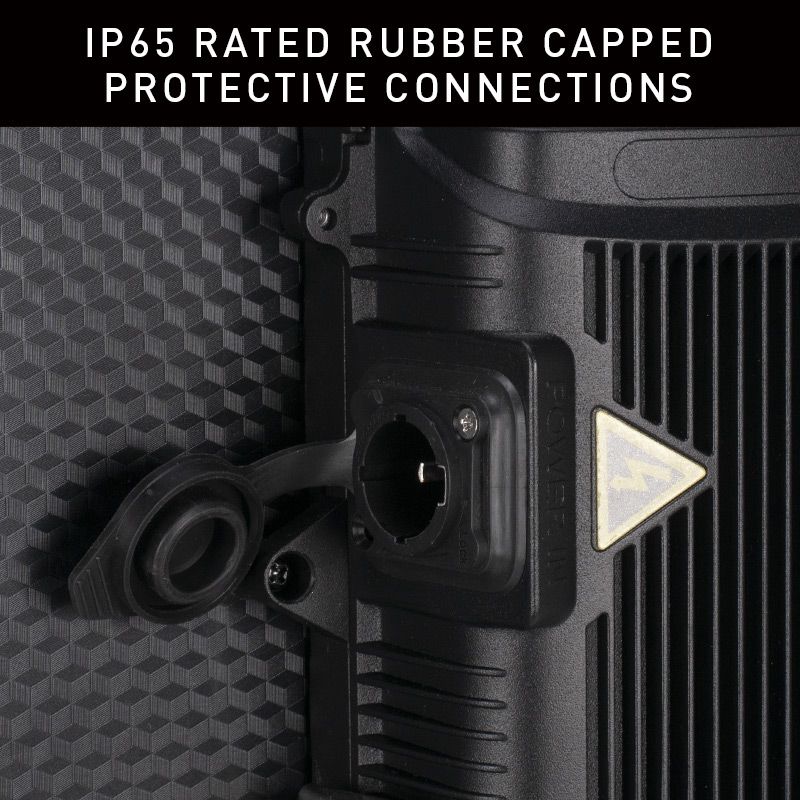

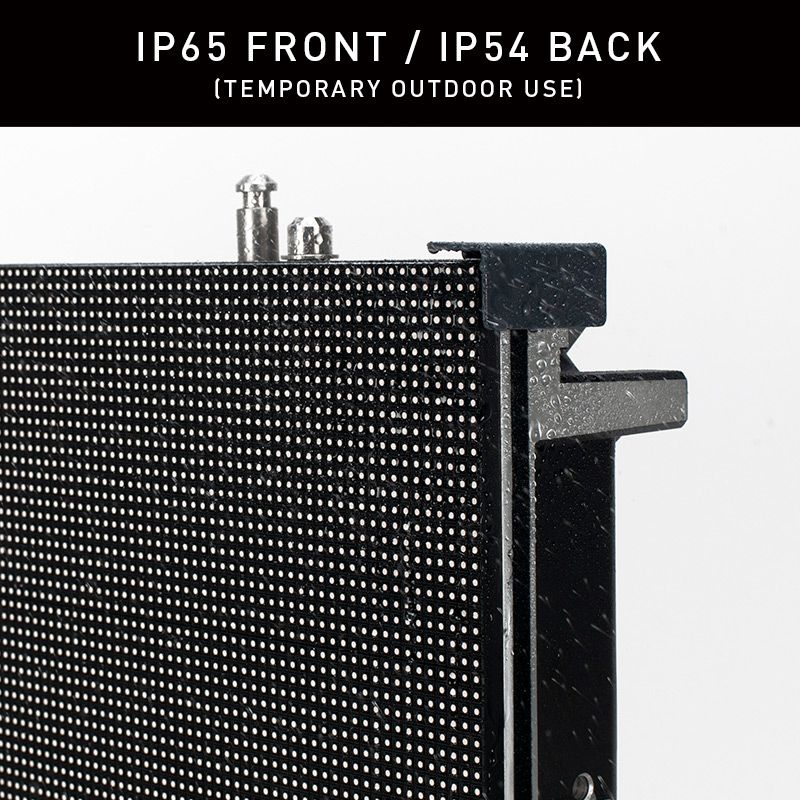

  • IP Rating: IP65 Front / IP54 Back (Temporary outdoor use)
  • Listings: cETLus Approved (Control #5015975)
    • CE Approved
    • Fcc Approved

Tech Specs

Physical:

Length: 22.7 in

Width: 22.7 in

Height: 3 in

Weight: 19.84 lb

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 210w

Warranty

Warranty: 2 Years
