- Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90%
- Operating Life / MTBF: 50,000 Hours / 5,000 Hours
- IP Rating: IP20
- Listings: cETLus (Pending)
Sku:
VS5029
VS5 Video Panel
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Shipping calculated at checkout.
Vendor: ADJ
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

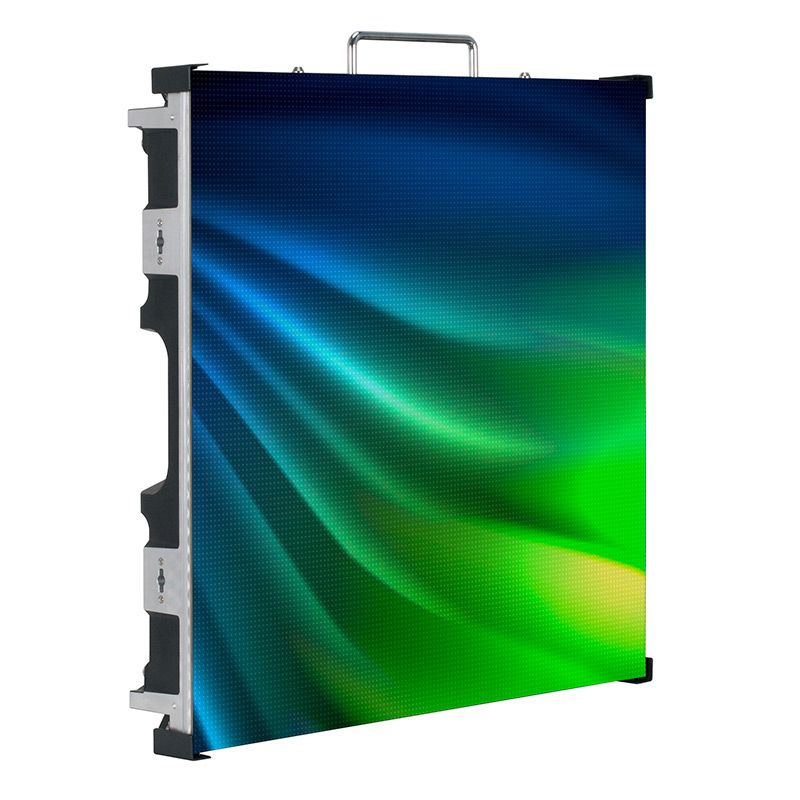

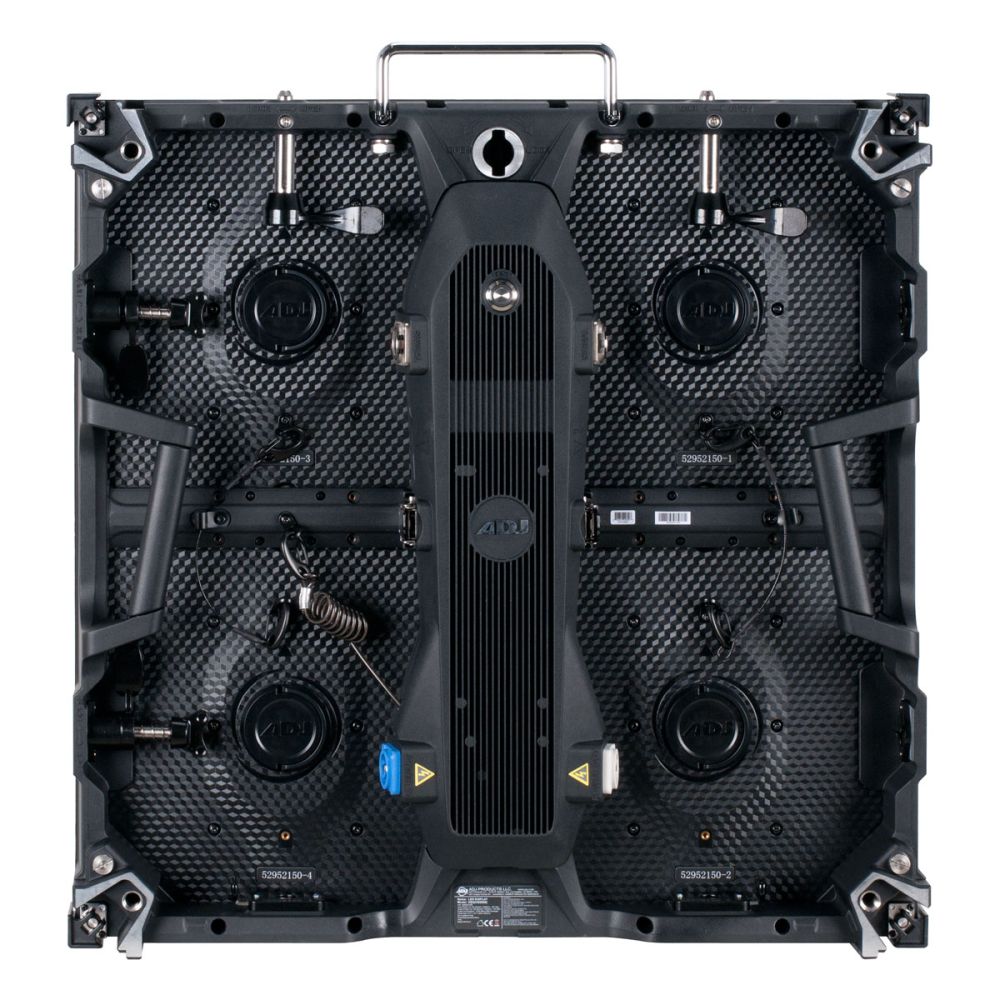

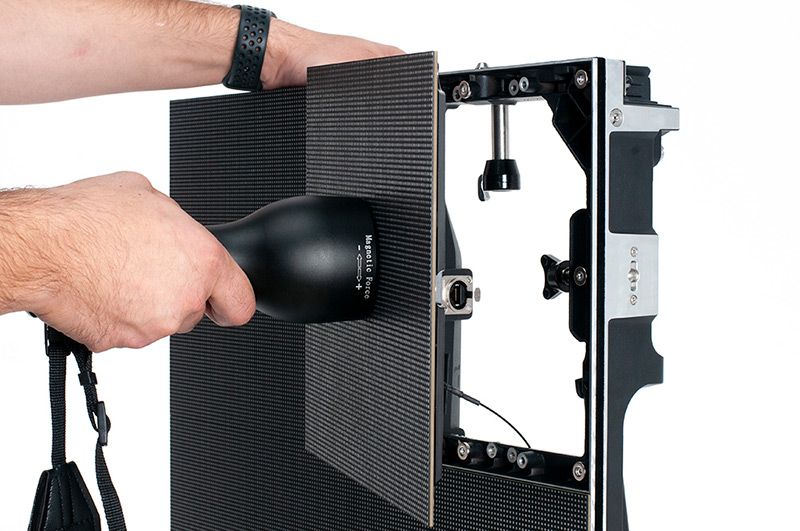

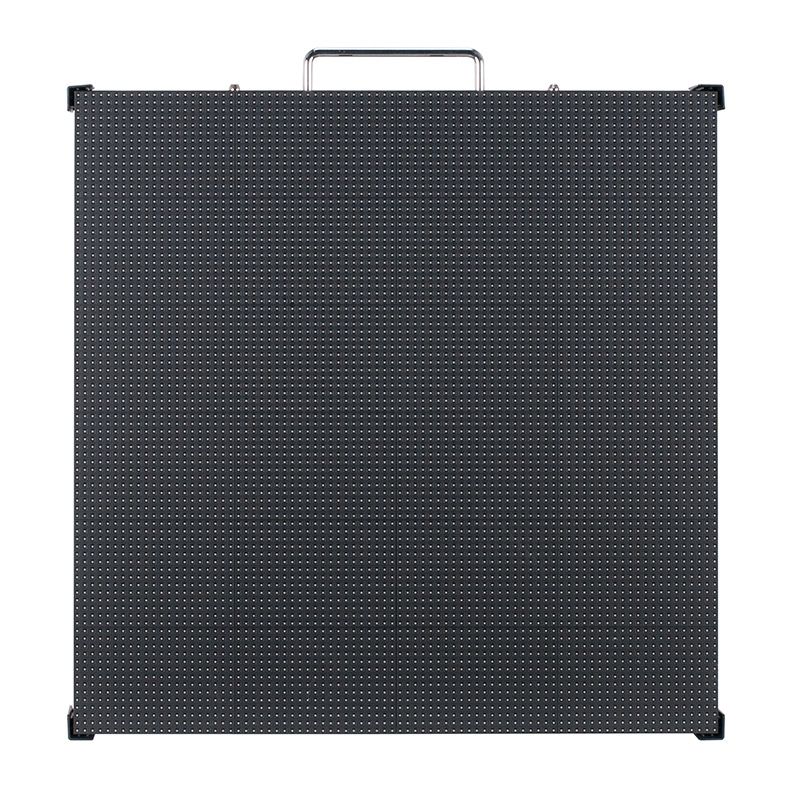

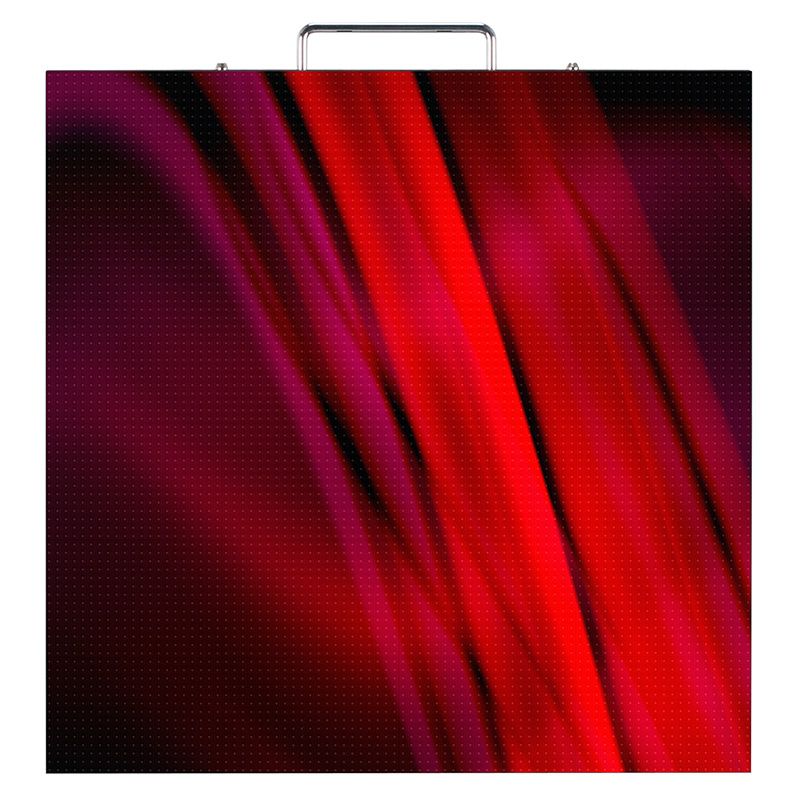

The VS5, part of the ADJ Vision Series Video Panels, has a pixel pitch of 5.95mm with a configuration of a 3-in-1 RGB SMD2121 LED. Each panel has four individual mini modules and is front and rear serviceable. Up to 8 VS5 video panels fit inside the VSFC8 flight case. Hang up to 20 Vision Series Video Panels vertically with the VSRB1 rigging bar.
From the GEAR Pro's:
If you haven't purchased an LED wall before, please request a quote or purchase a pre-built package to ensure you build a complete system.
In the Box:
- (1) VS5 Video Panel
Specifications:
- LED Type: 3-in-1 SMD2121 LED
- Pixel Pitch: 5.95mm (0.23”)
- Pixel Density: 84x84; 28224 per square meter
- Panel Size (mm): 19.68” x 19.68” x 2.74” / 500 x 500 x 69.6mm
- Module Qty: 4
Optical:
- Brightness: 1000 NITS
- View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
- Grayscale; ≥14-bit
- Color: 256
- Contrast: 5000:1
Power:
- Voltage: 100~240V 50-60Hz
- Max Power: 170W/per panel
- Avg. Power: 94W/per panel
Control:
- Control: Nova Star Synchronous System with Control via DVI
- Scan Mode: 1/16
- Refresh Rate: 3840Hz
- Supported Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Environmental:
Tech Specs
Physical:
Length: 19.68 in
Width: 19.68 in
Height: 2.74 in
Weight: 17 lb
Electrical
Voltage Range: 100 - 240 VAC 50/60Hz
Maximum Wattage: 170w
Warranty
Warranty: 2 Years
