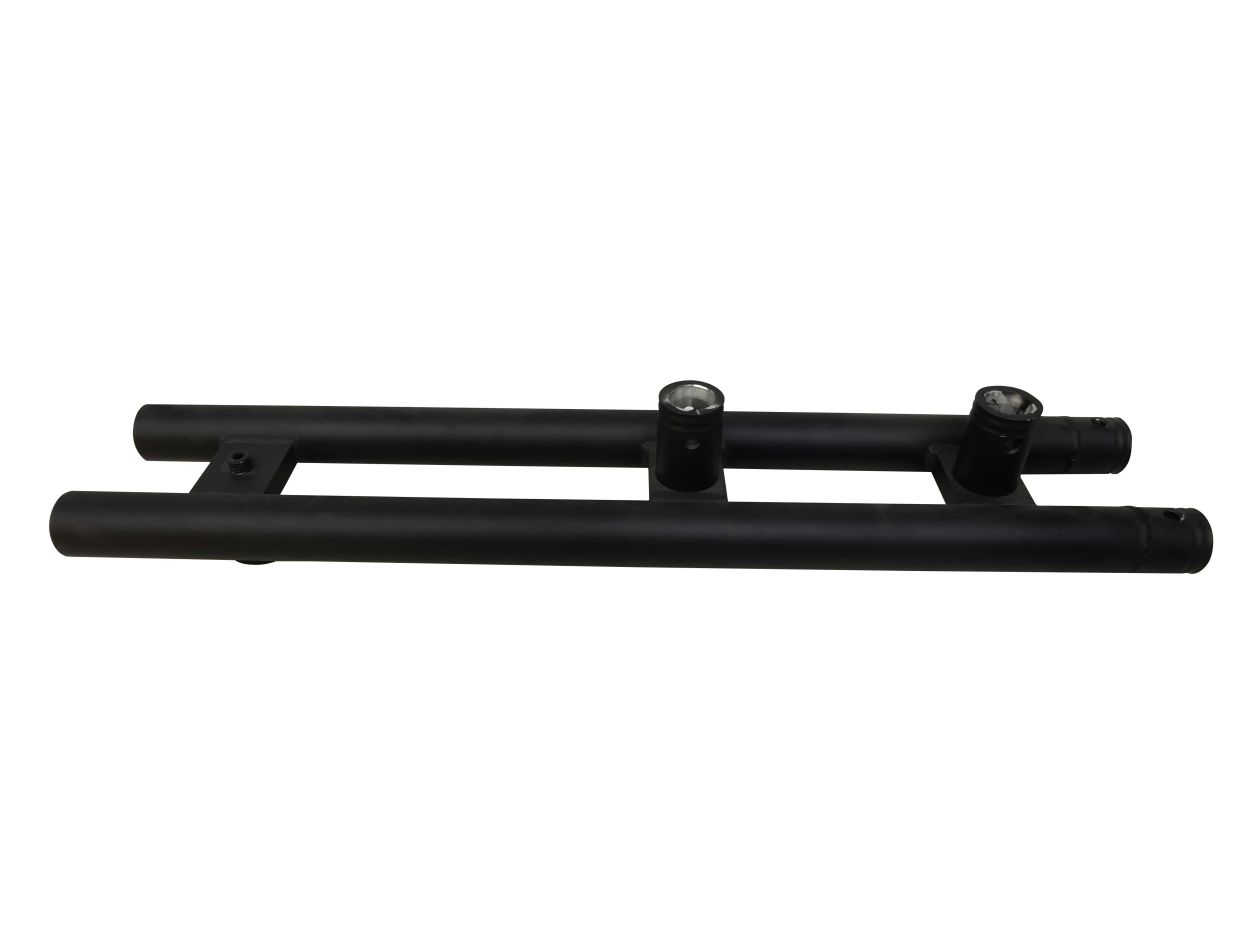

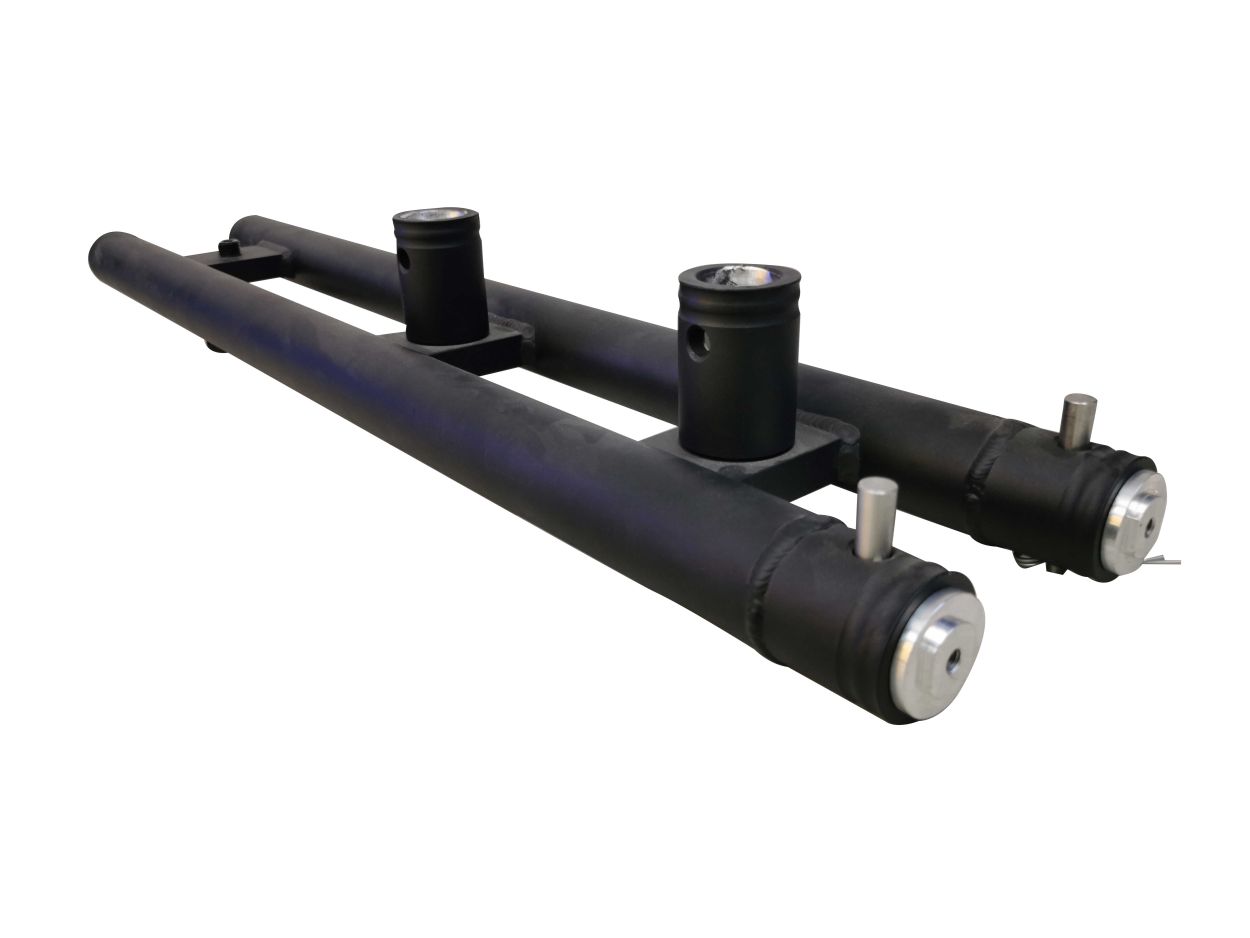

VSGSB Ground Support Base

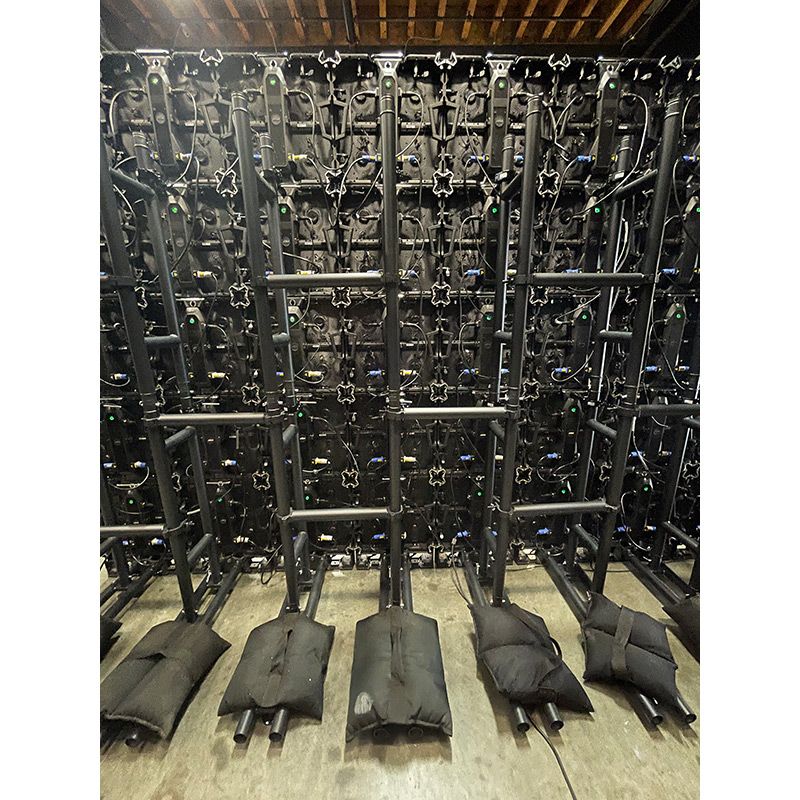

VSGSB Ground Support Base, VSGSLT Ground Support Ladder Truss and VSGSCSB Clamp Support Bar can be used to create a solid frame to support a Vision Series video wall from behind. This can be used to setup a freestanding screen of up to six panels in height and unlimited width, with ballast provided using conventional sandbags or stage weights. The system is designed for use with the existing VSRB1 Rigging / Ground Stack Bar, which sits between the lowest panel and the ground, as well as the VSRQR Rear Quick Clamp, which connects the rear of a panel to the Ground Support Ladder Truss behind. All products in the new Ground Stack System are robust, lightweight, and finished in matte black, making them ideal for use by production companies and on touring productions.

Compatible with VS2, VS3 and VS5 only

Specifications:

• 3ft (0.91m) long
• Includes 2 couplers and pins
• Must use with VSRB1 Base Bar and VSGST Truss
• IP Rating: IP20 (dry location)
• Housing Material: Aluminum Extrusion and Steel
• Maximum Vertical Stack Supported: 6 VS Series Panels
