VXH8

The Yamaha VXH8 8-inch high-power pendant speakers offer narrower dispersion for higher suspension positions, ideal for large, open spaces such as large sales halls, amusement facilities, gymnastics halls and more.

From the Manufacturer

VXH series pendant speakers are an ideal choice for open-structure or sloped ceilings, adding versatility for a variety of environments and sonic needs.

Two models are available: the wide-dispersion 6.5-inch VXH6 for use where the speakers are to be suspended at a relatively low position, and the high-power 8-inch VXH8 with narrower dispersion for higher suspension positions. You can select or mix and match models to achieve the best sound and coverage in any application.

Features

Models for a wide range of applications

Two models are available to adapt varying heights in a wide range of applications. The wide-dispersion 6.5-inch VXH6 is ideal for use where the speakers are to be suspended at a relatively low position, while the high-power 8-inch VXH8 has narrower dispersion that is suited for high suspension positions.

Stylish yet Unobtrusive

Clean architectural settings require fixtures that seamlessly blend into their environments while maintaining full functionality. VXH series combine unprecedented acoustical performance and a music instrument inspired design that will be at home in a wide variety of settings.

World-class Installation Ease and Safety

Gripple suspension hardware and wire kit included for easy, safe height adjustment during installation.

High-impedance and low-impedance supported

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation. The need for additional units is minimized and systems can be designed to ideally meet the requirements of any application.

Specifications

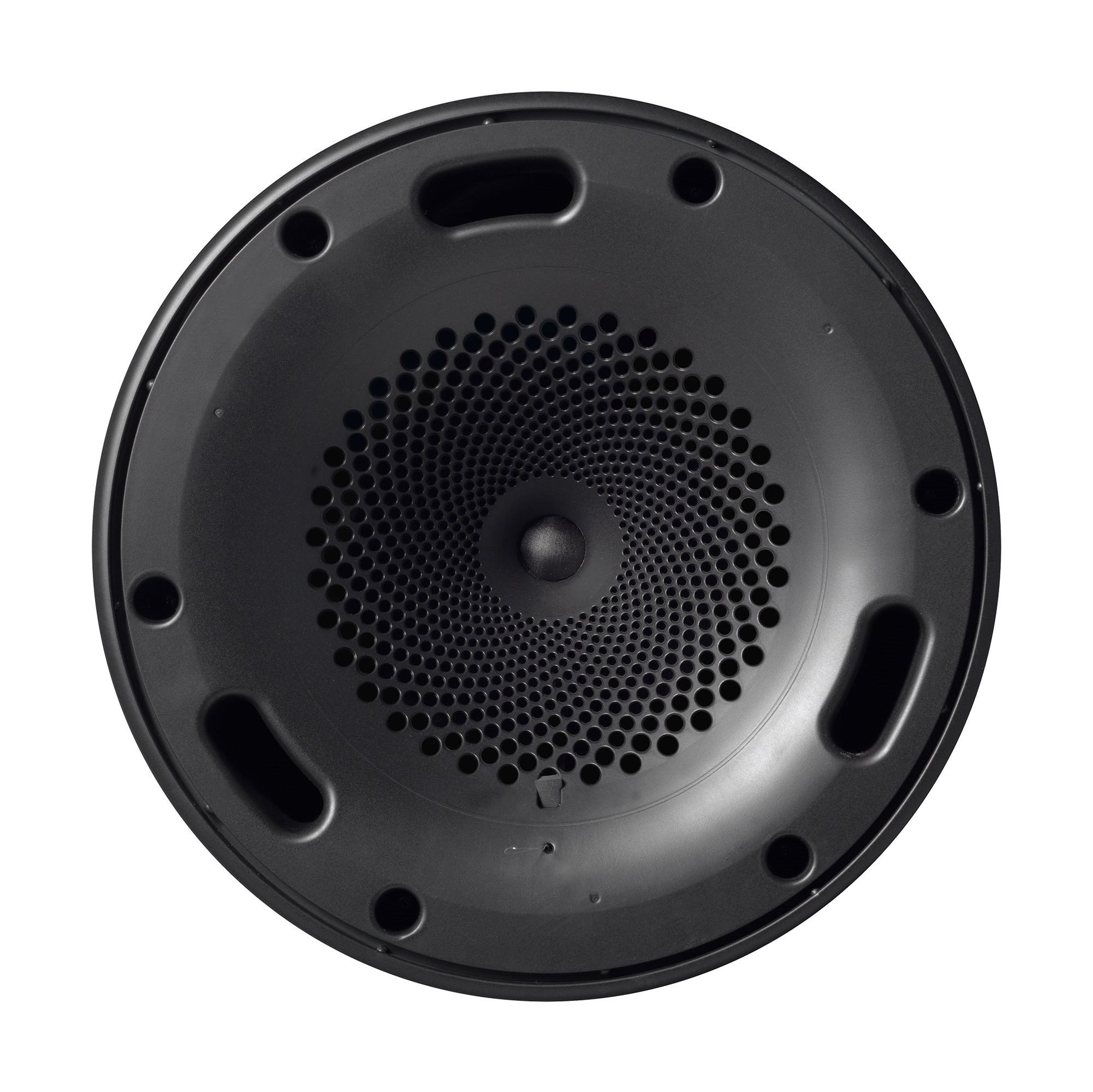

• 2-way system with 8-inch woofer and 1-inch tweeter
• Narrow dispersion (75°) with "permeable" waveguide and 360W power handling
• Engineered for optimum BGM and voice reproduction

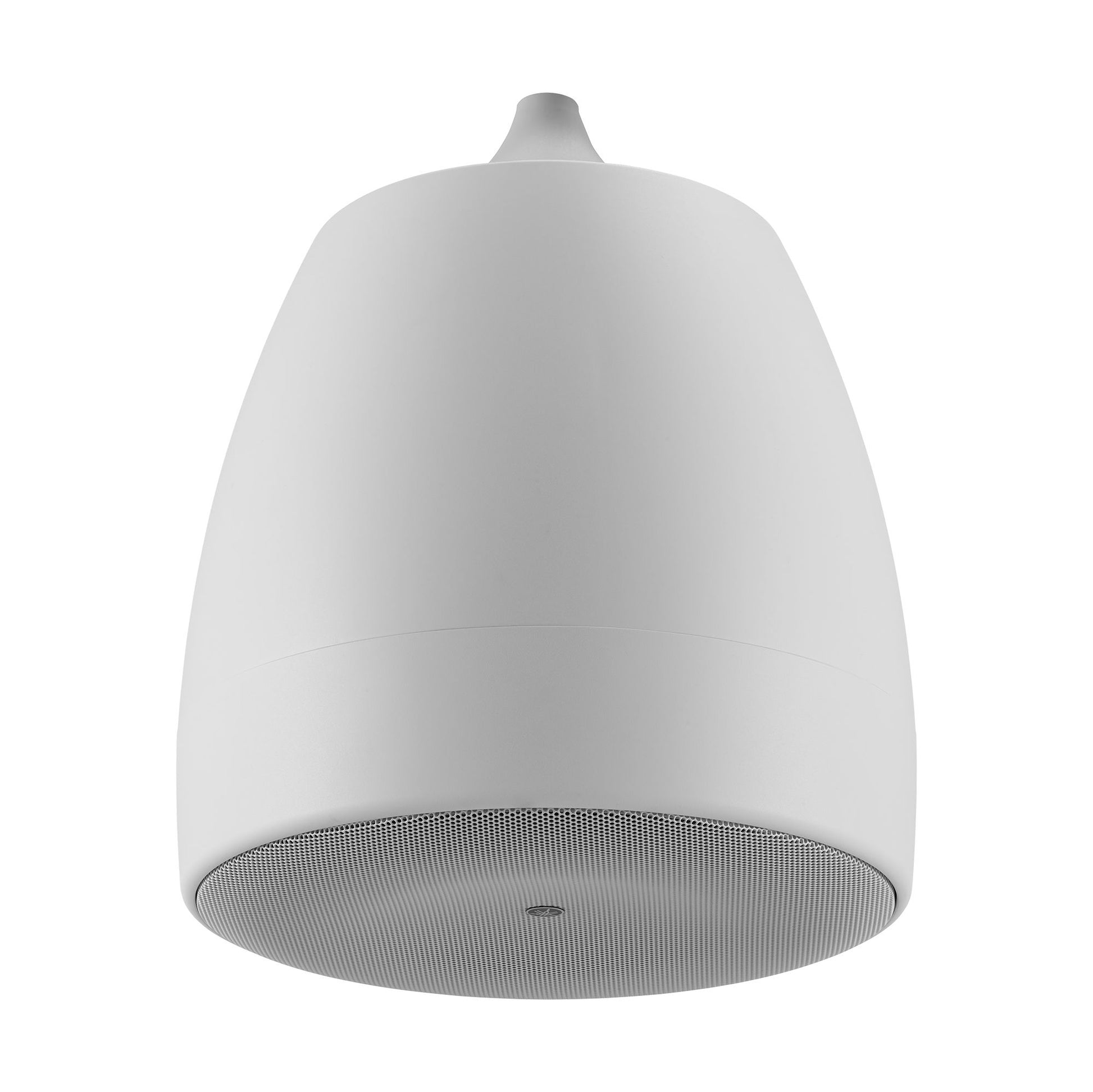

• Pendant speaker suitable for high, open structure or sloped ceilings
• Direct support for low-impedance or high-impedance connections
• 90W PGM

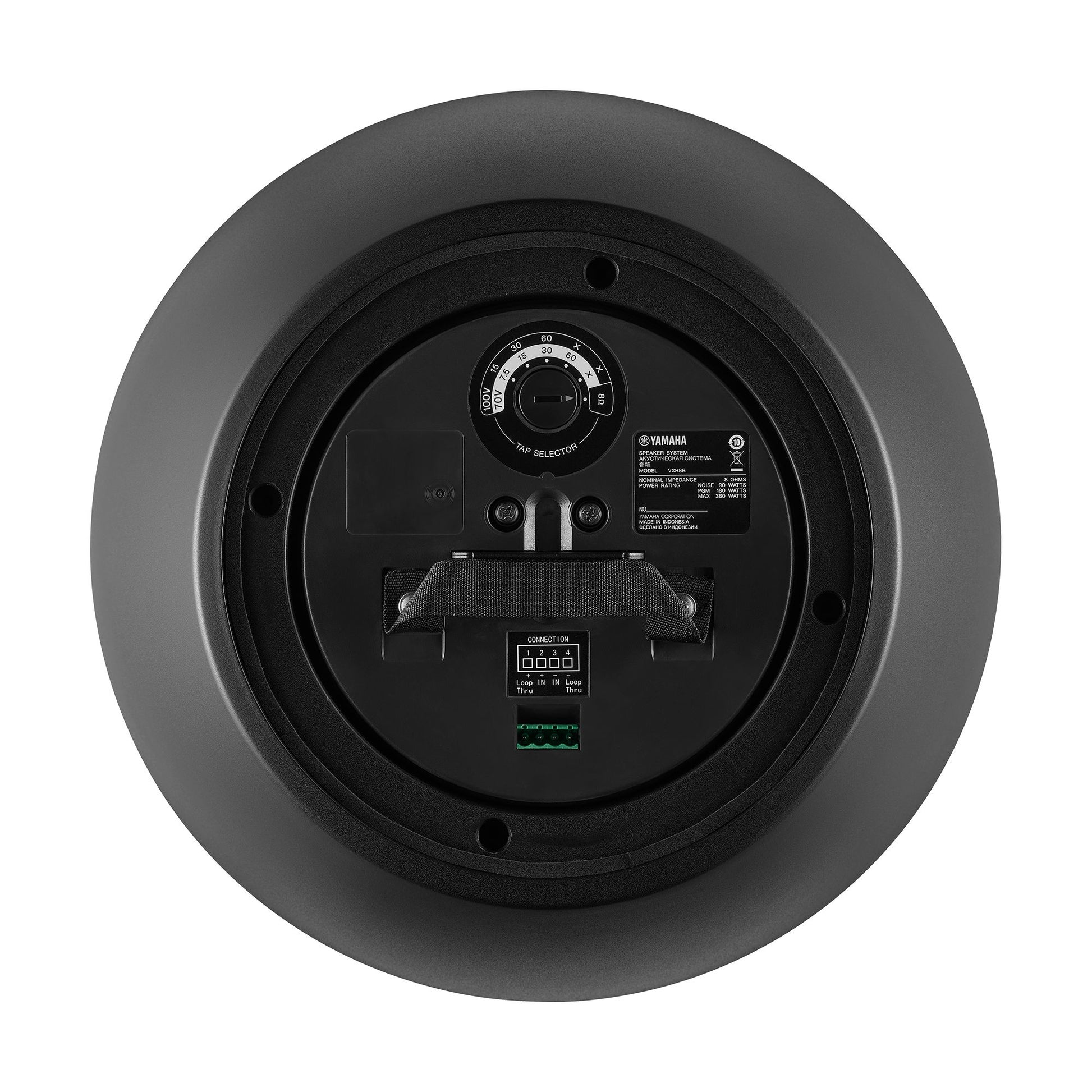

• 60W, 30W, 15W, 7.5W 70/100V Taps

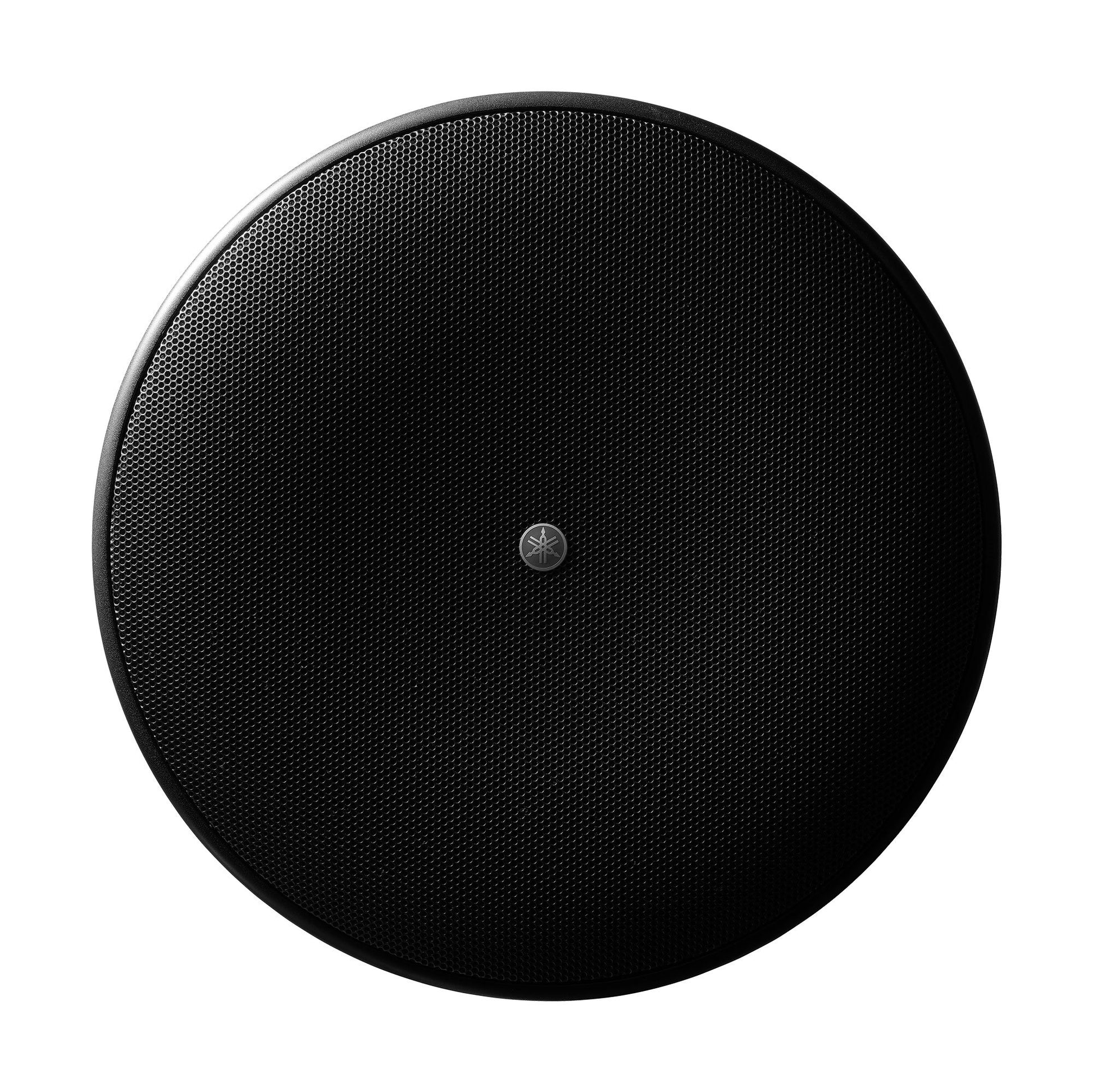

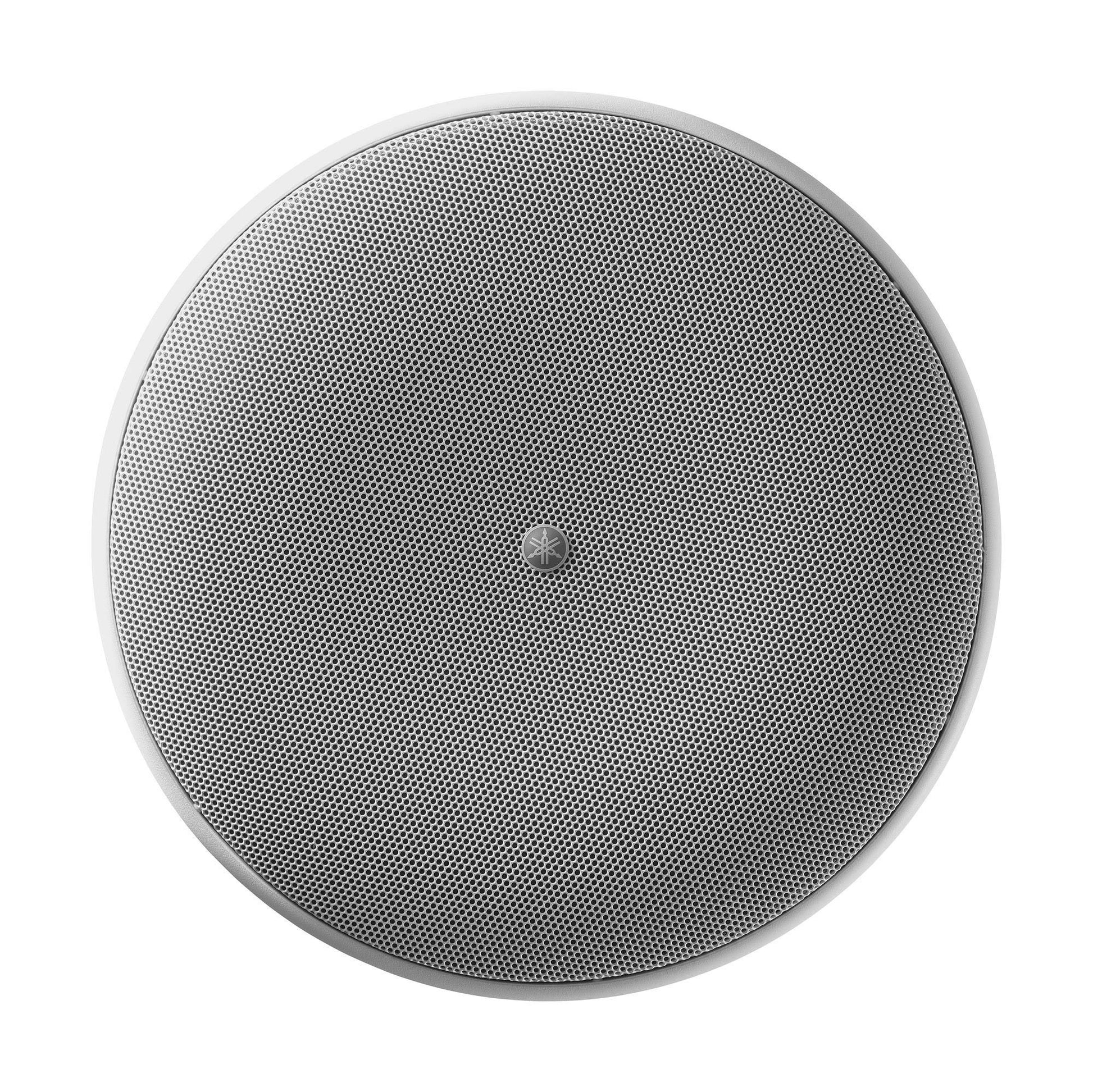

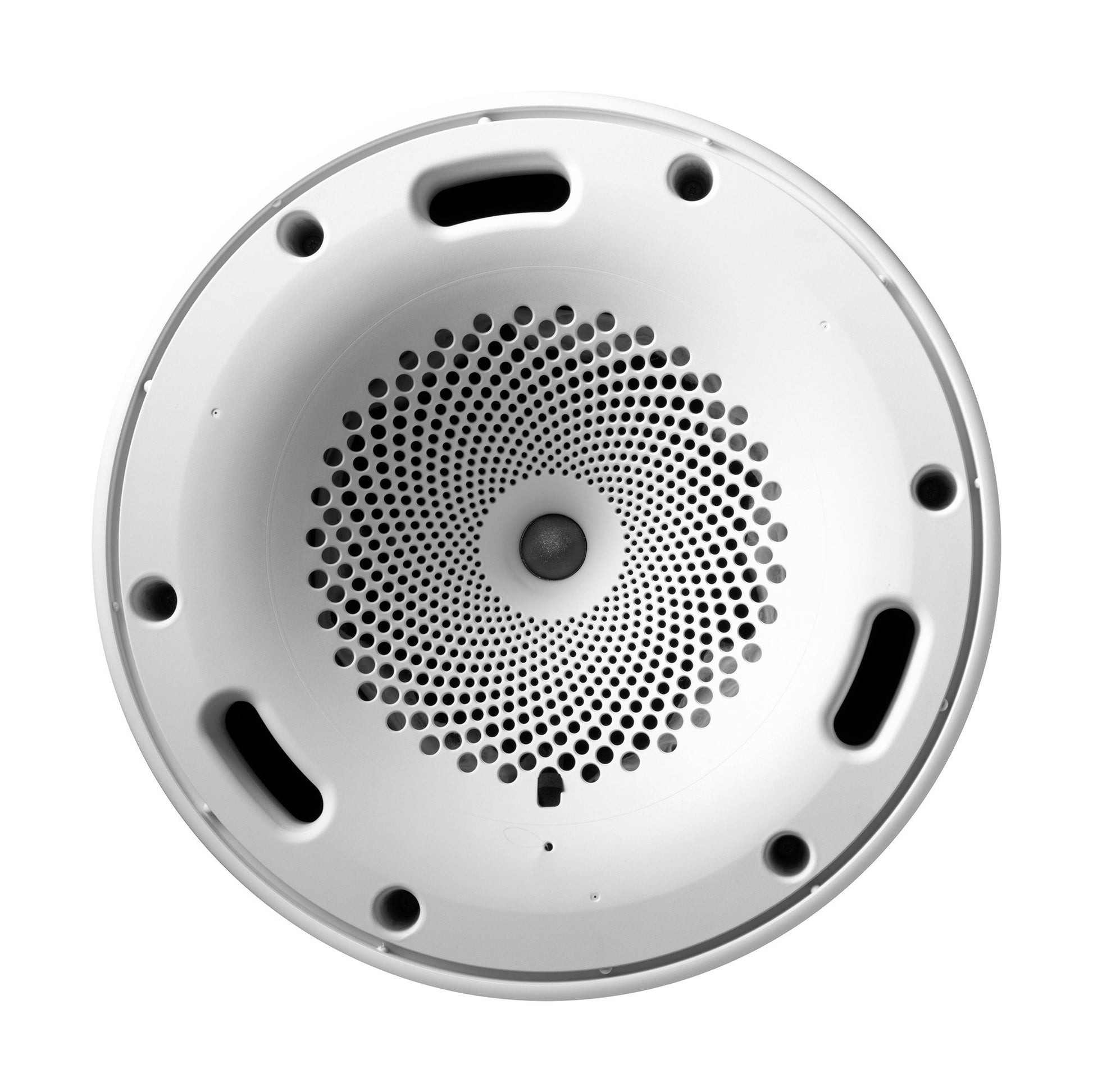

• Paintable grilles with magnetic catches

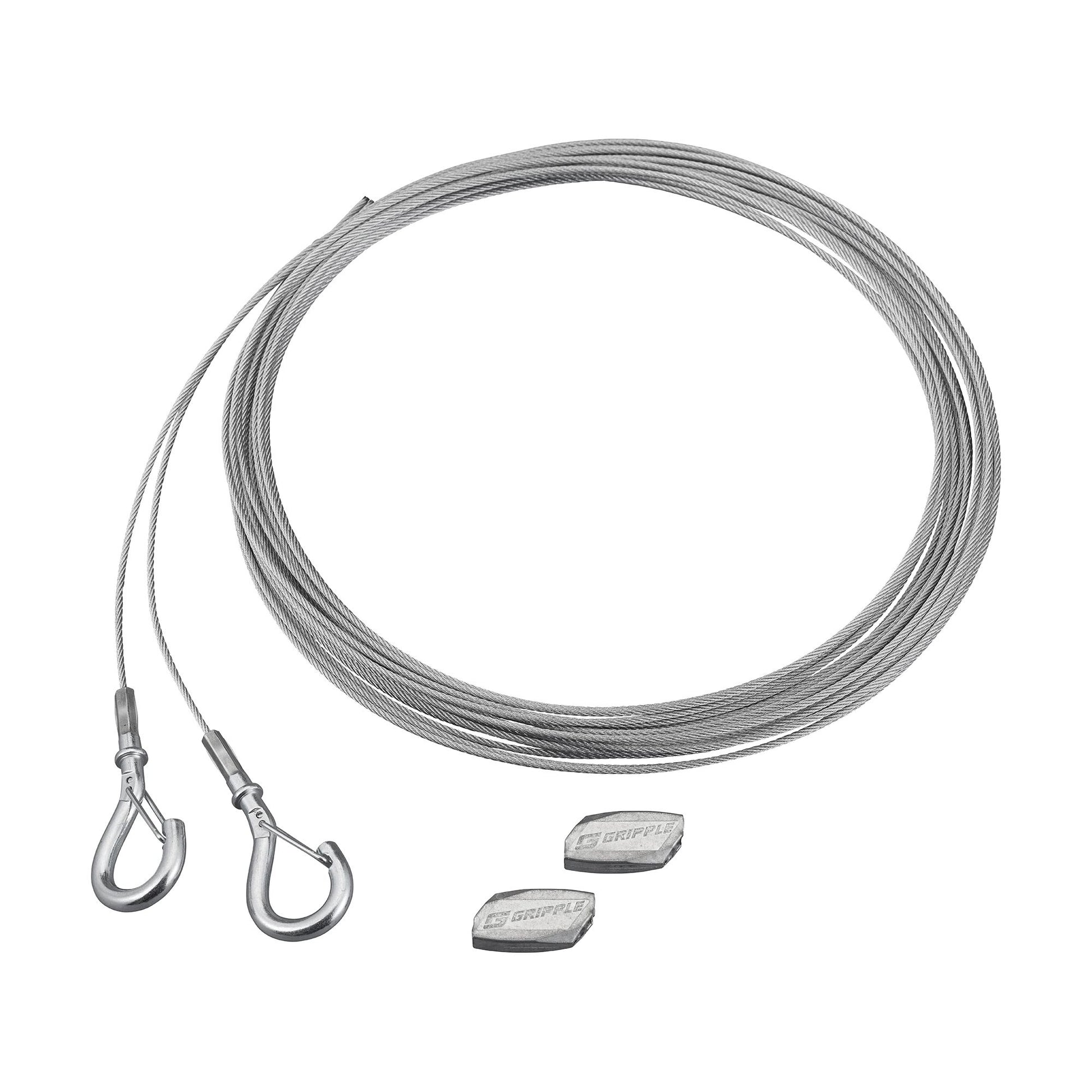

• 2 x 6 m steel wire cables by Gripple

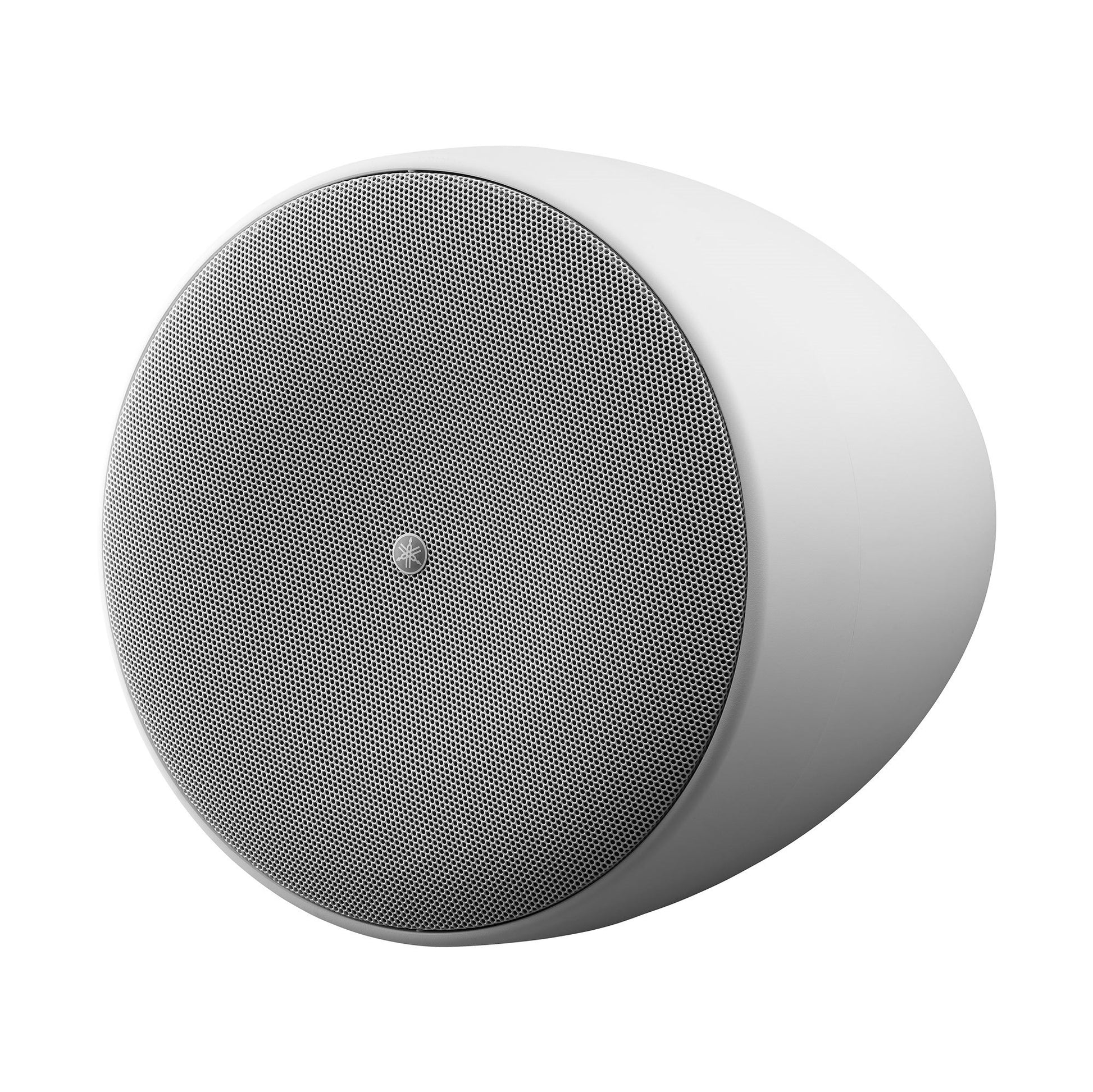

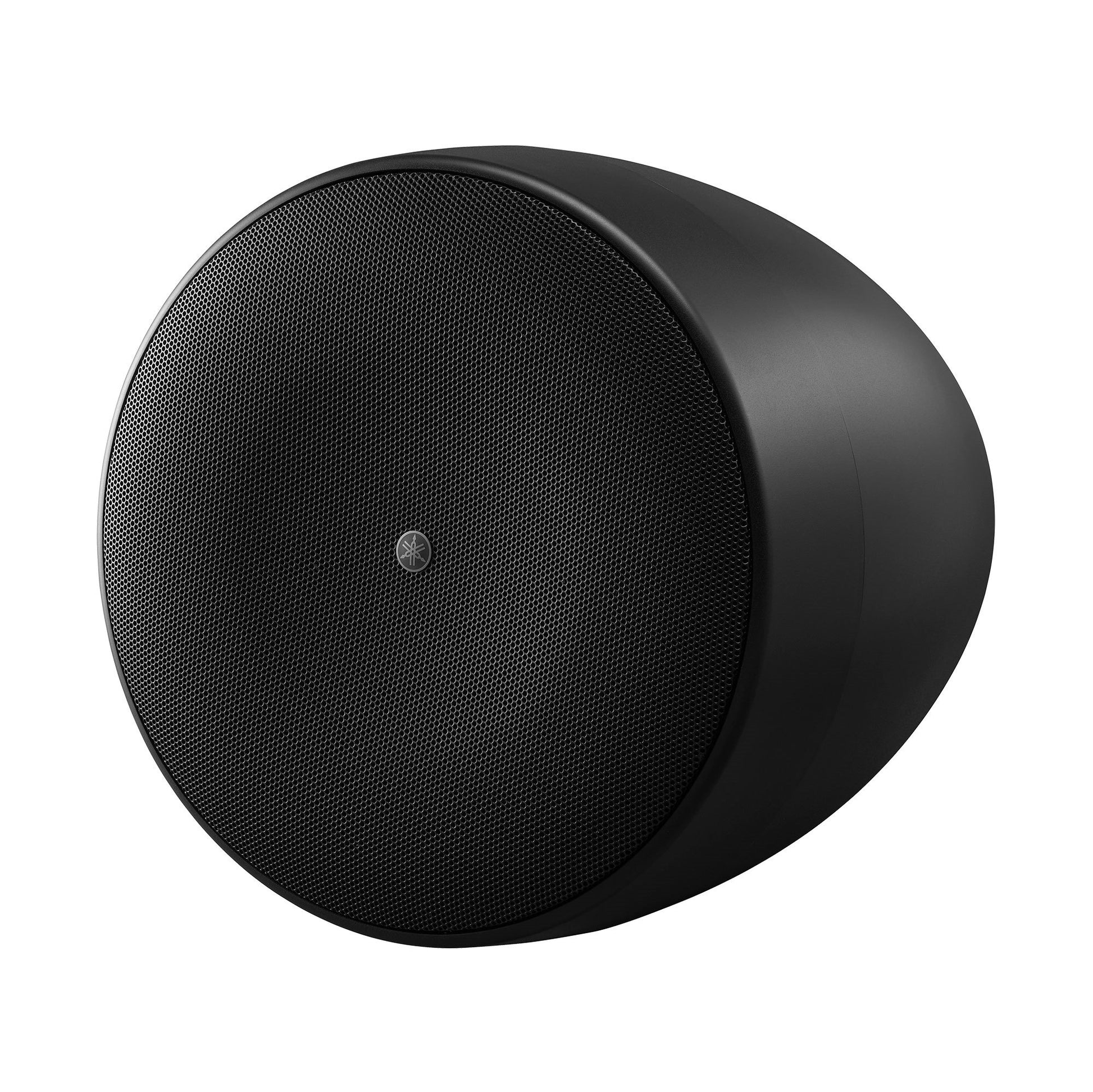

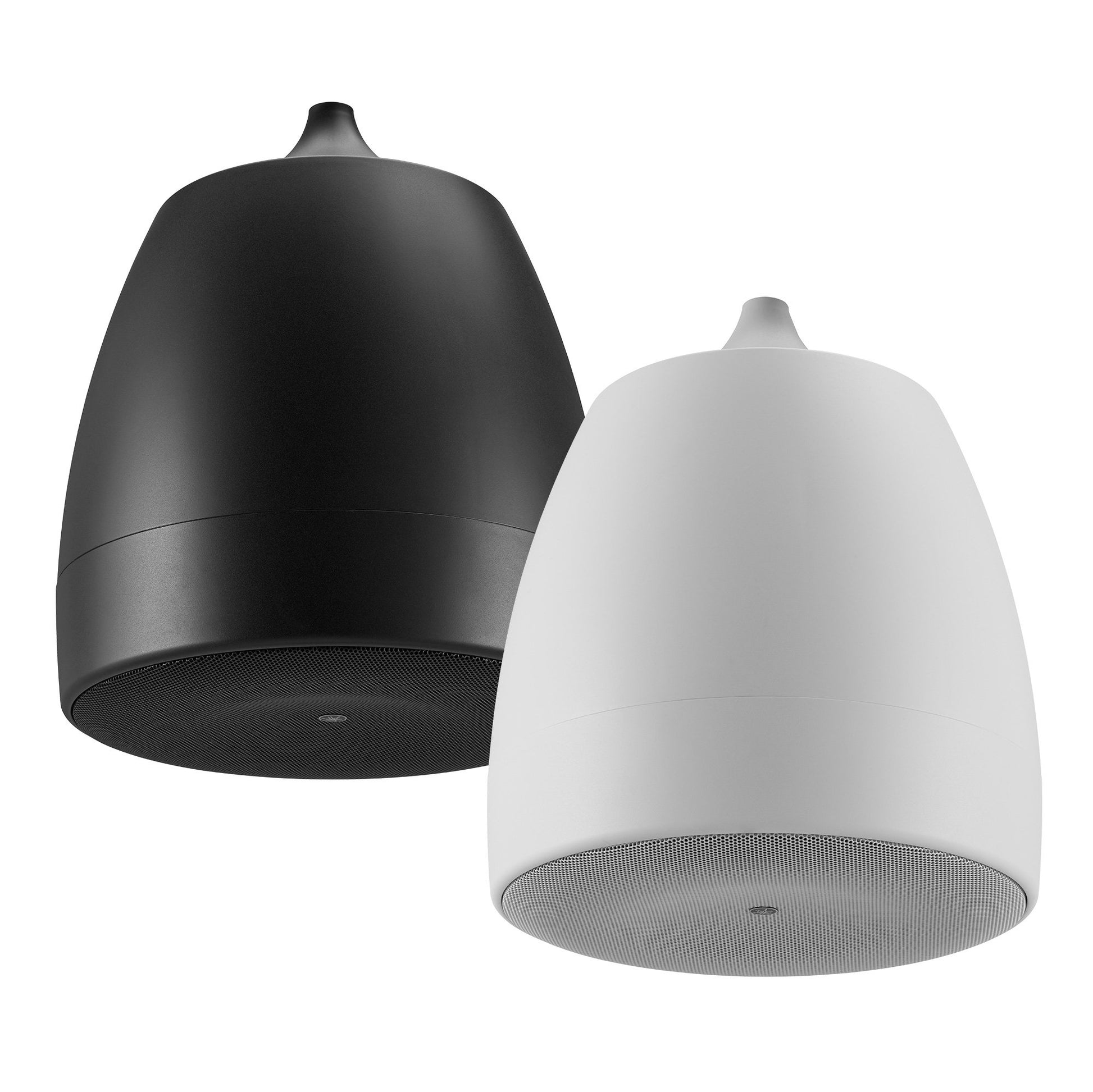

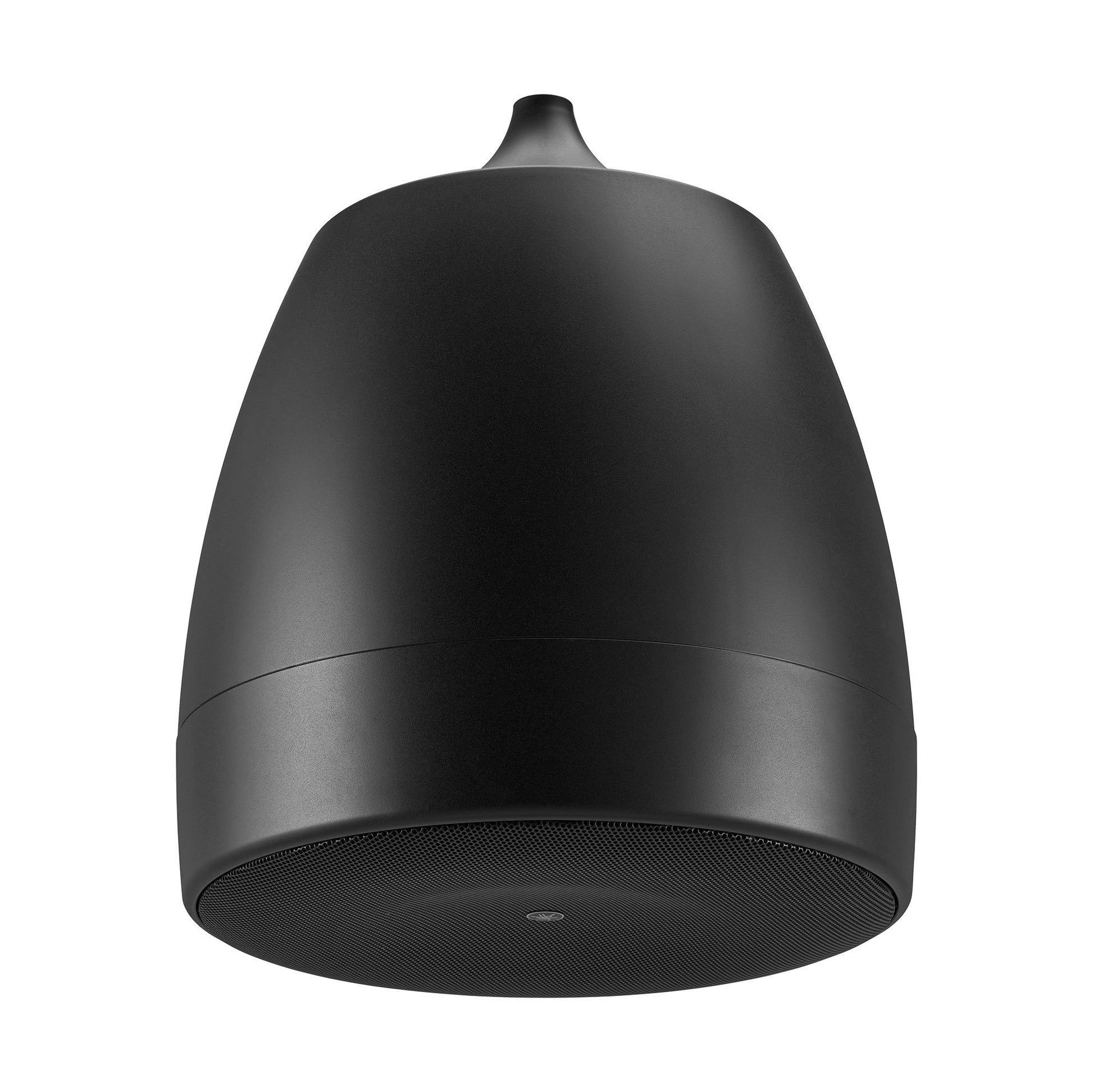

• Black and white versions available
• 7.2 kg (15.9 lbs), Ø356 x D434 mm (Ø14-1/64” D17-3/32”)
• Single unit package
