VXL1-16

The Yamaha VXL1-16 line source loudspeakers offer outstanding sound quality and slim form perfect for highly reflective rooms, lecture halls, and conference rooms.

From the Manufacturer

VXL series line source loudspeakers offer a unique combination of outstanding sound quality and slim form-factor that is ideal for a variety of environments. VXL line source loudspeakers offer excellent projection as well as uniform volume and sound quality over a wide listening area, making them a great choice for highly reflective rooms, lecture halls, conference rooms, and other facilities that require maximum intelligibility throughout the listening area.

The VXL series includes three models VXL1-8, VXL1-16 and the VXL1-24 each featuring 1.5 inch full range drivers, that can be combined to optimally serve a variety of installations and spaces. The slim 2.1-inch (54mm) wide enclosures feature elegantly curved grille designs that blend beautifully with any décor to deliver superior and uniform speech and music reproduction in a wide variety of applications.

Features

Slim Line Source Loudspeakers Blend High Sound Quality with Visual Elegance

The VXL1 series cabinets feature 2.1-inch (54mm) wide enclosure with a slim, elegant profile that blends effortlessly into any décor. At the heart of the designs are high-performance, 1.5-inch, full-range drivers configured to deliver natural response down to 77 Hz* for full-range performance that is ideal for speech and music reproduction.

High-performance drivers with neodymium magnets are arranged vertically to create a line source that achieves outstanding projection. By focusing sound in the vertical direction, reflections can be minimized resulting in high-clarity and intelligible sound in the target area.

Excellent Scalability

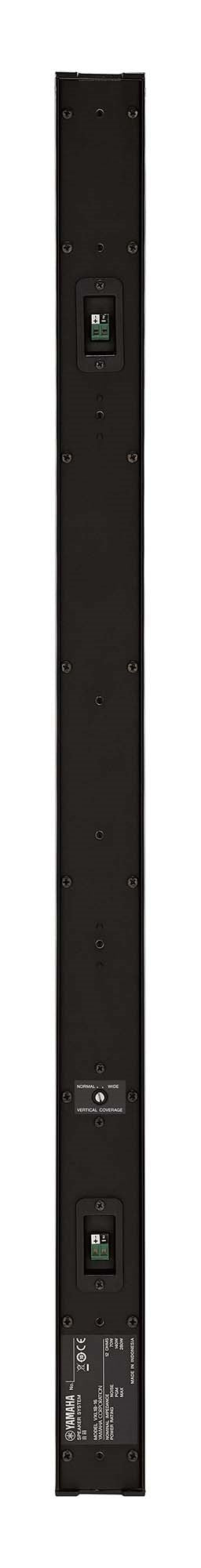

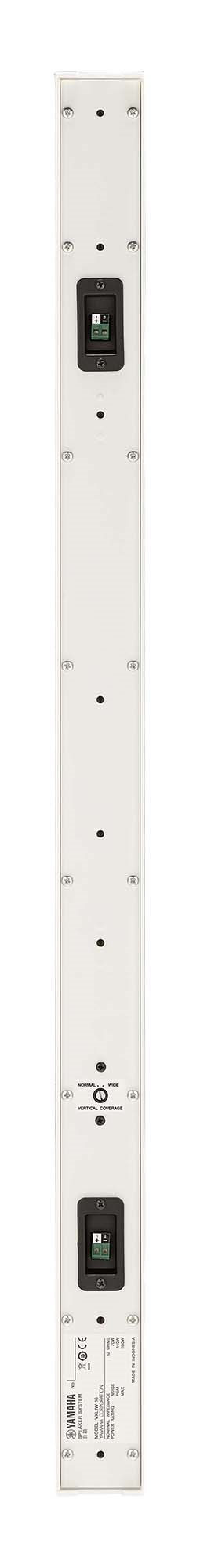

The compact drivers used in the VXL1 series contribute to 170° horizontal dispersion and 20° (+10° ~ -10°) vertical dispersion. A rear-panel switch allows vertical dispersion to be expanded downward by 40° (+10° ~ -30°) so that a wide range of applications can be accommodated.* Sound pressure level and coverage can be further adjusted as required by combining models with different numbers of driver units, expanding the range of potential applications.

*VXL1-8 vertical dispersion is fixed at 40° (+10° ~ -30°)

Flexible Installation Options

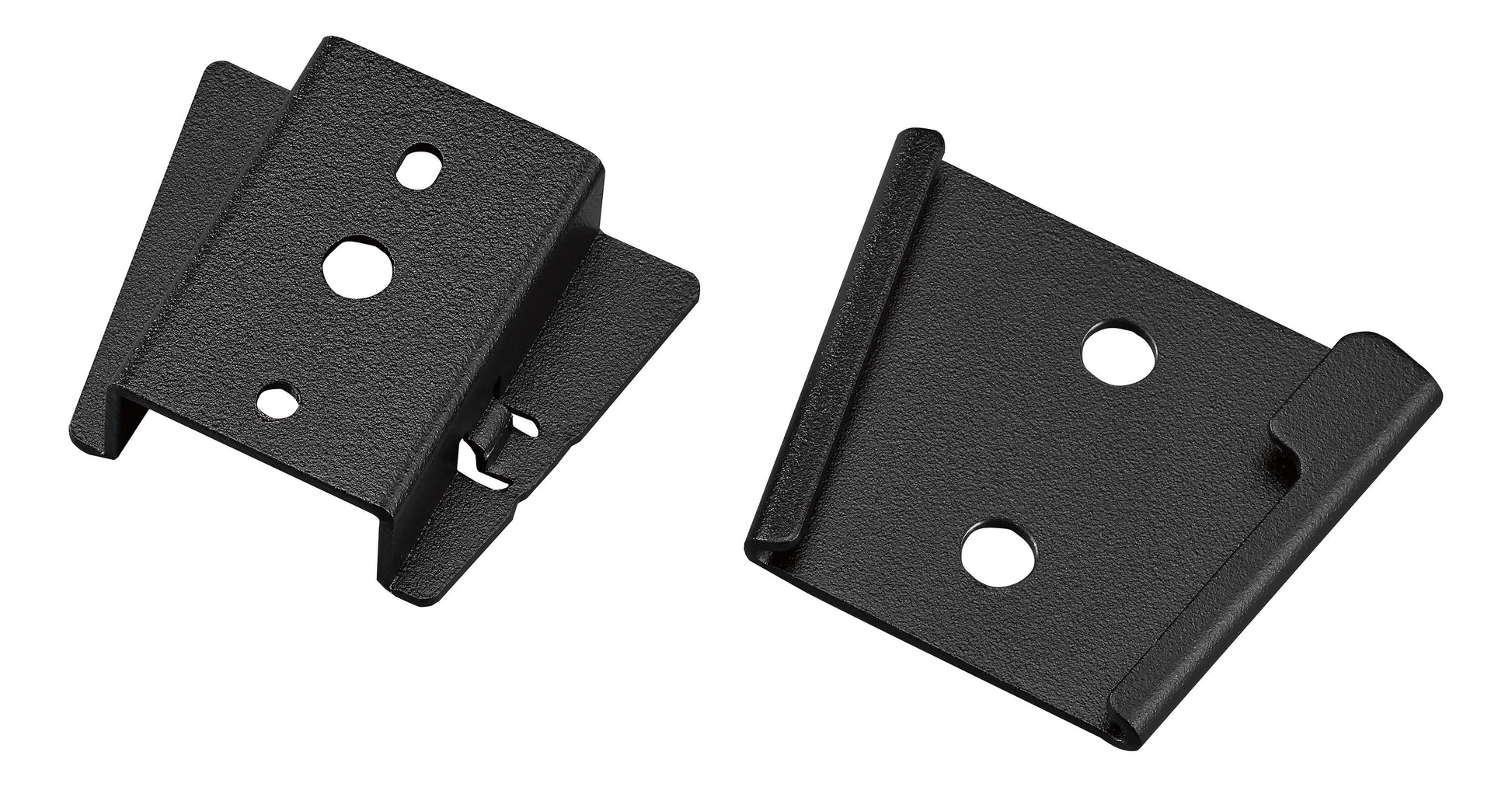

In addition to the included wall-mount brackets, a comprehensive range of optional hardware is available for VXL1 series enclosures to facilitate mounting and setup in multiple environments.

The WMB-L1 wall mount bracket provides vertical and horizontal angle adjustments, the VCB-L1 bracket allows a VXL1 enclosure to be stacked on top of another, VCSB-L1 brackets enable two VXL1 enclosures to be stacked on top of each other along with downward angle adjustment of the entire array, while the HCB-L1 bracket facilitates horizontal deployment of two VXL1 loudspeakers in an array. For high-impedance (70V/100V) applications, the low saturation ST-L1 transformer is also available.

Specifications

• Slim line array loudspeaker with 16 x 1.5” drivers
• 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
• 170° horizontal dispersion for uniform SPL over a wide listening area
• Vertical coverage can be selected as 20°(Standard) or 40°(Wide)
• Slim design complements any interior décor

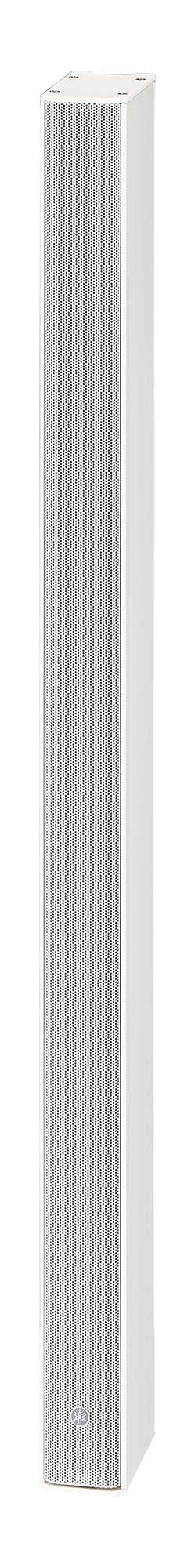

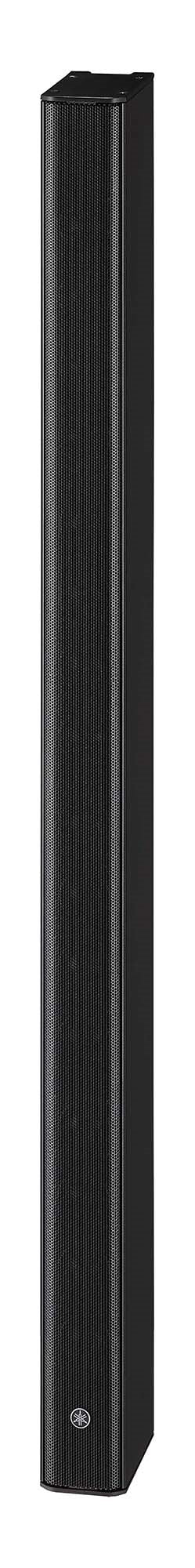

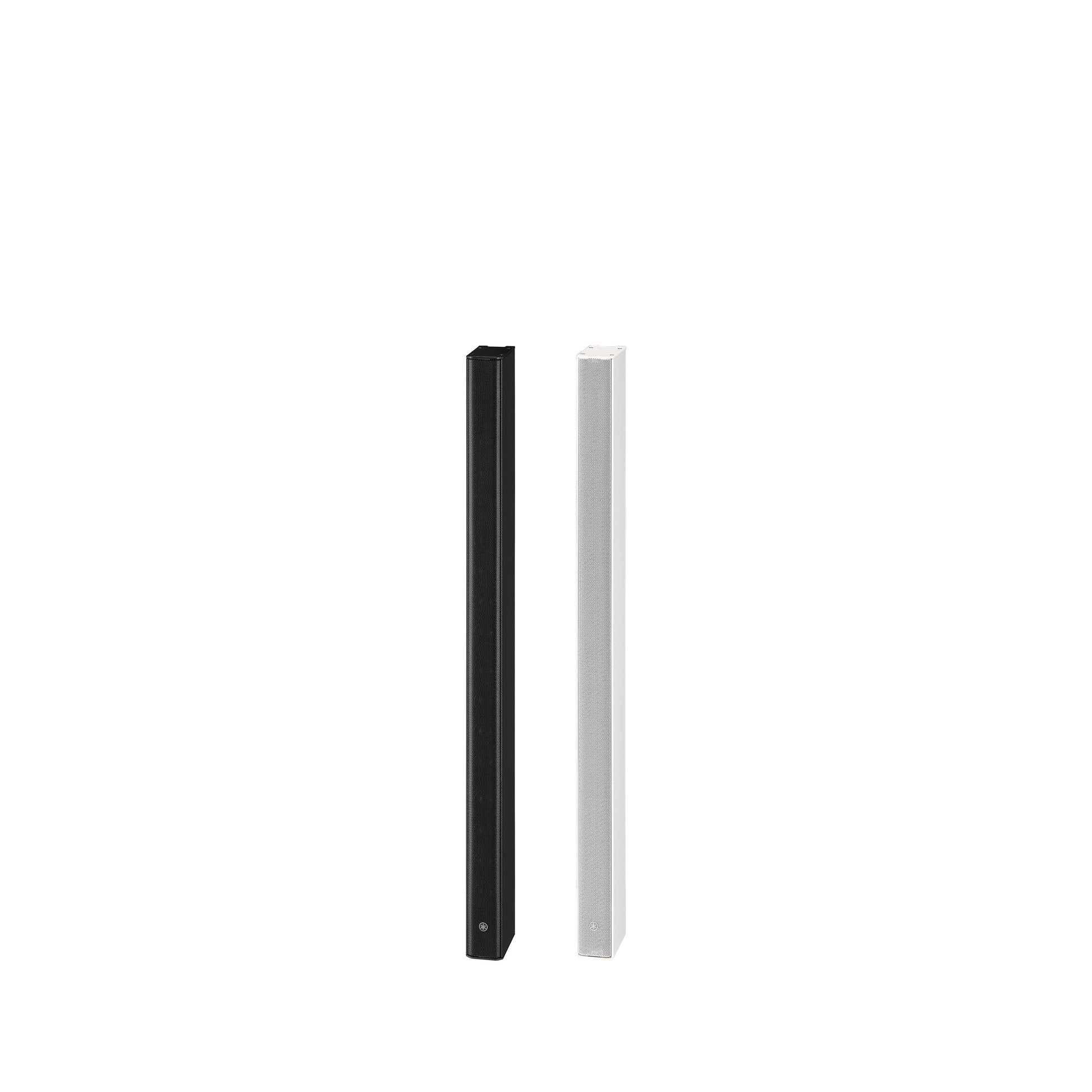

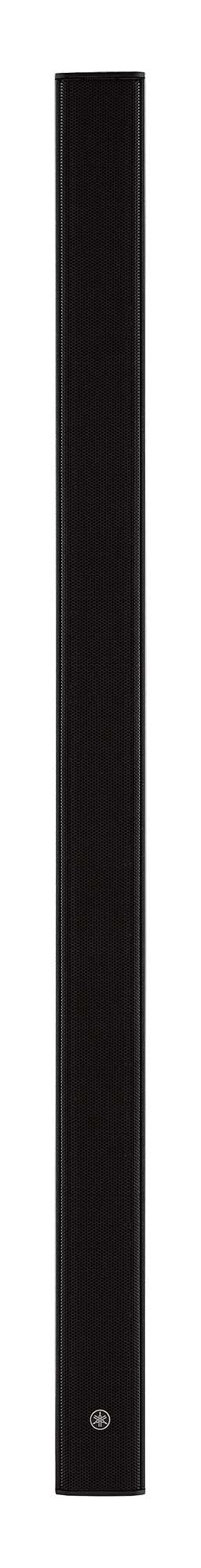

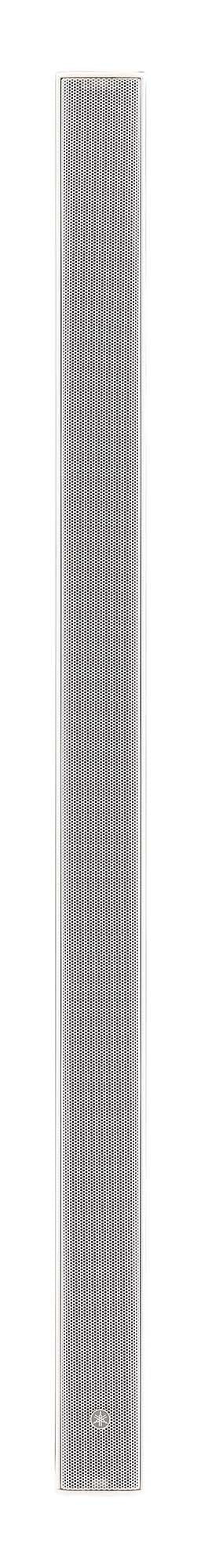

• Available in black or white
• Enclosures can be painted to match surroundings
• Wall mount bracket supplied
• Optional hardware for a wide range of installation needs
