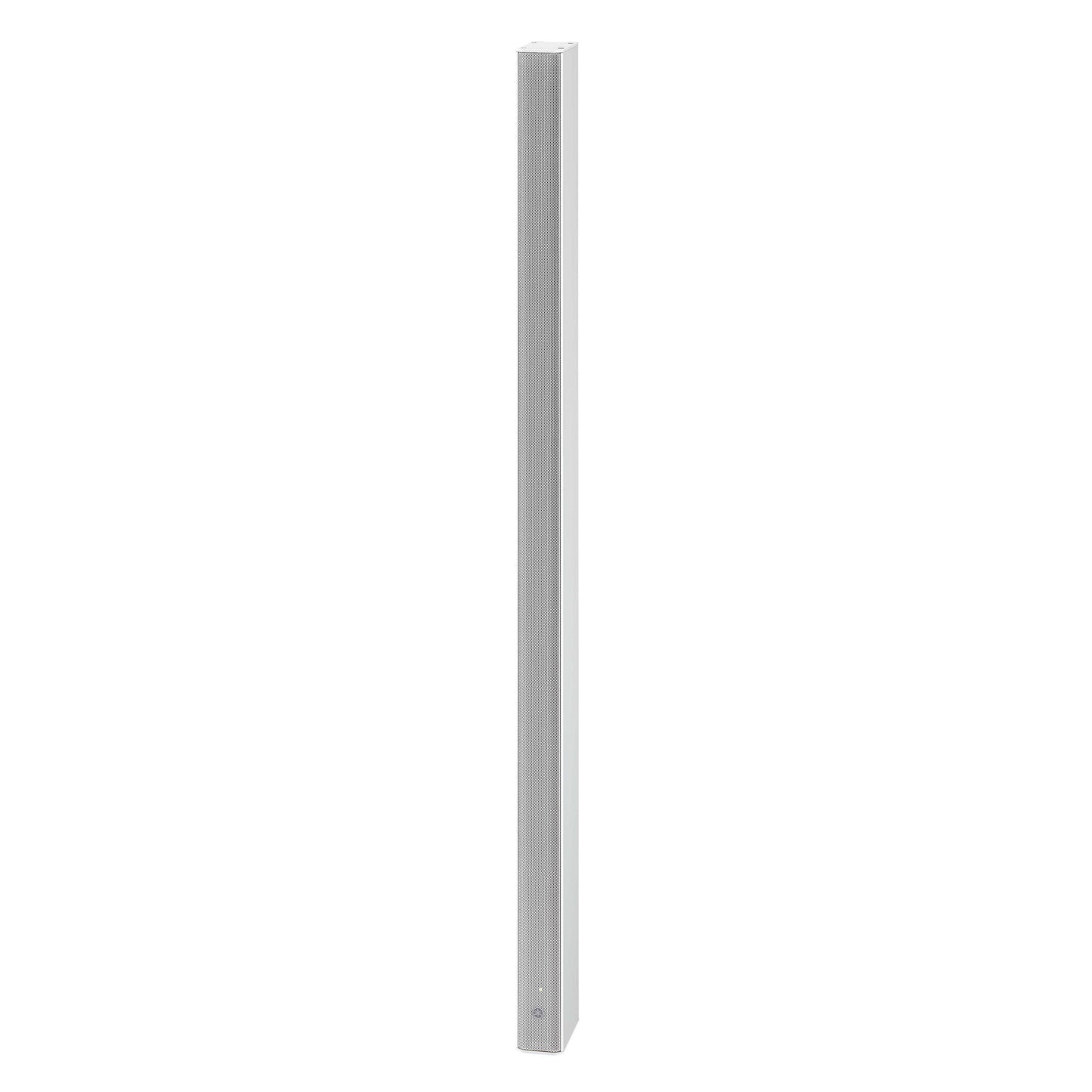

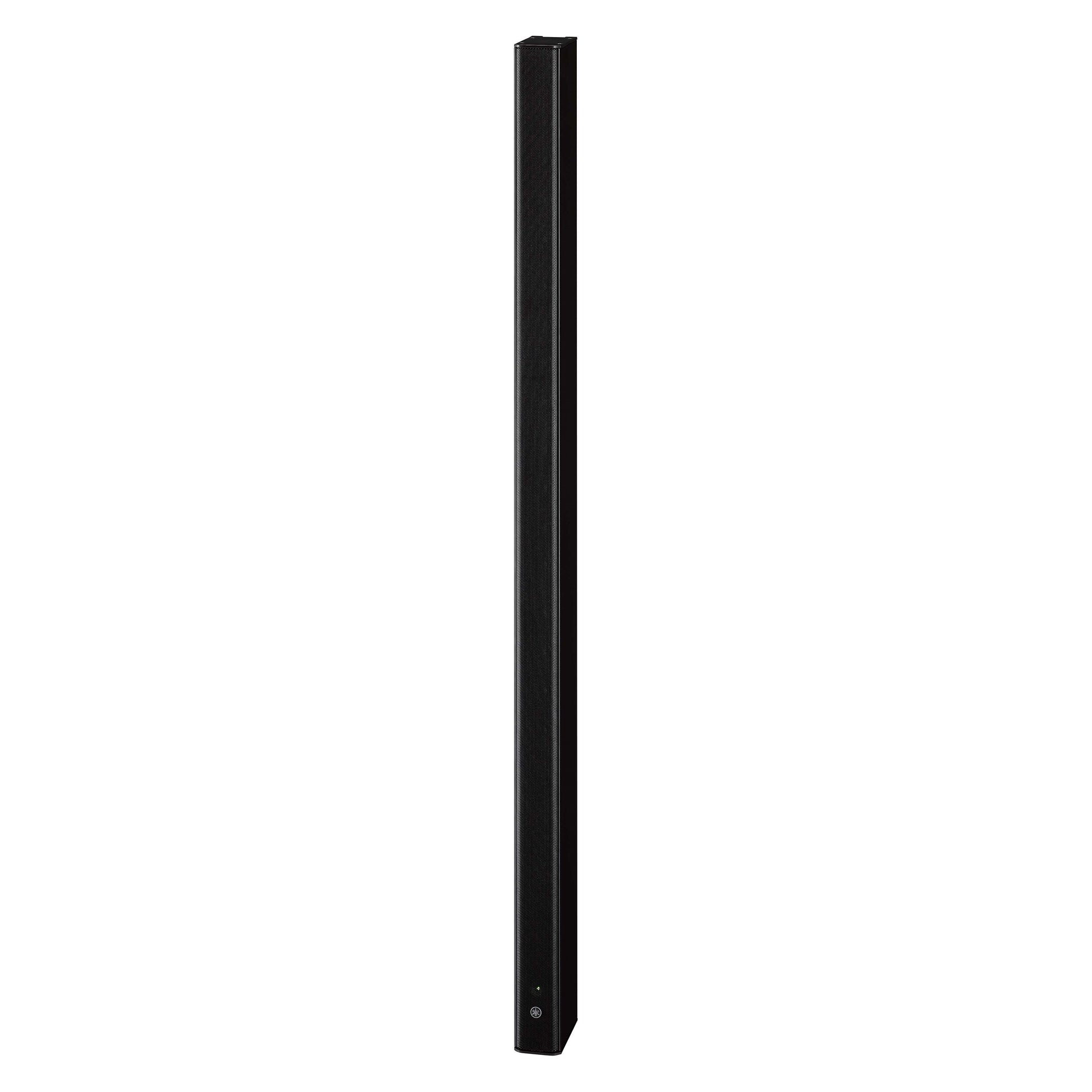

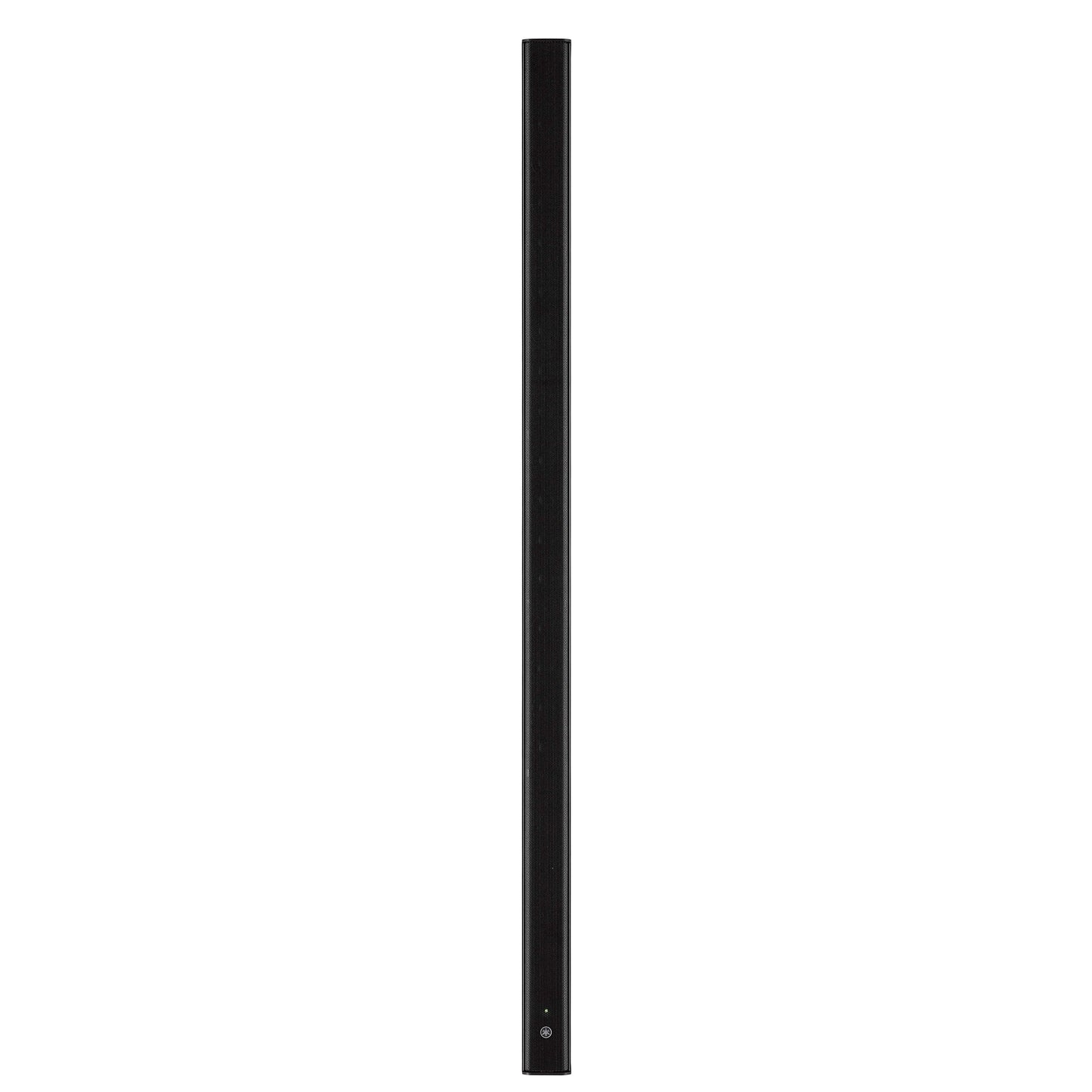

VXL1-16P

The Yamaha VXL1-16P line source loudspeakers support the Dante audio network and are a great fit for conference rooms.

From the Manufacturer

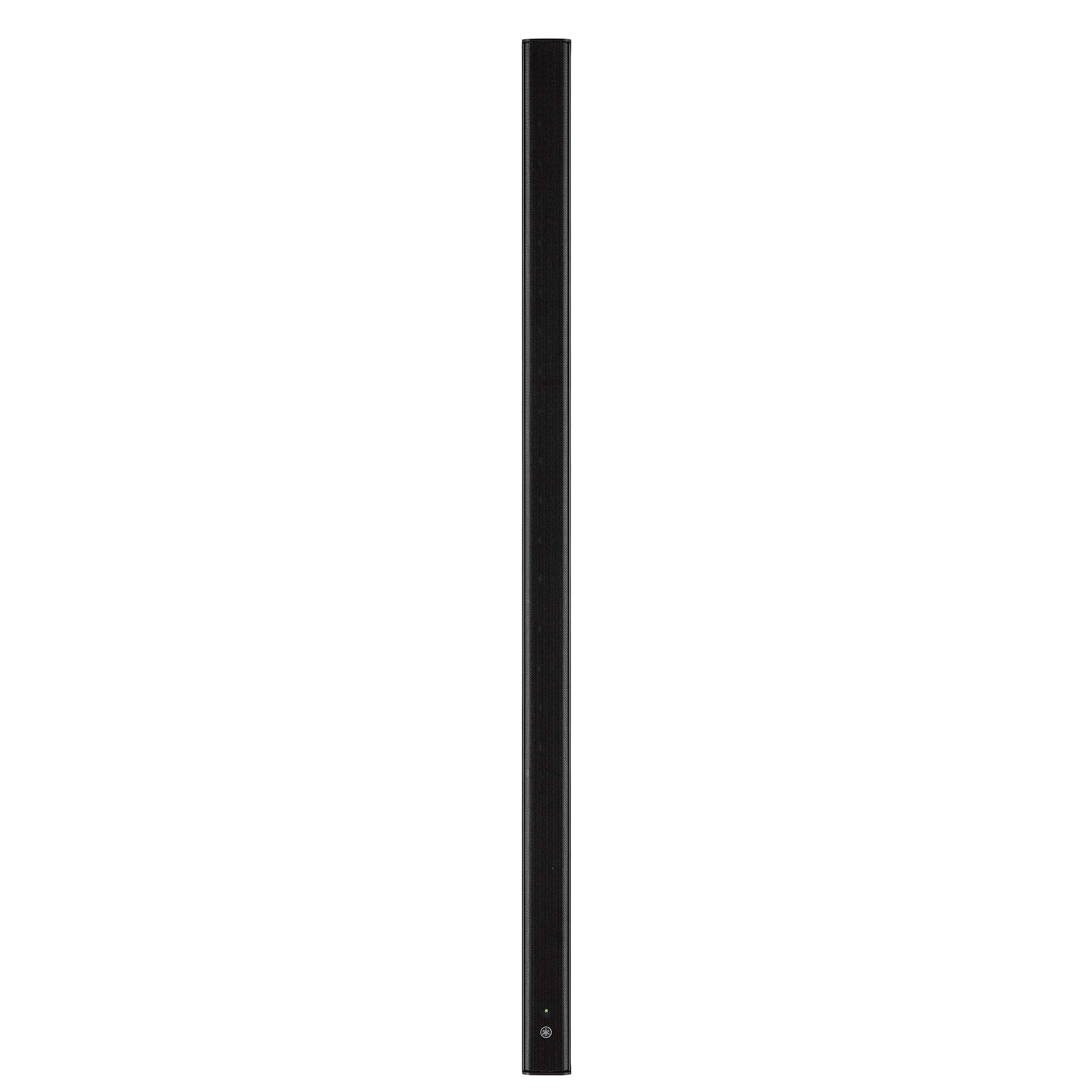

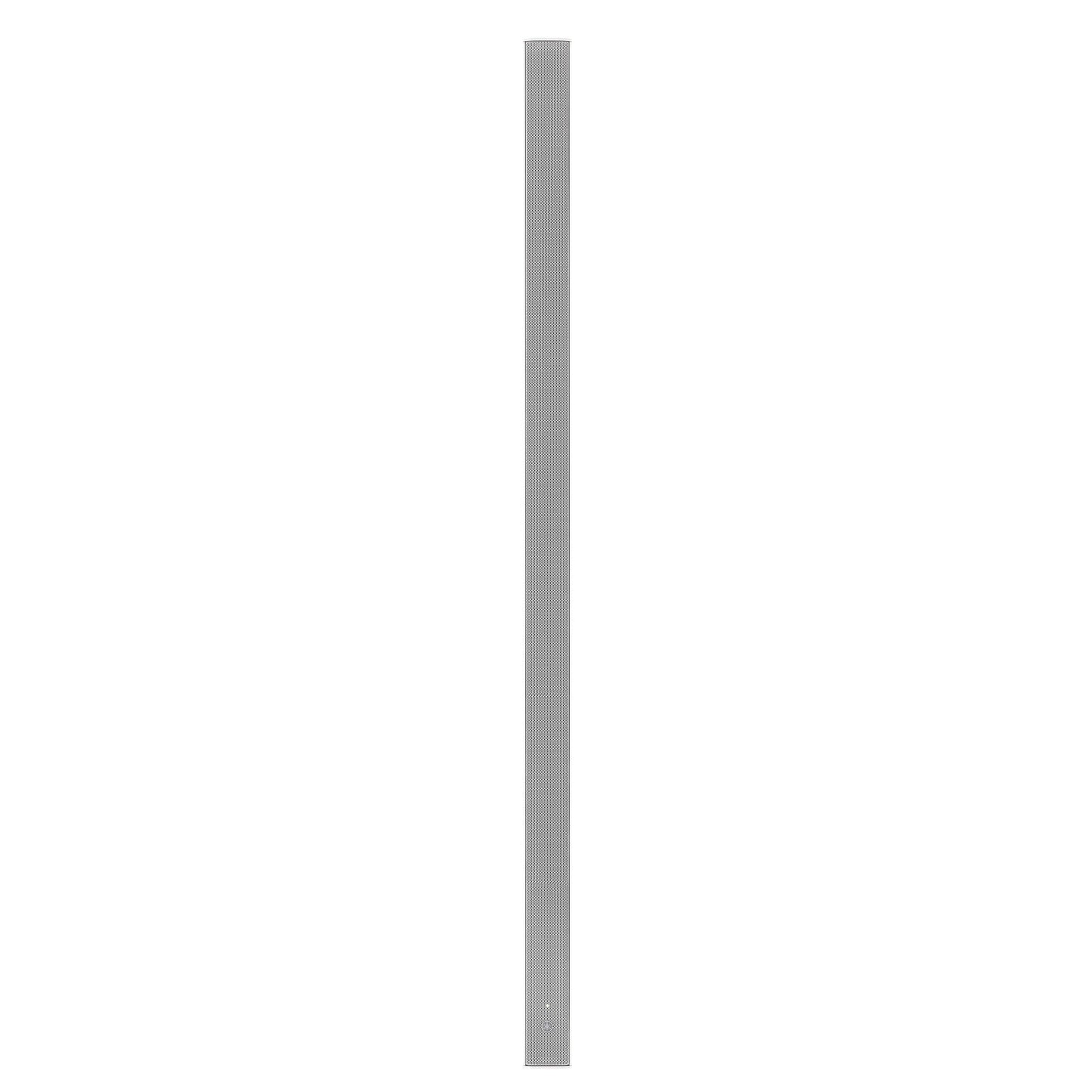

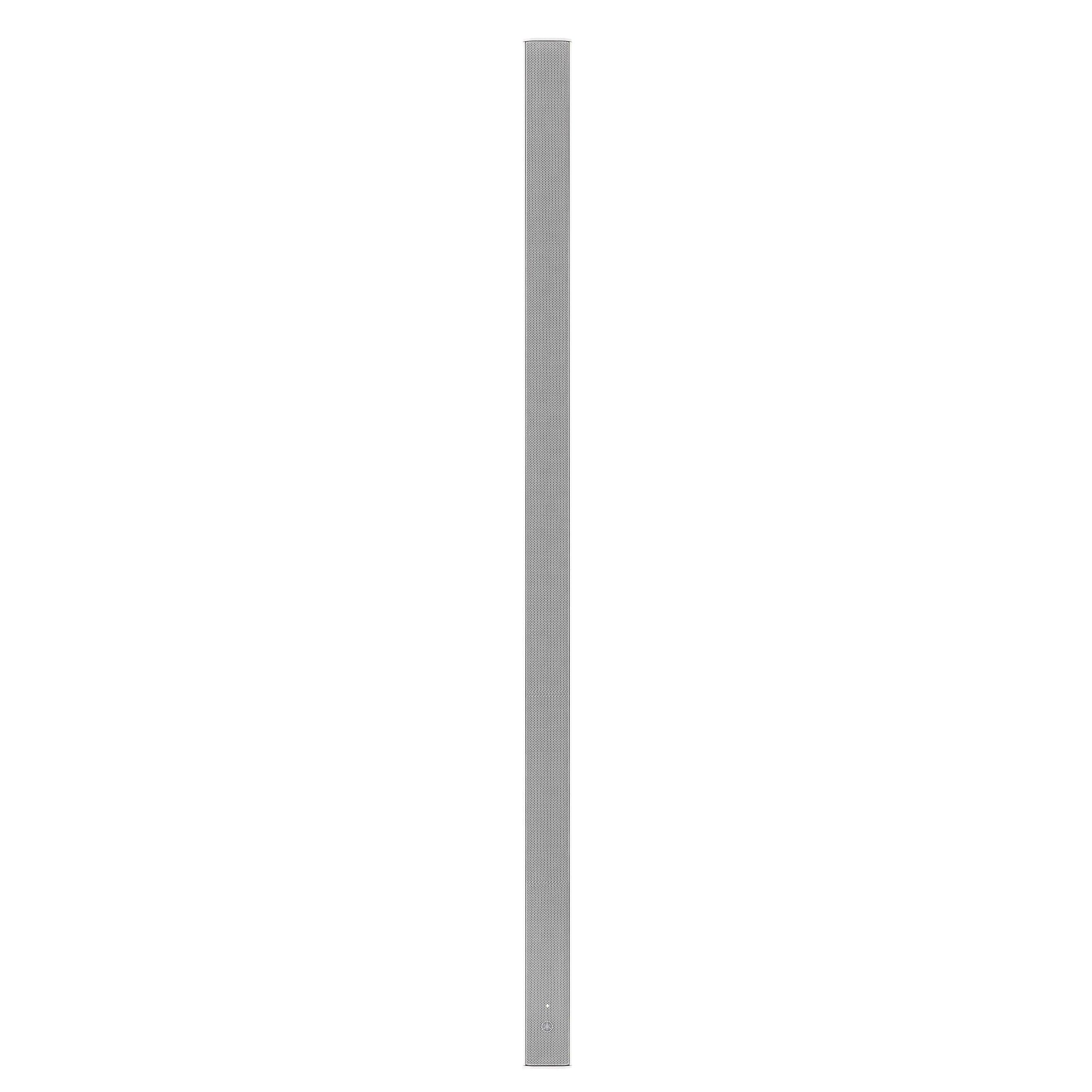

The VXL1B-16P and VXL1W-16P support the "Dante" audio network, and use a slim line-array configuration, making them an easy fit perfectly for conference rooms (in the size range of 12m × 10m) that demand vocal clarity while imposing numerous constraints on space, and require both functionality and a sense of design. With audio distributed via a Dante network and PoE power* supplied from a PoE compliant L2 switch, the speaker system can be constructed as a network, allowing existing IT infrastructure to be effectively utilized. Simple wiring via LAN cables, easy installation, and no need for a power amp contribute to the flexibility of installation, allowing you to construct an elegant sound system that will not interfere with the design of the conference room.

* When using an IEEE802.3at compliant PoE power supply device, the maximum speaker output is 15W; when using an IEEE802.3af compliant PoE power supply device, the maximum speaker output is 6W.

Features

Dante PoE Powered Speaker System

With audio distributed via a Dante network and PoE power* supplied from a PoE compliant L2 switch, the speaker system can be constructed as a network, allowing existing IT infrastructure to be effectively utilized. Simple wiring via LAN cables, easy installation, and no need for a power amp contribute to the flexibility of installation, allowing you to construct an elegant sound system that will not interfere with the design of the conference room.

* When using an IEEE802.3at compliant PoE power supply device, the maximum speaker output is 15W; when using an IEEE802.3af compliant PoE power supply device, the maximum speaker output is 6W.

Sound quality and design to match conference room requirements

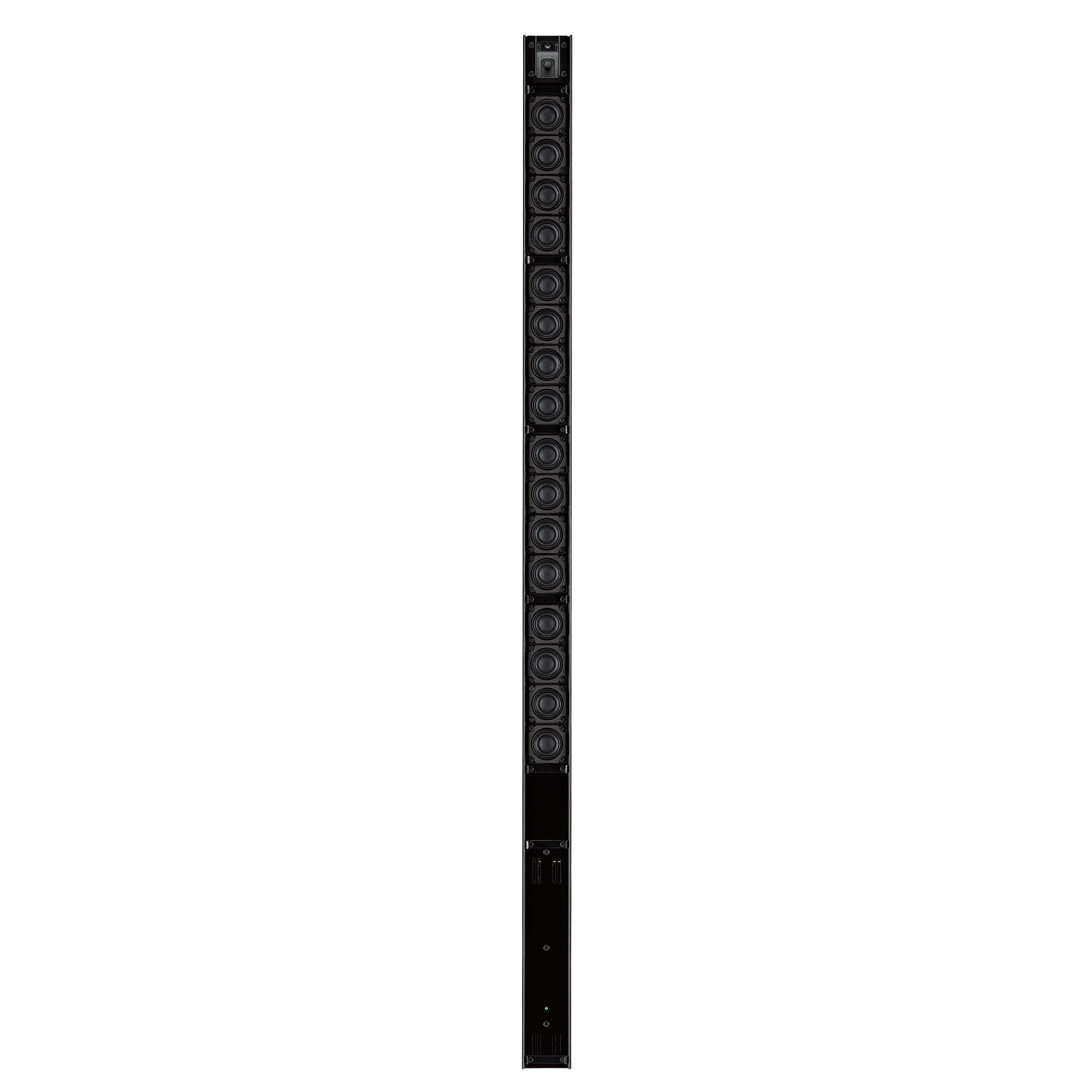

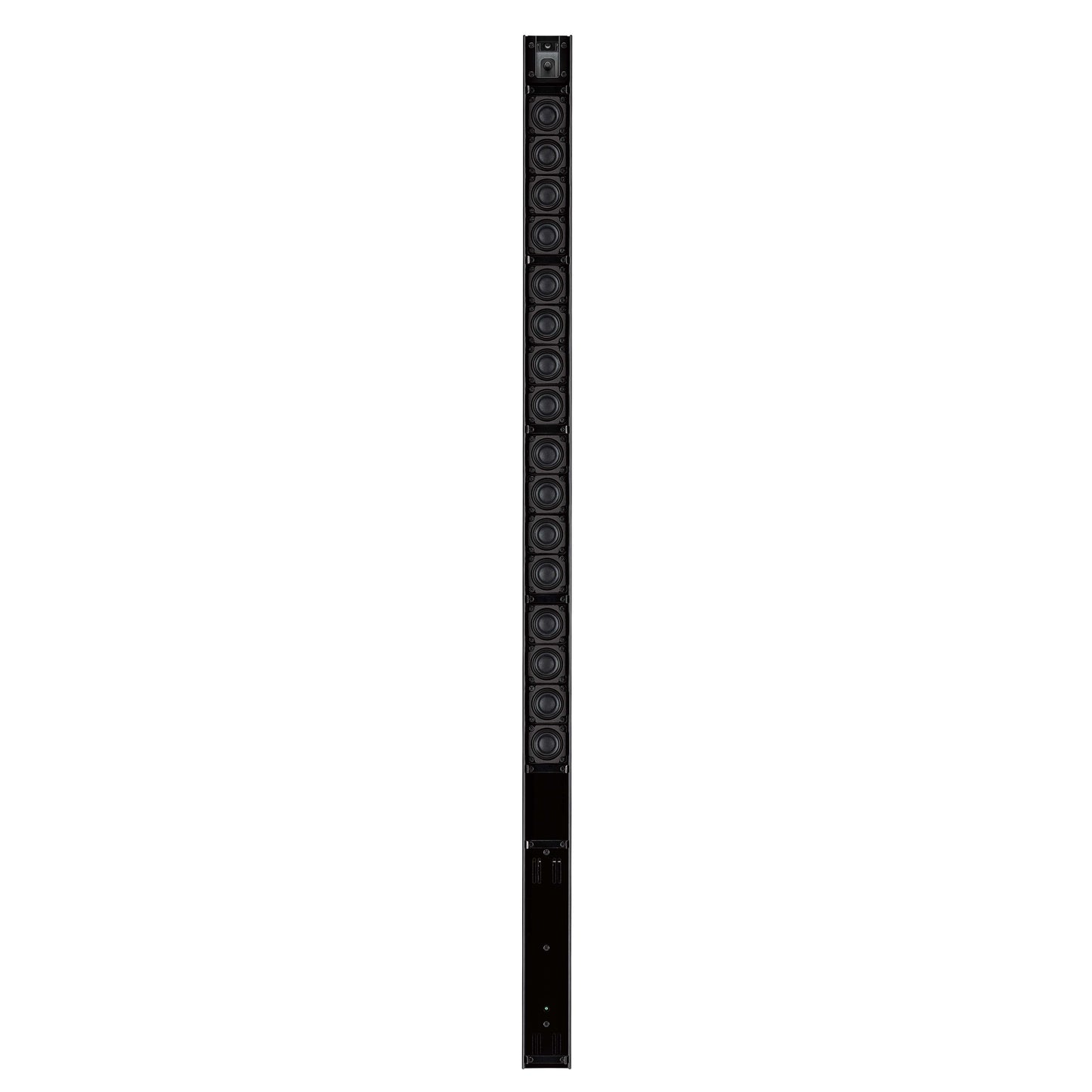

The VXL1-16P is equipped with 16 drivers. A line array configuration is used, placing the audio sources linearly to reduce sound dispersion in the vertical direction, thereby limiting reflections from the ceiling and walls, and preventing sound energy from being dispersed, ensuring that clear sound can be delivered to long distance. The drivers are 3.75 cm (1.5 inch) full-range units that extravagantly use neodymium magnets, and are placed in a slim enclosure (chassis) that is 5.4 cm wide. This allows easy installation even in locations that have various limitations on placement space, without impairing the décor of the office conference room.

Flexible Installation Options

In addition to the supplied wall-mount brackets, a comprehensive range of optional hardware is available for convenient system mounting and setup in just about any environment. In addition to the WMB-L1 wall mount bracket with vertical and horizontal angle adjustment capability, HCB-L1 bracket for horizontal speaker coupling, and PA-L1B pole mount adaptor is suitable for pole diameter of 35 mm.

Specifications

• Dante PoE powered speaker with 16 x 1.5" drivers
• 1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
• Slim design complements any interior décor

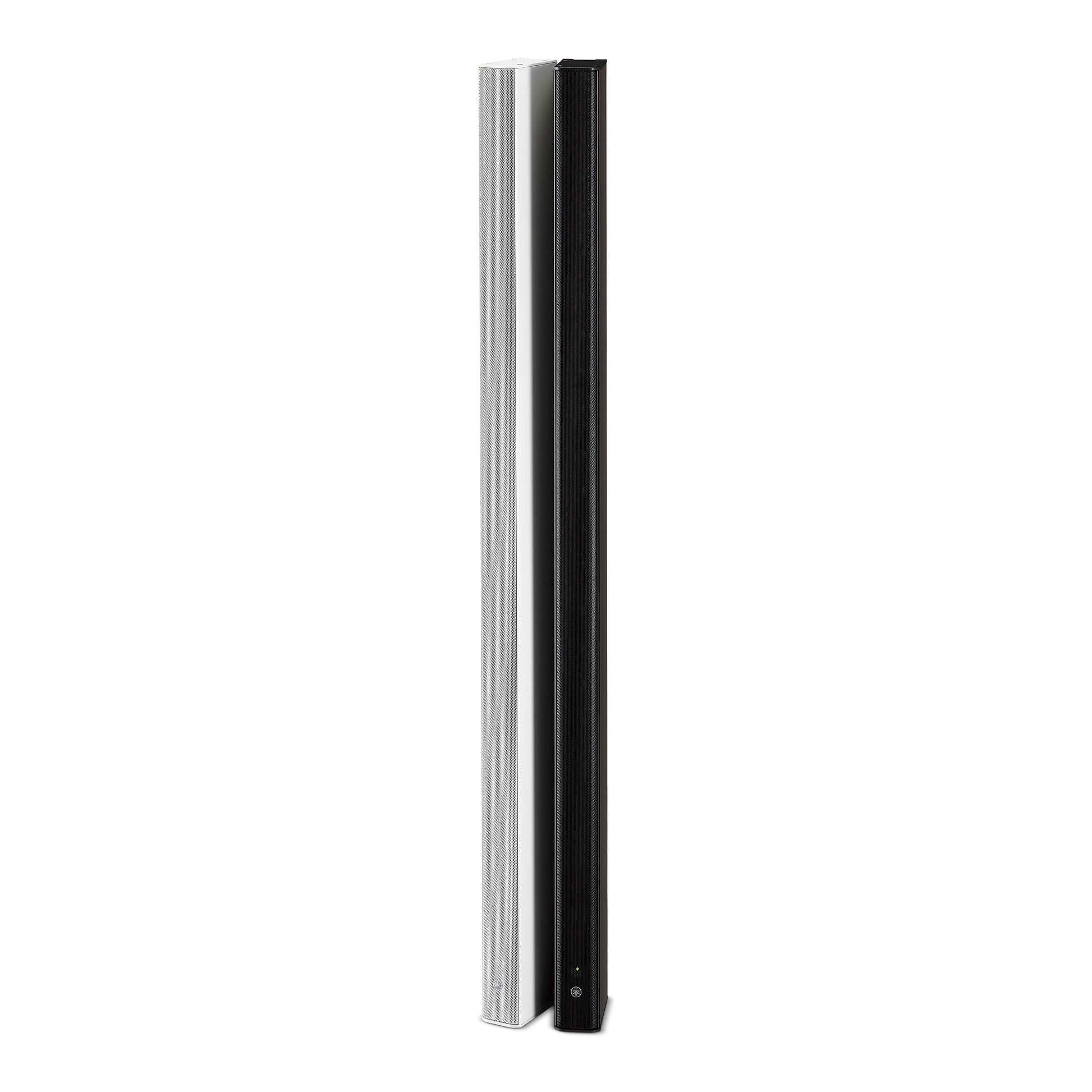

• Available in black or white
• Enclosures can be painted to match surroundings

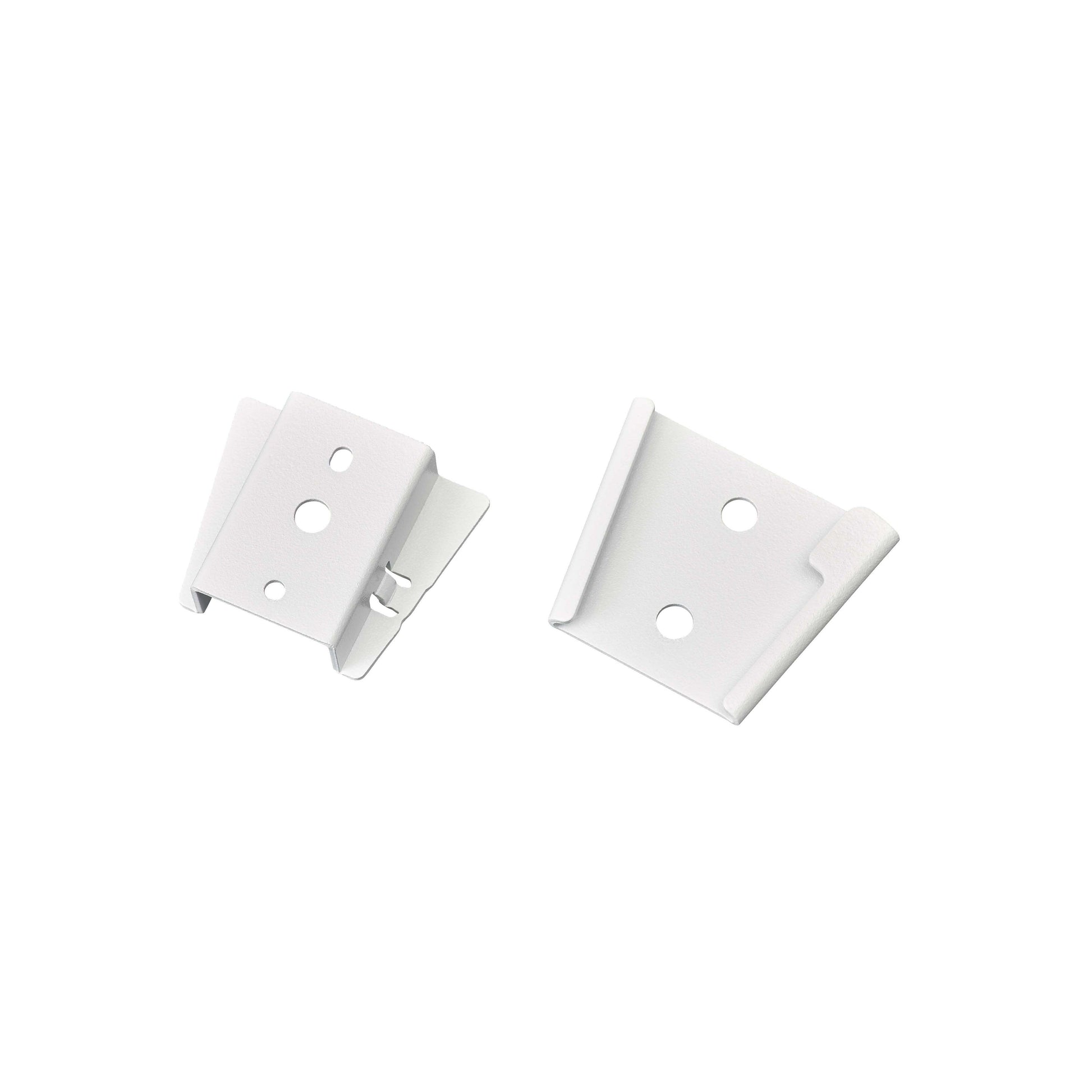

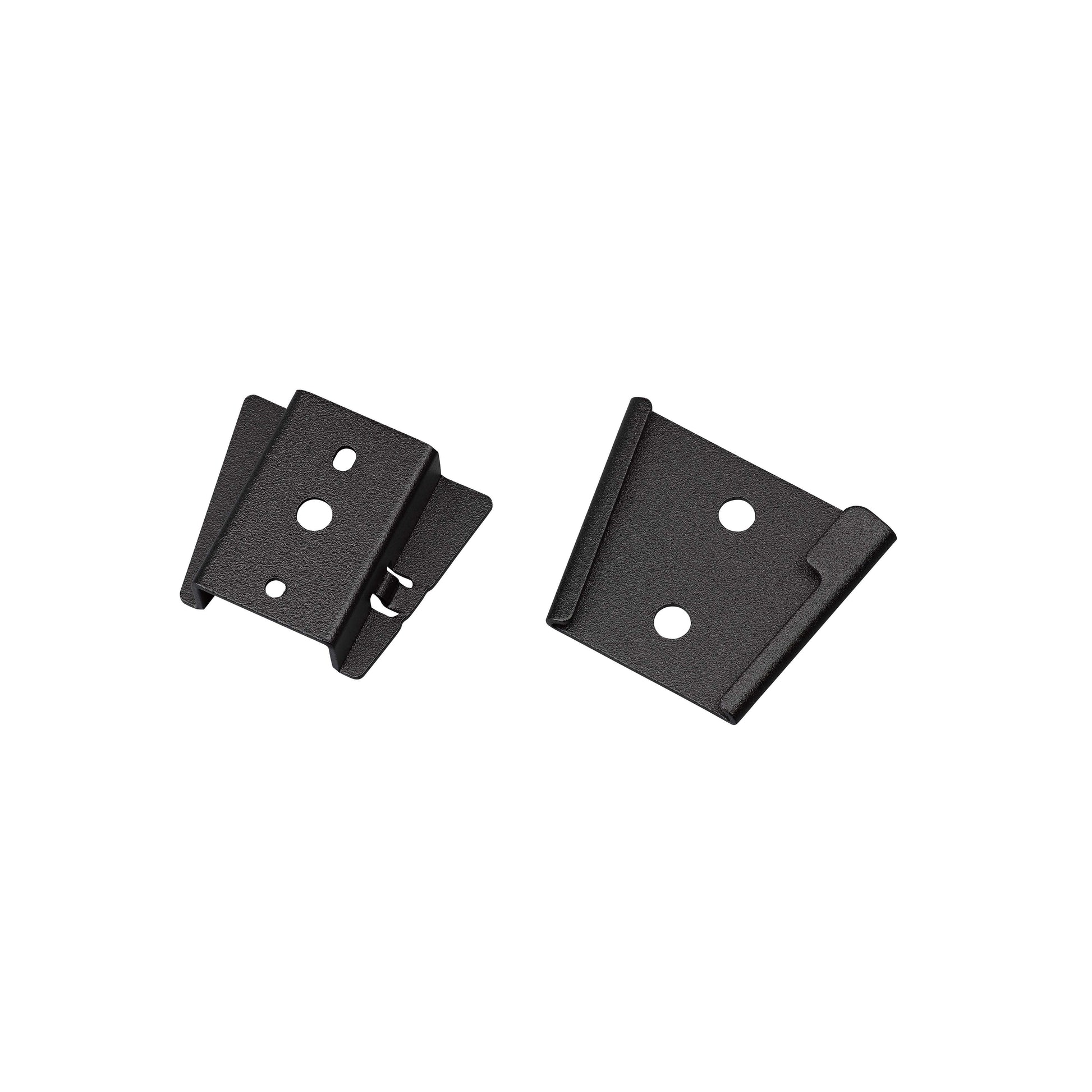

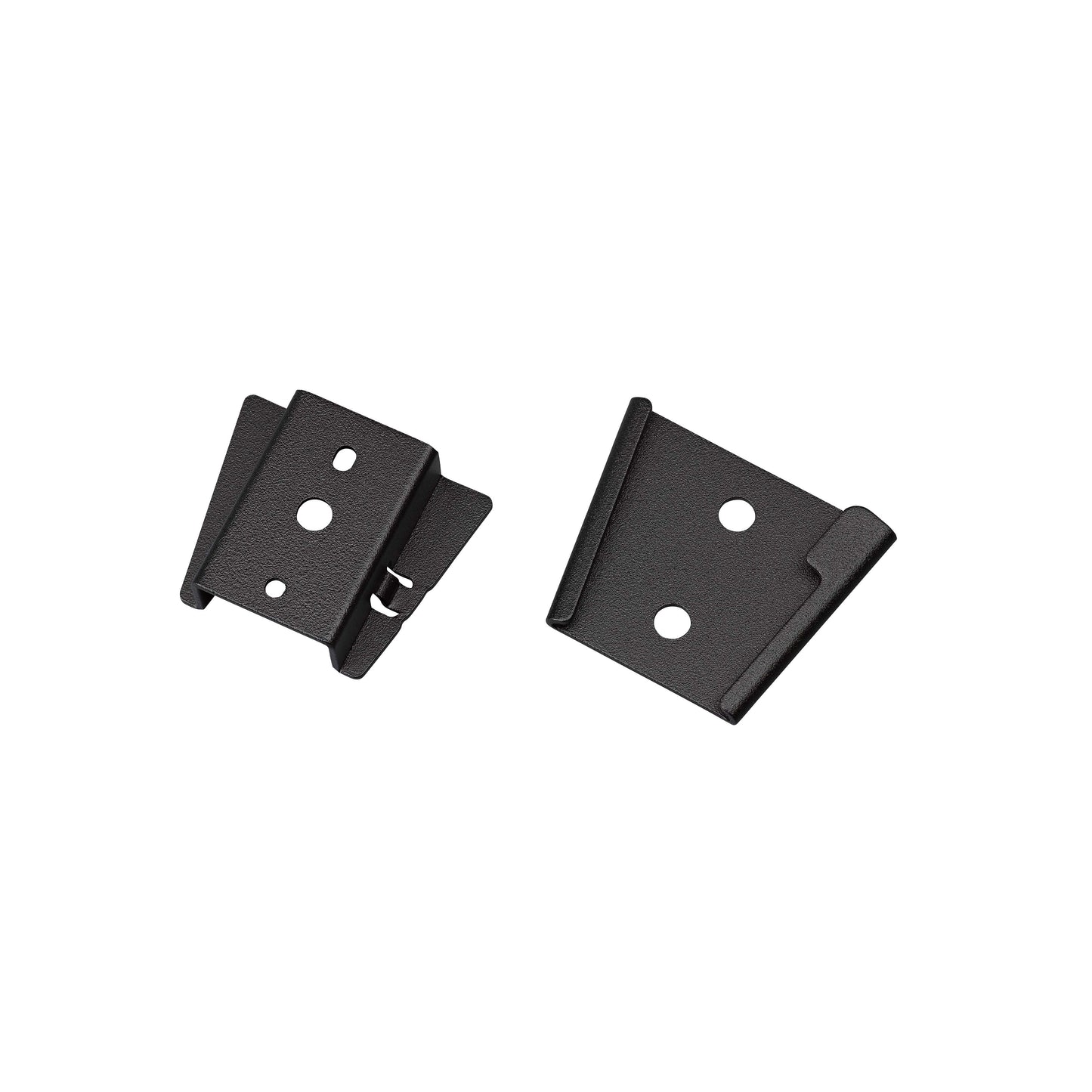

• Wall mount bracket supplied
• Optional hardware for a wide range of installation needs
