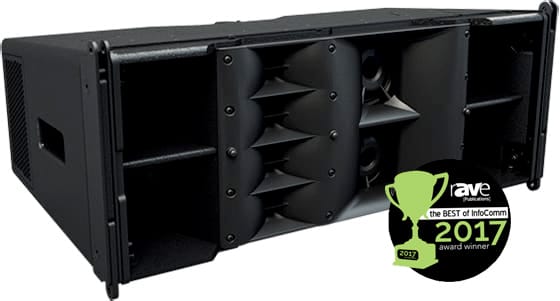

WPC 2 x 10" Bi-amp Three-way Line Array

Wavefront Precision Compact 3-Way Bi-Amp Line Array is a professional grade scalable sound system. It is a great option for production companies doing different sized events.

From the Manufacturer:

WPC is a 3-way bi-amp, 2 x 10” compact line array featuring scalable resolution optimization. This flexible approach to array optimization provides greatly improved coverage, consistency and control compared to a standard line array.

Features:

• 3-way bi-amp, 2 x 10” compact line array

• Scalable resolution for advanced array control

• External, dedicated, multi-channel Class D amplification

• Industry-leading DISPLAY software interacts with DSP for highly-accurate results

• Fast, integral 3-point flying systems for up to 16 enclosures

• Side and rear handles for ease of handling and setting splay angles

• 100° horizontal constant directivity pattern control

Benefits:

• Consistent coverage achieved ‘straight-out-of-the-box’

• DISPLAY intelligent software reduces set-up time and eliminates trial-and-error

• Improved audience coverage with reduced sound-spill

Applications:

• Touring sound reinforcement for small and medium-size venues

• Fixed installations in concert halls, theatres, ballrooms and HoW

• Sports stadium, arena installations & corporate AV events

Specifications:

• Type

• Three-way, bi-amp line array element

• Frequency Response

• 65Hz-18kHz ± 3dB

• Drivers

• LF: 2 x10” (250mm)/2.5” (63mm) voice coil, long excursion,

• vented pole, neodymium magnet drivers, Hybrid® slot-horn loaded

• MF: 2 x 5” (125mm)/1.5” (38mm) coil, neodymium magnet drivers, horn loaded

• HF: 4 x 0.7” (19mm) exit neodymium magnet compression drivers, horn loaded

• System Resolution

• 1 to 3 enclosures per pair of amplifier channels (Bi-amp)

• Maximum SPL

• 135dB peak

• Nominal Impedance

• LF: 8Ω

• MF + HF: 8Ω

• Dispersion (-6dB)

• 100º horizontal (-6dB), 130º horizontal (-10dB)

• 10° vertical

• Crossover

• 440Hz active, 4.4kHz internal passive

• Enclosure

• Vertical trapezoid with 5º wall angle, multi-laminate birch and poplar-ply construction

• Finish

• Black textured paint

• Protective Grille

• Black HEX perforated steel

• Connectors

• 2 x NL4 type

• Input Connections

• LF: 1+/1-

• MF + HF: 2+/2-

• Fittings

• 3-point rigging system

• 2 x side pocket handles

• 2 x rear grip handles

• Flown Array Maximum

• 16 enclosures in single array

• Dimensions

• (W) 772mm x (H) 319mm x (D) 421mm

• (W) 30.4in x (H) 12.6in x (D) 16.6in

• Weight

• 35kg

• 77.1lbs
