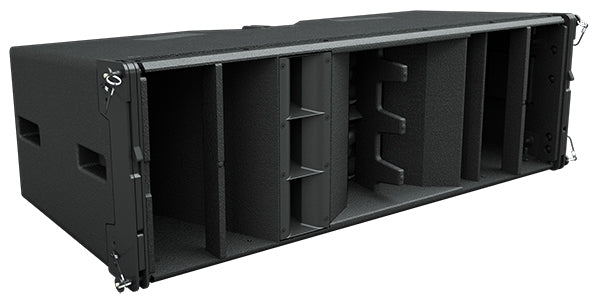

WPL 2x12" Bi-amp Three-way Line Array

The Wavefront Precision Longbow PU 3-Way Bi-Amped Line Array is a high quality line array that provides great coverage and has a  Weatherized Polyurethane finish making it a durable option. It is a great choice for professional companies doing various sized events

From the Manufacturer:

WPL is a 3-way bi-amp, 2 x 12” large format line array featuring scalable resolution optimization. This flexible approach to array optimisation provides greatly improved coverage, consistency and control compared to a standard line array.

Features:

• 3-way bi-amp, 2 x 12” large format line array

• All-horn, maximum-efficiency design

• Exceptional signature sonic performance

• Exemplary 90° horizontal constant directivity pattern control

• External, dedicated, multi-channel Class D amplification

• Scalable resolution for flexible optimisation of coverage, consistency and control

• Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation

• Fast, integral 3-point rigging for up to 24 enclosures

• Compact and light weight design with discreet side handles for ease of handling

Benefits:

• Consistent coverage achieved ‘straight-out-of-the-box’

• DISPLAY intelligent software reduces set-up time and eliminates trial-and-error

• Improved audience coverage with reduced sound-spill

Applications:

• Touring sound reinforcement for festivals, stadiums and arenas

• Sports stadium and arena installations

• Concert hall and HoW installations

Specifications:

• Type

• Three-way, bi-amp line array element

• Frequency Response

• 52Hz-18kHz ± 3dB

• Drivers

• LF: 2 x 12” (300mm)/3” (75mm) voice coil, ultra-long excursion, neodymium magnet drivers, Hybrid® bass horn loaded

• MF: 2 x 6.5” (165mm)/2” (50mm) coil, neodymium magnet drivers, horn loaded

• HF: 3 x 1” (25mm) exit neodymium magnet compression drivers, horn loaded

• SYSTEM RESOLUTION 1 or 2 enclosures per pair of amplifier channels (Bi-amp)

• Maximum SPL (9)

• LF: 139dB

• MF: 140dB

• HF: 145dB

• Nominal Impedance

• LF: 8 ohms, MF + HF: 8 ohms

• Dispersion (-6dB)

• 90º horizontal (-6dB), 120º horizontal (-10dB)

• 7.5° vertical

• Crossover

• 320Hz active, 4kHz internal passive

• Enclosure

• Vertical trapezoid with 3.75º wall angle,

• multi-laminate birch and poplar-ply construction

• Finish

• Black textured paint

• Protective Grille

• Black HEX perforated steel

• CONNECTORS 2 x NL4 type

• Input Connections

• LF: 1+/1-

• MF + HF: 2+/2-

• Fittings

• 3-point rigging system

• 4 x side pocket handles

• Flown Array Maximum

• 24 enclosures in single array

• Dimensions

• (W) 1136mm x (H) 371mm x (D) 526mm

• (W) 44.7in x (H) 14.6in x (D) 20.7in

• Weight

• 64Kg (141lbs)
