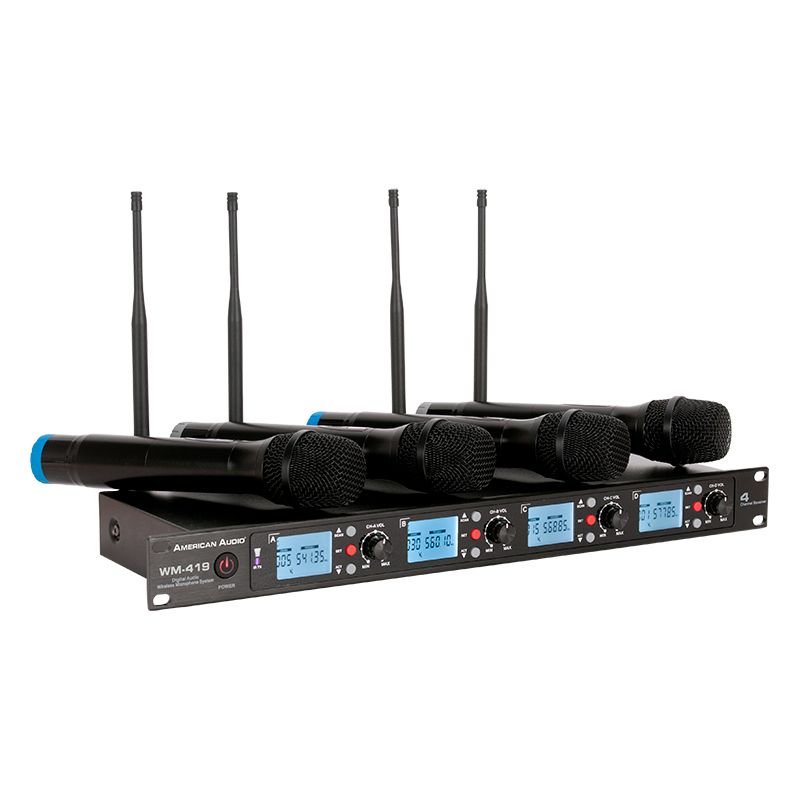

WM-419 4-channel Wireless UHF Microphone System

The American Audio WM-419 is a 4-channel UHF wireless microphone system that includes four wireless microphones, a wireless receiver with individual volume control and XLR audio output for each microphone, batteries and four mic clips. The WM-419 features American Audio’s Intelligent frequency Autoscan with IR synchronization with 50 channels per receiver (200 total), as well as, 16-Bit Pilot Technology to assist with eliminating frequency interface.

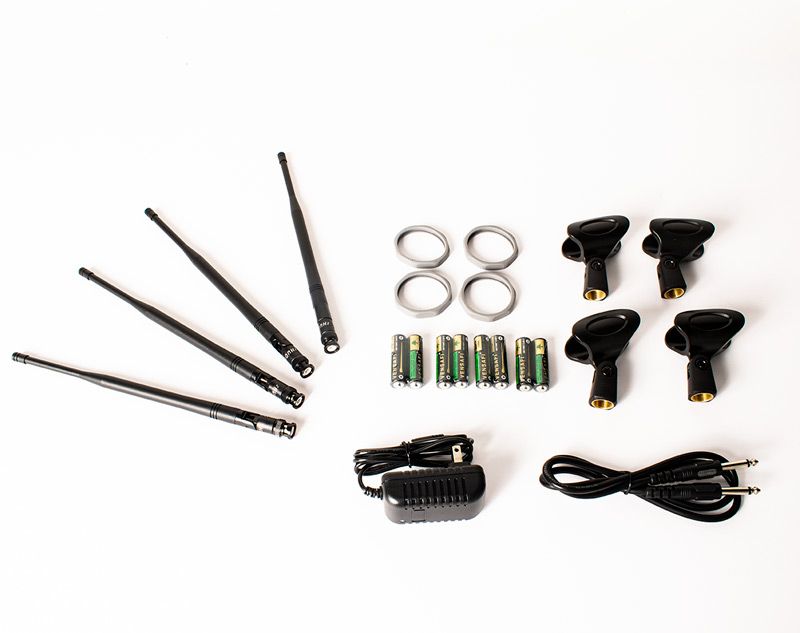

In the Box:

• (4) Hand Held Wireless Microphones (AA batteries included)
• (1) 4-Channel UHF Wireless Receiver
• (4) Detachable UHF Antennas
• (1) Power Supply
• (1)  ¼” to ¼” stereo cable
• (4) Microphone clips

Features:

• 4 Channel Wireless Handheld Mic System
• Intelligent Frequency Autoscan with IR Synchronization

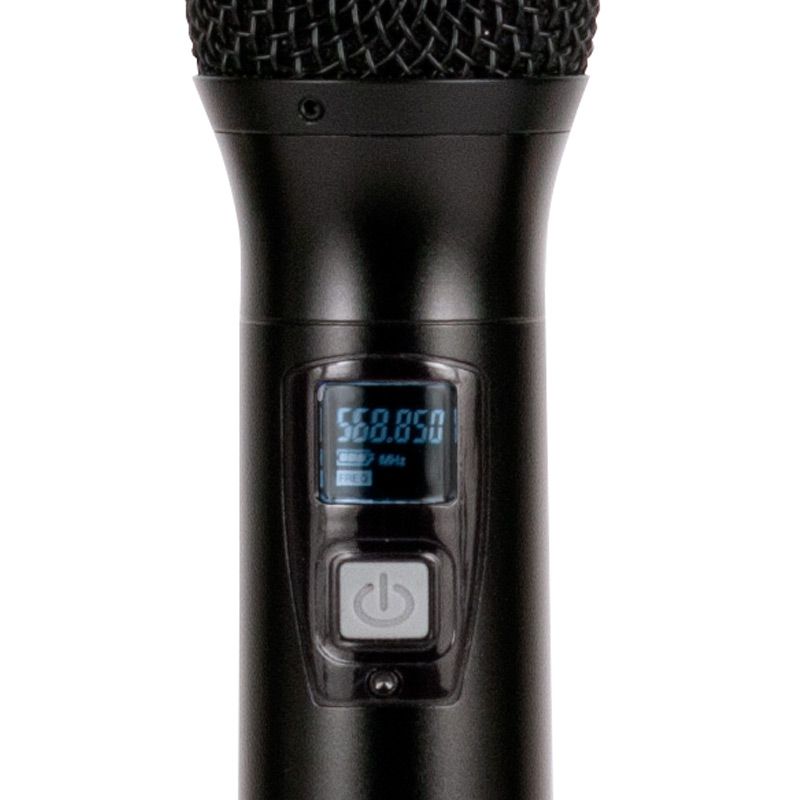

• Includes 4 Handheld MIC Transmitters with OLED Screen and 4 Mic Clips
• 50 Channels Available per Receiver (200 total)
• 16-Bit Pilot Technology to assist with eliminating frequency interference
• 4 Removable Antennas

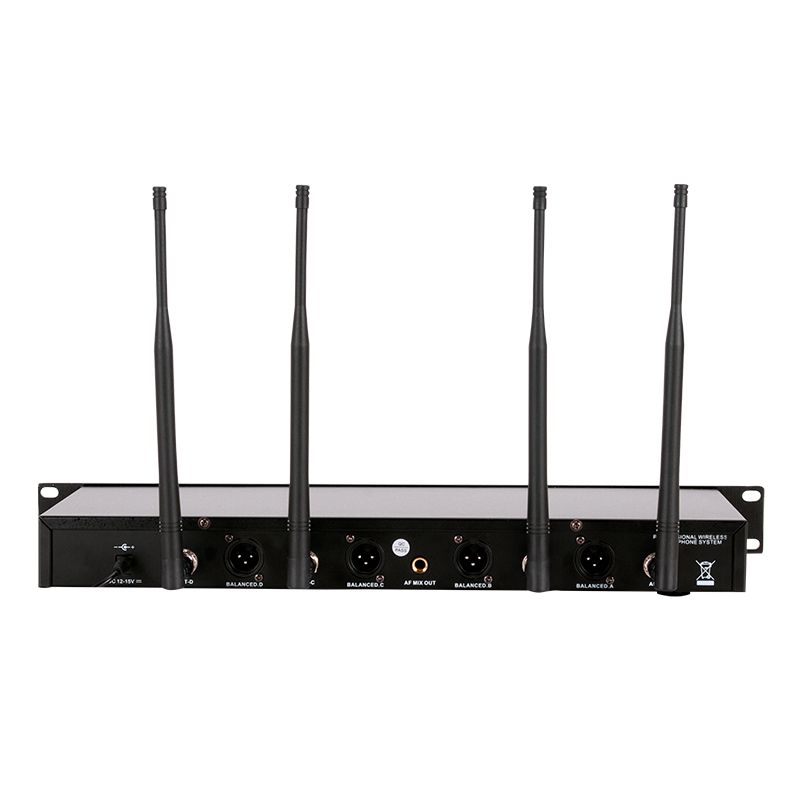

• 4 XLR Balanced Outputs + 1 AF Mixed Out (1/4 Jack)

Performance:

• Wireless Range: 300 ft. (90M) line of site*
• Battery life with full charge: 6-10 hours
• Operating Frequency Range: UHF 540-590MHz
• Dynamic Range: >98dB
• Total Harmonic Distortion: <1%
• Frequency Response: 50HZ ~ 14KHz 3dB
• Signal to Noise Ratio: >85dB
• Audio Output Level: 0-300mV (Balanced: 0-2V)
• Transmitting Power: +10sBM
