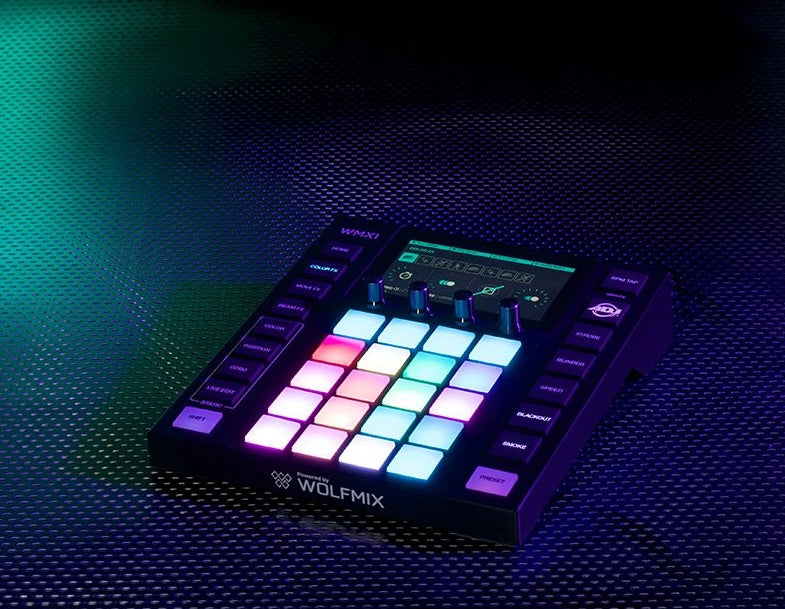

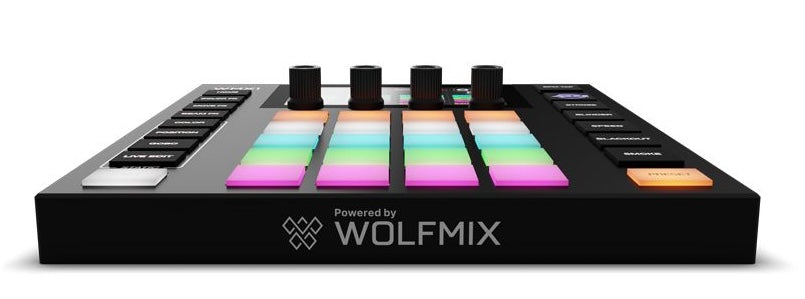

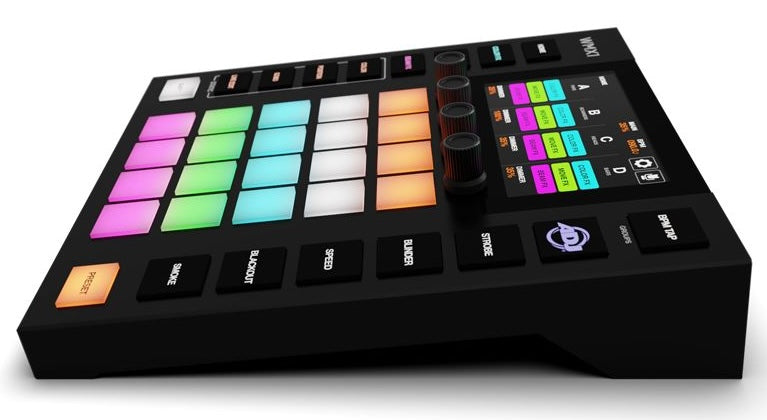

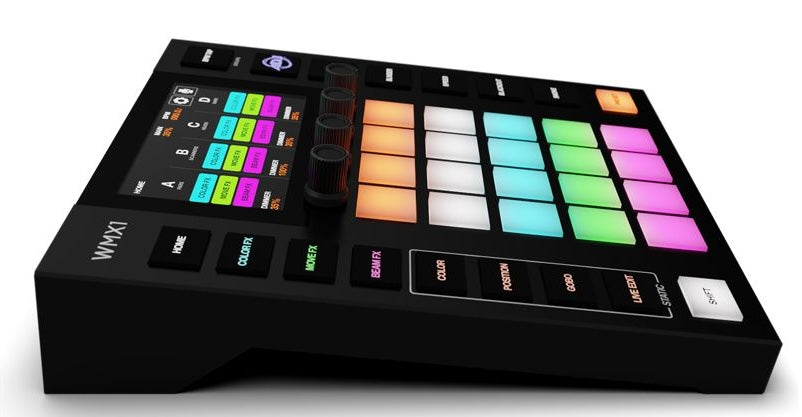

WMX1 Mk2

The WMX1 Mk2 is a standalone lighting console for smaller productions. It is a good option for churches or theaters who will make use of a lot of pre programmed scenes.

From the Manufacturer:

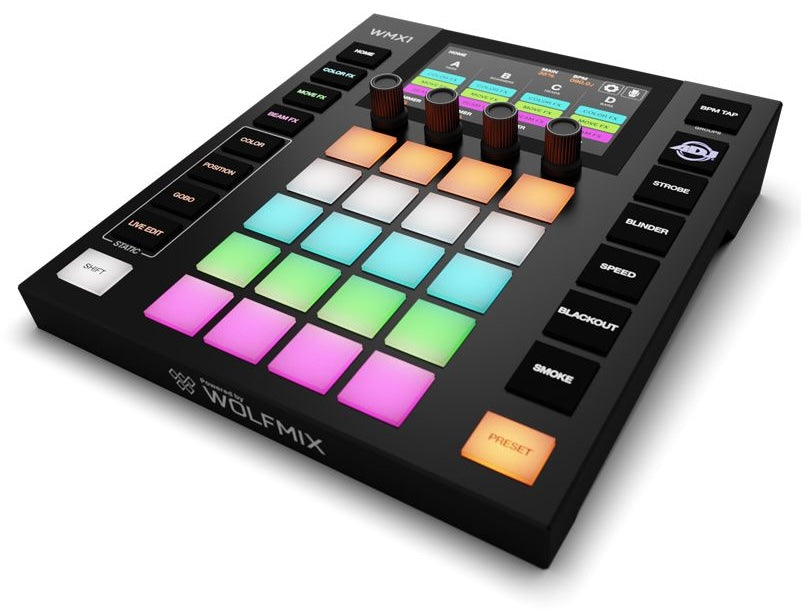

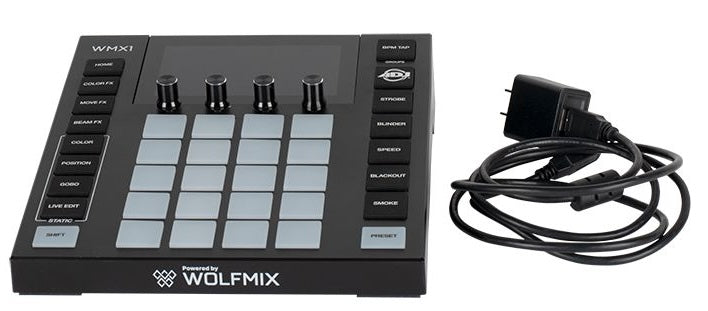

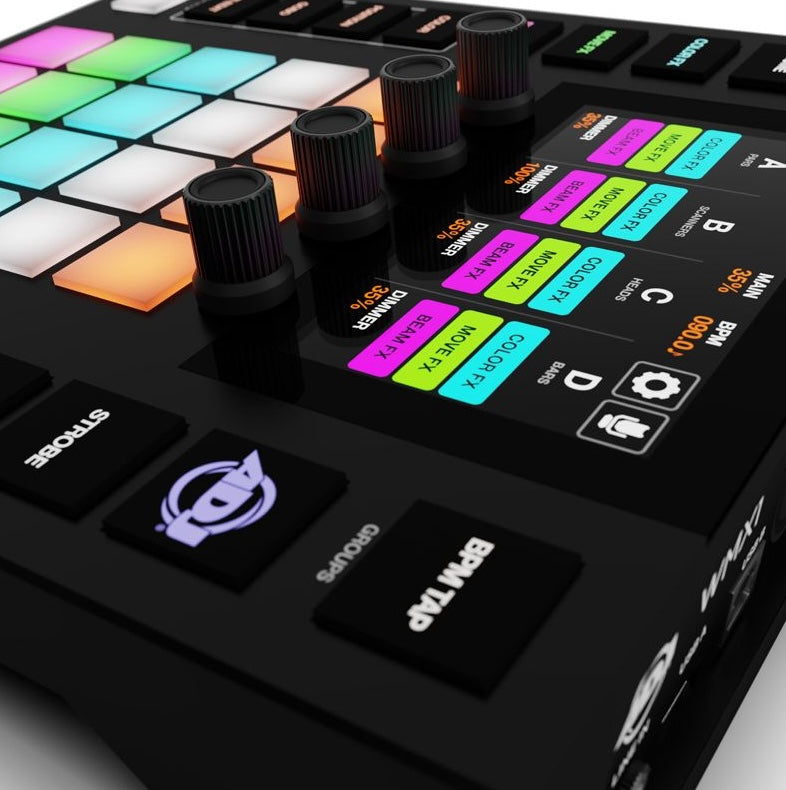

The WMX1 Mk2, powered by Wolfmix, is a standalone lighting control system designed with the performer in mind. Featuring a 4.3” color touchscreen display and 37 backlit silicone buttons, it allows intuitive hands-on control of a DMX lighting setup. It features a toolbox of FX modules and eight independent fixture groups which allow for the simple creation of high-impact light shows on the fly without a computer. Ideal for mobile entertainers as well as bars, clubs, and entertainment venues, this compact but powerful controller puts creative lighting control at any user’s fingertips.

Features:

• Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation


• Automatic matching of similar gobos across different fixture types


• Timed release of flash and preset buttons


• Fixture FLIP function, for reversing beam order


• Fixture SPLIT function, for splitting up multi-FX bars


• Lock full controller, or lock editing with a password


• Project & fixture backup with WTOOLS app

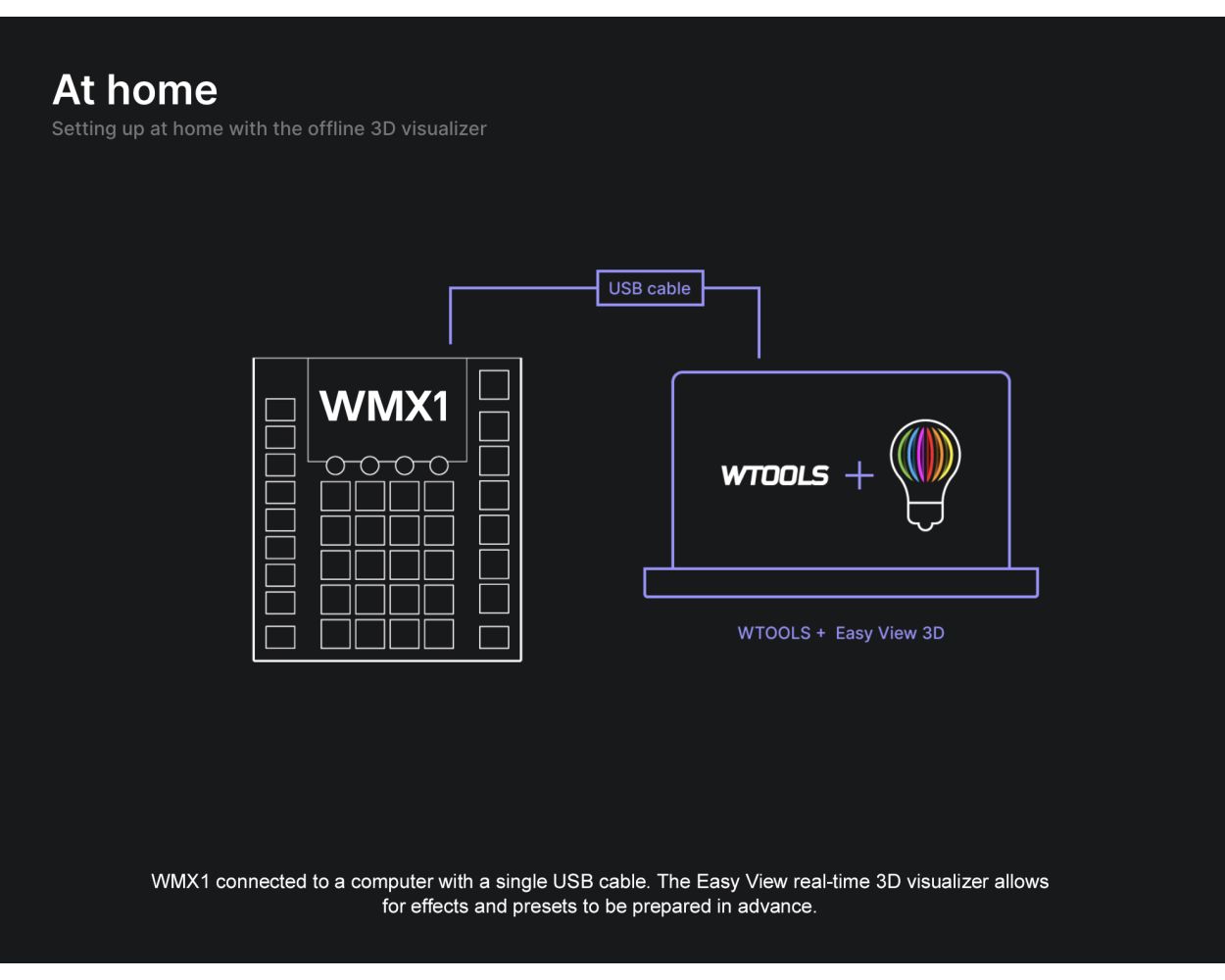

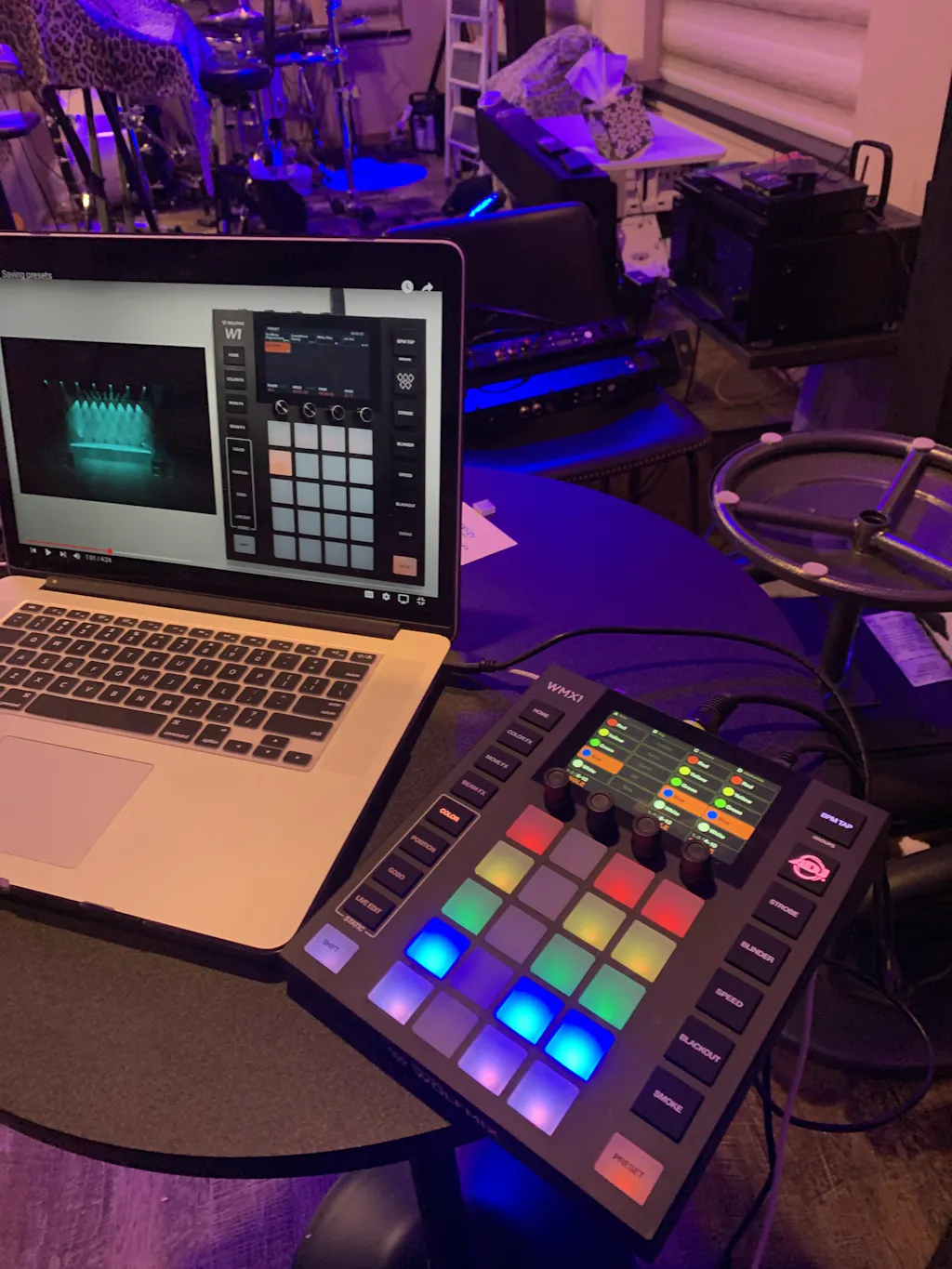

• Offline 3D visualization with Easy View & WTOOLS over USB*


• Auto-recovery of active project (no manual saving needed)


• Import different fixture setups into the same project


• Starts in under 2 seconds. Starts sending DMX in under 1 second


• Factory firmware startup recovery mode for times of crisis


Specifications:

• Setup


• Standalone (no computer needed)


• Compatible with any DMX device

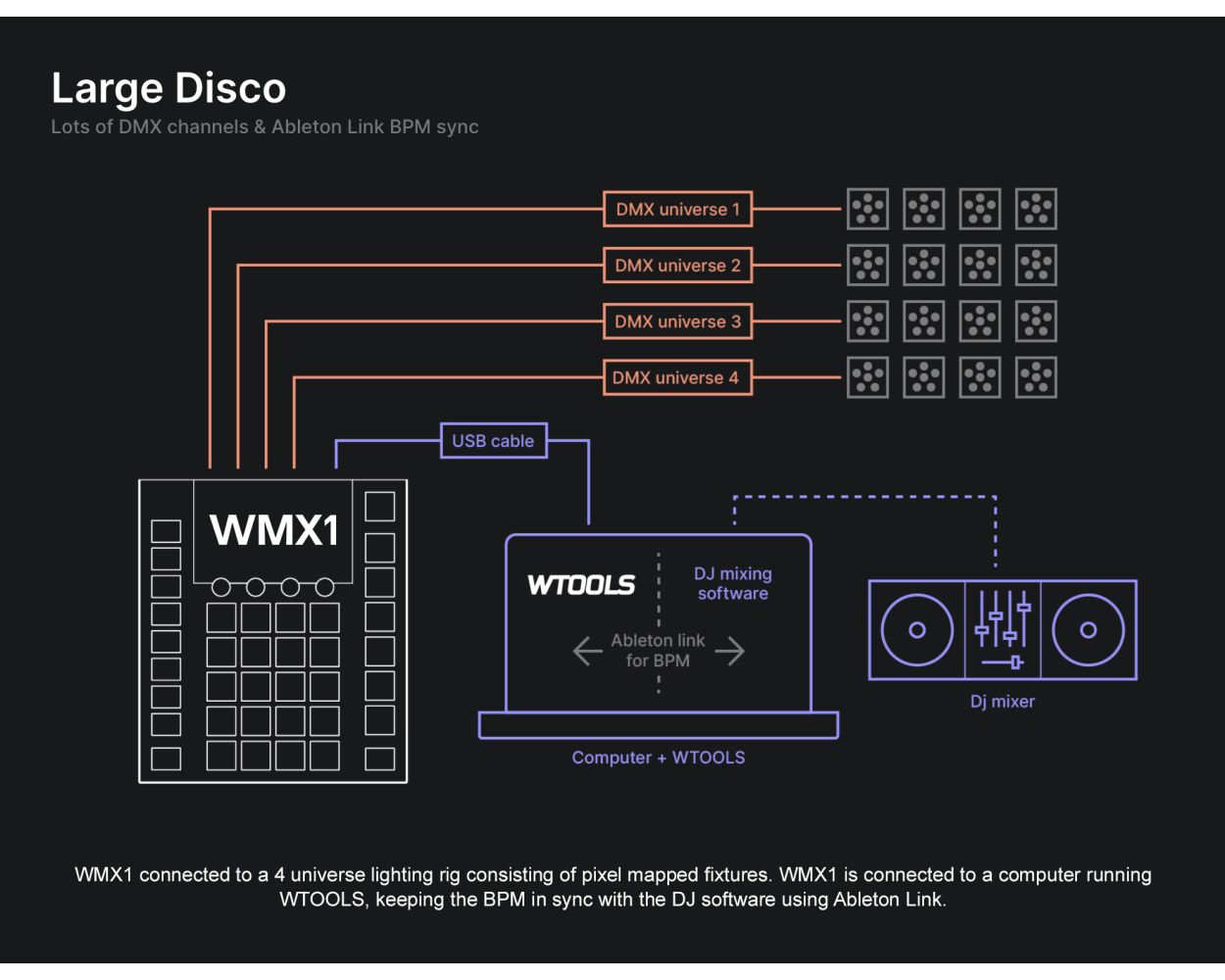

• Standard unit comes with 2 DMX universe but up to 2 additional universes are available as add-ons, which are sold via the WTOOLS app.


• Up to 680 fixtures & beams


• Up to 50 fixture types


• Up to 5000 fixture features (color/gobo etc...)


• 8 fixture groups


• 6 projects

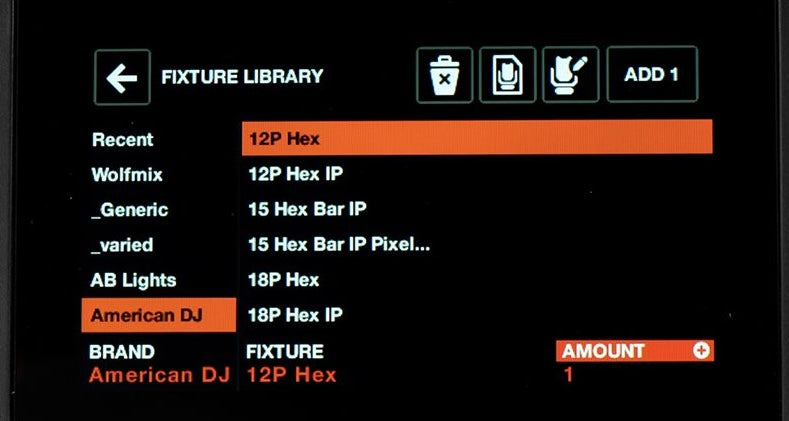

• 15000+ available fixtures (3500+ on the controller)


• DMX address, fixture order & group setup

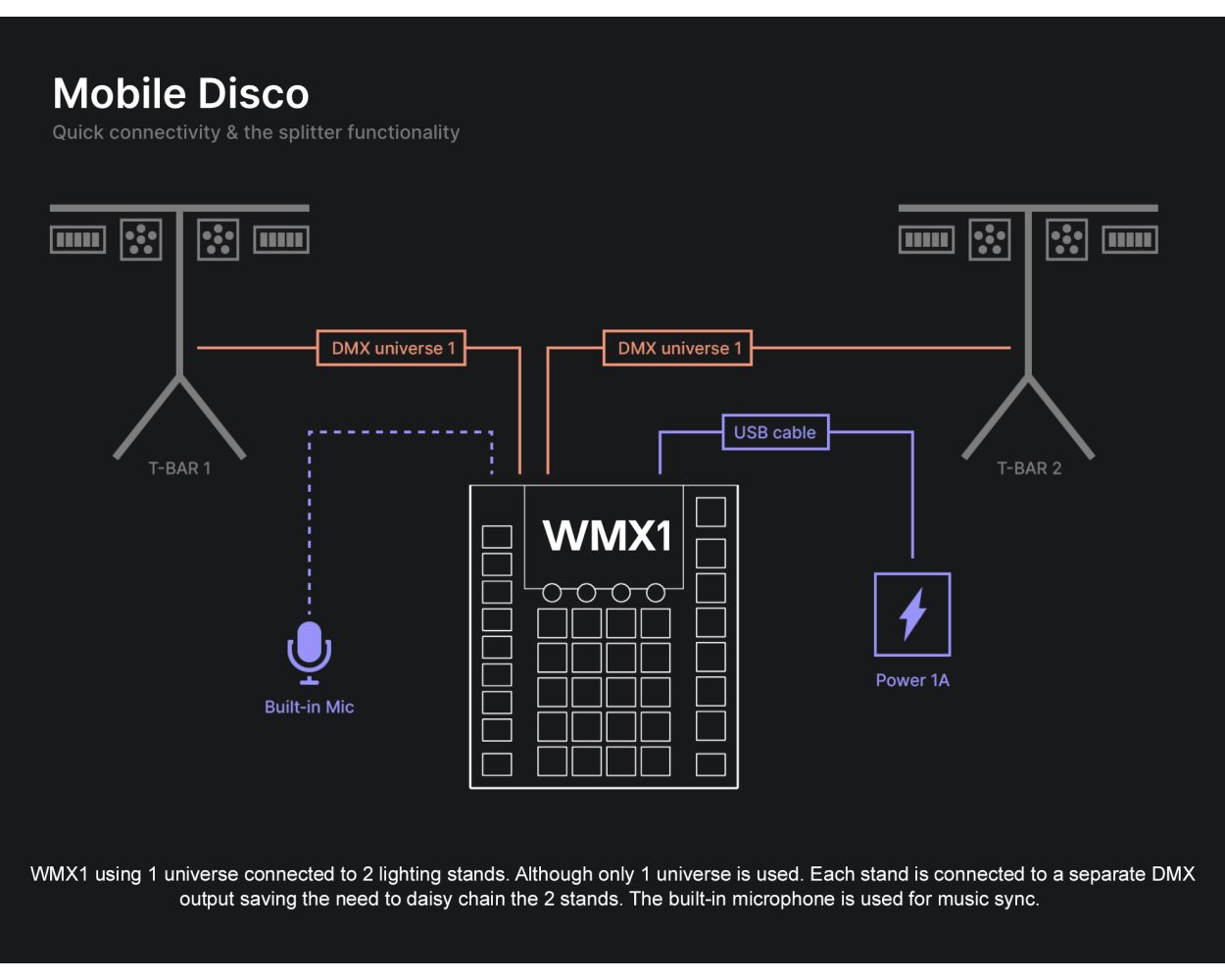

• Use as a DMX splitter with DMX universe mapping

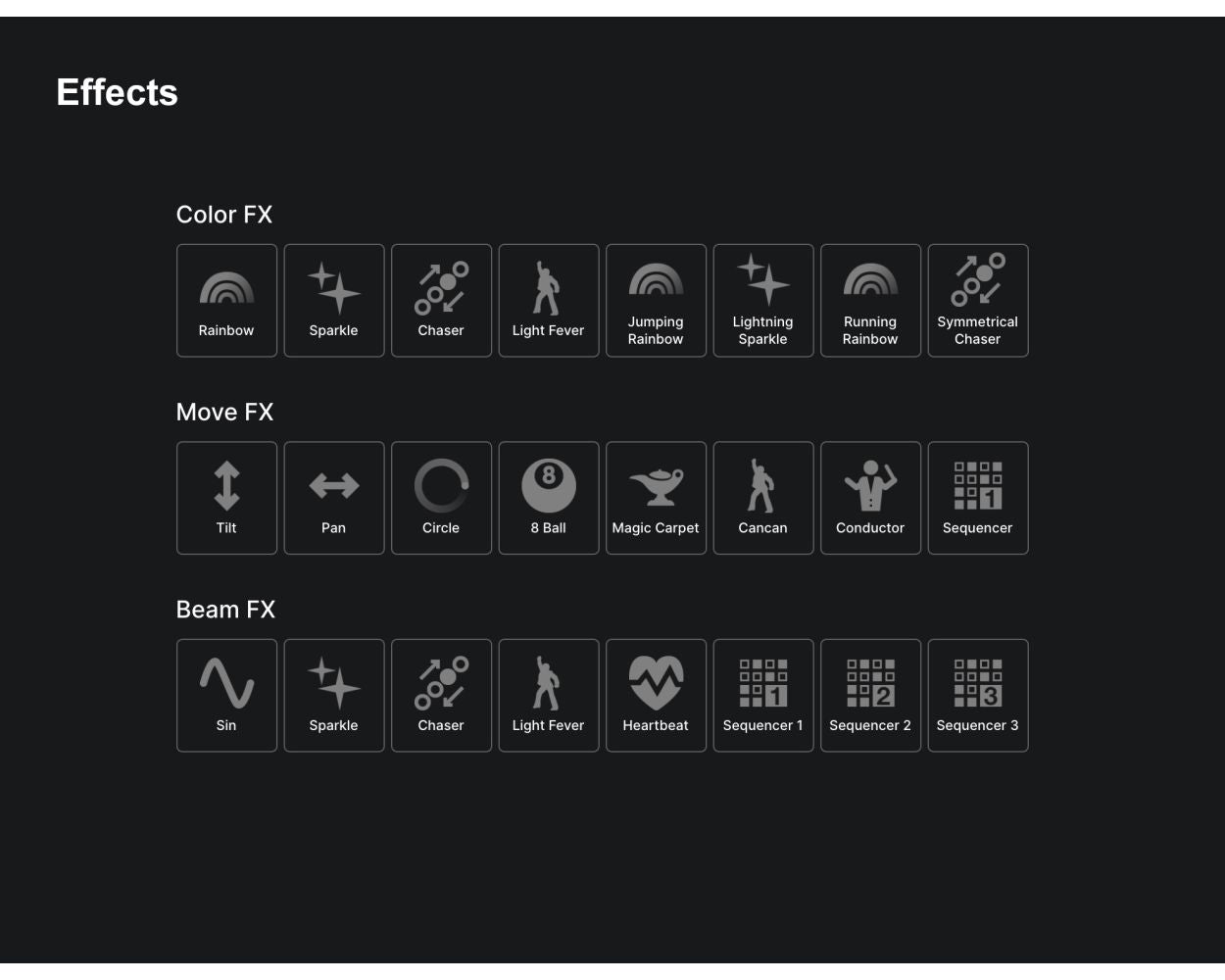

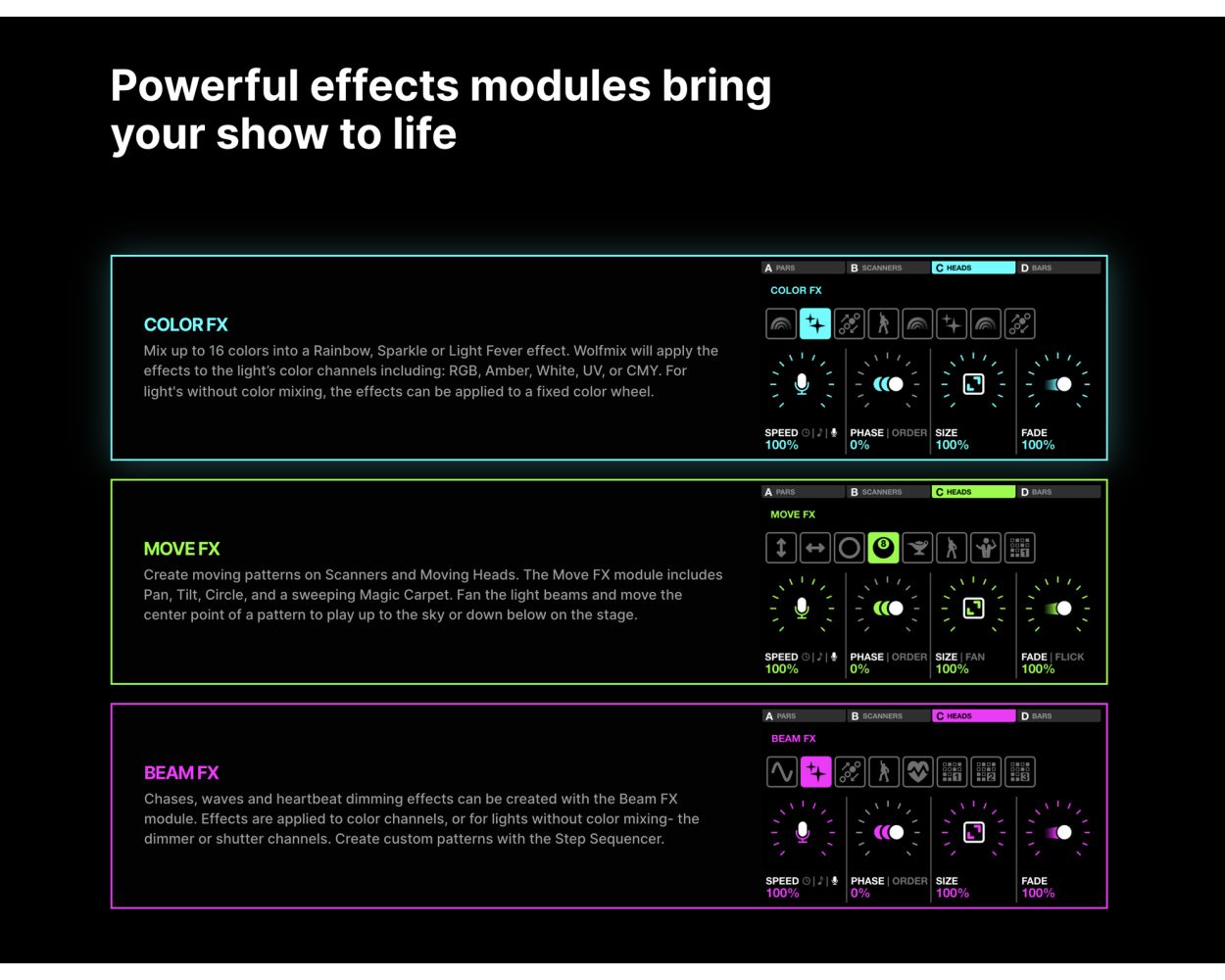

• Palettes & FX

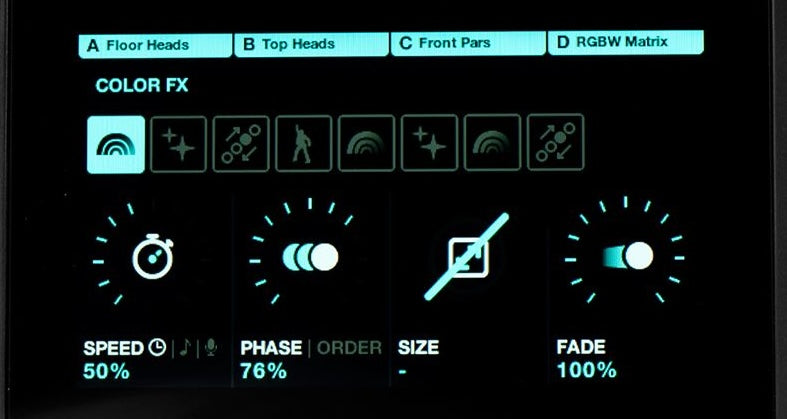

• Color FX module with 8 effect types & 16 definable colors

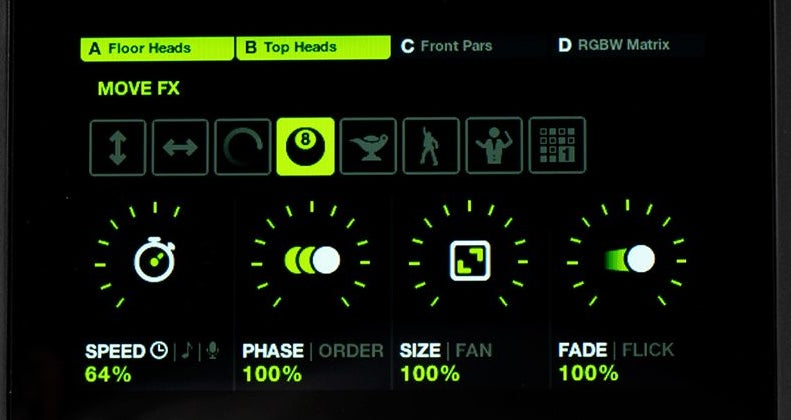

• Move FX module with 8 effect types

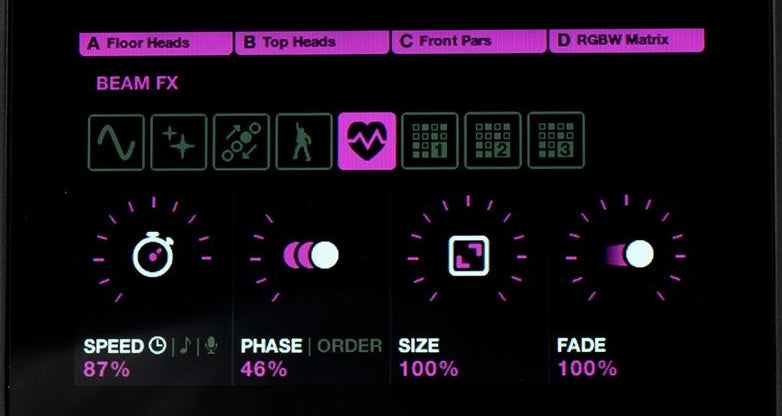

• Beam FX module with 8 effect types


• 6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout & Smoke

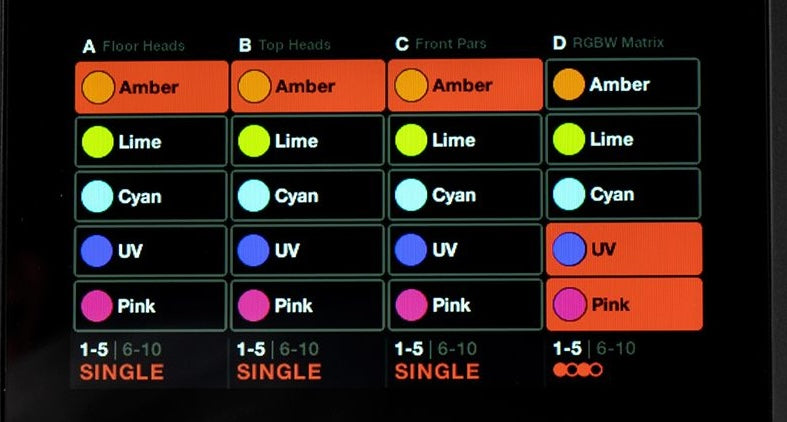

• Static color palette with 10 user definable colors per group & gradient control


• Static position palette with 5 user definable positions per group with fade & fanning

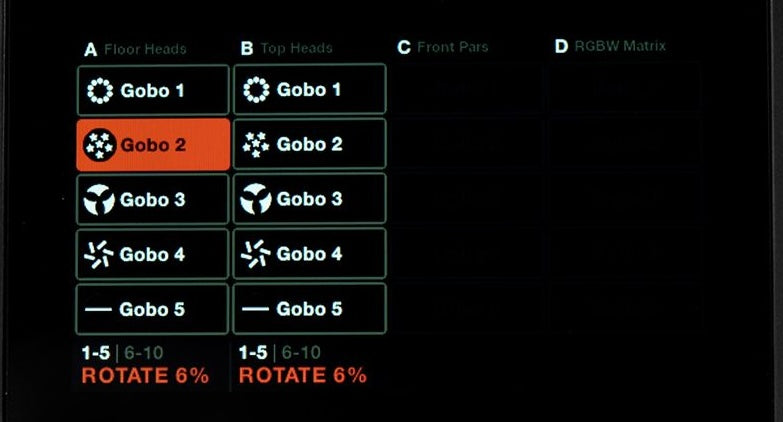

• Gobo palette with 5 user definable gobos per group

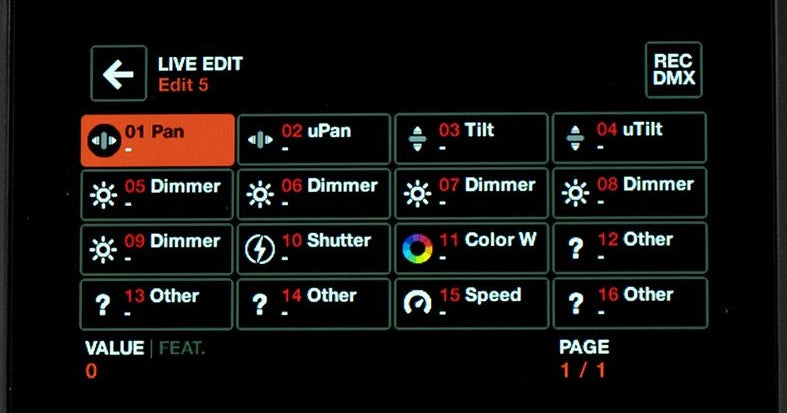

• 20 namable live edit buttons with flash triggering mode and ‘Park’ function


• 100 namable presets for storing snapshots with hold and fade timings


• Preset playback cue list- all presets or per page of 20 presets


• Control & Sync


• Group and master dimming with encoder acceleration


• Group FLASH, FULL and Blackout


• 16 bit Pan/Tilt control


• Multi-beam LED bar control


• FX music pulse sync from Microphone or Line-In


• FX BPM sync with Ableton Link, OS2L or BPM TAP


• Effect Speed, Phase, Order, Size, Fade, Fan & Flick


• Live control of move FX registration point


• Global FX speed and freeze control


• Map DMX IN with group dimmer and patch to output channels*

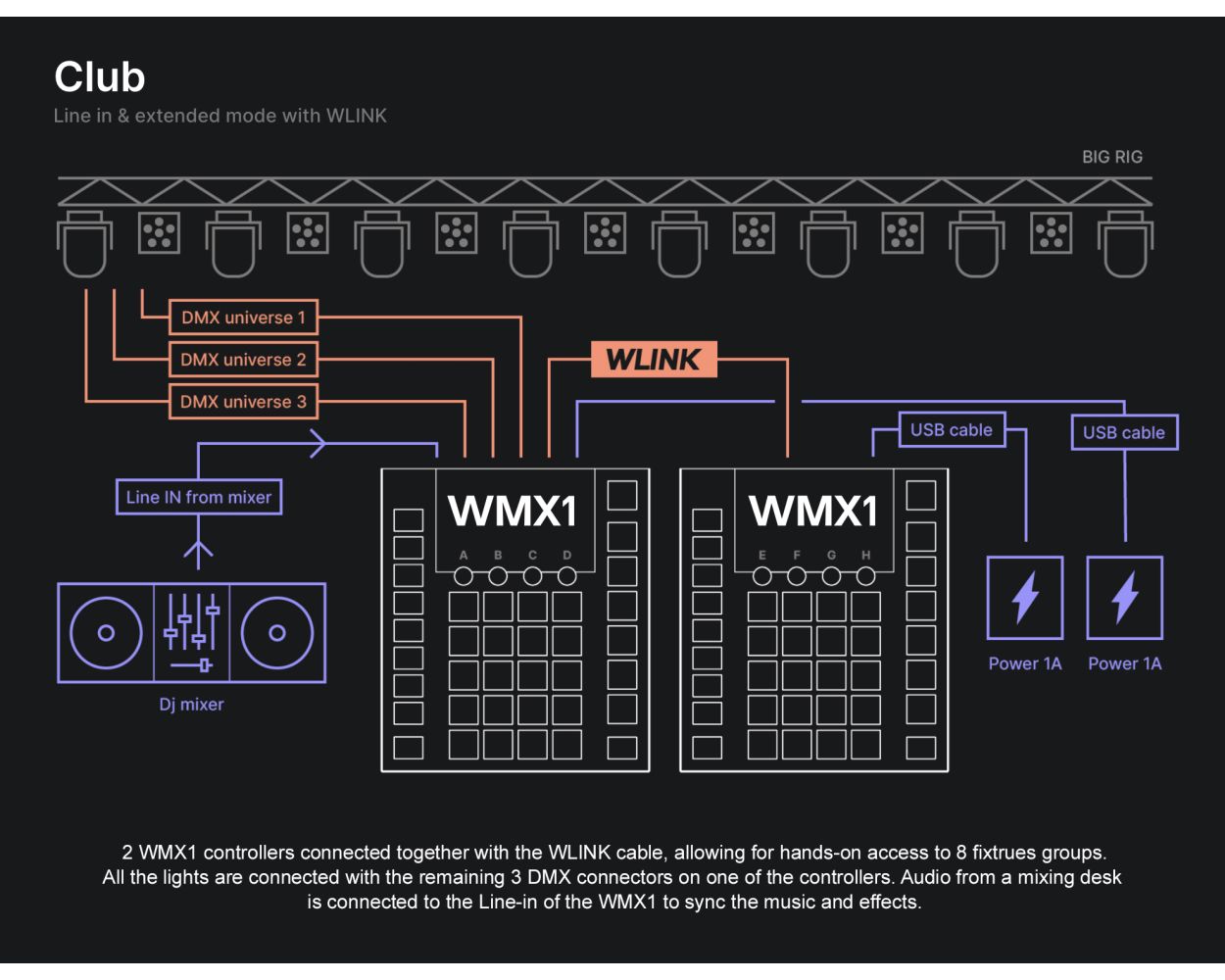

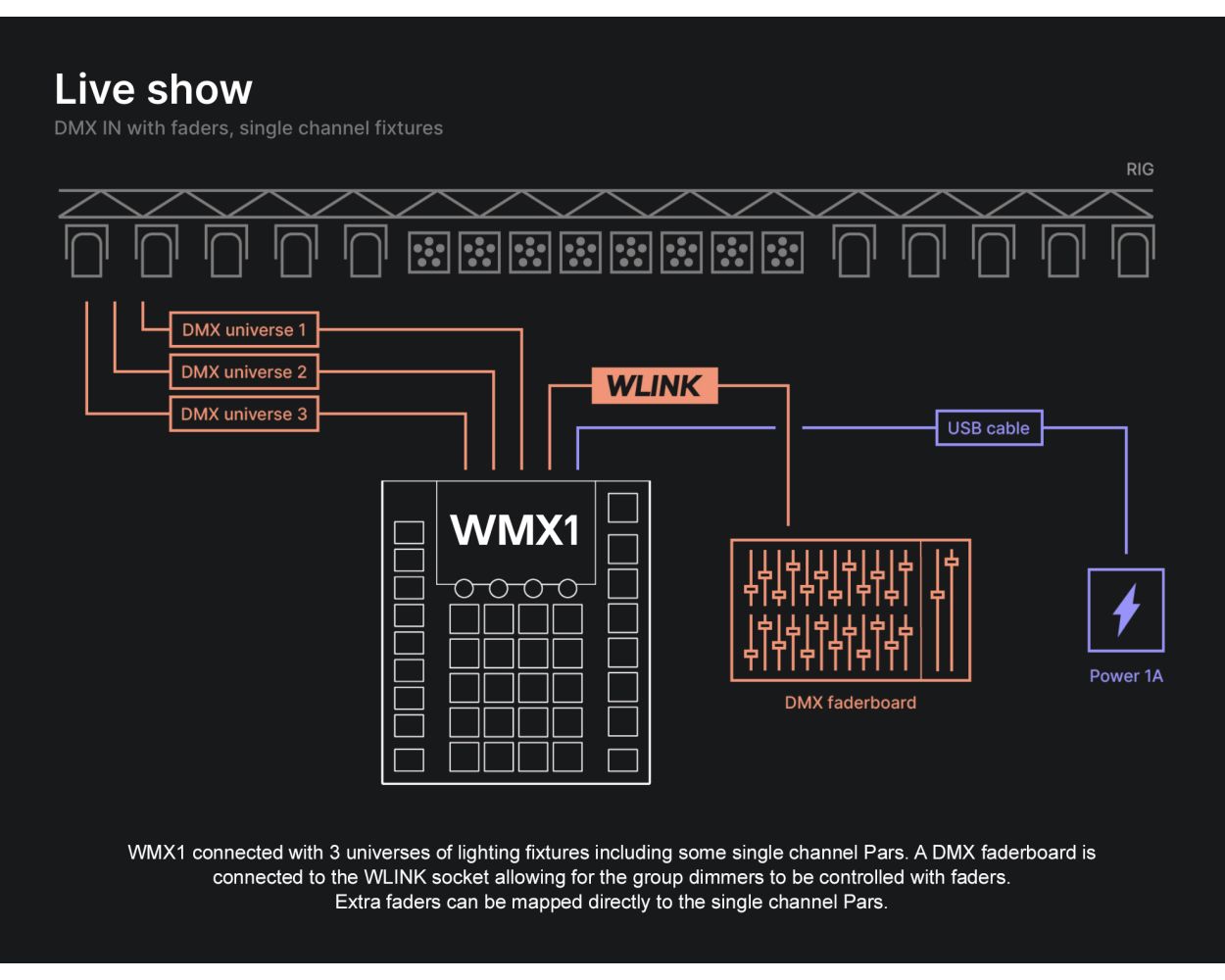

• WLINK - sync with another Wolfmix controller


• Built In Tools


• Fixture Builder


• Fixture calibration tool, to limit the area of moving fixtures


• X-Y touch controlled positioning grid


• RGBW touch controlled color picker


• 8-step real time sequencer for creating beam and move FX


• Live view of DMX levels with default value override and DMX channel tester


• Beam Editor to override Min and Max values used in generated FX


• Display

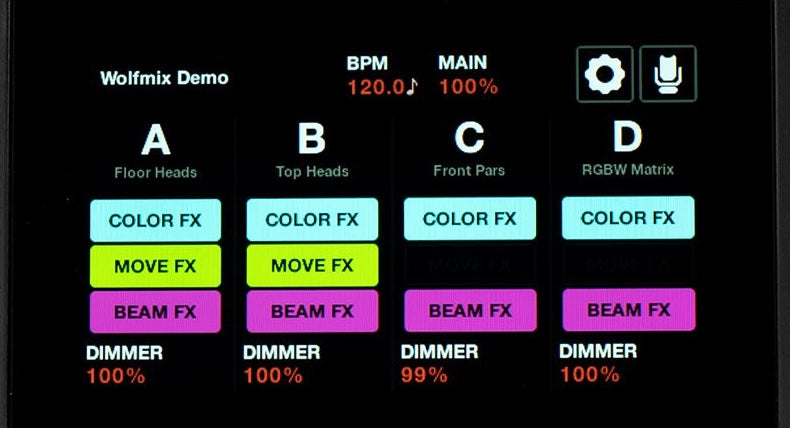

• 4.3” Color TFT with tinted glass


• Capacitive touch

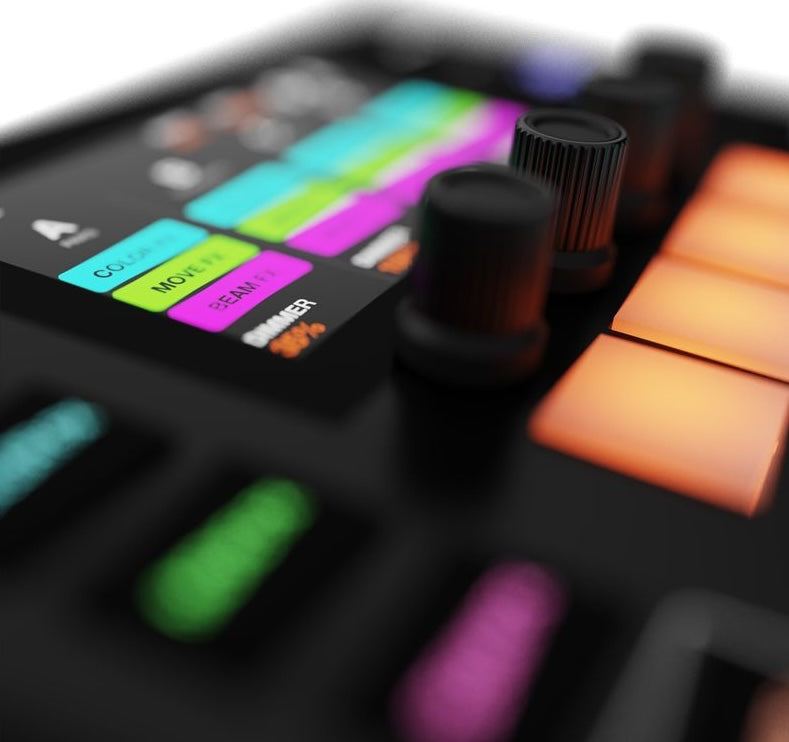

• Encoders


• Full body alloy


• Incremental push with acceleration


• Button Pads


• 37 Silicone buttons with matt oil finishing


• LED color backlit


• Processing


• 220Mhz CPU with ARM core


• 8MB RAM


• 16MB Flash


• Audio


• 220Mhz CPU with ARM core


• 8MB RAM


• 16MB Flash

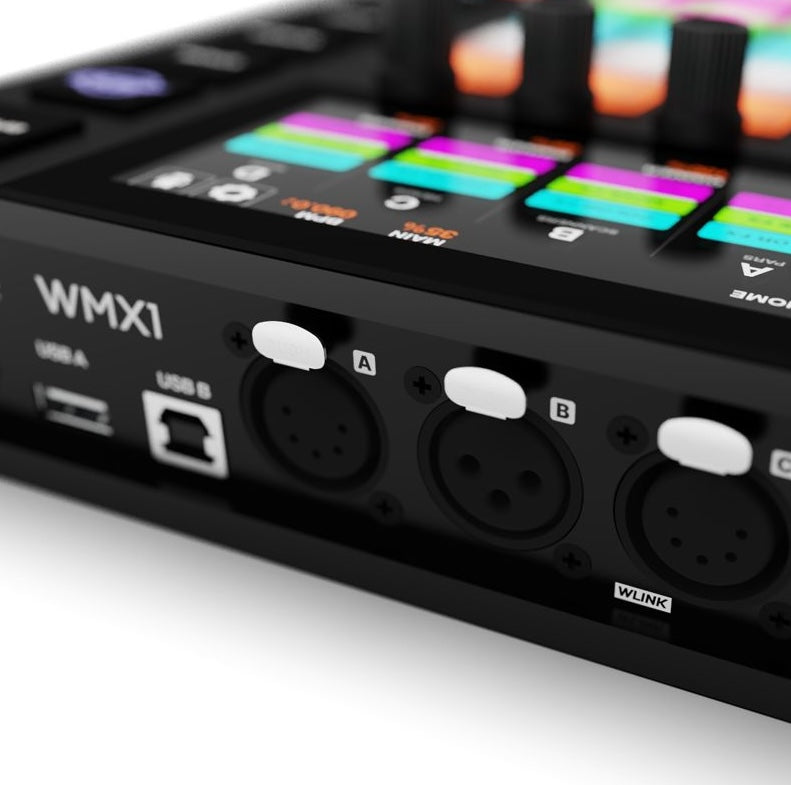

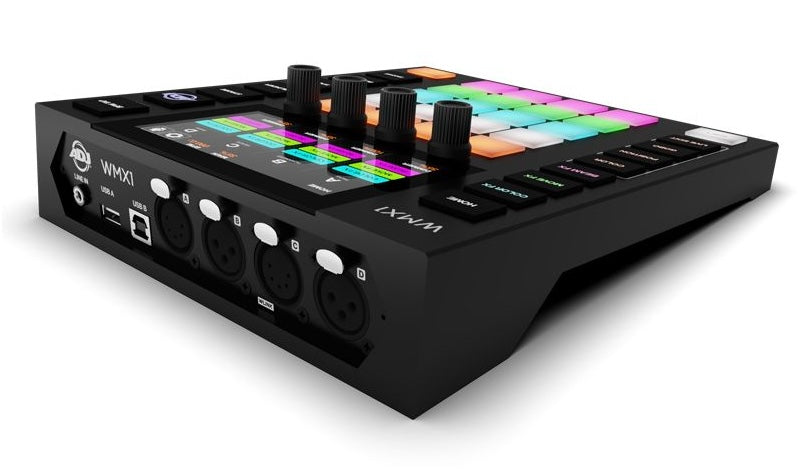

• DMX


• 2x 3pin DMX OUT XLR connectors


• 1x 5pin DMX OUT XLR connector


• 1x 5pin DMX IN/OUT XLR connector with WLINK


• USB


• USB B powered


• USB A port for MIDI over USB and project loading & back-up


• Sync with Ableton Link & OS2L via a computer


• Link with MIDI faders and sync with MIDI clock


• Backup projects and fixtures to a memory stick


• Housing


• ABS Plastic


• Powder-coated steel base plate with 100mm VESA (M4 6mm max)


• Powder-coated steel reinforced back plate


• Size & Weight


• 95 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in


• 1070g / 2.36lb


Optional Upgrades:

• Easy View 3D Visualizer


• WLINK (+DMX IN)


• Additional DMX universes (Up to 2 more can be purchased)
