WMX1 Mk3

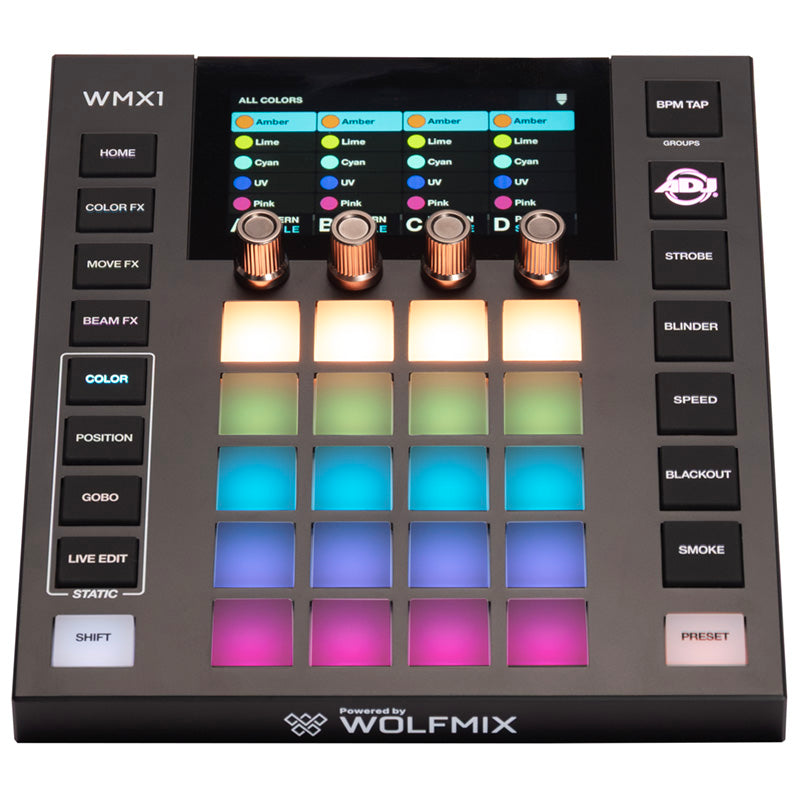

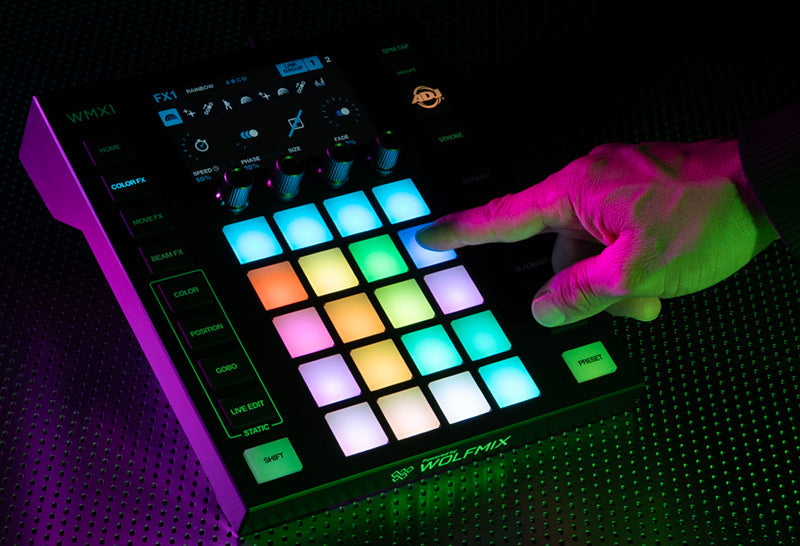

The ADJ WMX1 MK3 is a standalone DMX lighting controller powered by WOLFMIX for professional lighting control without the need for a computer.

From the Manufacturer

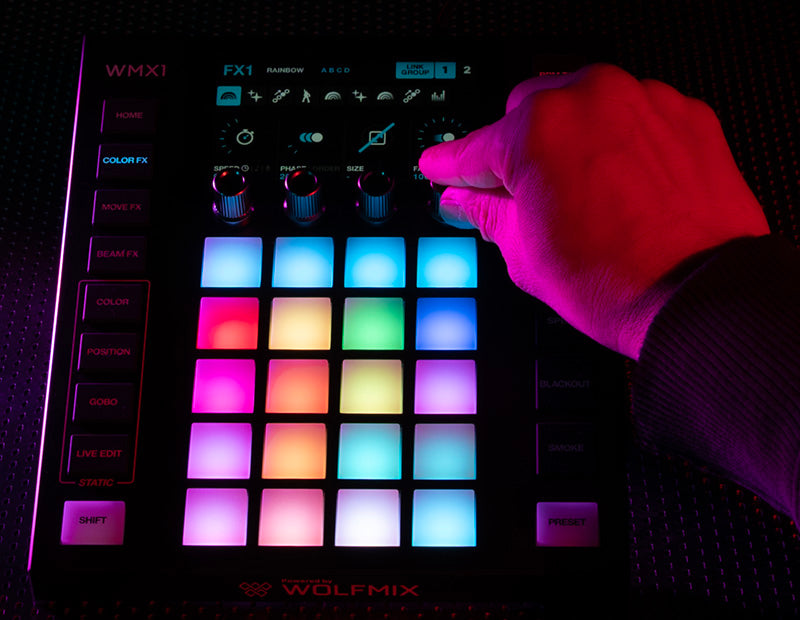

The ADJ WMX1 MK3 brings professional-grade DMX lighting control to users who demand power, flexibility, and simplicity. Designed as a completely standalone solution, the WMX1 MK3 eliminates the need for a computer while providing intuitive control over complex lighting systems through its responsive 4.3-inch capacitive touchscreen interface.

Compatible with virtually any DMX fixture, the controller supports up to four DMX universes and 2,048 channels (additional universes available via optional add-ons), allowing control of up to 680 fixtures across 50 device types. With access to more than 15,000 fixture profiles and support for fixture grouping, addressing, sequencing, and project management, the WMX1 MK3 is equally at home in mobile entertainment, clubs, houses of worship, event production, and installation environments.

Create dynamic lighting shows with dedicated Color, Move, and Beam FX engines, each offering eight effect types and extensive customization options including speed, phase, size, fade, fan, sequence, and flicker controls. Built-in music synchronization can be driven by the onboard microphone, line input, Ableton Link, OS2L integration, or manual BPM tapping for perfectly timed effects.

For sophisticated multi-element fixtures, the WMX1 MK3 features Fixture Clusters, allowing a fixture to be divided according to its defined, named sections rather than simply splitting it into equal beams. This makes it easier to control fixtures that incorporate multiple functional lighting elements, such as pixel arrays, RGB rings, strobes, or other independently controllable sections. Each cluster can be recognized as a logical section of the fixture, providing more intuitive control and allowing complex multi-element fixtures to integrate more effectively with the WMX1 MK3's FX engines. Note: Fixture Clusters is currently in beta testing, with the official software release coming November 2026.

The WMX1 MK3 also features 200 preset slots for storing and instantly recalling lighting snapshots, advanced fixture tools such as FLIP and SPLIT functions, automatic gobo alignment across different fixture models, DMX channel testing, and time-controlled triggering of presets and flash buttons.

Additional expansion capabilities include DMX input mapping, WLINK synchronization between multiple Wolfmix controllers, offline 3D visualization with Easy View, and project backup and management through the WTOOLS application. Automatic project recovery ensures your show is always ready to go without the need for manual saving.

Building on the foundation established by the WMX1 and WMX1 MK2, the WMX1 MK3 introduces a refined industrial design and an all-new button mechanism, delivering enhanced responsiveness and a more satisfying tactile experience. With versatile DMX connectivity, MIDI support, USB integration, and a rugged design featuring an ABS enclosure and steel base plate with VESA mounting capability, the WMX1 MK3 provides an innovative and efficient solution for modern lighting control.

Featuring upgraded USB-C connectivity and a sleeker enclosure, the WMX1 MK3 incorporates a precision-molded housing engineered to align seamlessly with the new WMX WING expansion controller (coming Q4 2026). Together, they create a unified control ecosystem designed to work perfectly side by side, expanding creative possibilities while maintaining the intuitive workflow that has made Wolfmix controllers a favorite among lighting professionals.

Features

• Standalone DMX lighting controller – no computer required
• Compatible with virtually any DMX fixture
• Supports up to 4 DMX universes (2,048 channels total); additional universes require optional add-ons
• Controls up to 680 fixtures across 50 device types
• 15,000+ fixture profiles available (3,500+ stored on controller)
• 4.3-inch color TFT capacitive touchscreen with tinted glass surface
• Dedicated Color, Move, and Beam FX engines, each with 8 effect types
• Effect parameters including speed, phase, sequence, size, fade, fan, and flicker
• Music synchronization via built-in microphone or 3.5 mm line input
• BPM synchronization via Ableton Link, OS2L, manual BPM tap, or MIDI Clock over USB MIDI port
• 100 preset slots with hold and fade timing control
• 8 fixture groups and 6 project memories
• Fixture FLIP function and SPLIT function for multi-FX bars
• Fixture CLUSTERS function divides multi-element fixtures (pixel arrays, RGB rings, strobes, and other independently controllable elements) into defined, named sections for more intuitive control and enhanced FX engine integration – currently in beta testing, official software release coming November 2026
• Automatic gobo alignment across different fixture models
• DMX splitter functionality with universe mapping
• DMX input mapping with group dimmer and channel patching (requires optional add-on)
• WLINK synchronization between WMX1 controllers (requires optional add-on)
• Offline 3D visualization with Easy View and WTOOLS via USB (requires optional add-on)
• Project and fixture backup through the WTOOLS app, with automatic active-project restoration
• MIDI controller support, USB storage device support, and DMX channel tester
• Time-controlled flash and preset triggering
• Rugged ABS housing with powder-coated steel base plate and integrated 100 mm VESA mounting pattern
• Upgraded USB-C power connectivity
• Precision-molded housing designed to align side by side with the new WMX WING expansion controller (coming Q4 2026)
• Recommended use: Mobile entertainment, DJs, clubs, houses of worship, event production, venues, installations

Specifications

Control & Performance

• Type: Standalone DMX lighting controller
• DMX Universes: Up to 4 (2,048 channels total)*
• Maximum Fixtures: 680
• Device Types: Up to 50
• Fixture Groups: 8
• Project Memories: 6
• Fixture Profiles: 15,000+ available (3,500+ stored on controller)
• Projects: Between 1 and 100, depending on project size and available memory

*Additional universes require optional add-ons. Certain advanced functions require additional purchases through the WTOOLS app.

Effects & Programming

• FX Engines: Color, Move, and Beam – 8 effect types each
• Effect Parameters: Speed, Phase, Sequence, Size, Fade, Fan, Flicker
• Preset Slots: 200, with hold and fade timing control
• Additional Tools: Live Move FX registration point control, global FX speed and freeze functions

Advanced Features

• Fixture Clusters: Divides fixtures into defined, named sections; supports pixel arrays, RGB rings, strobes, and other independently controllable elements (in beta testing – official software release coming November 2026)
• Fixture Tools: FLIP function, SPLIT function for multi-FX bars
• Other: MIDI controller support, USB storage device support, DMX channel tester, time-controlled flash and preset triggering

Synchronization

• Music Sync: Built-in microphone, 3.5 mm line input
• BPM Sync: Ableton Link, OS2L, manual BPM tap, MIDI Clock via USB MIDI port

Display

• Screen: 4.3-inch color TFT touchscreen
• Touch Technology: Capacitive
• Surface: Tinted glass

Audio

• Microphone: Built-in omnidirectional electret
• Line Input: 3.5 mm mini-jack

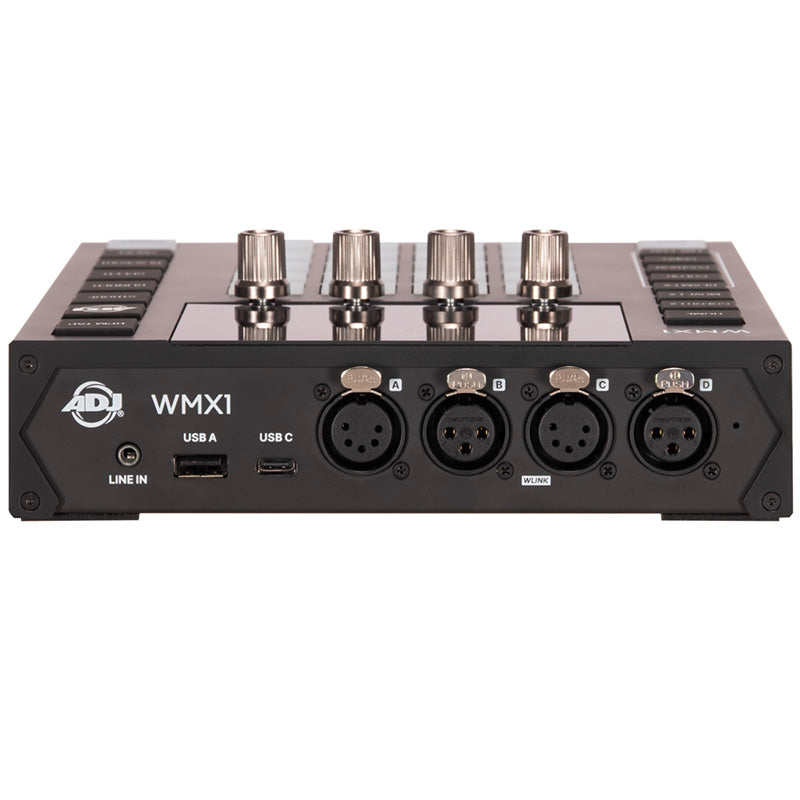

Connections

• DMX Outputs: 2 x 3-pin XLR, 1 x 5-pin XLR
• DMX In/Out: 1 x 5-pin XLR with WLINK
• USB-A: MIDI, MSD, and WLINK support (5V, 900mA)
• USB-C: Power input (900mA required; 1500mA recommended for MIDI/WLINK operation)

Construction

• Housing: ABS plastic
• Base Plate: Powder-coated steel
• Mounting: Integrated 100 mm VESA mounting pattern

Dimensions & Weight

• Dimensions (L x W x H): 7.68" x 8.66" x 2.44" (195 x 220 x 62 mm)
• Weight: 2.36 lbs. (1.070 kg)

Compatible Accessories

• WMX WING expansion controller (coming Q4 2026)

Optional Upgrades

• Easy View 3D Visualizer
• WLINK (+DMX IN)
• Additional DMX universes (up to 2 additional universes)
