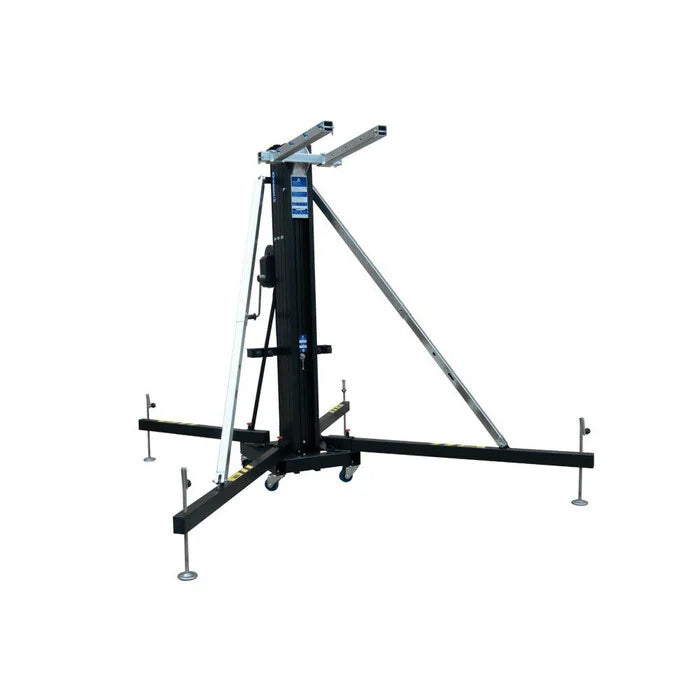

WTS506

A new take on vertical front load towers. It can be a great addition for those looking to shorten their setup times on larger events.

From the Manufacturer:

Introducing the WTS 506 from the revolutionary WTS Series, featuring the new Structural Mode that eliminates the winch and relies on a manual or electric hoist to lift the load. This mode utilizes the tower as a locked structure at the desired working height, with the hoist responsible for lifting the load. The Structural Mode enhances loading capacities while the WTS Series incorporates the innovative Dynamic Overlap system. This system increases tower resistance and reduces deflection by overlapping sections at varying distances, akin to the strength of trees. With concentrated efforts in all sections, the tower can withstand greater loads with minimal deflection. Please remember to order the desired accessory separately.

Features:

• Four extensible profiles made of extruded aluminum

• Reinforcing bars on the back and front of the lifter for additional reinforcement

• Castors at the base of the lifter

• Dynamic Overlap system

Specifications:

• Modes of operation: Mechanism Mode and Structural Mode

• Available color: Black

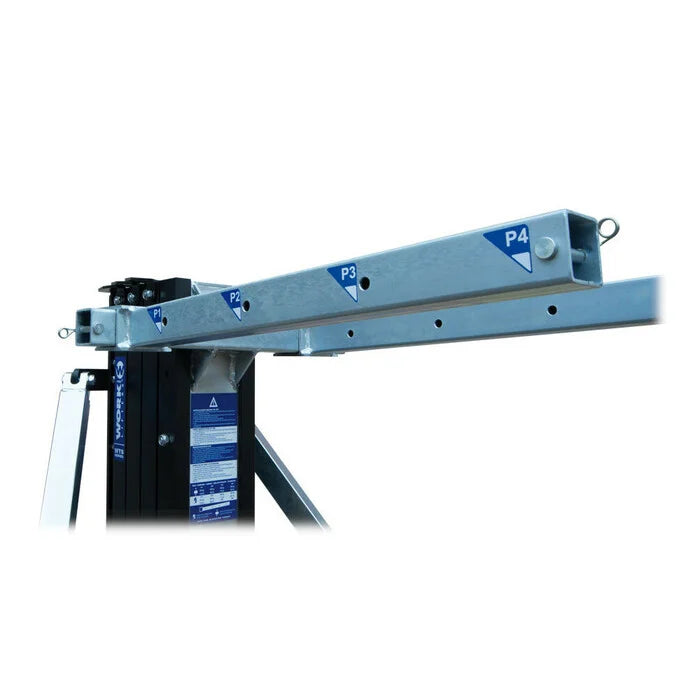

• Compatible accessories: AWS 402, AWS 302, AWS 401

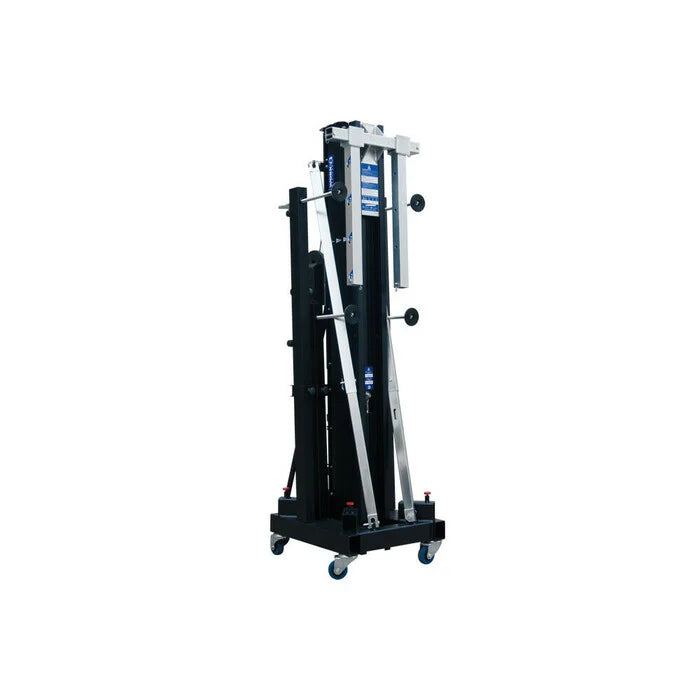

• Folded height: 6.33' (1.93 m)

• Base width: 1.90' (0.58 m)

• Base length: 1.71' (0.52 m)

• Maximum height: 19.95' (6.08 m)

• Minimum fork height: 2.29' (0.70 m)

• Unfolded diameter: 8.89' (2.71 m)

• Frontal side width: 6.92' (2.11 m)

• Rear side width: 5.09' (1.55 m)

• Fork length: 2.00' (0.61 m)

• Number of profiles: 4

• Minimum load capacity: 55.12 Lb (25 Kg)

• Max. load as mechanism: 1124.36 Lb (510 Kg)

• Max. load as structure: 1124.36 Lb (510 Kg)

• Net weight: 330.7 Lb (150 Kg)

• Winch: 1984.2 Lb (900 Kg)

• Cable diameter: 6 mm2

• Noise emissions: 71 dB
