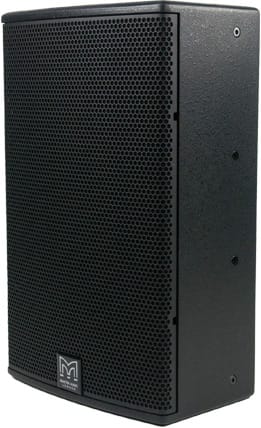

X10 10" 2-Way Passive Loudspeaker System with 90x50 Horn

The X10 is a passive loudspeaker intended for smaller portable sound systems. It is a great option for gigging bands or DJs.

From the Manufacturer:

The X10 is a high performance yet very compact two-way passive loudspeaker system which utilises a 10” (250mm)/2.5” (63mm) voice coil LF driver and a 1” (25mm) exit HF compression driver with a 1.4” (35mm) polyimide diaphragm. The rotatable 90° x 50° HF horn has equal horizontal and vertical mouth dimensions for directivity control in both planes.

Features:

• Compact passive two-way system

• Symmetrical multi-angle plywood enclosure

• User-rotatable 90° x 50° horn

• Vertical and horizontal orientation

• Screw-free, cloth-backed perforated steel grille

• Integral ergonomic handle

• Pole-mount bung maintains clean lines

• 8Ω nominal impedance

• Twin NL4 connectors

• Flexible mounting options via M8 inserts

Applications:

• Portable sound reinforcement

• Live music clubs

• Bars and restaurants

• Nightclubs

• Unobtrusive stage monitoring

• Corporate AV events and conferences

• Weddings and parties

• Main PA infill

• Secondary stages at festivals

• HoW, leisure centres and retail outlets

Specifications:

• Type

• Compact, passive two-way system

• Frequency Response

• 65Hz-20kHz ± 3dB, -10dB @ 55Hz

• Driver

• LF: 10” (250mm)/2.5” (63.5mm) voice coil, ferrite motor system

• HF: 1” (25mm) exit/1.4” (35mm) voice coil, polyimide dome compression driver

• Rated Power

• 250W AES, 1000W peak

• Sensitivity

• 94dB

• Maximum SPL

• 118dB continuous, 124dB peak

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• 90° H x 50° V (user-rotatable)

• Crossover

• 2.4kHz passive

• Enclosure

• Multi-angle birch/poplar ply

• Finish

• Black textured paint

• Protective Grille

• Black perforated steel with scrim cloth backing

• Connectors

• 2 x NL4 type

• Pin Connections (Input)

• 1+/1-

• Pin Connections (Link)

• 1+/- to 1+/-

• Fittings

• 19 x M8 inserts, pole-mount socket, 1 x bar handle

• Dimensions

• (W) 324mm x (H) 522mm x (D) 289mm

• (W) 12.8ins x (H) 20.6ins x (D) 11.4ins

• Weight

• 14kg

• 30.9lbs

• Accessories

• Wall bracket

• eyebolts
