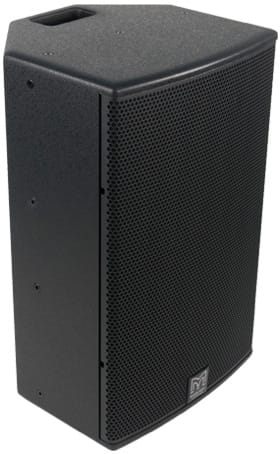

X12 Passive Loudspeaker

The Blackline X12 is a compact system for portable or install purposes on small to medium sized events.

From the Manufacturer:

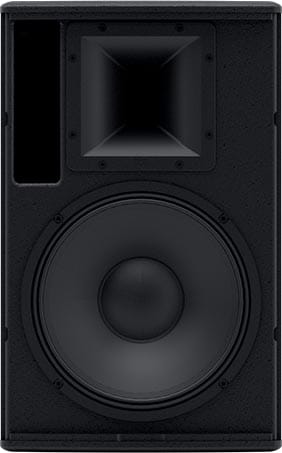

The Blackline X12 fulfils the requirement for a compact system that can deliver high sound levels — either as a stand-alone system or sup-plemented by a BlacklineX subwoofer. Featuring a 12” (300mm) LF driver unit and a 1” (25mm) exit compression driver on a user-rotatable horn, its 80° x 50° dispersion pattern is ideal for medium throw applications.

Features:

• Compact passive two-way system

• Symmetrical multi-angle plywood enclosure

• User-rotatable 80° x 50° horn

• Vertical and horizontal orientation

• Screw-free, cloth-backed perforated steel grille

• Integral ergonomic handle

• Pole-mount bung maintains clean lines

• 8Ω nominal impedance

• Twin NL4 connectors

• Flexible mounting options via M8 inserts

Applications:

• Portable sound reinforcement

• Live music clubs

• Bars and restaurants

• Nightclubs

• Unobtrusive stage monitoring

• Corporate AV events and conferences

• Weddings and parties

• Main PA infill

• Secondary stages at festivals

• HoW, leisure centres and retail outlets

Specifications:

• Type

• Compact, passive two-way system

• Frequency Response

• 62Hz-20kHz ± 3dB, -10dB @ 50Hz

• Driver

• LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system

• HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver

• Rated Power

• 300W AES, 1200W peak

• Sensitivity

• 97dB

• Maximum SPL

• 122dB continuous, 128dB peak

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• 80° H x 50° V (user-rotatable)

• Crossover

• 2.3kHz passive

• Enclosure

• Multi-angle birch/poplar ply

• Finish

• Black textured paint

• Protective Grille

• Black perforated steel with scrim cloth backing

• Connectors

• 2 x NL4 type

• Pin Connections (Input)

• 1+/1-

• Pin Connections (Link)

• 1+/- to 1+/-

• Fittings

• 20 x M8 inserts, pole-mount socket, 1 x bar handle

• Dimensions

• (W) 358mm x (H) 574mm x (D) 337mm

• (W) 14.1ins x (H) 22.6ins x (D) 13.7ins

• Weight

• 17kg

• 37.5lbs

• Accessoeries

• Wall bracket

• Eyebolts
