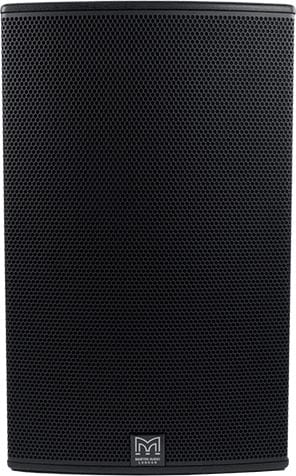

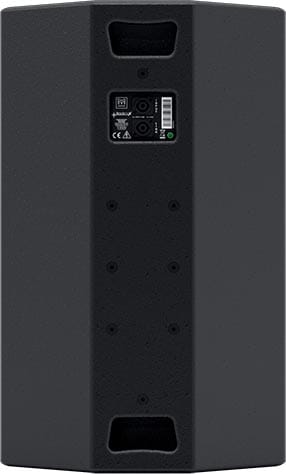

X15 Passive Speaker

The Blackline X15 is a portable loudspeaker for portable or install applications, that require high output from a single enclosure.

From the Manufacturer:

The Blackline X15 is a very high-power, passive two-way system designed for professional portable applications and installations that demand the ultimate in sonic performance from a single enclosure. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and impact.

Features:

• High power, passive two-way system

• Symmetrical multi-angle plywood enclosure

• User-rotatable 80° x 50° horn

• Vertical and horizontal orientation

• Screw-free, cloth-backed perforated steel grille

• Integral ergonomic handle

• Pole-mount bung maintains clean lines

• 8Ω nominal impedance

• Twin NL4 connectors

• Flexible mounting options via M8 inserts

Applications:

• Portable sound reinforcement

• Live music clubs

• Bars and restaurants

• Nightclubs

• Unobtrusive stage monitoring

• Corporate AV events and conferences

• Weddings and parties

• Main PA infill

• Secondary stages at festivals

• HoW, leisure centres and retail outlets

Specifications:

• Type

• High-power, passive two-way system

• Frequency Response

• 55Hz-20kHz ± 3dB, -10dB @ 45Hz

• Driver

• LF: 15” (380mm)/3” (75mm) voice coil, ferrite motor system

• HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver

• Rated Power

• 400W AES, 1600W peak

• Sensitivity

• 99dB

• Maximum SPL

• 125dB continuous, 131dB peak

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• 80° H x 50° V (user-rotatable)

• Crossover

• 2.2kHz passive

• Enclosure

• Multi-angle birch/poplar ply

• Finish

• Black textured paint

• Protective Grille

• Black perforated steel with scrim cloth backing

• Connectors

• 2 x NL4 type

• Pin Connections (Input)

• 1+/1-

• Pin Connections (Link)

• 1+/- to 1+/-

• Fittings

• 19 x M8 inserts, pole-mount socket, 2 x bar handles

• Dimensions

• (W) 427mm x (H) 690mm x (D) 419mm

• (W) 16.8ins x (H) 27.2ins x (D) 16.5ins

• Weight

• 24kg

• 52.9lbs

• Accessories

• Eyebolts
