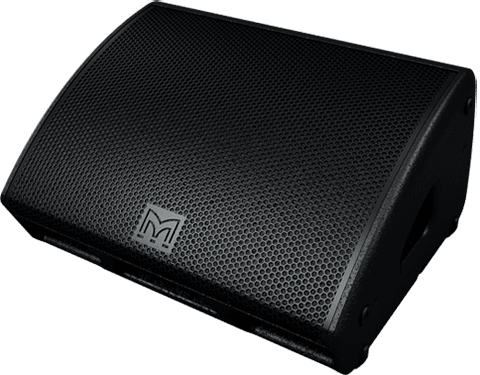

XE300 Coaxial Biamp/Passive Stage Monitor

The XE300 is a compact high quality stage monitor. It is a great option for providing audio to on stage performers.

From the Manufacturer:

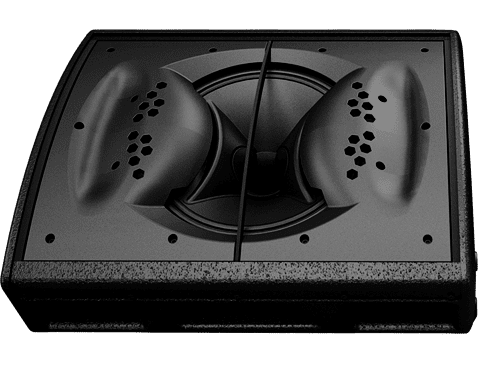

The XE300 is the definitive, high-performance compact monitor. It features a high-specification 12” (300mm) LF /1.4” exit HF Coaxial Differential Dispersion driver to deliver perfect sound over the artist’s listening plane. The LF driver section has a 3” (75mm) voice coil and efficient motor with an aluminium demodulating ring to minimise distortion, while the HF driver utilises a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.

Features:

• Very high-SPL, compact two-way stage monitor

• Coaxial ‘point source’ performance

• Differential Dispersion™ technology for consistent coverage

• Defined, rectangular coverage plane at head-height

• Complete system with compatible iKON amplifiers for consistent high performance

• Visually-appealing, low-profile plywood enclosures

• Built-in risers for steeper monitor angle when required

• Side panel rubber feet for extra protection when up-ended

• Easy to carry and manoeuvre

• M8 rigging inserts

Applications:

• Stage monitor

Specifications:

• Type

• Two-way, bi-amp/passive, Coaxial Differential Dispersion Stage Monitor

• Frequency Response

• 67Hz-18kHz ± 3dB,

• -10dB @ 55Hz

• Drivers

• LF: 12” (300mm)/3” (75mm) voice coil, dual-gap neodymium motor system

• HF: 1.4” (35mm) exit/3” (75mm) voice coil, titanium dome compression driver

• Rated Power

• LF: 350W AES, 1400W peak

• HF: 80W AES, 320W peak

• Maximum SPL

• Bi-amp: 140dB peak. Passive: 139dB peak

• System Amplifier

• iKON® iK42

• Nominal Impedance

• LF/FR: 6Ω

• HF: 8Ω

• Dispersion (-6dB)

• 60-30° horizontal, 90° vertical

• Crossover

• 1.1kHz

• Enclosure

• Birch/beech ply and hardwood

• Finish

• Textured black paint

• Protective Grille

• Black perforated steel with scrim cloth backing

• Baffle Angle

• 27.5° (40° with risers)

• Connectors

• 4 x NL4 type

• Pin Connections

• LF/FR: 1+/-, HF: 2+/-

• Fittings

• 2 x pocket handles

• Protective rubber feet on base and sides

• Built-in risers

• 4 x M8 inserts

• Dimensions

• (W) 550mm x (H) 290mm x (D) 470mm

• (W) 21.7ins x (H) 11.4ins x (D) 18.5ins

• Dimensions INCL Feet

• (W) 556mm x (H) 293mm) x (D) 470mm

• (W) 21.9ins x (H) 11.5ins x (D) 18.5ins

• Weight

• 19kg

• (41.9lbs
