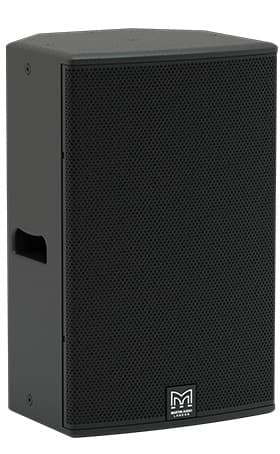

XP12 Compact Self Powered Speaker

The XP12 is a compact speaker. It is a a great option for smaller sized standalone systems, for stage monitors or with a subwoofer for medium sized event.

From the Manufacturer:

The XP12 is a compact, powered, two-way system designed by leading acoustic engineers. It can be used either as a stand- alone system, stage monitor or in conjunction with the XP118 powered subwoofer.

Features:

• Compact self-powered, portable two-way system

• 1300W of Class D amplification

• Global power supply with PFC (Power Factor Correction)

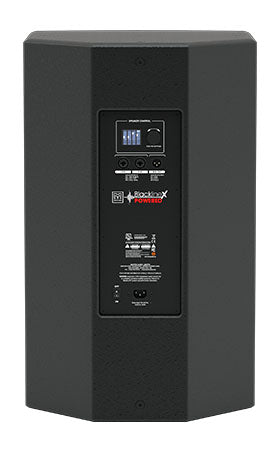

• Onboard DSP with rotary control interface

• Multi-function display for metering, control and function selection

• Three-channel mixer

• Three-band channel EQ, plus HPF (Ch1/2)

• Independent LF and HF peak and RMS limiters

• Three speaker mode and voicing presets

• Bluetooth® control and streaming option

• Durable plywood enclosure

• User-rotatable 80° x 50° HF horn

• Vertical and horizontal mounting options

• Symmetrical multi-angle enclosure for PA or stage monitor use

• Screw-free, cloth-backed steel grille

• Integral ergonomic handles

• Mounting options include pole-mount, wall bracket and flying inserts

Applications:

• Portable Sound Reinforcement

• Live Music Clubs

• Nightclubs, Bars and Restaurants

• Corporate AV

• Hotels and Casinos

• Mobile DJ’s

• Weddings and Parties

• HoW Installations

• Rehearsal Studios

Specifications:

• Type

• Compact self-powered two-way system

• Frequency Response

• 62Hz – 20kHz ±3dB, -10dB @ 50Hz

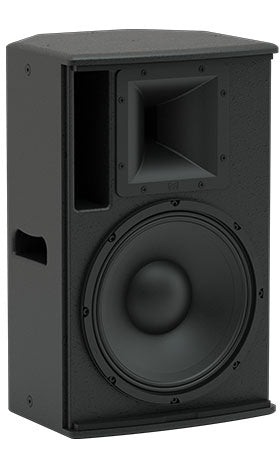

• Drivers

• LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system

• HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver

• Maximum SPL

• 122dB continuous, 128dB peak

• Dispersion (-6dB)

• 80° H x 50° V (user-rotatable)

• Crossover

• 2.3kHz active, 24dB/octave

• InputConnectors

• 2 x female XLR/ 1⁄4” jack combo

• Mic/Line Input Impedance

• 8 kΩ balanced

• 1⁄4” Jack TS Input Impedance

• 1 MΩ unbalanced

• MIX Output Connector

• 1 x male XLR

• MIX Output Impedance

• 600Ω balanced

• Input channel EQ

• 3-band on each channel plus HPF (Ch1/2)

• Speaker EQ

• 3 speaker mode/voicing presets

• Protection

• LF and HF Peak and RMS limiting, amplifier thermal protection

• Type

• 2 channel switch-mode, class D

• Peak Output Power\

• 1300W total

• 1000W LF, 300W HF

• Average Efficiency

• 89%

• Cooling

• External convection cooled

• Maximum Ambient Temperature

• 35°C (95°F) for full output

• Type

• Switch-mode, fixed frequency with PFC

• AC Input Operating Range

• 100-240V ~ AC, 50 - 60Hz

• Power Factor

• > 0.98

• Nominal Power Consumption

• 550W Max

• Mains Connector

• 3-pin IEC

• Enclosure

• Multi-angle birch/poplar ply

• Finish

• Black textured paint

• Protective Grille

• Black perforated steel with scrim cloth backing

• Fittings

• 17 x M8 inserts, pole-mount socket, 2 x pocket handle

• Dimensions

• (W) 358mm x (H) 574mm x (D) 318mm

• (W) 14.1in x (H) 22.6in x (D) 12.5in

• Weight

• 18kg

• 40lbs
