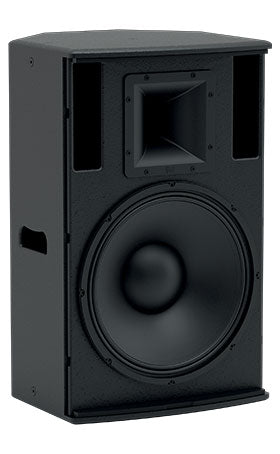

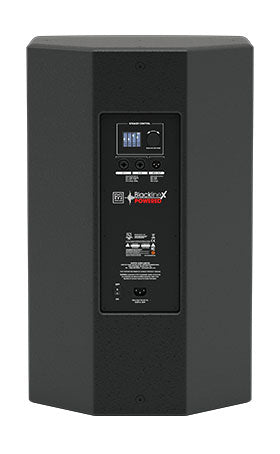

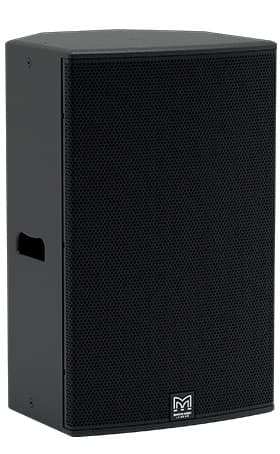

Blackline XP15 Speaker

The XP15 is an active loudspeaker designed for portable or install applications that require high audio output.

From The Manufacturer:

The XP15 is a self-powered two-way system designed by leading acoustic engineers for indoor portable applications and installations that require powerful performance from a single portable loudspeaker.

Features:

• High output, self-powered, portable two-way system

• 1300W of Class D amplification

• Global power supply with PFC (Power Factor Correction)

• Onboard DSP with rotary control interface

• Multi-function display for metering, control and function selection, Three-channel mixer

• Three-band channel EQ, plus HPF (Ch1/2)

• Independent LF and HF peak and RMS limiters

• Three speaker mode and voicing presets

• Bluetooth® control and streaming option

• Durable plywood enclosure

• User-rotatable 80° x 50° HF horn

• Vertical and horizontal mounting options

• Symmetrical multi-angle enclosure for PA or stage monitor use

• Screw-free, cloth-backed steel grille

• Integral ergonomic handles

• Mounting options include pole-mount and flying inserts

Applications:

• Portable Sound Reinforcement

• Live Music Clubs

• Nightclubs, Bars and Restaurants

• Corporate AV

• Hotels and Casinos

• Mobile DJ’s

• Weddings and Parties

• HoW Installations

• Rehearsal Studios

Specifications:

• Type

• High output, self-powered two-way system

• Frequency Response

• 55Hz – 20kHz ±3dB -10dB @ 45Hz

• Drivers

• LF: 15” (380mm)/3” (75mm) voice coil ferrite motor system

• HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver

• Maximum SPL

• 125dB continuous / 131dB peak

• Dispersion

• 80° H x 50° V (user-rotatable)

• Crossover

• 2kHz active, 24dB/octave

• Input Connectors

• 2 x female XLR/ 1⁄4” jack combo

• Mic/Line Input Impedance

• 8 kΩ balanced

• 1⁄4” Jack TS Input Impedance

• 1 MΩ unbalanced

• Mix Output Connector

• 1 x male XLR

• Mix Output Impedance

• 600Ω balanced

• Input channel EQ

• 3-band on each channel plus HPF (Ch1/2)

• Speaker EQ

• 3 speaker mode/voicing presets

• Protection

• LF and HF Peak and RMS limiting, amplifier thermal protection

• Type

• 2 channel switch-mode, class D

• Peak Output Power

• 1300W total

• 1000W LF, 300W HF

• Average Efficiency

• 89%

• Cooling

• External convection cooled

• Maximum Ambient Temperature

• 35°C (95°F) for full output

• Type

• Switch-mode, fixed frequency with PFC

• AC Input Operating Range

• 100-240V ~ AC, 50 - 60Hz

• Power Factor

• > 0.98

• Nominal Power Consumption

• 550W Max

• Mains Connector

• 3-pin IEC

• Enclosure

• Multi-angle birch/poplar ply

• Finish

• Black textured paint

• Protective Grille

• Black perforated steel with scrim cloth backing

• Fittings

• 13 x M8 inserts, pole-mount socket, 2 x pocket handles

• Dimensions

• (W) 427mm x (H) 690mm x (D) 407mm

• (W) 16.8in x (H) 27.2 x (D) 16.0in

• Weight

• 26kg (57lbs)
