ZC-BOB

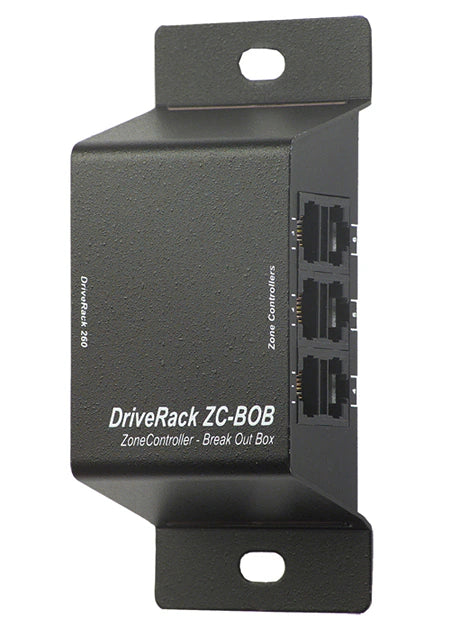

The dbx ZC-BOB is a wall-mounted breakout box designed to simplify the connection of multiple dbx ZC Series Zone Controllers to compatible DriveRack® and ZonePRO™ processors. It supports home-run or parallel wiring configurations, making it a practical solution for commercial and installed audio systems using CAT5 cabling.

From The Manufacturer:

The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting.

Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

The ZC-BOB allows “home run” or parallel wiring to the DriveRack and ZonePRO devices.

Key Features:

• Wall-mounted breakout box

• Designed for dbx ZC Series Zone Controllers

• Allows home-run or parallel wiring

• Supports up to 6 ZC wall-panel controllers

• 6 × RJ-45 controller input connections

• 1 × RJ-45 output connection

• Connects to compatible DriveRack or ZonePRO processors

• Uses standard CAT5 or CAT5e cabling

• Supports cable runs up to 1000 ft in parallel configurations

• Designed for installed audio applications

Specifications:

• Product Type: Zone Controller Breakout Box

• Series: dbx ZC Series

• Controller Inputs: Up to 6 × RJ-45

• Processor Output: 1 × RJ-45

• Wiring Configuration: Home Run / Parallel

• Maximum Controllers: 6

• Maximum Parallel Cable Distance: 1000 ft (305 m)

• Cable Type: CAT5 or CAT5e

• Cable DCR: 28.6 Ω/1000 ft nominal or lower

• Cable Rating: VW-1 or Higher

• Safety Certifications: UL 60065, IEC 60065, EN 55013, E60065

• Mounting: Wall Mounted

Included:

• dbx ZC-BOB Breakout Box

Applications:

• Commercial audio installations

• Multi-zone audio systems

• Restaurants

• Hospitality venues

• Houses of worship

• Conference facilities

• Retail environments

• Educational facilities

• Entertainment venues

Accessories (Not Included):

• dbx ZC Series Zone Controllers

• Compatible DriveRack processor

• Compatible ZonePRO processor

• CAT5/CAT5e cabling

• Installation hardware as required
